Description
The EXT-UHD600-41 is a compact 4×1 HDMI switcher designed to route up to four Ultra HD sources to a single 4K display. It supports HDMI 2.0 feature set and delivers pixel-accurate video for demanding AV installations. The unit is intended for commercial and residential AV systems requiring future-proof 4K60 4:4:4 performance.
This switcher supports resolutions up to DCI 4K (4096 x 2160) at 60 Hz 4:4:4 and Ultra HD 3840 x 2160 at 60 Hz 4:4:4, plus HDR and high color depths. It also handles HDCP 2.2 and legacy HDCP 1.4 for protected content. Multichannel audio is fully supported including LPCM up to 7.1 and HBR formats such as Dolby Atmos, Dolby TrueHD, DTS:X and DTS-HD Master Audio.
Performance is driven by a 600 MHz maximum pixel clock and full HDMI 2.0 signaling to preserve color fidelity and frame rates. HDR support includes 10-bit deep color handling at relevant 4K frame rates and 12-bit deep color support at 1080p. The device passes 3D and maintains lip sync accuracy for audiovisual alignment.

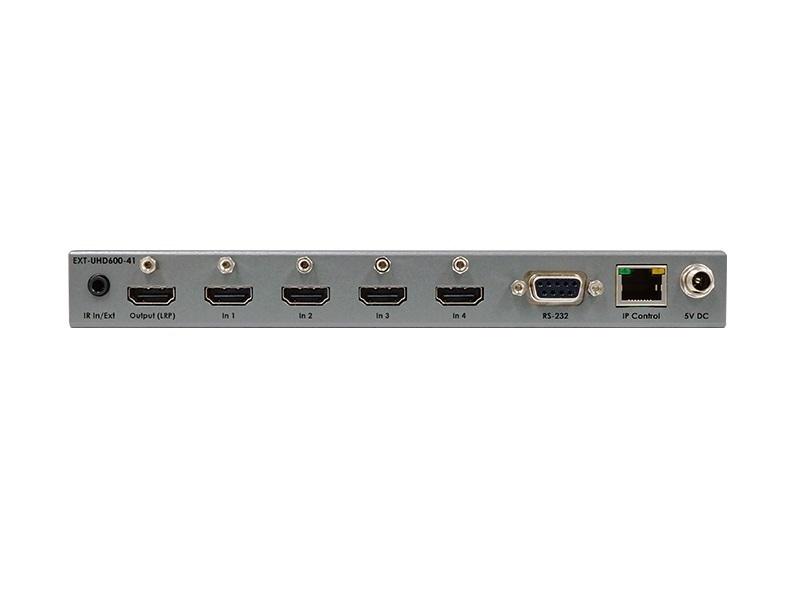

Connectivity includes four locking HDMI Type A inputs and one locking HDMI Type A output, plus RS-232 and an RJ-45 Ethernet port for control. The unit also includes an IR sensor and a 3.5 mm IR In/Ext jack plus a surface-mountable IR extender module to enable hidden installation. Long Reach Power provides 5V at 500 mA on HDMI pin 18 to power compatible extenders.
Typical applications include conference rooms, small auditoria, digital signage and residential AV where multiple 4K sources must be presented on a single display. The configurable automatic input switching and front-panel selector reduce end-user interaction. Advanced EDID and HDCP management via the built-in web server simplify integration with a variety of sources and displays.
Installation is straightforward thanks to a low-profile surface-mountable enclosure and a locking DC power connector for reliable operation. Network configuration is simplified with Gefen Syner-G Discovery and Show-Me features and in-field firmware updates are supported via the web server. The switcher offers a compact, robust solution for integrators needing true 4K60 4:4:4 switching and modern control options.
