Gefen EXT-DVI-CP-FM10 DVI Fiber Optic Extender( Sender/Receiver) Kit (Pigtail Modules)

Description

Pigtail module DVI extension using a single-strand multimode fiber optic cable with HDCP support.

The DVI fiber optic pigtail module extender with HDCP support extends DVI up to 1000 feet (300 meters) using single-strand 50/125µm multimode (OM2) SC-terminated fiber optic cable to a supporting display at 1920 x1200 WUXGA resolution. Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper based extension modules.

How It Works

The Sender pigtail end plugs into the DVI source. The Receiver pigtail end plugs into the display. Connect a single-strand 50/125µm multimode (OM2) SC-terminated fiber optic cable from the Sender module to the Receiver module and a vibrant Hi-Def picture will appear on your display. Note: The Sender module does not need to be externally powered unless the source does not supply enough power through the DVI connector.

Features:

Extends DVI up to 1000 feet (300 meters) using a single-strand 50/125µm multimode (OM2) SC-terminated fiber optic cable
Supports resolutions up to 1920 x 1200 (WUXGA)
Fiber optic transmission eliminates electromagnetic interference (EMI)
Pigtail design relieves stress and clutter on the source and display connector panels
DDC bidirectional support
HDCP pass-through
Compact Sender and Receiver modules provide a clean, easy installation
FCC and CE compliant for EMI/RFI emission

Product Diagrams

View Diagrams

Specifications

Specifications:

Maximum Pixel Clock: 165 MHz

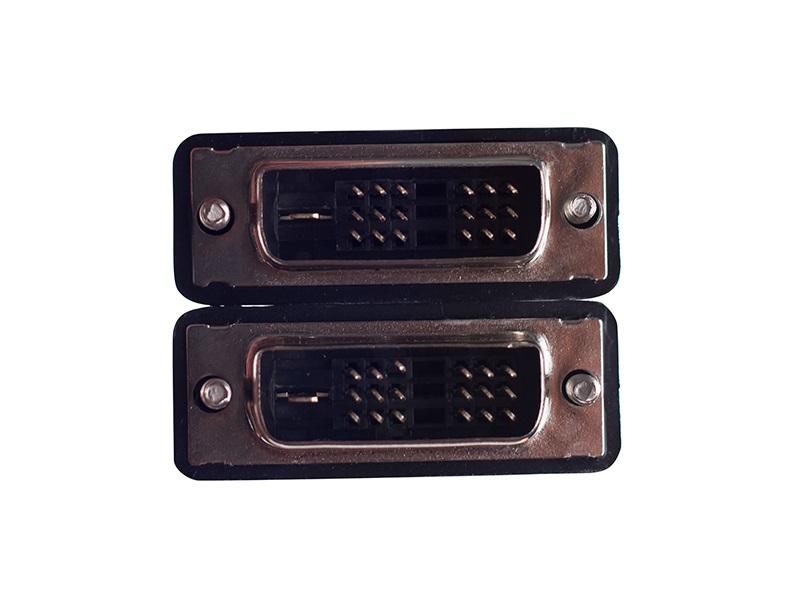

Video Input Connector (Sender): (1) DVI-D, 19-pin, male
Video Output Connector (Receiver): (1) DVI-D, 19-pin, male

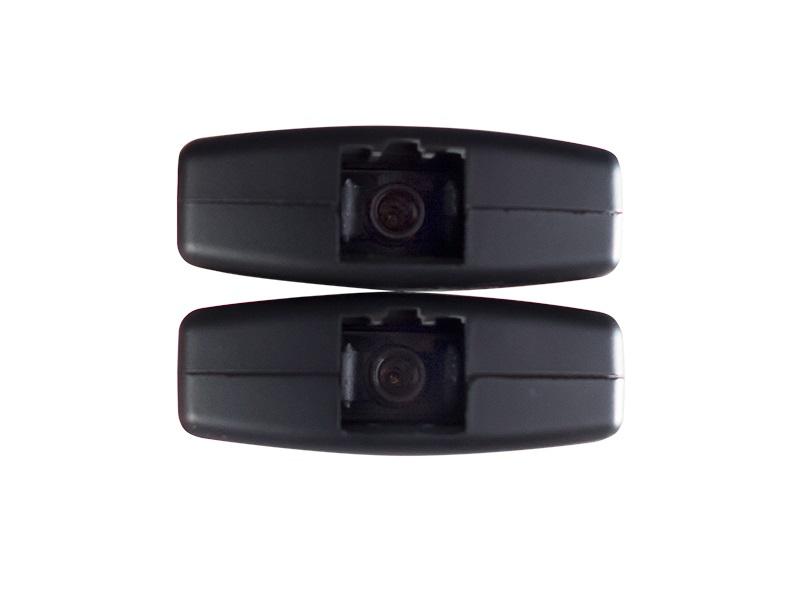

Link Connector (Sender/Receiver): (1) Type SC fiber (50 /125?m)
Power Supply (Receiver): 5V DC
Power Supply (Sender): 5V DC (not needed for most applications)
Power Consumption (Receiver): 1.5W (max.)
Operating Temperature: 0° to +50° C
Storage Temperature: -20° to +70° C
Relative Humidity: 10% to 80%
Dimensions (W x H x D): 1.54" x 0.63" x 11.49" (39.11mm x 16mm x 291.84mm)
Shipping Weight: 1 lb. (0.45 kg)
