Description

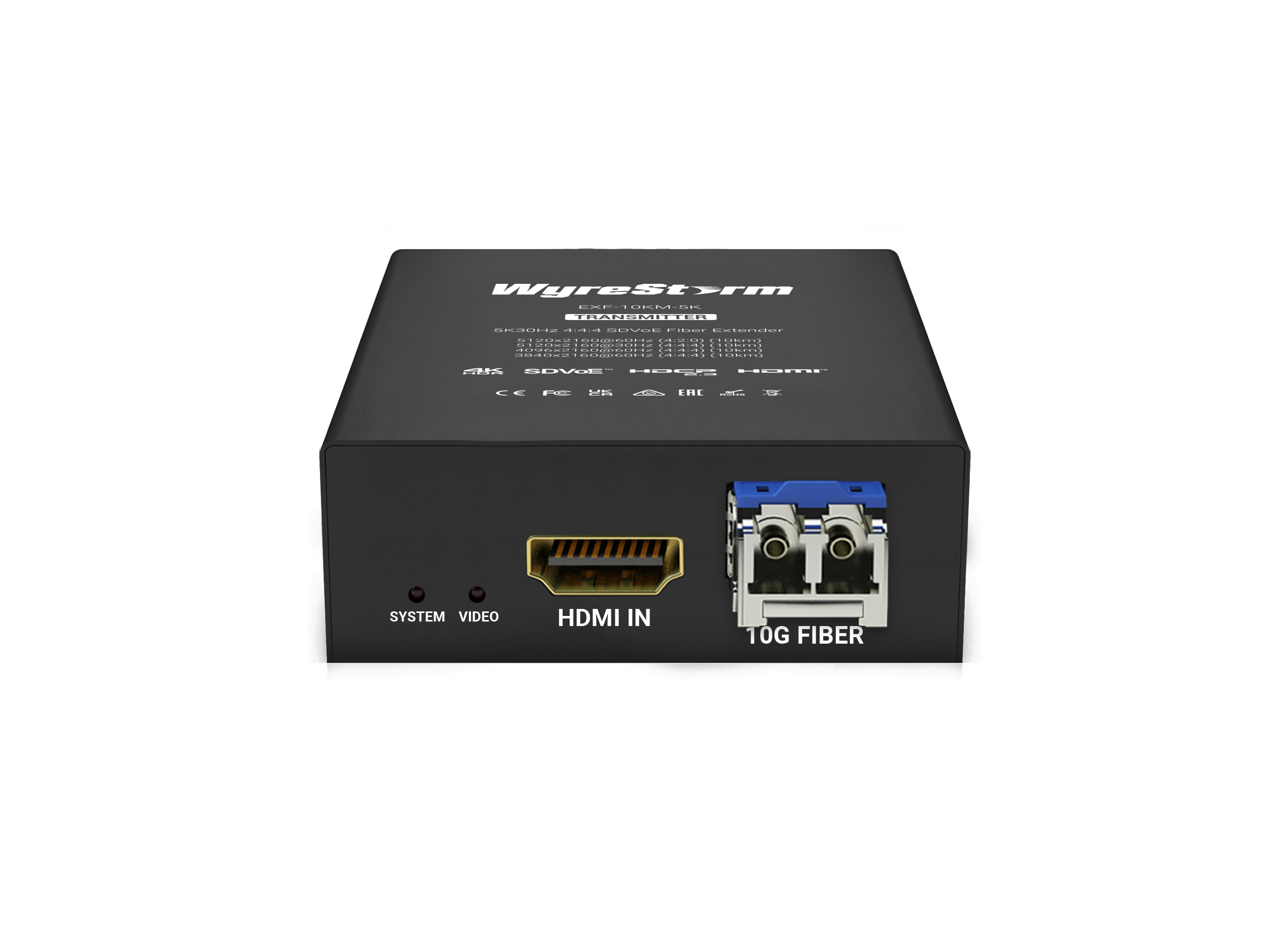

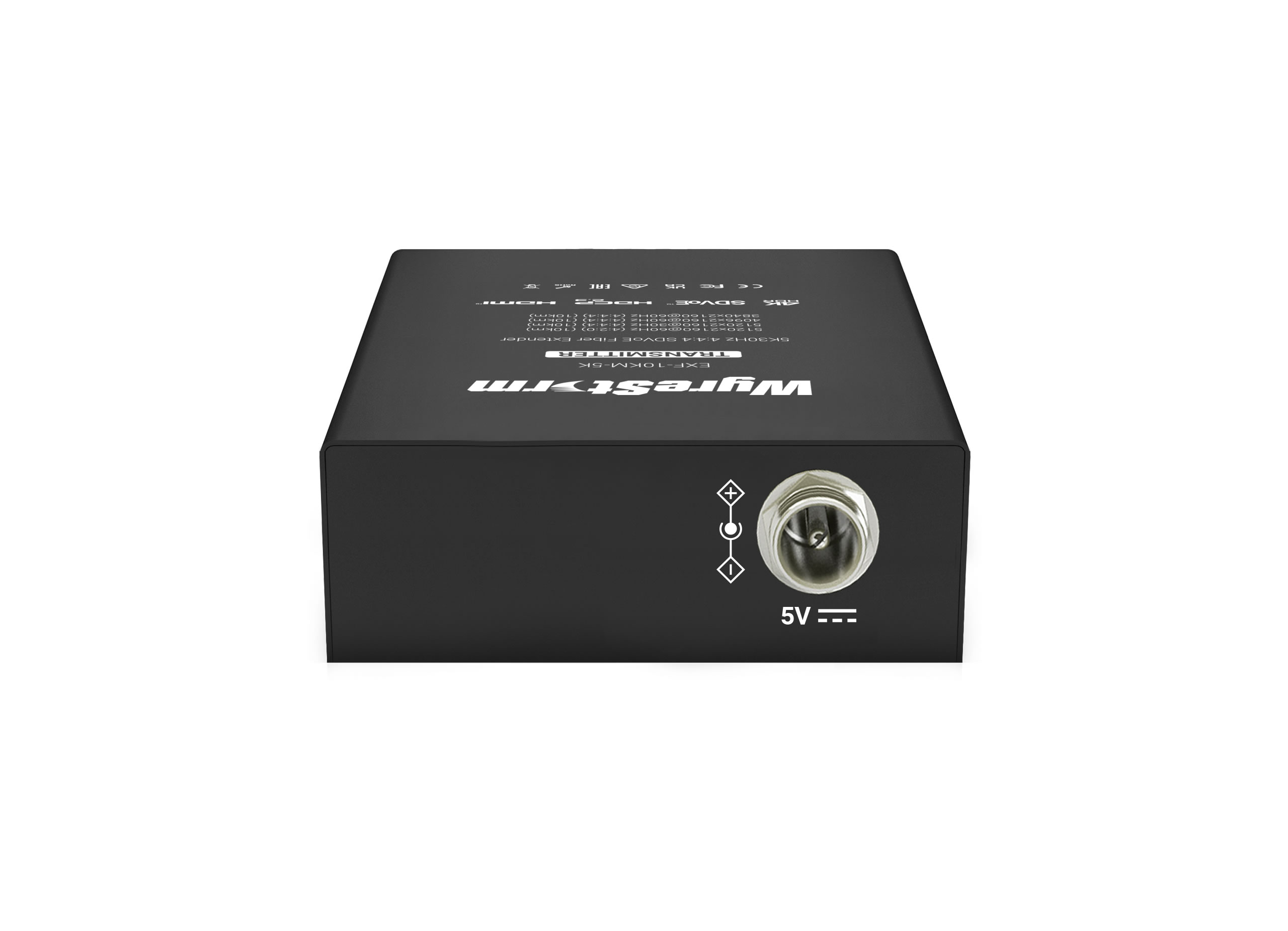

The EXF-10KM-5K Fiber Extender is a high-performance extender based on the SDVoE solution, specifically designed to transmit uncompressed 5120x1440p video and high-fidelity audio up to 10 kilometers (10KM) over a 10G fiber link. Its key advantage is zero end-to-end latency (<120µs), which is critical for real-time applications, combined with robust support for HDMI 2.0 and HDCP 2.2 standards, including high frame rates (up to 240Hz for 1080p). Built from durable sheet steel with secure screw-lock power connectors, this system ensures professional-grade reliability and pristine signal quality, making it an ideal choice for extending demanding video sources over long distances without any loss in fidelity or speed.UNCOMPRESSED 5K 4:2:0 AND 4K@60 4:4:4 HDR VIDEO TRANSMISSION
The product is based on the SDVoE solution and supports the highest quality video format, including 5120 x 2160p 4:2:0 or 4K@60Hz with full 4:4:4 color space and High Dynamic Range (HDR10, HDR10+, HLG, and Dolby Vision low latency mode).
ZERO END-TO-END LATENCY
The system boasts an extremely low latency of less than 120µs (<120µs). This makes it ideal for real-time applications such as competitive gaming, KVM extension, and live production monitoring where instant response is critical.
EXTENDED 10KM TRANSMISSION DISTANCE
Utilizing the included 10G SFP+ single-mode optical transceivers, the extender is capable of sending the full-fidelity signal up to 10 kilometers (10KM) over fiber, far exceeding the distance limitations of copper HDMI cables.
FULL HIGH-FIDELITY AUDIO AND TRANSPARENT EDID MANAGEMENT
The extender supports high-end audio formats, including LPCM (up to 7.1 channel/192kHz), Dolby True HD, and DTS-HD Master. Furthermore, it ensures perfect compatibility by passing the display’s EDID to the video source transparently.
