Description

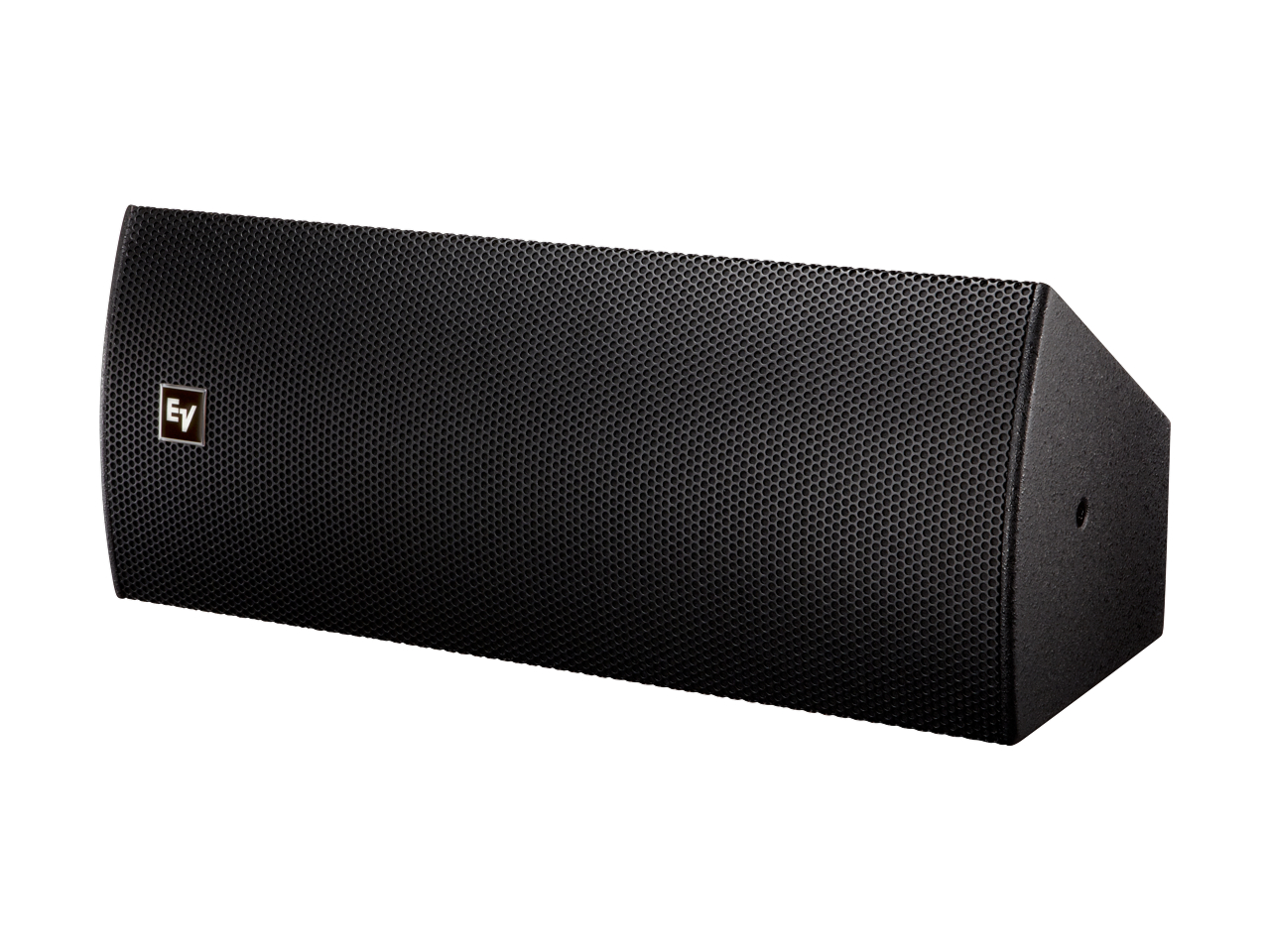

The EVU-2082/95 is an ultracompact two-way loudspeaker designed to deliver clear speech and music reinforcement in confined spaces. This model combines dual 8 in woofers and a rotatable constant directivity horn to maintain even coverage across the listening area. Its trapezoidal enclosure and slim profile make it suitable for wall, stage lip, and under balcony mounting.
Key features include two FEA optimized 8 in mid-bass drivers in a vented enclosure and a 1.3 in titanium diaphragm compression driver coupled to a rotatable 90 x 50 waveguide. The internal passive crossover uses 18 dB per octave slopes with tailored equalization to smooth the vocal range and maintain linear off-axis response. A built-in protection circuit enhances long term reliability under typical program conditions.
Performance specifications include a frequency range of 60 – 20000 Hz (-10 dB), a nominal frequency response of 100 – 16000 Hz (-3 dB), and a calculated maximum SPL of 126 dB. Nominal coverage is 90 x 50 degrees and nominal impedance is 8 ohms. Continuous power rating is 350 W and peak power handling is 1400 W.

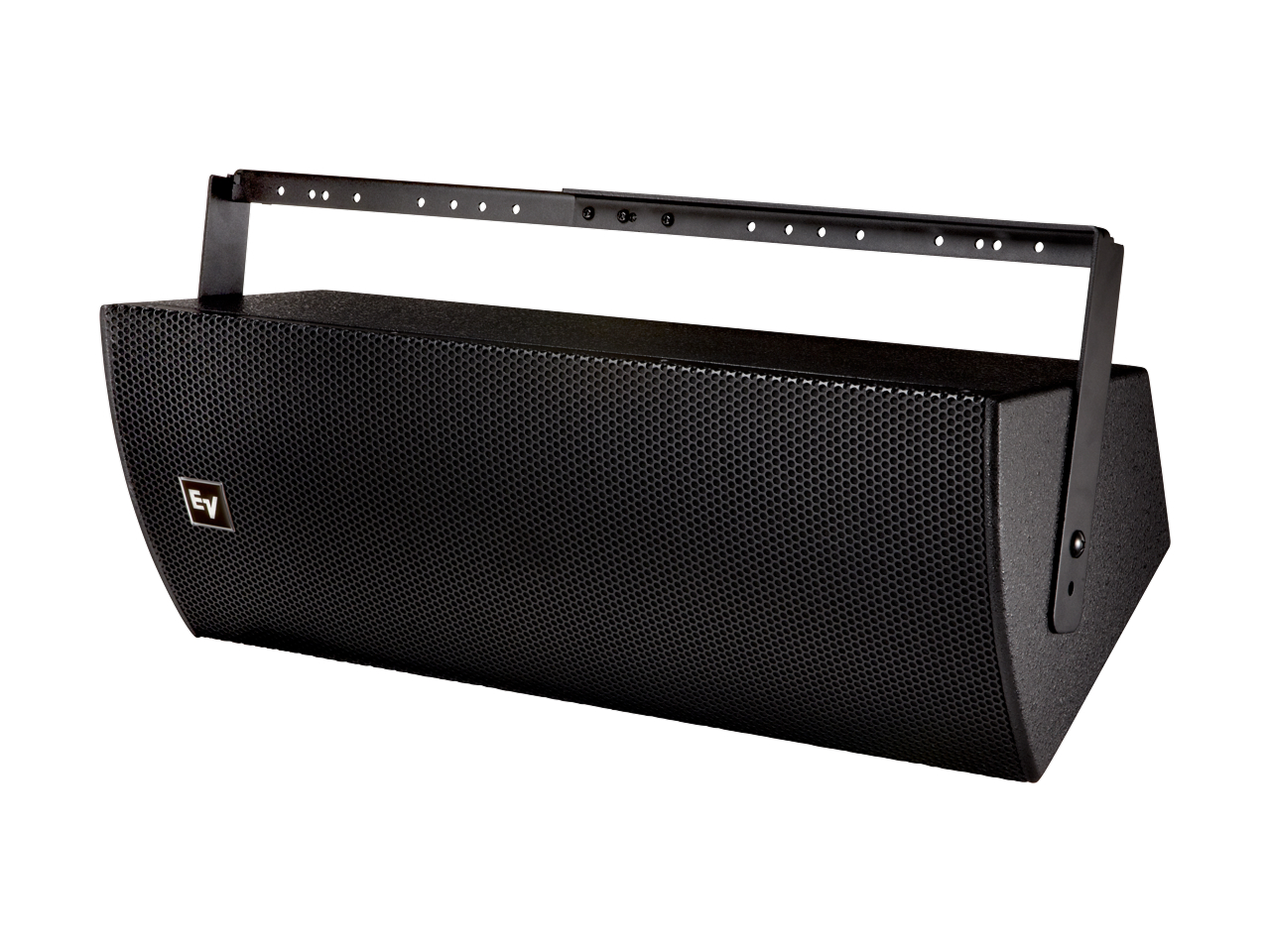

Connectivity is handled via a 4-pin Phoenix/Euroblock screw terminal that accepts up to 10 AWG wire for secure wiring in fixed installations. The enclosure includes six M8 suspension points and an included U-bracket that permits unobstructed rotation for flexible aiming. An optional 70.7/100 V transformer kit can be fitted over the input panel for distributed systems.
The EVU-2082/95 is well suited to small performance venues, houses of worship, corporate auditoriums, and retail spaces where discreet loudspeaker placement and intelligible vocal reproduction are required. Its compact footprint and trapezoidal shape allow it to blend into architecture while providing predictable coverage. The rotatable horn maintains consistent high-frequency dispersion regardless of mounting orientation.
Installation is straightforward thanks to multiple suspension points and an included U-bracket that provides wide rotation. The cabinet is constructed from 9-ply hardwood plywood and finished in textured paint for durability in installed environments. The front grille is 18-gauge steel with protective cloth behind to guard drivers while preserving acoustic transparency.
Overall, the EVU-2082/95 delivers a balance of size, voice clarity, and installation flexibility in a compact package. Its FEA optimized woofers, titanium compression driver, and acoustic crossover tuning make it a practical solution where speech intelligibility and controlled coverage are priorities. The speaker offers a cost effective, reliable option for professional sound reinforcement in constrained spaces.
