Description

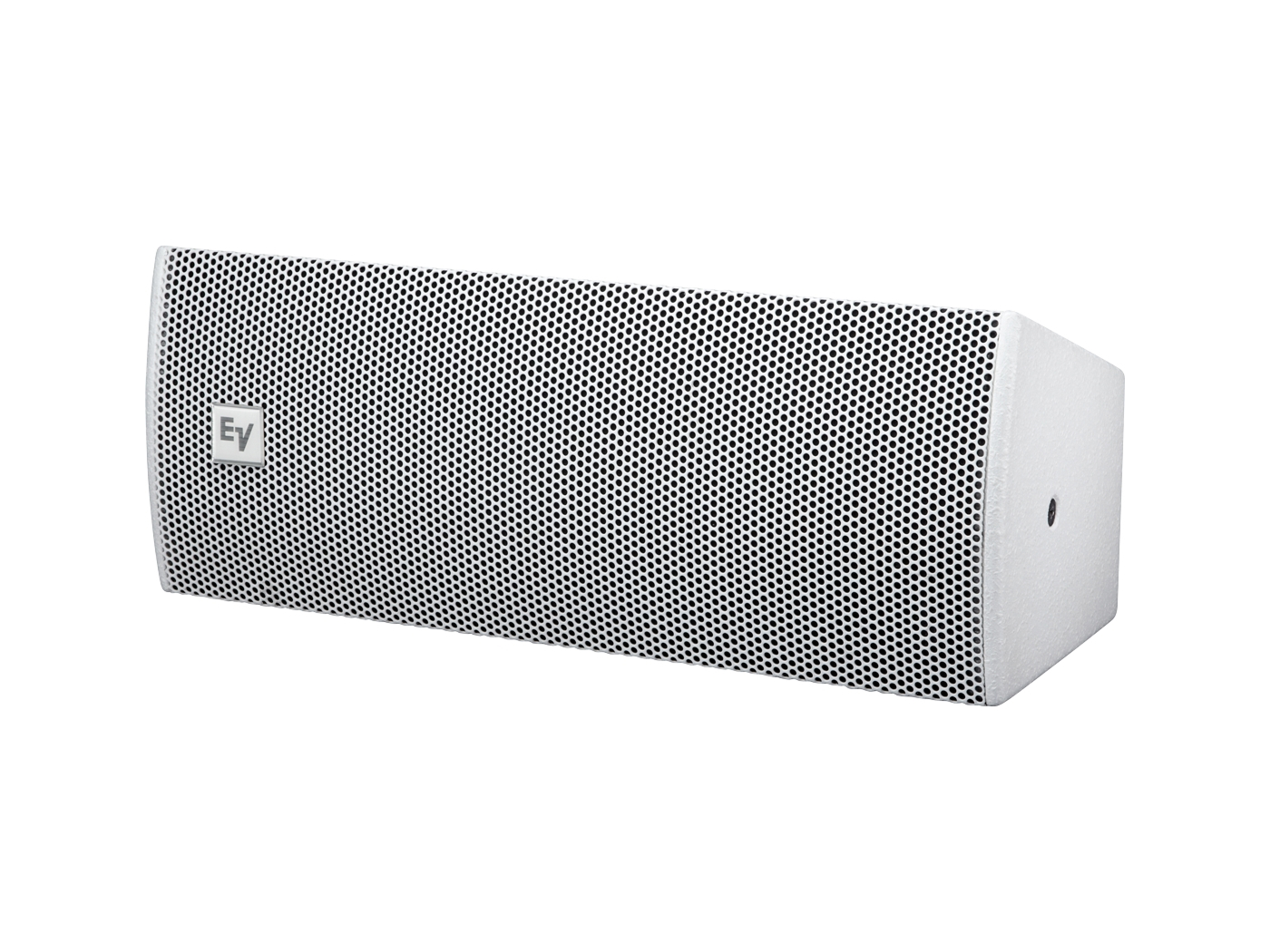

The EVU-2062/95 is an ultracompact two-way on-wall loudspeaker designed to deliver clear speech and full-range music reproduction in limited-space installations. It combines two 6.5 in woofers with a rotatable constant-directivity horn to provide focused coverage and intelligibility. The enclosure uses slant-sided trapezoidal geometry to reduce visual intrusion while enabling tight mounting clearances.
Key features include dual FEA-optimized 6.5 in woofers and a 1.3 in titanium-diaphragm compression driver mounted on a rotatable 90 x 50 degree waveguide. The passive third-order crossover with EQ is tuned for smooth vocal range response and controlled off-axis behavior. The system provides protection circuitry to ensure long-term reliability in installed environments.
Performance specifications include a frequency range of 70 – 20,000 Hz (-10 dB) and a nominal frequency response of 100 – 16,000 Hz (-3 dB). Nominal coverage is 90 degrees horizontal by 50 degrees vertical and calculated max SPL at 1 m is 125 dB. System power handling is listed as 300 W continuous with 1200 W peak capability and nominal impedance is 8 ohms.
Connectivity is provided via a 4-pin Phoenix/Euroblock screw terminal compatible with up to 10 AWG wire, and an optional 70.7/100 V transformer kit is available for distributed systems. The enclosure includes six M8 suspension points and an included U-bracket that allows full unobstructed rotation when installed. The grille is 18-gauge steel with cloth behind and the enclosure is finished in textured white paint.
The EVU-2062/95 suits applications such as under-balcony fills, side-fill on small stages, and on-wall foreground/background reinforcement where visual discretion matters. Its controlled dispersion and high speech intelligibility make it well suited to houses of worship, auditoriums, and conference spaces. The compact footprint also makes it appropriate as a discreet public address speaker in retail or transit environments.
Installation is straightforward thanks to multiple rigging points, a universal U-bracket, and standard Euroblock input terminals. The enclosure is built from hardwood plywood with a durable textured paint finish to withstand typical installed-environment demands. Designed for quick aiming and secure mounting, the EVU-2062/95 balances compact size with professional-grade build quality.
