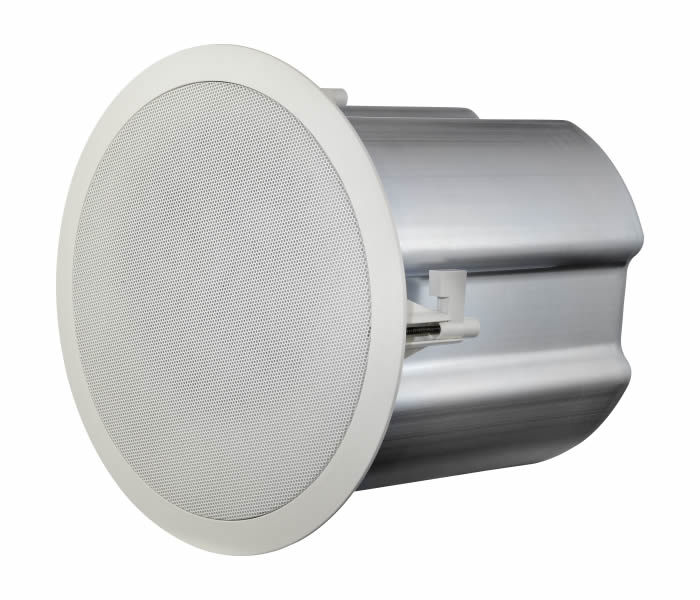

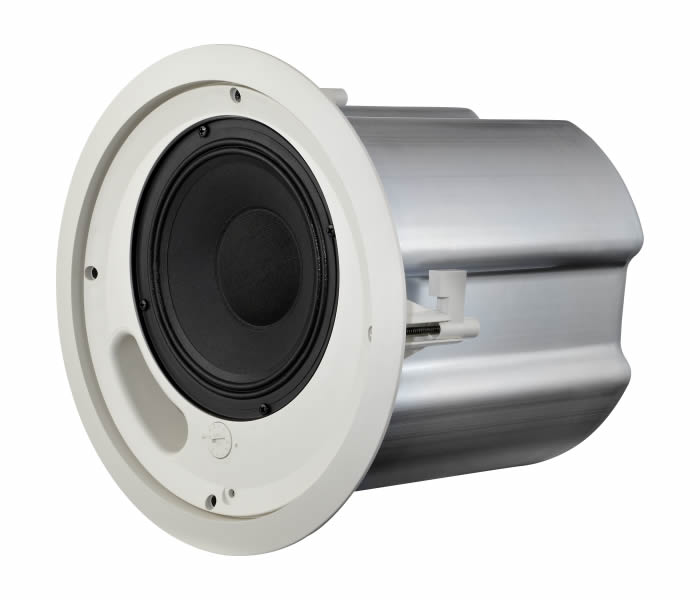

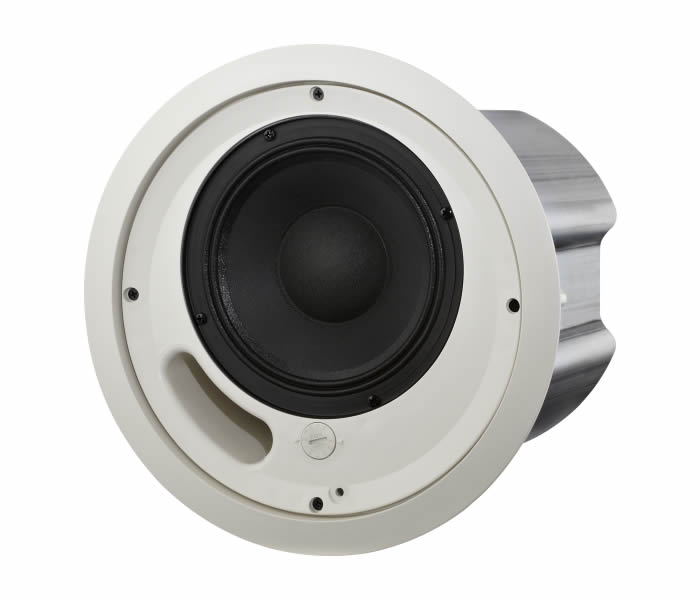

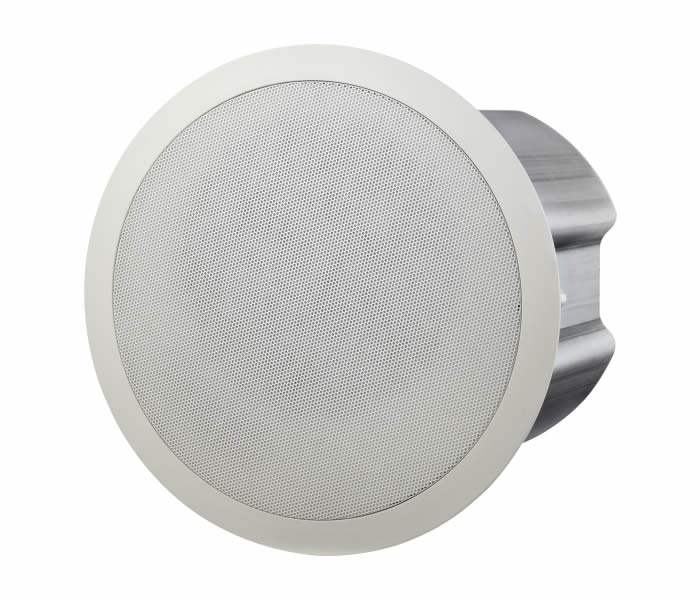

Electro-Voice EVID-PC6.2 Ultra high performance 6" two way ceiling mount loudspeaker system, pair

Description

The PC6.2 (6.5-inch two-way) is designed to be the most advanced ceiling speaker available today, with superior performance across every detail. Each self-contained unit features a dedicated compression driver for enhanced high-frequency performance and coverage control in comparison to current EVID ceiling speaker offerings. Simplified wiring and innovative new integrated mounting hardware allows for quicker installation into a wide range of ceiling cavities and construction formats.

The model adds increased power handling (100 W), higher output (113 dB / 114 dB), and wider coverage angles (120˚ / 105˚) to the user-friendly installation and low-profile looks that contractors expect from EVID products, complimenting the range as a new, high-end option. Ideal for retail spaces, restaurants, theater and stadium concourses, shopping malls, and a wide range of applications where premium-quality distributed audio is required.

Key Features

High-performance EV-engineered compression driver. Ultra-wide HF dispersion provides extremely even coverage through room.
High-excursion woofer provides dramatic low-end frequency extension. Reinforced steel back can provides rigid enclosure to minimize acoustic loss.

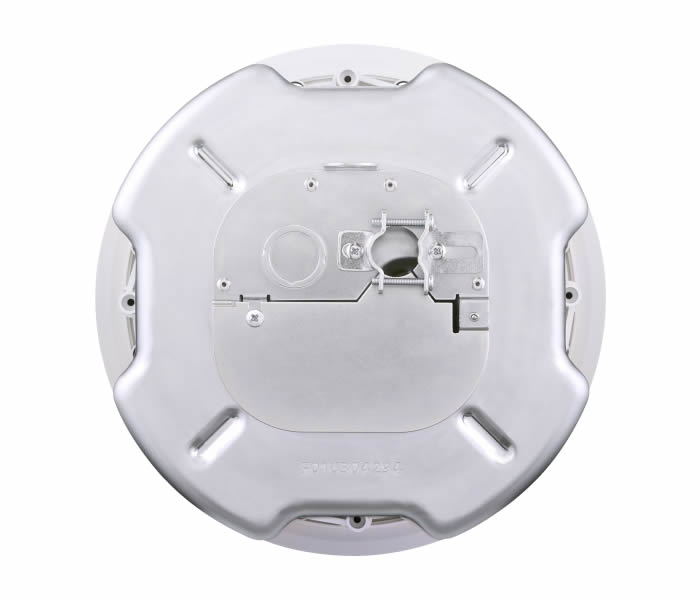

Four-point clamp mechanism and integrated mounting legs enable quick ceiling installation.
Detachable pass-thru Phoenix-style signal connections simplify installation wiring. Tap selector with 8Ω / 70 V / 100 V operation.
Fully reinforced ABS UL-rated baffle ensures long life. Fully compliant with EN 54 (pending), UL 1480, and 2043 standards.

Specifications

Frequency Range (-10 db)	50 Hz – 20 kHz
Nominal Coverage (Conical)	100°
Power Handling	200 W Program, 100 W Pink Noise

Sensitivity (SPL 1 W/1 m)	87 dB
Max Calculated SPL	107 dB Avg, 113 dB Peak
Impedance	10 ohms
LF Transducer	165 mm (6.5 in)
HF Transducer	35 mm Compression Driver
Transformer Taps	70V: 60W, 30W, 15W, 7.5W, 8 ohm 100V: 60W, 30W, 15W, 8 ohm
Connectors	Removable locking 4-pin (Phoenix) 2.5 mm (12 AWG) max wire size
Enclosure	ABS Plastic (UL94V-O) Baffle, steel back can
Grille	Color matched steel grille with fabric
Dimensions (H x Dia)	260 mm x 280 mm (10.2 in x 11.0 in)
Cutout Size	248 mm (9.76 in)
Net Weight	7.0 kg (15.4 lb)
Shipping Weight (pair)	16.83 kg (37.1 lb)
Support Hardware	C Ring, Tile Bridge
Approvals	UL1480, 2043; CE
