Description

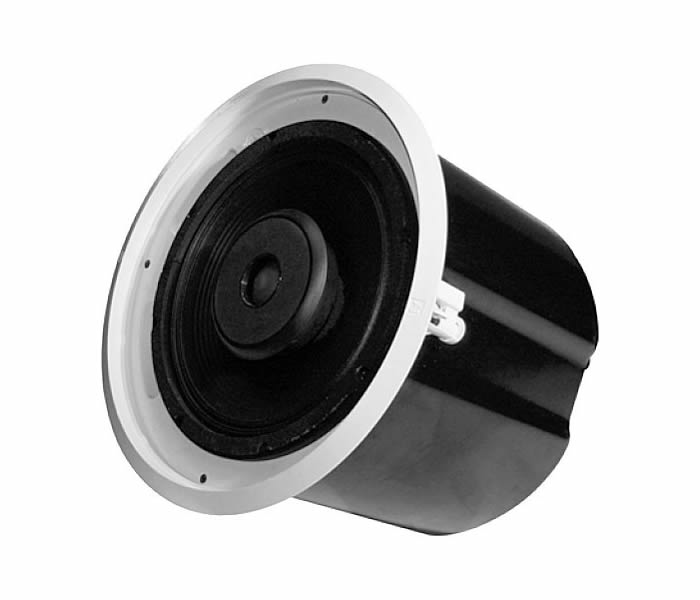

The Electro-Voice EVID C12.2 is a passive 12″ in-ceiling loudspeaker system with a multi-tap transformer designed to deliver reliable voice and music reproduction in waiting rooms, offices, retail stores, restaurants, and more. When driven by your 70V, 100V, or 8-Ohm power amplifier (available separately), this two-way speaker provides a power capacity of 100W RMS. The EVID C12.2 is equipped with a 12″ coaxial transducer capable of efficiently covering frequencies from 85 Hz to 18 kHz.An internal 2 kHz network ensures bandwidth distribution to the speaker components. The built-in 64W transformer offers automatic saturation compensation, and accommodates a range of taps, selectable via a convenient switch on the ABS baffle. The removable Euroblock connector, tile bridge, mounting ring, cutout template, and paint shield contribute to easy installation.
Mounting Options
The EVID C12.2 includes an integrated 3/8″ threaded rod and pendant mount rigging points if you have an open ceiling. If you’re working in a drop ceiling environment, the included tile bridge and mounting ring ensures easy and secure installation.
Built-In Transformer
The 64W built-in transformer comes with automatic saturation compensation for 70V/100V operation. The transformer tap switch is conveniently located on the speaker’s baffle.
Optimal Volume
The rear enclosure is made of heavy-gauge steel and painted black so it disappears into the background. It also provides an optimal internal volume for extended low-frequency performance.
