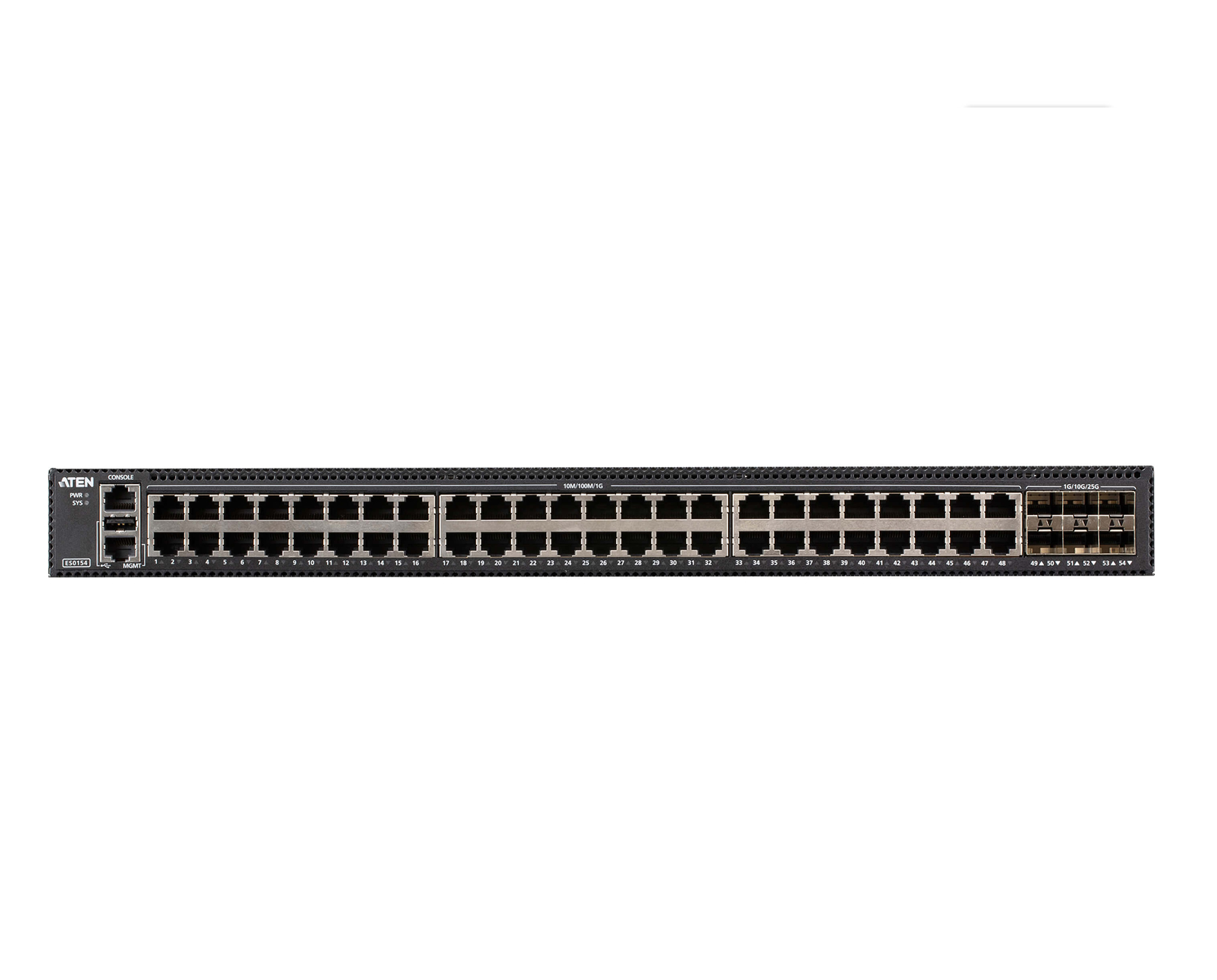

Aten ES0154 54-Port Layer 2+ Gigabit Ethernet Managed Switch

Description

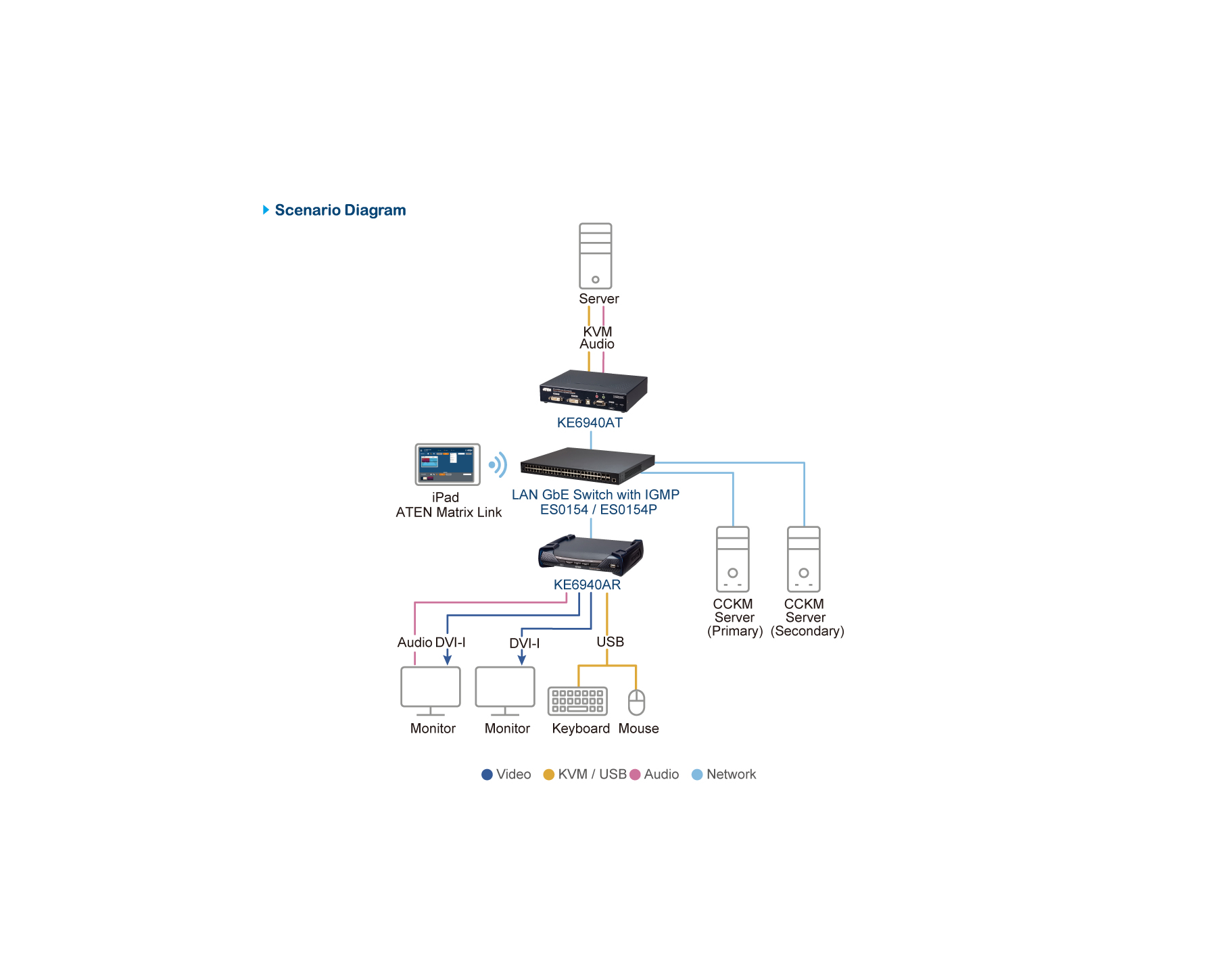

The ES0154 54-Port Layer 2+ Gigabit Ethernet Managed Switch is ideal for installation with ATEN KVM over IP products. It simplifies the process of building OT infrastructure with the ATEN KVM over IP series by eliminating the complexities of setup. It provides a high-performance 54-port configuration, a complete array of L2+ features, and advanced functionalities including Layer 3 static route, DHCP server, IPv6 support, and LLDP, making it a versatile solution for enhancing network performance. It offers a combination of SFP28 (fiber) and RJ-45 (copper) ports for servicing a range of network needs.

The ES0154 delivers 6 (1G/10G/25G) SFP28 and 48 (10M/100M/1G) RJ-45 ports.

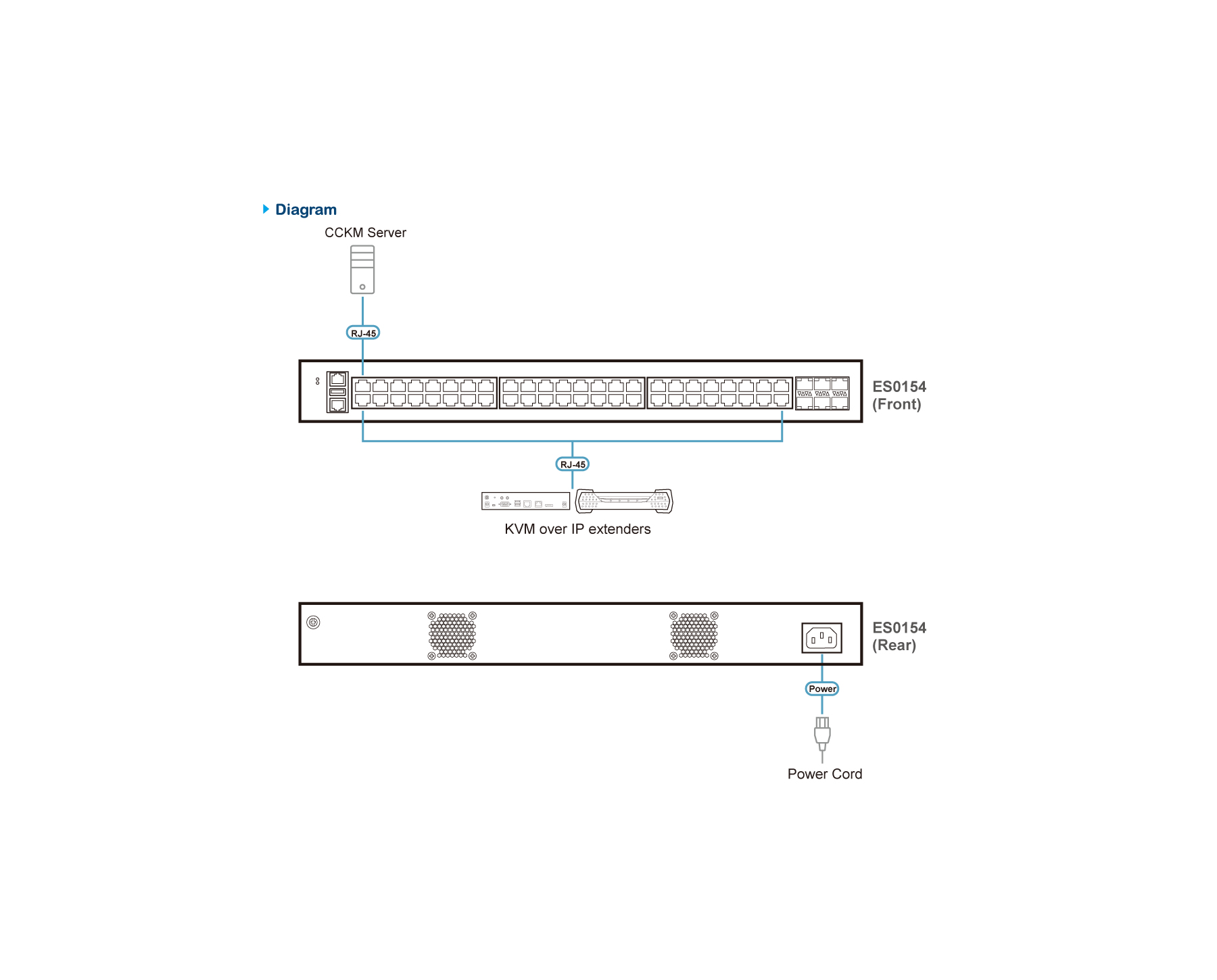

Deploying the ES0154 is quick and hassle-free. Its plug-and-play design eliminates the need for software installation or device configuration. Just connect the transmitters and receivers to the ES0154 using Cat 5e/6 cables. With a full range of functions to help with optimizing network efficiency, manageability and reliability for their network environment, the ES0154 serves as an ideal network switch solution. It is particularly valuable in applications where connected devices play a critical role in network operation, including OT infrastructure for both SMBs and enterprises.

Features

Supports plug-and-play with KE, VE89 series devices
Supports 48 Gigabit Ethernet ports and 6 SFP28 uplink ports (up to 25Gbps)
High-performance Gigabit Ethernet L2+ access switch with 396 Gbps switching capacity – significantly improves application responsiveness and file transfer times
Supports IGMP v1/v2/v3 Snooping and IGMP v1/v2 Querier
Supports IGMP Snooping Fast Leave
Supports Flow Control
Comprehensive QoS – allows marking, classification, and scheduling of up to four traffic types across the network
Enhanced Security – Port Security limits the total number of devices using a switch port and protects against MAC flooding attacks
Supports IEEE 802.1w Rapid Spanning Tree Protocol – ensures faster recovery from failed links and enhances overall network stability and reliability
Supports IPv4 and IPv6

Specifications

Category	Specification
Connectors	RJ-45 10/100/1000 Ports: 48 SFP28 Uplink Ports: 6 Console Ports: 1 x RJ45 Remote Console: 1 x RJ45 USB Port: 1
Performance	Switching Capacity: 396 Gbps Forwarding Rate: 295 Mpps Flash Memory: 256 MB DRAM: 1 GB MAC Address Table Size: 32K Jumbo Frames: 10 KB Auto-negotiation: Yes Maximum Input Power Rating: 100-240V AC, 50-60Hz Power Consumption: 54W (MAX), 177 BTU/h
Notes (Power)	? Watts indicates typical power consumption with no external loading. ? BTU/h indicates power consumption when fully loaded.
Environmental	Operating Temperature: -5–45°C Storage Temperature: -40–70°C Humidity: 5%–95% RH, Non-condensing
Physical Properties	Rack Space: 19" Housing: Metal Weight: 4.68 kg (10.32 lb) Dimensions (L x W x H): 44.20 x 42.00 x 4.36 cm (17.4 x 16.54 x 1.72 in.) Carton Lot: 1 pc
Notes (Physical)	For some rack mount products, standard physical dimensions of WxDxH are expressed as LxWxH.
