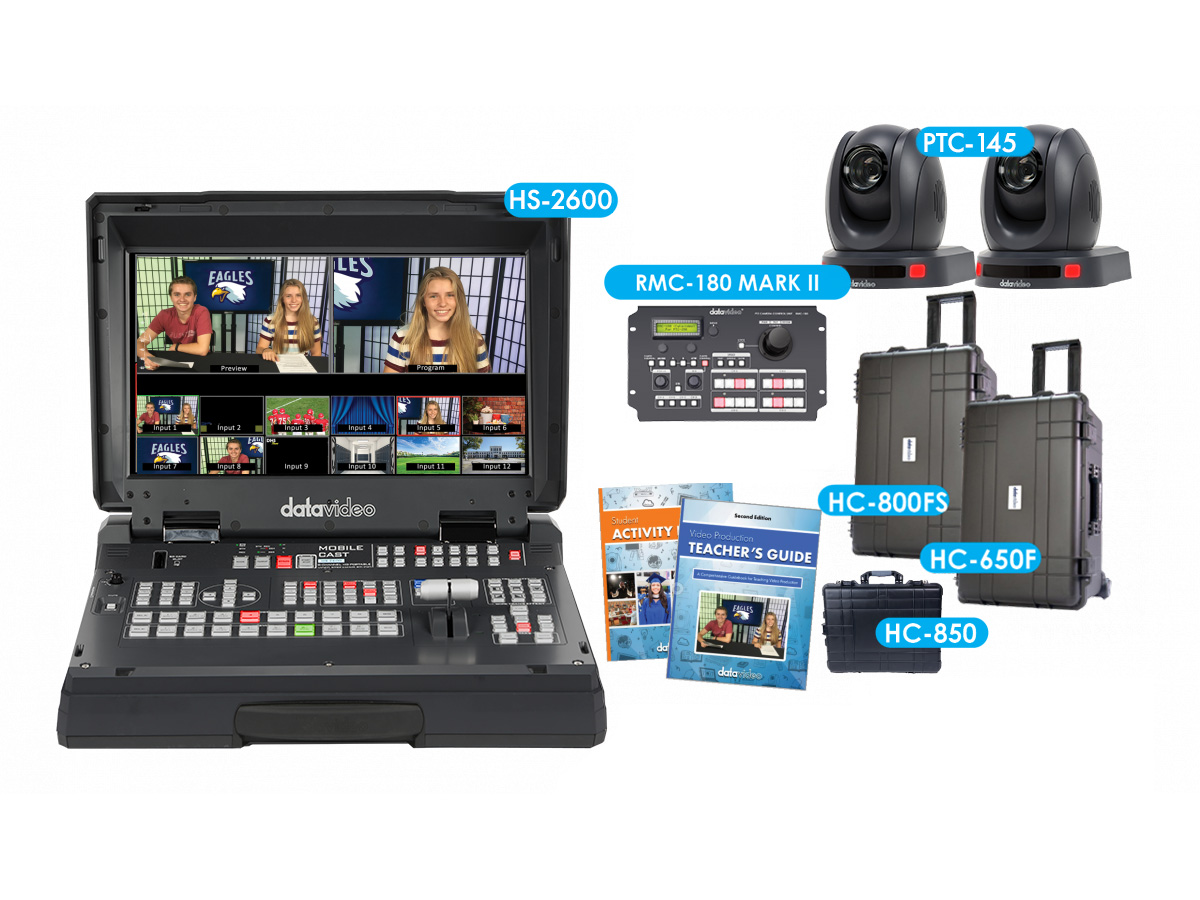

Datavideo EPB-2600 8-Input HD Portable Studio / Streaming Encoder / Recorder / 4 Chroma-Key Virtual Studio

SKU: EPB-2600
Brand: Datavideo
$14,999.00
Brand Datavideo
SKU EPB-2600
Weight N/A
Warranty 3 Years
Condition New
Status Available
Expert

Product Questions? Ask Our Experts!

Description

The EPB-2600 Educator Production Bundle is a compact live production system designed to teach and perform HD live video workflows. It combines an 8-input portable studio with integrated streaming encoder and recorder alongside PTZ camera control and instructional curriculum. The bundle is aimed at classroom and campus AV programs that require a complete, transportable production solution.

The core studio unit supports routable HD inputs, multi-format video, A+V switching, chroma-key virtual studio and built-in CG titles. It records MP4 files using H.264 or H.265 and streams via RTMP RTSP or SRT. The system includes audio support with embedded SDI/HDMI channels plus analogue I/O for flexible source integration.

Video capabilities include 1080p/1080i/720p formats at 50/59.94/60Hz and repeatable crosspoint routing across all eight inputs. The unit provides multiple PGM outputs in 3G-SDI and HDMI 1.4, picture-in-picture, DSK layers and logo insertion. Audio features include AAC streaming encode, 16bit 48KHz and up to four embedded SDI channels.

Connectivity covers 4 x 3G-SDI and 4 x HDMI inputs, computer graphic interfaces via HDMI, and down-converted/aux outputs for monitoring. The included PTZ cameras offer HDMI 3G-SDI and PoE network outputs with NDI and streaming support. Control options include a tactile RMC-180 camera controller and web UI for streaming and recording management.

Typical use cases include morning announcements, student news shows and live events where portability and quick setup are essential. Educators can integrate the provided Teachers Guide and Activity Book to map lessons to ISTE standards and provide hands-on exercises. The system supports multi-camera production, graphic overlays and chroma keying for advanced curriculum objectives.

Installation and operation are streamlined with a built-in 17.3 inch HD monitor, playback and streaming controls accessible via web UI, and physical DC 12V power supply. The HS-2600 chassis is a reinforced carry case designed for repeated transport and classroom use. Overall the EPB-2600 bundle delivers a complete teaching and production platform that balances approachable operation with broadcast-style features.

Specifications

Model NumberHS-2600
Video StandardHD
Video Format1080p 50/59.94/60Hz,1080i 50/59.94/60Hz,720p 50/59.94/60Hz
Input Routable / CrosspointAll 8, repeatable
Video Input4 x 3G-SDI,4 x HDMI
Computer Graphic Interface4 via HDMI
Down-converted Output-----
Video Output3 x 3G-SDI PGM,AUX assignable;1 x HDMI 1.4 PGM,AUX assignable;3 x HDMI 1.4 PGM
Analogue Audio Input2 x XLR/MIC (6.3mm) Combo Socket,1 x stereo RCA
Analogue Audio Output1 x stereo RCA
Digital Embedded Audio SupportSDI Input/Output 4 channels,HDMI Input/Output 2 channels
Audio Delay CalibrationUp to 16 frames
A+V SwitchingYes
USK4
DSK2
Picture in Picture4
Logo Insertion2
Title CreatorYes
Built-in Audio Mixer----
Built-in Monitor Display17.3" HD TFT LED 1920x1080
Built-in Intercom & Tally----
StreamingStreaming
H.264MAX RES 1080p
H.265MAX RES 1080p
Streaming Audio EncodeAAC 2CH,16bit 48KHz 192Kbps
Streaming ProtocolRTSP,RTMP,SRT
Streaming ControlWeb browser UI,Socket commands
Recording File SystemFAT32,exFAT
Recording File FormatMP4 (H.265+ AAC) or (H.264+ AAC)
Streaming & Recording Setting ControlWeb UI
Special Features4 Chroma-Key Virtual Studio,9 stinger transition,4 user preset,Built-in CG title overlay,Streaming encoder and recorder
Dimension (LxWxH)455 x 355 x 134 mm
Weight8.5 kg Reinforce Plastic Case
PowerDC 12V 11A
Operating Temp. Range0~40 °C
What's in the Box1 x HS-2600 Unit,1 x AD Switch DC 12V with AC Cord
Model NumberPTC-145
Video format/Resolution1080p 60/59.94/50/30/29.97/25,1080i 60/59.94/50,720p 60/59.94/50
Image SensorSony 1/2.8" CMOS
Effective Pixels (approx.)2.07 Mega pixels
S/N Ratio≥50dB
Min. Illumination0.5 Lux @ (F1.8 AGC ON)
Electronic Shutter1/30s ~ 1/10000s
Zoom Ratio20x Optical,8x Digital
Effective Zoom Ratio18.12x
Gamma ControlN/A
Iris ControlAuto / Manual
Digital Noise Reductions3D
On-Screen Display (OSD)English,Simplified Chinese,Traditional Chinese
White BalanceAuto,Indoor,Outdoor,Manual,One Push
AGC / Gain ControlYes
HDR/WDRN/A
Mirror / Flip ImageYes
Focus ModeAuto / Manual
Panning / Tilting RangePan 340°,Tilt +90° to -30°
Panning / Tilting SpeedPan 0.1~60°/sec,Tilt 0.1~30°/sec
Preset255 Positions
Focal Lengthf=5.05mm to 91.49mm
ApertureF1.8(Wide) ~ F2.9(Tele)
Field of View (Horizontal, Wide)60°
Image CompensationBacklight Compensation
Video OutputHDMI x1,3G-SDI x1,RJ-45 PoE x1
Audio Input3.5mm Line in
Tally LEDDual color Red,Green
Lens FilterM52.0 x 0.75 Thread
Control ProtocolPelco-D,Pelco-P,VISCA,VISCA over IP,DVIP,ONVIF,NDI
Remote Control InterfaceIR
Web GUIYes
RS-422/232/485RJ45
Video Compression FormatH.264,H.265,MJPEG
Audio Compression FormatAAC,G711
Audio Bitrate96Kbps,128Kbps,256Kbps
HD IP Interface10/100/1000M RJ45
Streaming ProtocolsRTSP,RTMP(S),ONVIF,Multicast,SRT,NDI|Hx3
First Stream Supported Resolution1920x1080,1280x720,1024x576,960x540,640x480,640x360
Second Stream Supported Resolution720x480,640x480,640x360,320x240
Video Bitrate64Kbps ~ 50Mbps
Video Bitrate ModeVBR,CBR
Encoding Frame rate50Hz 1-50fps,60Hz 1-60fps
POEIEEE 802.3af
PoE+Yes
F/W UpdateVia Web UI
IR ControlYes
Camera Control UnitRMC-2P,RMC-180 series,RMC-300 series
PTZ View Assist APPYes
Tripod Mount1/4-20 UNC
Optional AccessoriesWM-1,WM-10,WM-11
ColorBlack,White
Dimension (LxWxH)156 x 184 x 186 mm
Weight1.6 kg
Operating Temp. Range0~40 °C
PowerDC 12V 14W
What's in the Box1 x PTC-145 Unit,1 x IR remote,1 x Ceiling mount bracket-A,1 x Ceiling mount bracket-B,6 x M3*4mm screws,1 x DC 12V Power Adaptor,1 x Power Cord,1 x Safety cable
Model NumberRMC-180
Maximum Camera Control4
Preset (Position)4 for each camera
Control ProtocolSony VISCA
Connection to CamerasPoint to Point
Input/OutputRS-422 (RJ-45) x4
Build-in Control PanelMonochrome display
Firmware UpgradeVia USB
Dimension310 x 170 x 125 mm
Weight1.5 kg
Operating Temp. Range0°C ~ 40°C
Storage Temperature-10°C ~ 60°C
Operating Humidity10% to 80% non-condensing
PowerDC 12V 0.5A
What's in the Box1 x RMC-180 Main Unit,1 x DC 12V Power Adaptor,1 x USB A-A Cable L:1.8M
HC Models ListedHC-800FS,HC-600,HC-850
CurriculumVideo Production Teachers Guide and Activity Book referencing ISTE standards
