Description

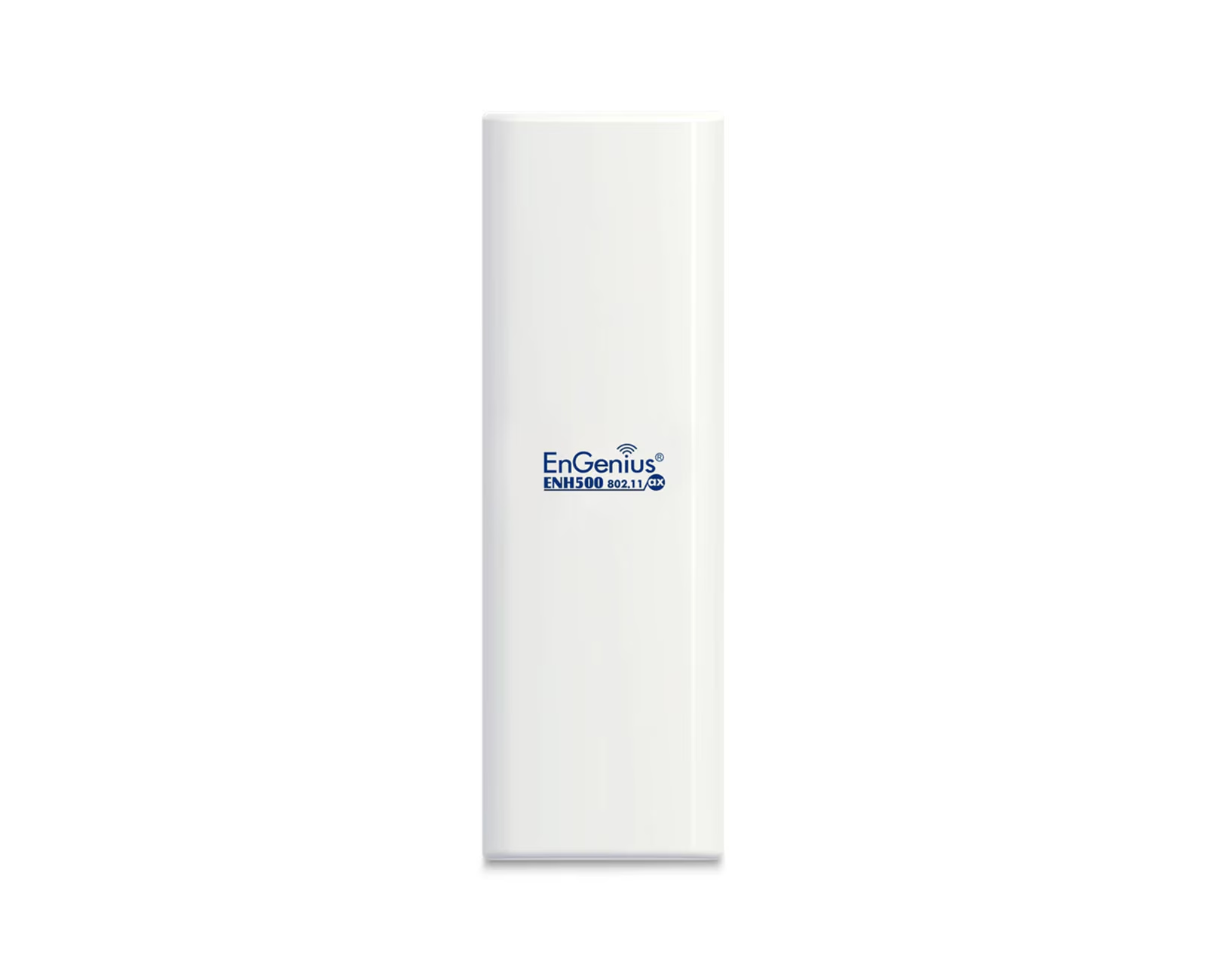

The ENH500-AX is an outdoor Wi-Fi 6 5 GHz point-to-point bridge designed to extend network links between buildings and remote locations. It provides long-range directional connectivity using an integrated 16 dBi antenna and a high 26 dBm transmit output. The unit is engineered for outdoor deployment with weatherproof housing and surge protection to maintain reliable links in challenging environments.
Key features include Wi-Fi 6 2×2 MIMO for up to AX1200 aggregate throughput and beamforming to improve client signal quality and link stability. The integrated directional antenna and elevated transmit power enable long-distance point-to-point links up to several miles depending on site conditions. Multiple operation modes – AP, Station, WDS AP, WDS Station, and Repeater – provide deployment flexibility for a variety of topologies.
Technical performance supports SU-MIMO and MU-MIMO across the 5 GHz single band and VHT80 channelization to deliver up to 1,200 Mbps to compatible 2×2 clients. The radio covers multiple 5 GHz regulatory ranges and includes OFDMA support for efficient multi-client throughput. Powering is via proprietary 54V PoE injector included in the package, with maximum PoE consumption around 13W.

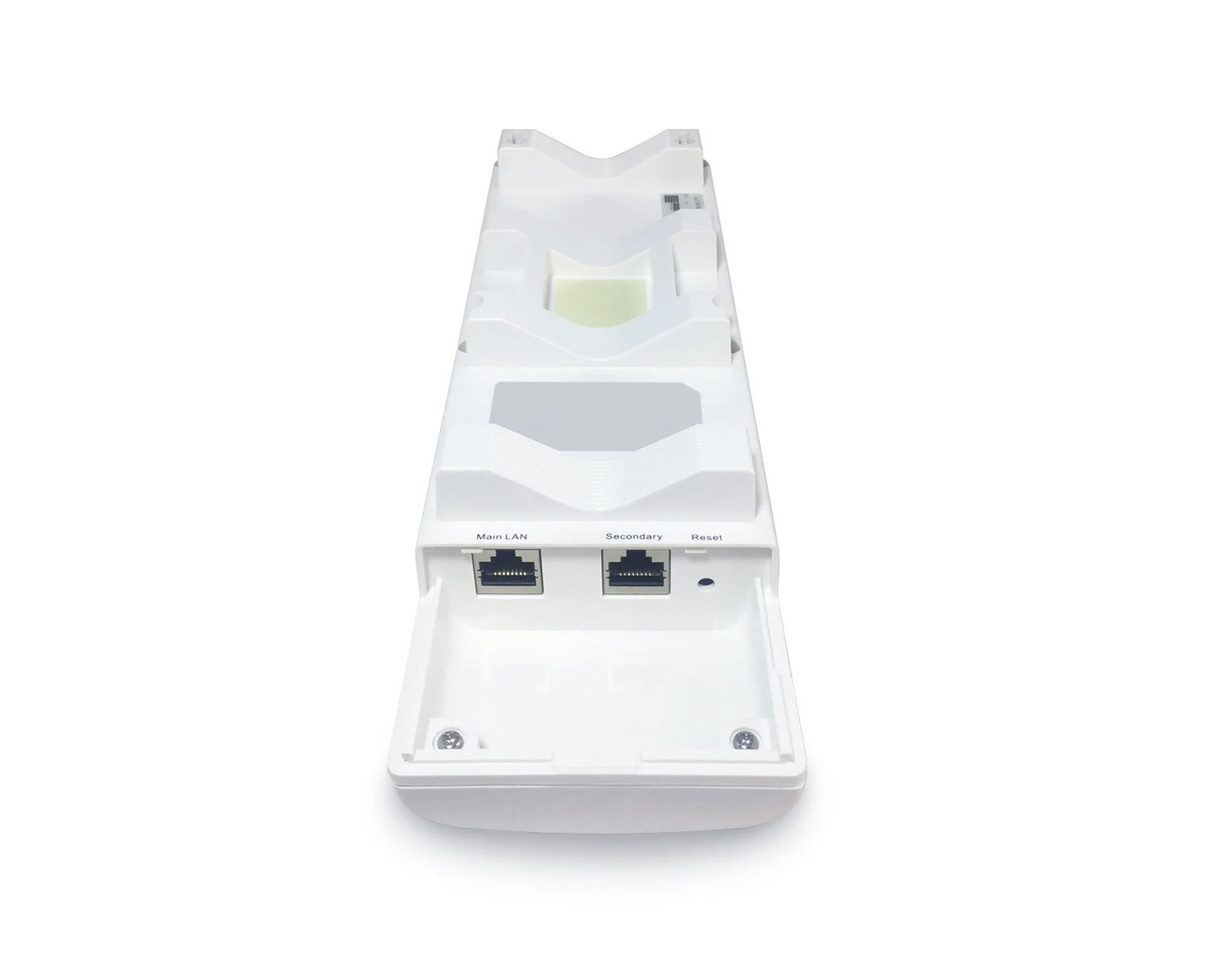

Connectivity includes a gigabit Ethernet PoE port and a secondary gigabit Ethernet port for network integration and pass-through. LED indicators report power, LAN, WLAN and signal strength to assist alignment and troubleshooting in the field. The ENH500-AX follows common Wi-Fi standards for compatibility with modern 5 GHz client devices and infrastructure equipment.
Typical use cases are building-to-building Ethernet extension, remote yard connectivity, temporary site links and backhaul for security cameras or IoT devices when fiber or cabling is impractical. The unit is suited to service providers, enterprise sites and large properties needing outdoor point-to-point links. It supports up to 128 concurrent users per radio, enabling aggregated client access where required.

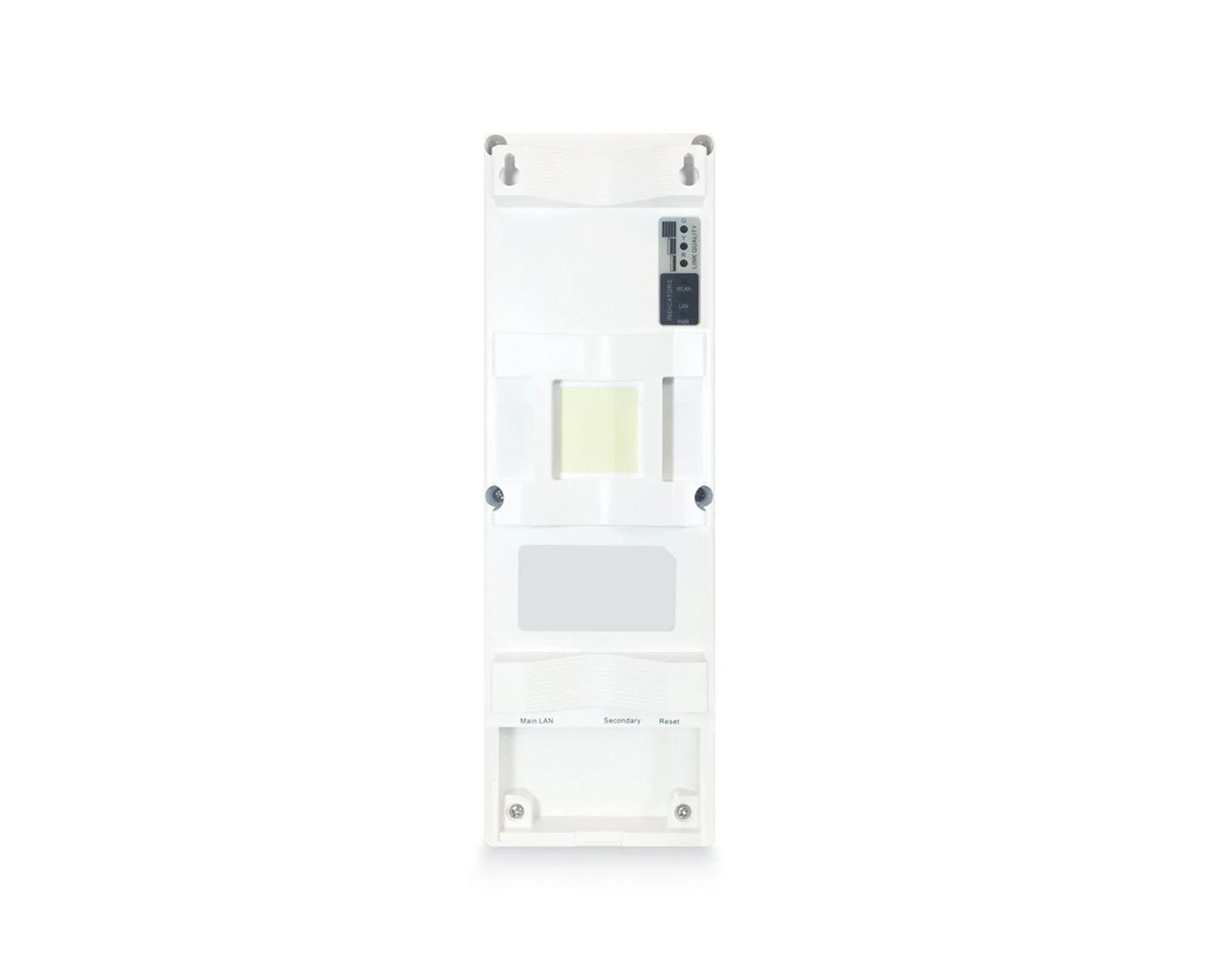

Installation is designed for simplicity with included pole-mount brackets and wall-mount hardware and a quick installation guide. Alignment is assisted by multi-segment signal LEDs and the device supports long cable runs between the radio and PoE injector to simplify mounting. Built for outdoor use, the IP55 housing, ESD protection and surge resistance improve long-term reliability in exposed installations.
