Aten EA1640 Temperature & Humidity Sensor

Description

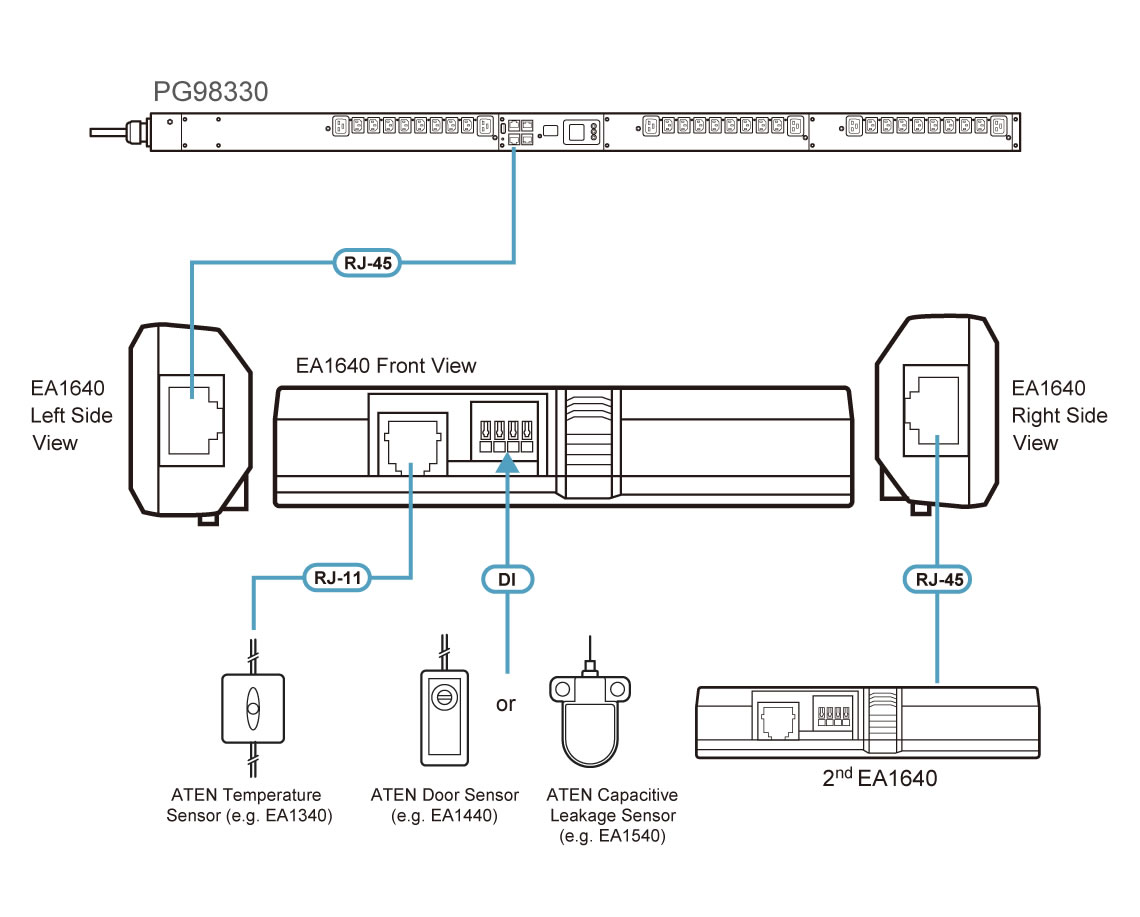

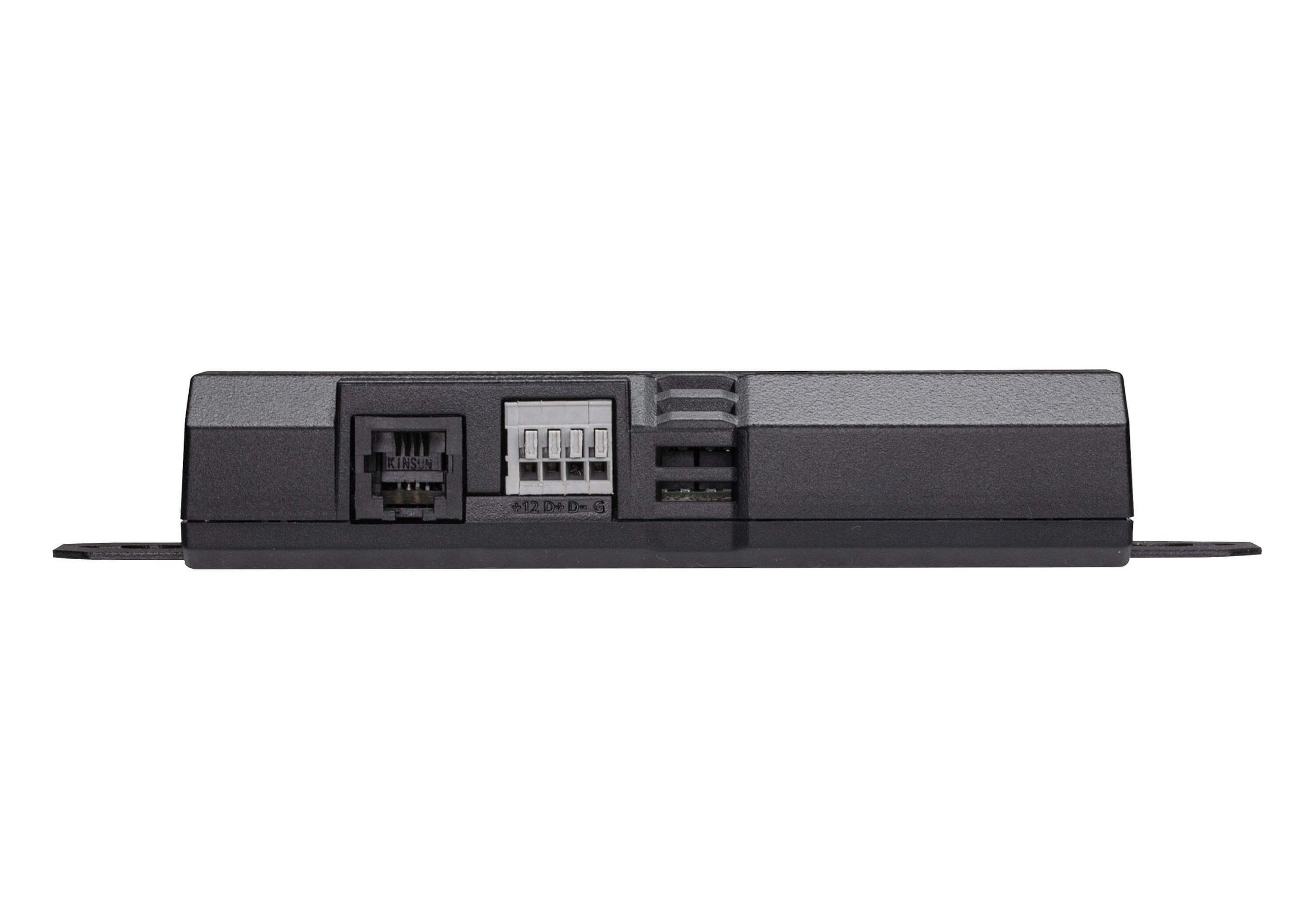

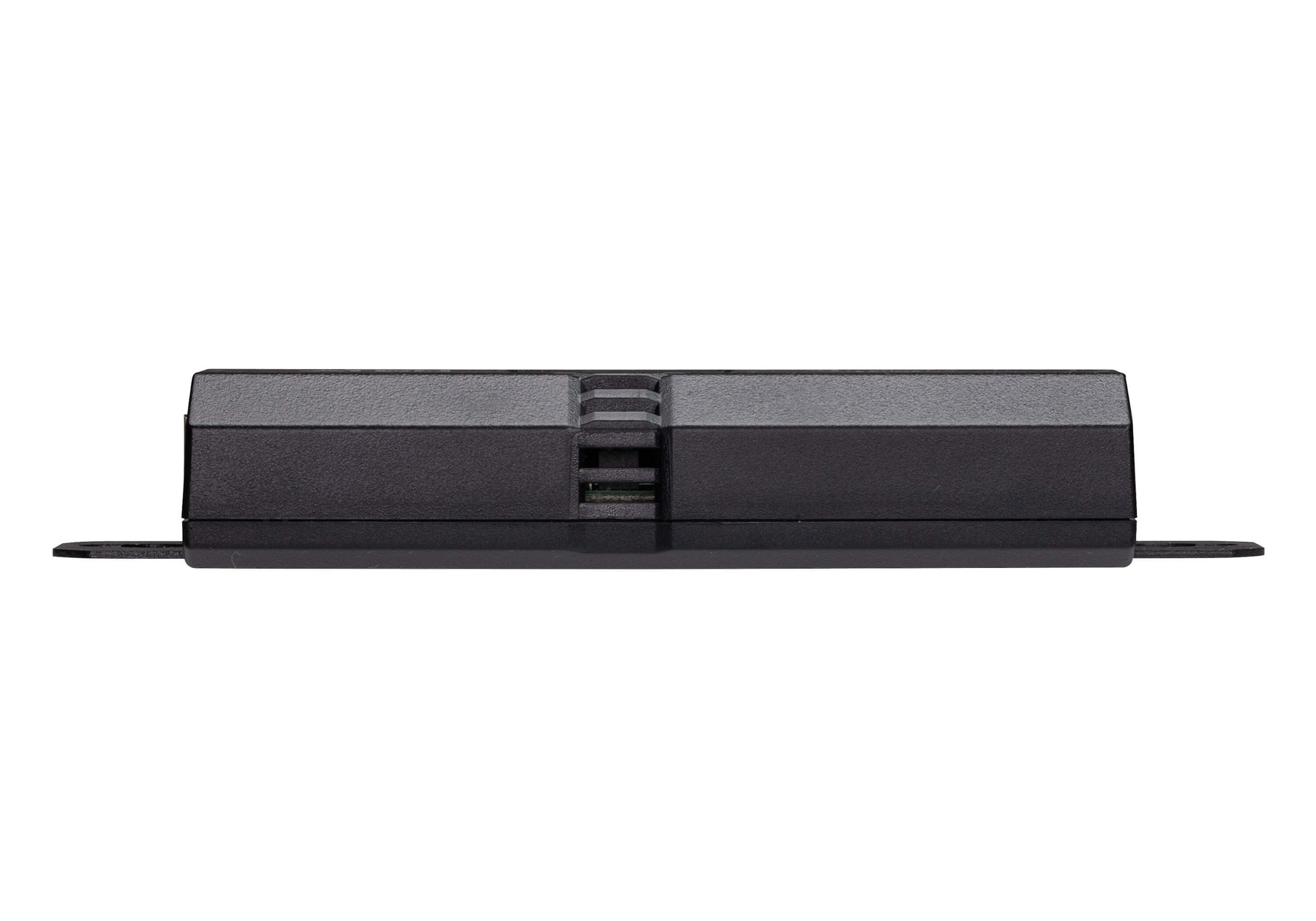

EA1640 serves as a compact, flexible humidity and temperature measuring solution for ATEN PG series PDU applications where precision is significant – from server rooms, data centers, hospitals, smart factories to green offices. The sensor contains 1 x RJ-45 input port, 1 x RJ-45 output port, and 1x RJ-11 input port for easy connection with PG PDU series and environmental sensors including EA1140, EA1240, and EA1340. One terminal block is built for combining EA1440 / EA1441 / EA1442 door sensor or EA1540 the capacitive leakage sensor. Up to 8 daisy-chained devices are supported to broaden applications.

Designed with the ultimate flexibility in mind, EA1640 can be placed at an ideal location as a result of the 1.5 m RJ-45 cable coming with it. In addition, it comes with a magnet for easy attachment to metallic surfaces. Rack mount kits are also included for quick installation inside racks.

Features

A humidity and temperature measuring solution for ATEN PG PDU series
Precise relative humidity accuracy:
- ±7.5% RH, 30 – 70% RH
- ±15% RH, 15 – 40% RH and 70 – 90% RH
Highly accurate temperature measurement:
- ±1°C (Max.), 10 – 40°C
- ±1.5°C (Max.), –10 – 10°C and 40 – 75°C
Supports up to 8 daisy-chained devices
Multiple interfaces to broaden applications:
- 1 x RJ-45 input port, 1 x RJ-45 output port, and 1 x RJ-11 input port for connection with PG PDU series and EA1140 / EA1240 / EA1340 environmental sensors
- 1 x terminal block supports EA1440 / EA1441 / EA1442 door sensors and EA1540 capacitive leakage sensor
Meets flexible installation requirements:
- Includes a 1.5 m RJ-45 cable for ideal sensor placement
- Integrated magnet for attachment to metallic surfaces
- Includes rack-mount kits for quick installation inside racks
Overload protection prevents overheating of connected equipment
LED indicator visible through the enclosure
Prevents device malfunctions through early detection of overheating or excessive humidity
Suitable for applications requiring precise measurement, such as server rooms, data centers, hospitals, smart factories, and green offices

Specifications

Electrical
Environment Sensor Ports	1 x Terminal Block for Door Sensor (EA1440 / EA1441 / EA1442) or Capacitive Leakage Sensor (EA1540) 1 x RJ-11 for Original Temperature Sensor (EA1140 / EA1240 / EA1340)
Measurement
Range	Temperature: –10 to +75 °C Humidity: 0 to 100%
Accuracy	Temperature: ±1°C (max), 10 to 40 °C ±1.5°C (max), –10 to 10 °C, 40 to 75 °C Humidity: ±7.5% RH, 30–70% RH ±15% RH, 15–40% RH, 70–90% RH
Power Consumption	DC12V: 0.273 W / 1 BTU/h
Environmental
Humidity (Operating & Storage)	0 – 80% RH, Non-Condensing
Temperature (Operating / Storage)	–10 to 75 °C / –20 to 70 °C
Physical Properties
Dimensions (L x W x H)	10.44 x 3.57 x 2.14 cm (4.11 x 1.41 x 0.84 in.)
Weight	0.05 kg (0.11 lb)
Cable Length	1.5 m (RJ45 + RJ45 round cable)
Housing	Black Polycarbonate
Compliance
EMC Verification	EMC / FCC, Class A
Safety Verification	By Request
LEDs
LED Indicator	[Solid]: EA1640 is in working mode [Fast Blinking – 2 minutes]: EA1640 receives the “FindMe” command [Slow Blinking – 10 seconds]: Over-current protection (OCP) triggered; connected sensors powering off [Slow Blinking]: Firmware upgrade in progress
Note	For some rack mount products, standard physical dimensions of WxDxH are expressed using an LxWxH format.
