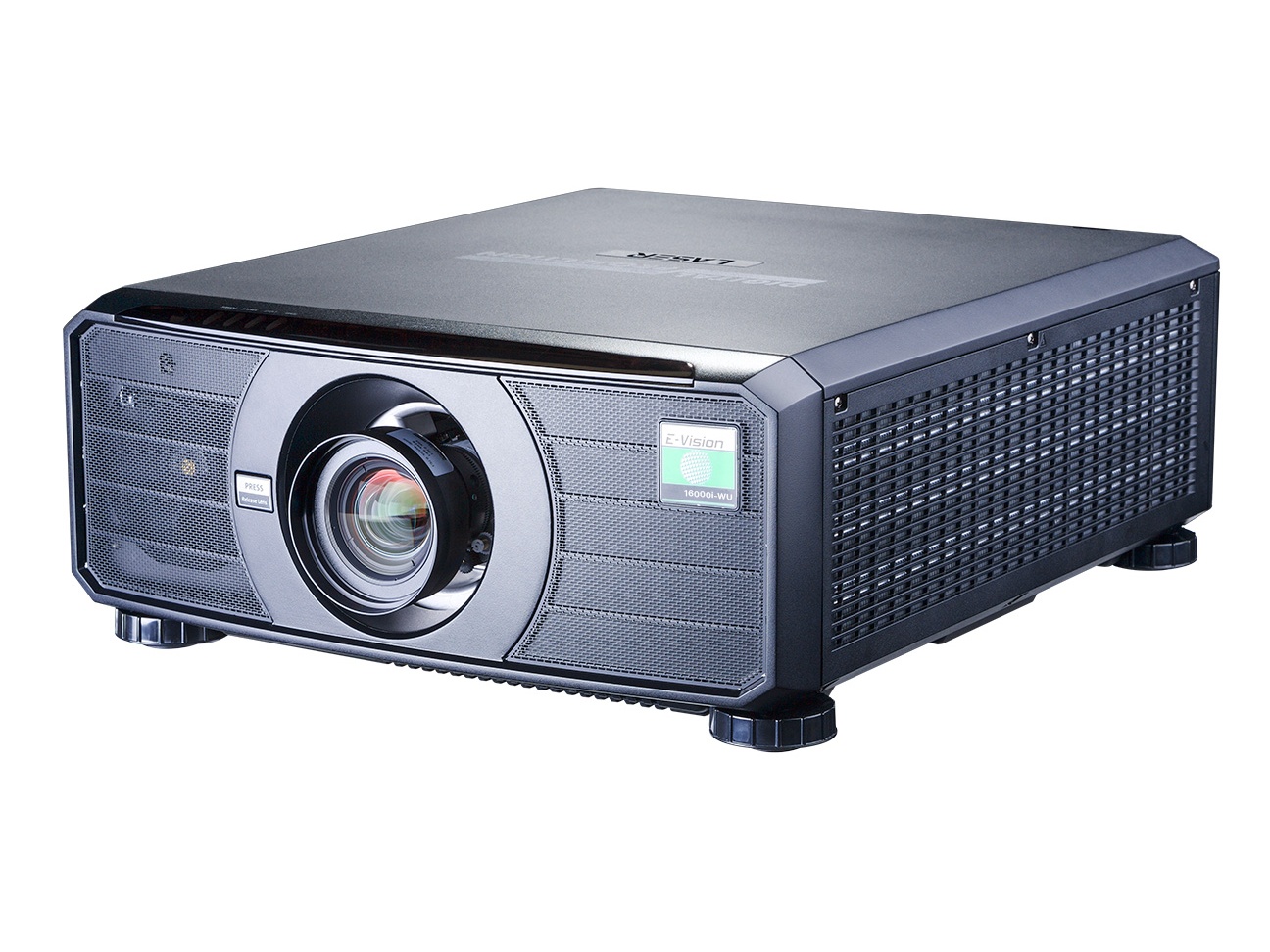

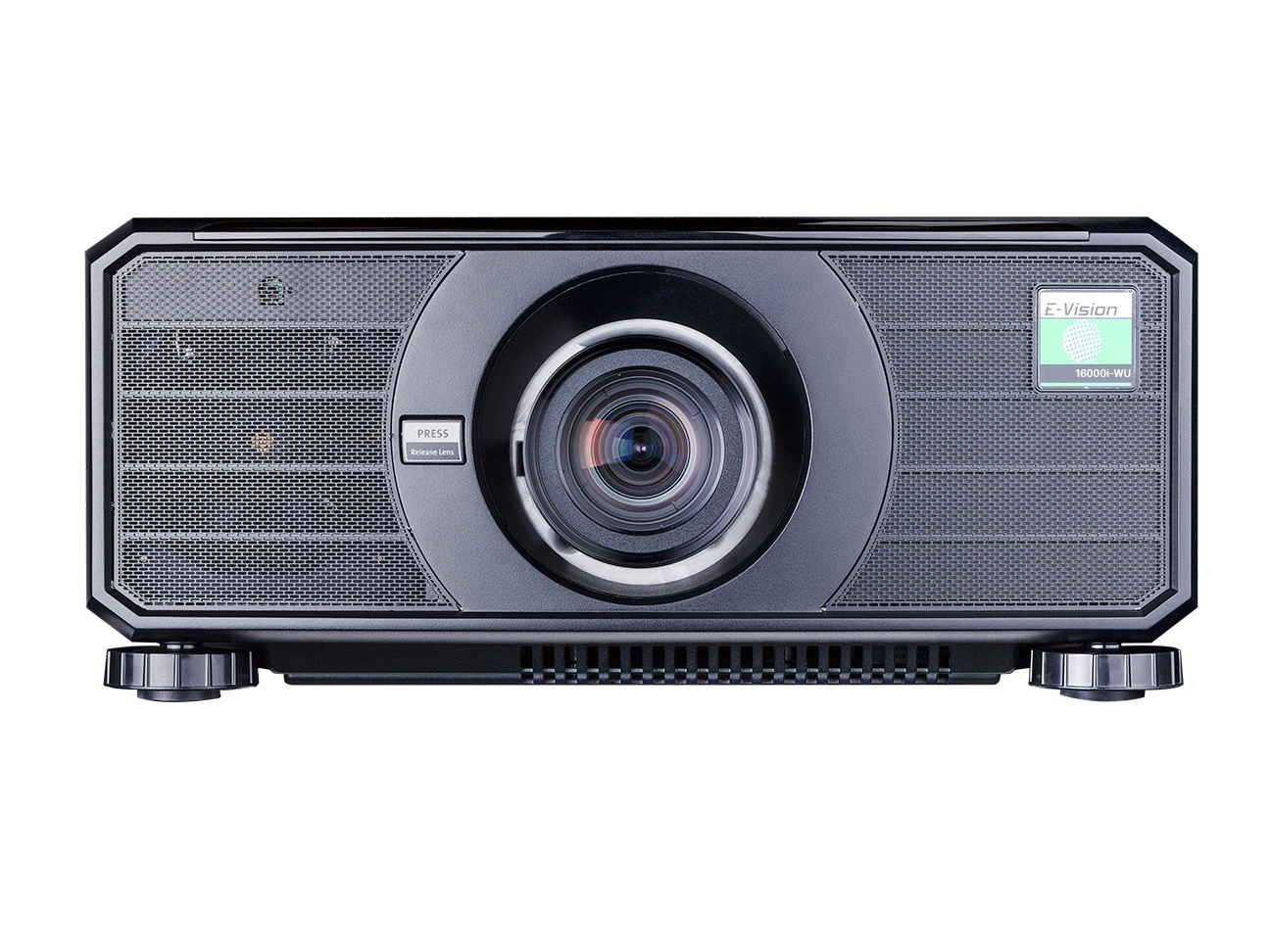

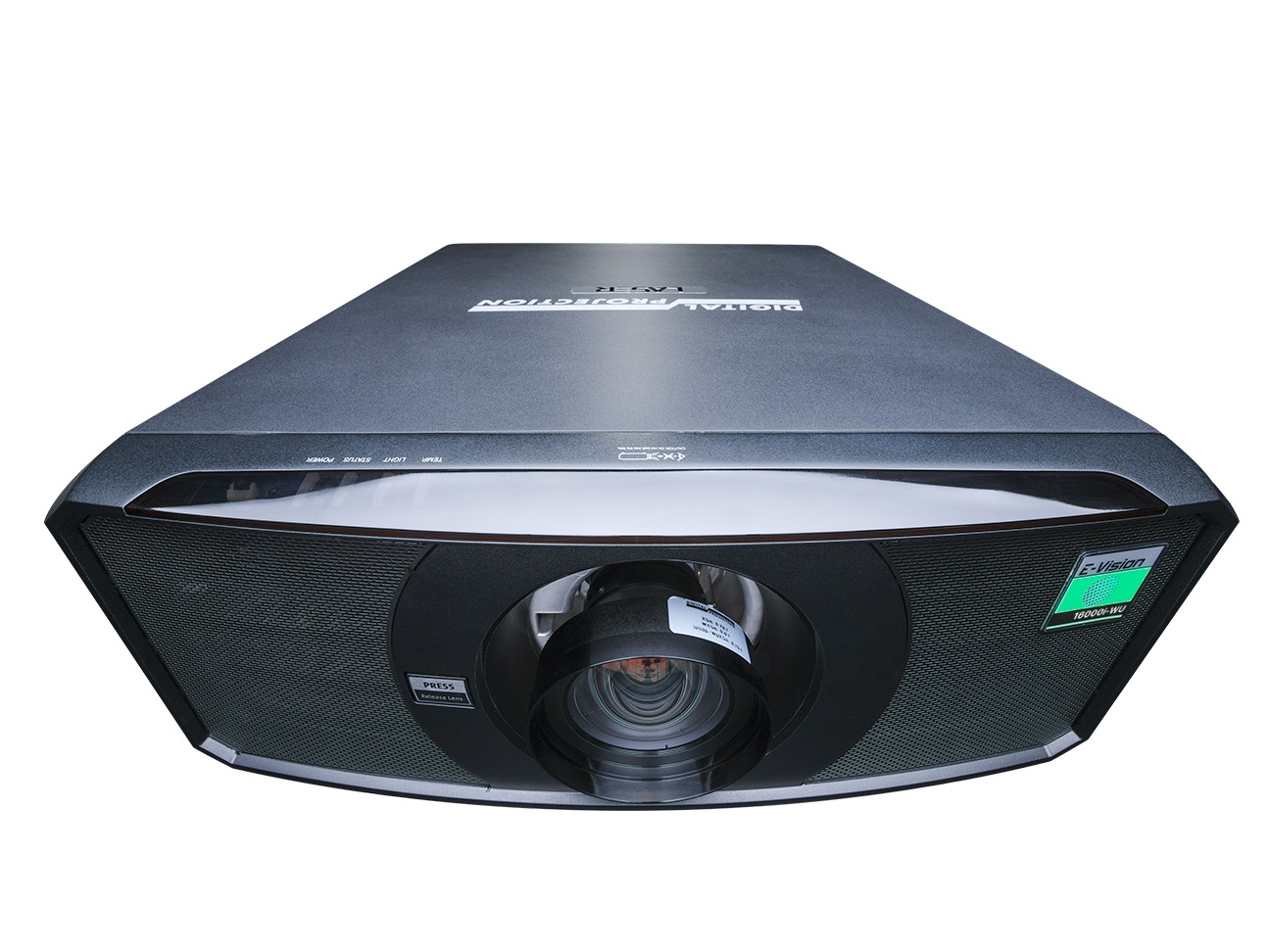

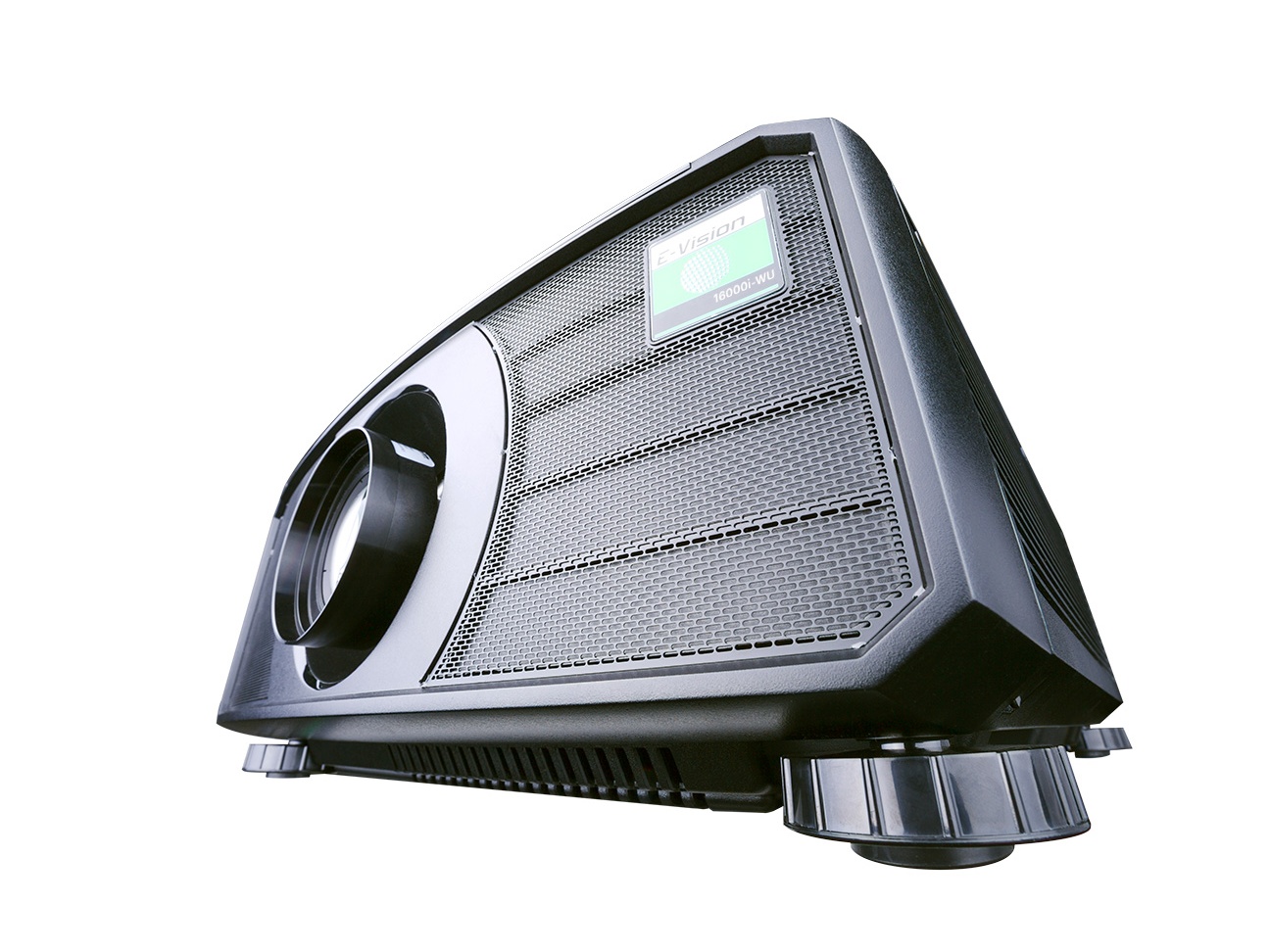

Digital Projection E-Vision 10000i 4K+ RGB 4K+ 1-Chip DLP RGB Laser Projector / 10000 ISO / 9000 ANSI / 10000:1 / IP6x

SKU: E-Vision 10000i 4K+ RGB
Brand: Digital Projection
$26,999.00
Brand Digital Projection
SKU E-Vision 10000i 4K+ RGB
Weight 65.00 lbs
Warranty 3 Years
Condition New
Status Available
Expert

Product Questions? Ask Our Experts!

Description

The E-Vision 10000i 4K+ RGB is a single-chip DLP projector that uses direct RGB laser illumination to deliver high-brightness, high-colour fidelity imagery. It produces 4K+ resolution through 4-way pixel shift and is engineered for professional live events, simulation, and permanent installations. The sealed optical path and liquid cooling provide consistent performance and reduced maintenance.

Key features include an all-new 0.8″ HEP DMD optimized for colour performance, native 1920 x 1200 DMD with 4-way pixel shift for 3840 x 2400 effective resolution, and RGB laser light source that removes colour-wheel artifacts. The projector offers 10,000 ISO / 9,000 ANSI lumens of output, HDR support, and a dynamic contrast ratio of 10,000:1. IP6x sealed optics prevent dust ingress and preserve light output and colour accuracy over time.

Technically the E-Vision 10000i 4K+ RGB supports 10-bit colour processing, DisplayPort 1.2, HDMI 2.0b, and 12G-SDI for high-bandwidth sources. It supports graphics up to WUXGA at 120Hz RB and WQXGA at 60Hz RB and video standards including 1080p and 4K-UHD at 60Hz. The projector also includes HDR handling, selectable dynamic black, DICOM simulation mode, and a range of aspect ratio and geometry correction options.

Connectivity options include dual HDMI 2.0b, dual DisplayPort 1.2, 12G SDI input and output, HDBaseT with Ethernet and RS232/IR control, and comprehensive control ports such as RS232, LAN, wired remote, and 12V trigger. The Nexus electronics platform provides advanced image processing and integrates with Projector Control II software for network monitoring and management. Art-Net support and source redundancy add reliability for critical events.

Typical applications for the E-Vision 10000i 4K+ RGB include large venue staging, fixed-install museum and simulation environments, rental and staging systems that require high brightness and accurate colour, and multi-projector blended video walls. The projector supports built-in edge blending and custom warp for seamless multi-projector installations. Its 24/7-rated design supports continuous operation where required.

Installation and operation are simplified by motorised lens options, intelligent lens memory for preset focus/zoom/shift positions, and multi-axis orientation capability. The projector is filterless and liquid cooled which reduces onsite maintenance. Backed by a five year / 20,000 hour EMEA warranty, the E-Vision 10000i 4K+ RGB combines long-term reliability with advanced imaging technology.

Specifications

Colour SystemDirect RGB Laser (no phosphor or color wheels)
Display Type1 x 0.8" HEP DMD
DMD Specification1920 x 1200 native; 3840 x 2400 via 4-way pixel shift
Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio16x10
Fill Factor87%
Key FeaturesRGB illumination, 4K+ resolution, 10,000:1 dynamic contrast
Nexus electronics platformNexus
IP6x Sealed OpticsIP6x sealed from laser to lens
Source RedundancyAutomatic main/backup source switching
Flexible Geometry AdjustmentPC tool or remote controller grid-synchronized
Art-Net SupportArt-Net DMX control
Intelligent Lens Memory10 user-definable presets
Operation24/7 capable
Edge BlendingBuilt-in edge blending and multi-projector tiling
Video standardsHDTV 1080p 60Hz, 4K-UHD 3840 x 2160 60Hz, DCI 4K 4096 x 2160
Graphics standardsWUXGA 1920 x 1200 120Hz RB, WQXGA 2560 x 1600 60Hz RB
Colour Processing10-bit colour processing, 1,073,741,824 colours, seven point colour correction
HDRHDR support
InputsHDMI 2.0b x2, DisplayPort 1.2 x2, 12G-SDI IN x1, HDBaseT x1
Outputs12G-SDI OUT x1, HDBaseT includes Ethernet RS232 IR
ControlLAN Web control, RS-232, IR, Wired remote, Art-Net, Crestron, PJLink, AMX
3D Sync3D Sync In BNC, 3D Sync Out BNC, 3D Sync Out for IR BNC
HDBaseTIncludes Ethernet 100BaseT and RS232/IR control
Power Requirements100-240VAC 50/60Hz single phase
Power Consumption800W
Typical illumination Life20,000 hours
Fan NoiseNormal 36 dBA, Silence Max 33 dBA
Operating Temperature0 to 40 C
Operating Humidity90% at 35 C max
Weight29.4 kg 64.8 lbs
DimensionsL 598 mm x W 500 mm x H 218 mm
Lens MountCentred motorised mount, programmable shift zoom focus
Lens OptionsMultiple zoom lenses 0.31-6.94:1 part numbers 124-318 124-319 124-320 124-321 124-322 124-323 112-503 112-504
Warranty5 year / 20,000 hour EMEA
