Download Manual The DXE-CAT-S2-4K is part of the growing Digital Xtreme Series. This product is different than the typical CAT extender found on the market today as it not only breaks the price barrier but the feature and usability aspects as well. All connectors are on one side to make wiring cleaner and rack mounting easier. Having the ability to power the device with the choice of transmit or receive reduces the installation time and keeps things neat. An industry first is Aurora’s exclusive FlexPowerTM Power-Over-Ethernet circuit (Patents Pending), which allows both the transmitter and receiver to be powered without the need of any wall supplies.
Being able to go the distance is important too, and HDBaseT technology helps achieve that. With a single CAT cable, the DXE-CAT can go up to 328ft 4K 30Hz or 1080p 60Hz 48bit color depth, 500ft 1080p 60Hz 24bit (CAT 6), and 600ft 1080p 60Hz 24bit (CAT 6A Shielded) depending on model and cable. In addition, the RS-232, IR, & LAN can be sent over the same cable bidirectionally.
Features:
- Transmit HDMI up to 4K 30Hz/1080p 60Hz 48bit 328ft over one CAT 5e/6/7 cable*
- Transmit HDMI up to 1080p 60Hz 24bit 500ft over one CAT 6 cable*
- Transmit HDMI up to 1080p 60Hz 24bit 600ft over one CAT 6A Shielded cable (Extended Range Firmware Required)*
- Supports 4K 30Hz UHD & HDMI 3D
- HDCP Compliant

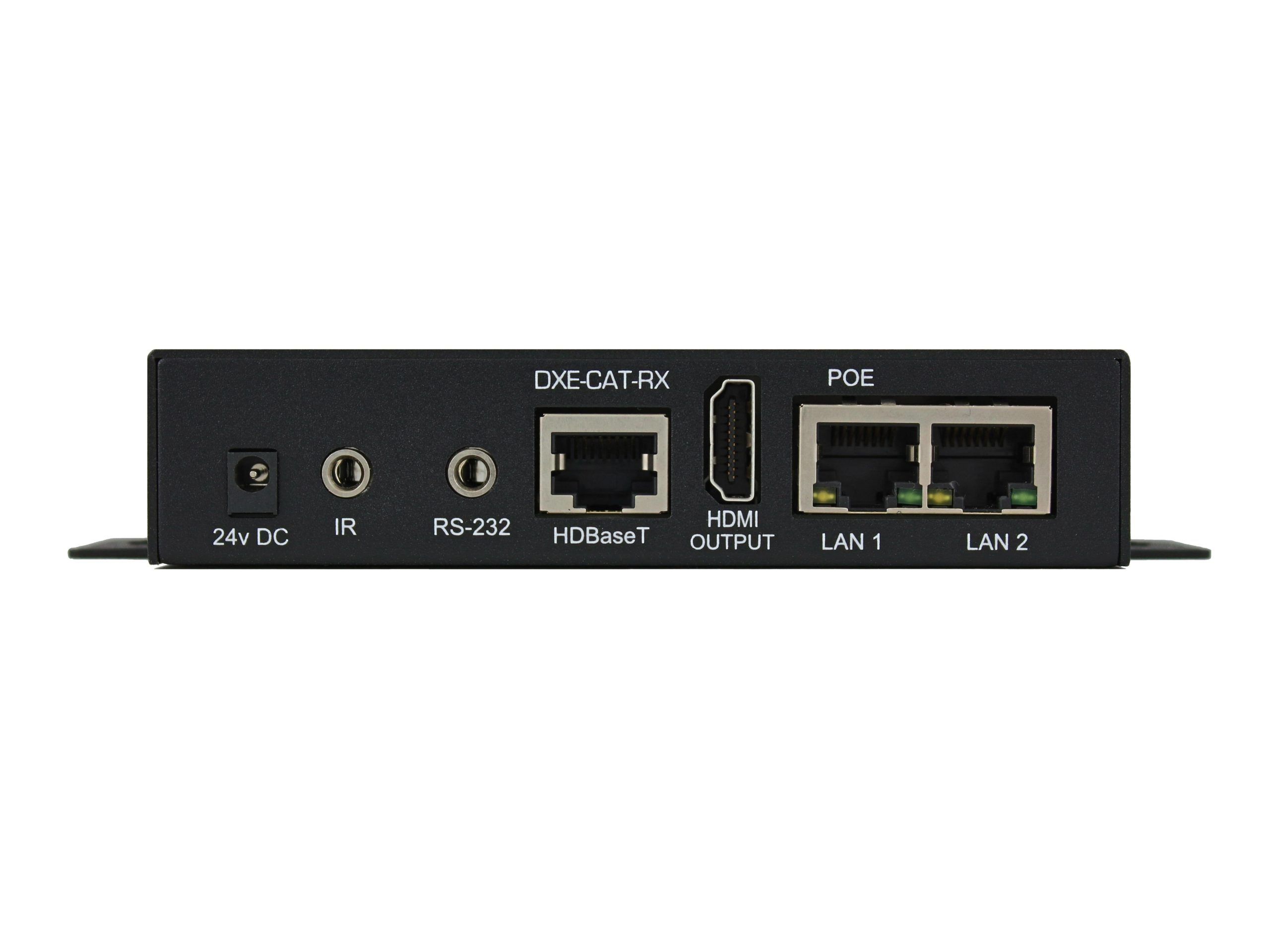

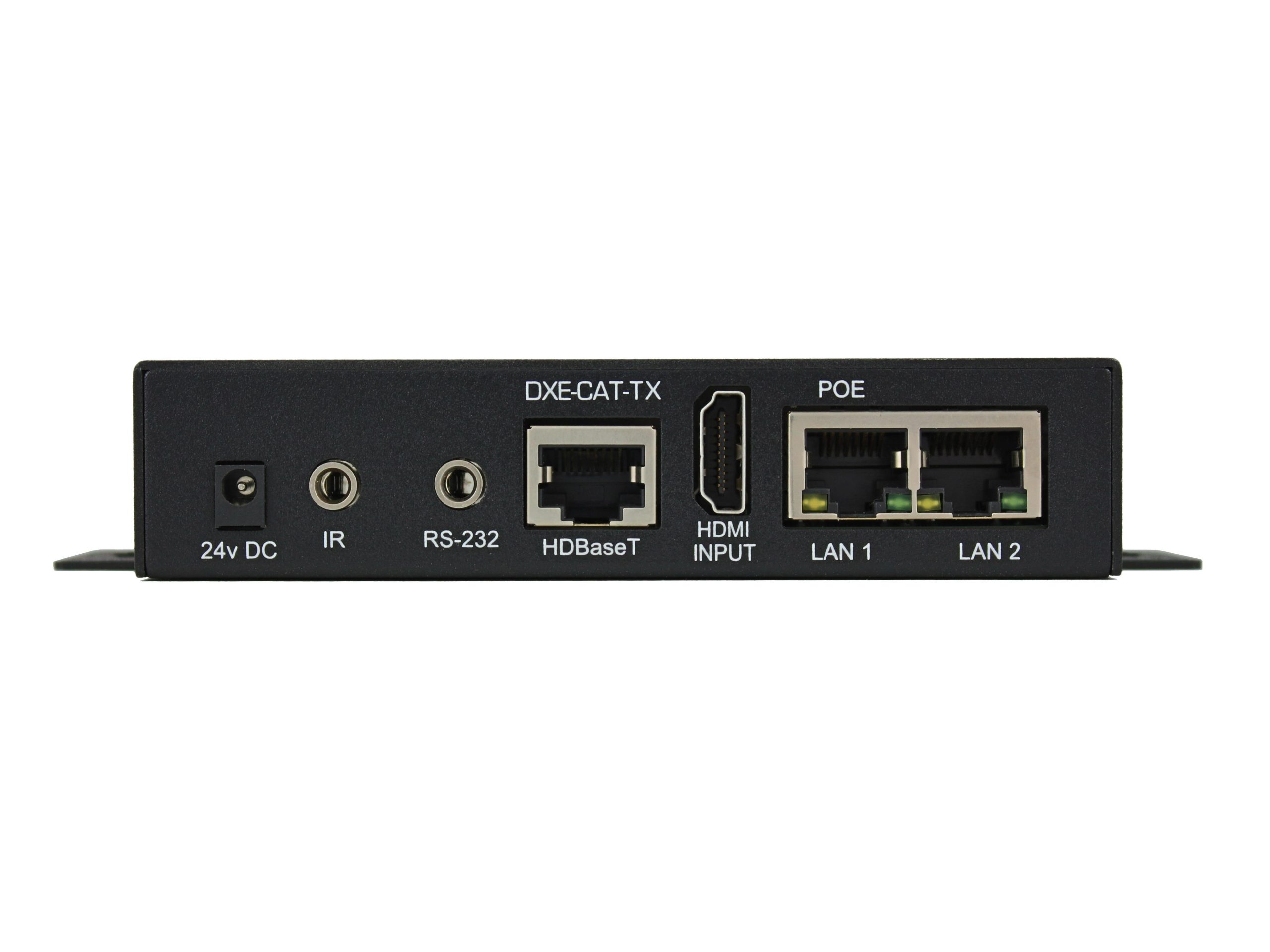

- All connectors on one side for easier installation
- Bi-directional RS-232 & IR & LAN
- Power both units from TX or RX side with wall power supply (HDBaseT POE)
- LAN POE (Power-Over-Ethernet) can power both TX & RX without wall supplies (Patents Pending)
- Status LED for all connections on front
- Various mounting options
* Refer to Technical Specifications Section.
