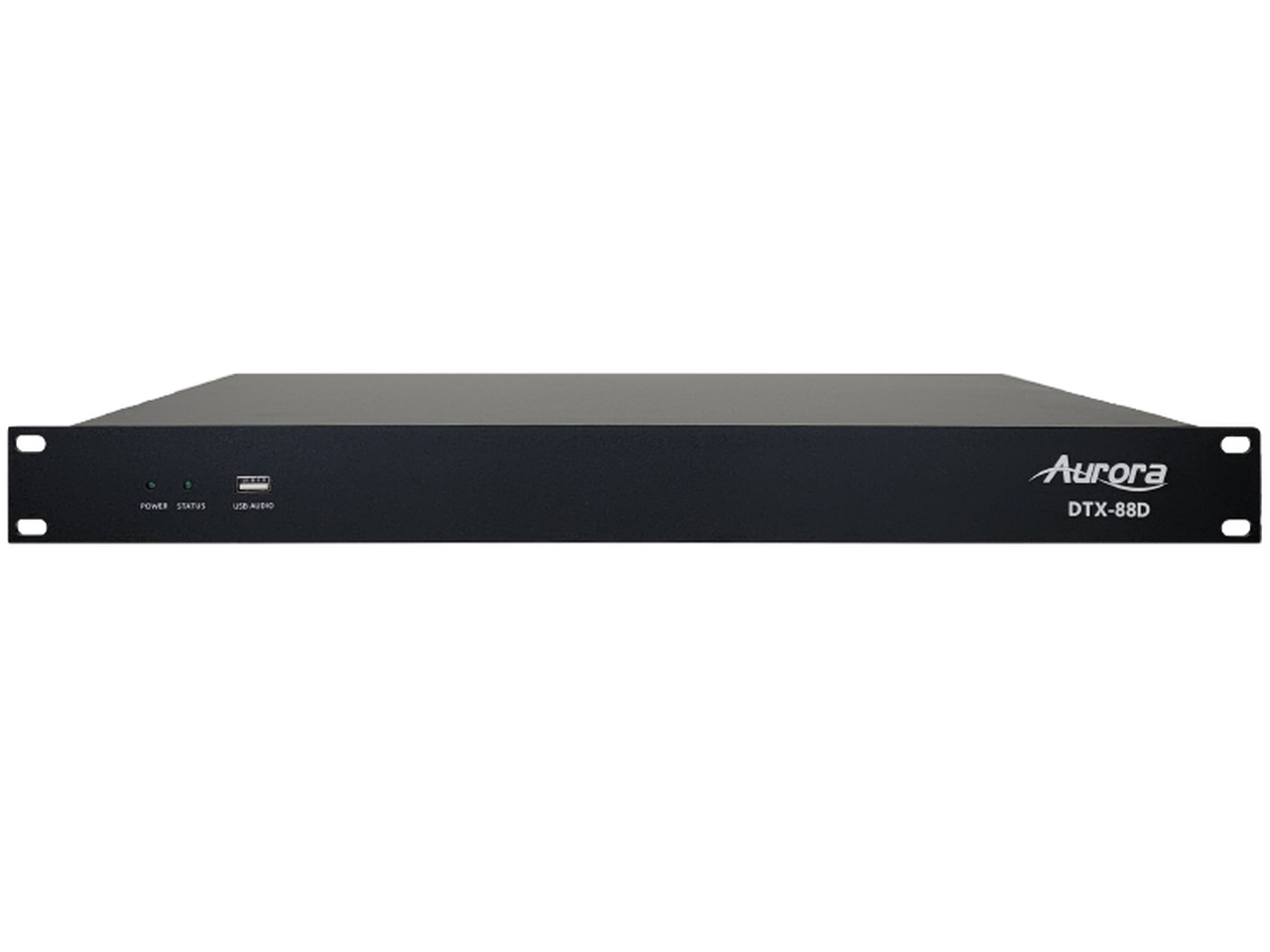

Aurora Multimedia DTX-88D Medium-density 8x8 Dante DSP with 8x8 analog I/O

Description

Aurora’s DTX-88D is a Dante enabled, digital audio DSP with Analog I/O. This fully networked professional audio product is ideal complement to Aurora’s IPX and VPX Video over IP solutions for House of Worship, Bars and Restaurants, Conferencing, and Education markets. The DTX ecosystem of products are purpose built to deliver pristine audio throughout the network while significantly reducing traditional device count and cabling costs.

Features:

ADI SHARC 21489 processor
8 balanced microphone or line level inputs on Terminal Block connectors
8 balanced line level outputs on Terminal Block connectors
2 Dante audio interfaces on RJ-45 connectors
8 GPI/O multi-function ports on Terminal Block connectors
Dante audio channels up to 8×8
Defnable GUI for managing and confgurating multiple units
All Inputs and Outputs support a full suite of audio shaping tools including graphic and parametric EQ, dynamics, ducker, delay and more
16 preset slots to store all configuration data for easy recall
Built-in USB sound card for recording and playing digital audio
DSP Confgurator software tool for managing all audio operations
Supports adaptive echo cancellation (AEC), adaptive feedback control (AFC), automatic gain control (AGC), automatic mixture control (AMC), automatic noise suppression (ANS)

Specifications

ADSP	ADI SHARC 21489 (×1)
Audio Format	24 bits, 48 kHz sampling rates (uncompressed)
System Latency	< 3 ms
Analog I/O Channels	8x8
Dante I/O Channels	8x8
Analog Input Gain	0, 10, 20, 30, 40, 43 dB
Analog Input Level	+24 dBu
Analog Output Level	+24 dBu
Frequency Response	±0 2 dB (20 Hz to 20 kHz)
THD+N	< 0 003% (1 kHz, +4 dBu)
Common Mode Rejection Ration	80 dB (60 Hz)
SNR	110 dB
Analog Dynamic Range	113 dB
Dante Dynamic Range	115 dB
Analog Background Noise	-89 dBu (A-weighted)
Dante Background Noise	-91 dBu (A-weighted)
Channel Isolation	108 dB (1 kHz)
Input Impedance	9 4k ohms (Balanced)
Output Impedance	102 ohms (Balanced)
Phantom Power	48 V

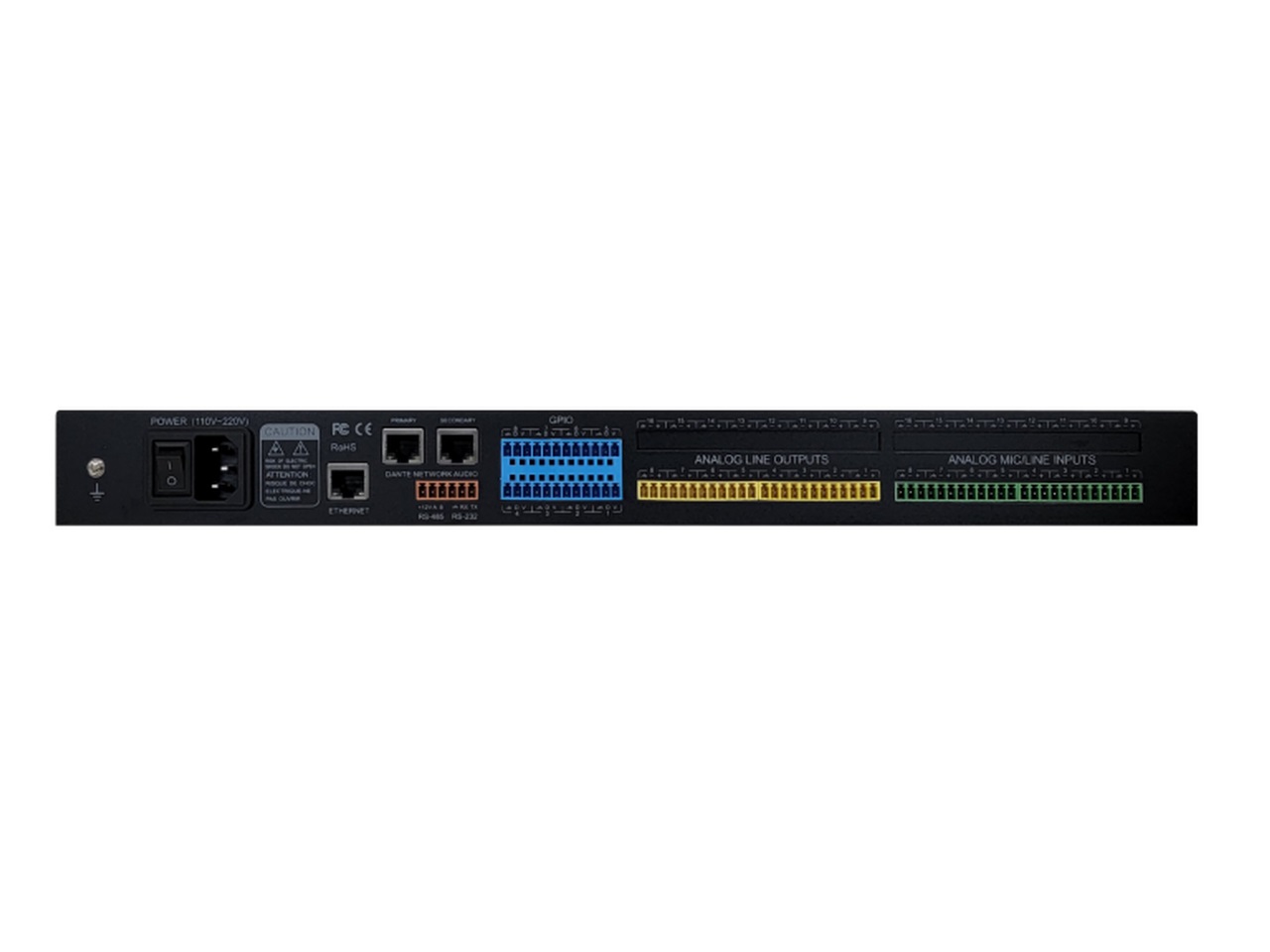

Input Port	8 Analog Audio (Terminal Block)
Output Port	8 Analog Audio (Terminal Block)
Ethernet Port	2 Dante Audio (RJ-45) 1 LAN (RJ-45)
USB Port	1 USB Audio (Type-A)
Serial Port	1 RS-232 (Terminal Block) 1 RS-485 (Terminal Block)
GPI/O Port	8 GPI/O (Terminal Block)
AC Power	110 to 240 VAC at 50 or 60 Hz
AC Adapter	N/A
Power Consumption	25 W
Chassis Material	Metal
Chassis Color	Black
Chassis Dimensions (Hight×Width×Depth)	45×482×260 mm
Chassis Weight	3 kg
Operating Temperature	+32 to +104 °F (0 to +40 °C)
Humidity	10% to 90% RH (non-condensing)
Regulatory Compliance	FCC, CCC, CE, RoHS
