Description
This listing is for DS-TPS2A only. Use description below as a
general reference.
The D SERIES-TPS2A modules are two-pair audio sending modules compatible
with RDL Format-A twisted pair products. These modules are designed to be mounted in
wall boxes, cabinets or other enclosures that allow users to connect audio sources.
The -TPS2A models mount in RDL WB-1U and WB-2U wall boxes, or in standard U.S.
electrical boxes. The D-TPS2A features a white front-panel laminate with gray
lettering that matches RDL Decora©-style remote controls. The DB-TPS2A features a

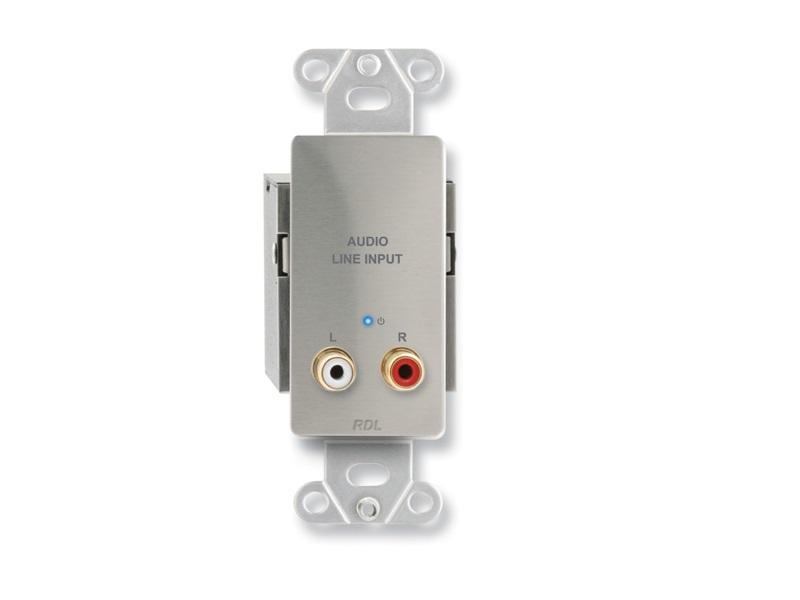

black front-panel laminate. The DS-TPS2A is constructed of stainless steel to
coordinate with RDL Decora-style stainless steel remote controls in commercial/
industrial installations.

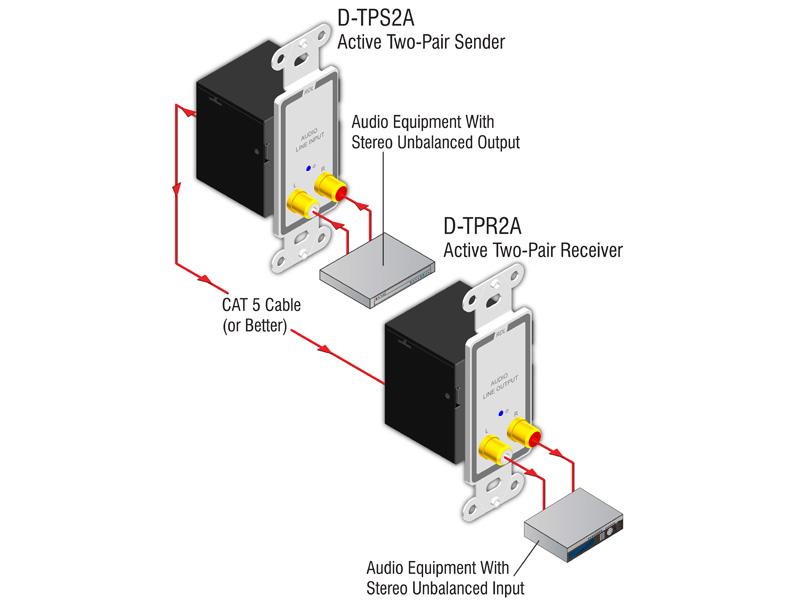

APPLICATION: The D SERIES-TPS2A modules feature
two RCA phono jack inputs, one for the left channel source and one for the right
channel source. These inputs are designed to receive standard -10 dBV consumer level
signals. The input signals are amplified using studio-quality preamplifiers
optimized for normal operating levels. The buffered left and right inputs are routed
to output cable pairs B and C.
These modules drive only two cable pairs,
therefore they accept a signal and power from one mic-level or line-level Format-A
single-pair sender. The D SERIES-TPR1A modules have a second RJ45 jack for an input
cable. One single-pair sender may be chained with the -TPS2A. A single-pair sender
must be set to feed pair A if it is connected together with the -TPS2A. The power

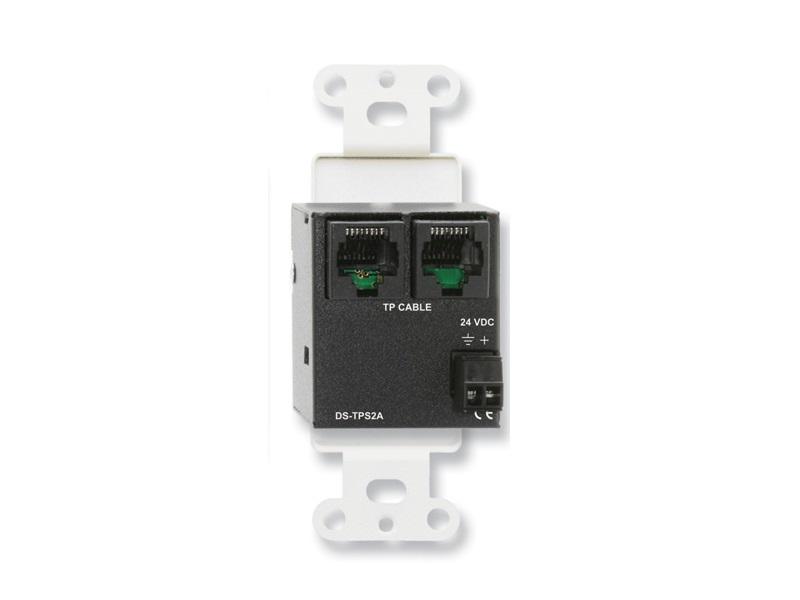

pair and all three audio pairs are fed through both rear-panel RJ45 jacks.
The D SERIES-TPS2A may be powered directly from a 24 Vdc power supply using the
detachable terminal block. Local power connected to the module is also fed to all
connected remote modules. The -TPS2A may be remotely powered through the twisted
pair cable from any other module, signal distributor or RDL power inserter connected
to the same twisted pair cable. Module power is indicated by a front-panel LED.
RDL FORMAT-A features superior audio performance that rivals or exceeds shielded
wiring. Design simplicity, ease of installation, unsurpassed flexibility, automatic
fused power, exceptional hum rejection, low noise, and low distortion provide
designers and installers the optimum choice in economical twisted pair products.
Features
- Two Unbalanced -10 dBV Phono Jack
Audio Inputs
- Left (L) Input Feeds Pair B; Right (R) Feeds Pair C
- Signal and Power Pair Pass-Through on RJ45 Jacks
- Remote Powering
through Twisted Pair Cable
- Fused Local Power Feeds all Connected Modules
- Local Power Input on Terminal Block
- Blue LED Indicates Module is
Powered
- Daisy-Chain with Single-Pair Senders
- Studio-Quality
Precision Active Balanced Circuitry
