Description
This listing is for DB-TPSL1A Transmitter only. Use
description below as a general reference.
The -TPSL1A modules are single pair audio sending modules compatible with
RDL Format-A twisted pair products. These modules are designed to be mounted in wall
boxes, cabinets or other enclosures that allow users to connect audio sources.

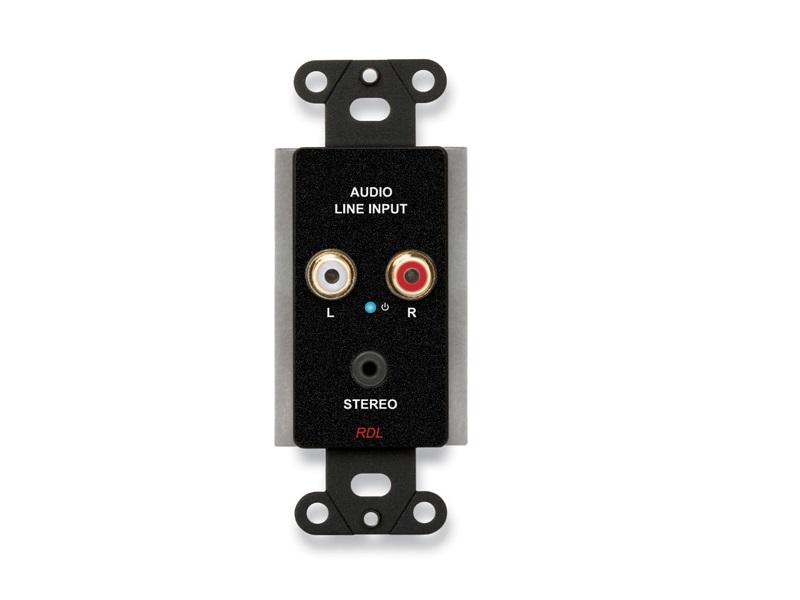

The –TPSL1A modules feature a stereo line input through a mini jack or two RCA
phono jacks summed to mono. The unbalanced inputs are designed to receive standard –
10 dBV consumer level signals. These modules drive only one cable pair, therefore
they accept signals and power from other mic-level or line-level Format-A senders.
Two other single-pair senders may be chained with the -TPSL1A, or a single two-pair
sender may be connected. If three single-pair senders are connected together, each

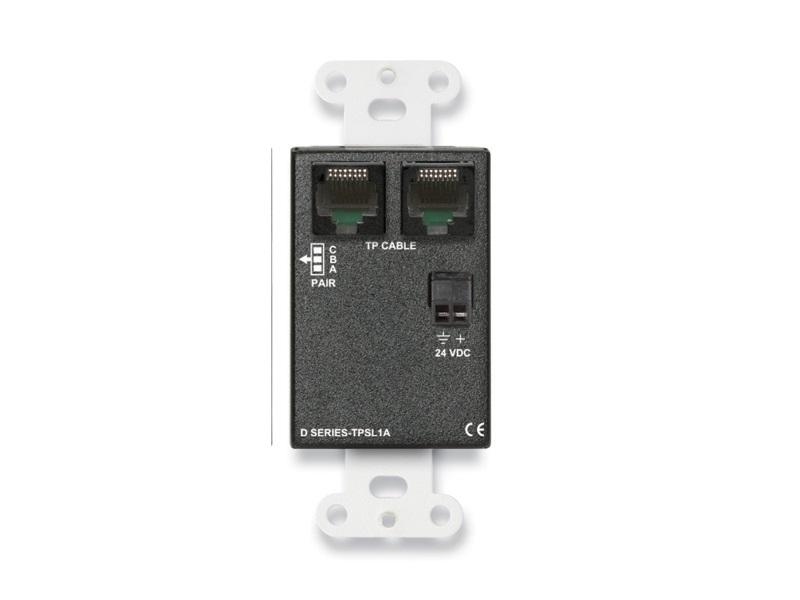

sender must feed a different pair: A, B or C. The power pair and all three audio
pairs are fed through both rear-panel RJ45 jacks.
The -TPSL1A may be
powered directly from a 24 Vdc power supply using the rear-panel detachable terminal
block. Local power connected to the module is also fed to all connected remote
modules. The -TPSL1A may be remotely powered through the twisted pair cable from any
other module, signal distributor or RDL power inserter connected to the same twisted
pair cable. Module power is indicated by a front-panel LED.
RDL FORMAT-A
features superior audio performance that rivals or exceeds shielded wiring. Design
simplicity, ease of installation, unsurpassed flexibility, automatic fused power,
exceptional hum rejection, low noise, and low distortion provide designers and
installers the optimum choice in economical twisted pair products.
Features
- Stereo Audio Input Combined to Mono Output
- Input on Dual RCA Jacks or Mini-Jack
- Switch Selects which RJ45
Pair (A, B or C) is Fed
- Signal and Power Pair Pass-Through between TP
CABLE RJ45 Jacks
- Remote Powering through Twisted Pair Cable
- Fused Local Power Feeds all Connected Modules
- Local Power Input on
Terminal Block
- Blue LED Indicates Module is Powered
- Daisy-Chain
with Single-Pair or Two-Pair Format-A Senders
- Studio-Quality Precision
Active Balanced Circuitry
