Description
This listing is for DB-TPS2A Transmitter only. Use
description below as a general reference.
The D SERIES-TPS2A modules are two-pair audio sending modules compatible with
RDL Format-A twisted pair products. These modules are designed to be mounted in wall
boxes, cabinets or other enclosures that allow users to connect audio sources. The –
TPS2A models mount in RDL WB-1U and WB-2U wall boxes, or in standard U.S. electrical

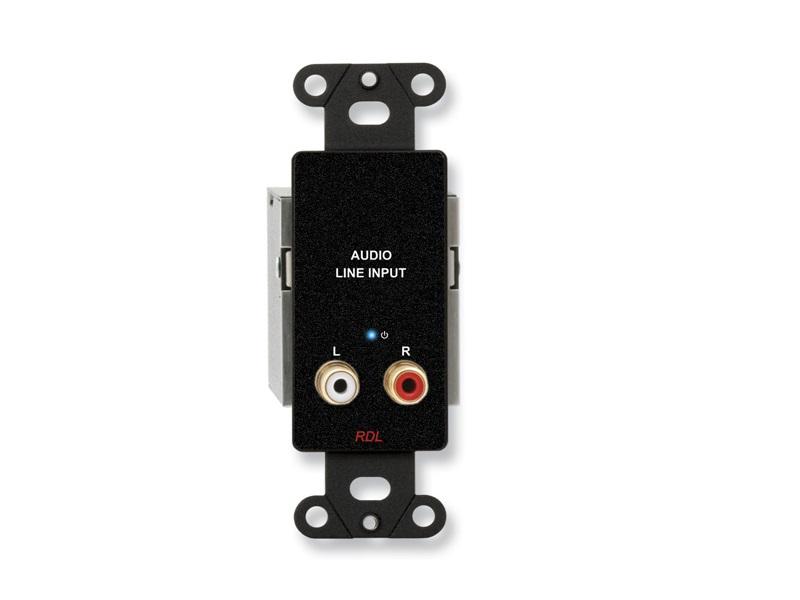

boxes. The D-TPS2A features a white front-panel laminate with gray lettering that
matches RDL Decora©-style remote controls. The DB-TPS2A features a black front-panel
laminate. The DS-TPS2A is constructed of stainless steel to coordinate with RDL
Decora-style stainless steel remote controls in commercial/industrial installations.
APPLICATION: The D SERIES-TPS2A modules feature two RCA phono jack inputs,
one for the left channel source and one for the right channel source. These inputs
are designed to receive standard -10 dBV consumer level signals. The input signals
are amplified using studio-quality preamplifiers optimized for normal operating
levels. The buffered left and right inputs are routed to output cable pairs B and C.
These modules drive only two cable pairs, therefore they accept a signal
and power from one mic-level or line-level Format-A single-pair sender. The D SERIES-
TPR1A modules have a second RJ45 jack for an input cable. One single-pair sender may
be chained with the -TPS2A. A single-pair sender must be set to feed pair A if it is

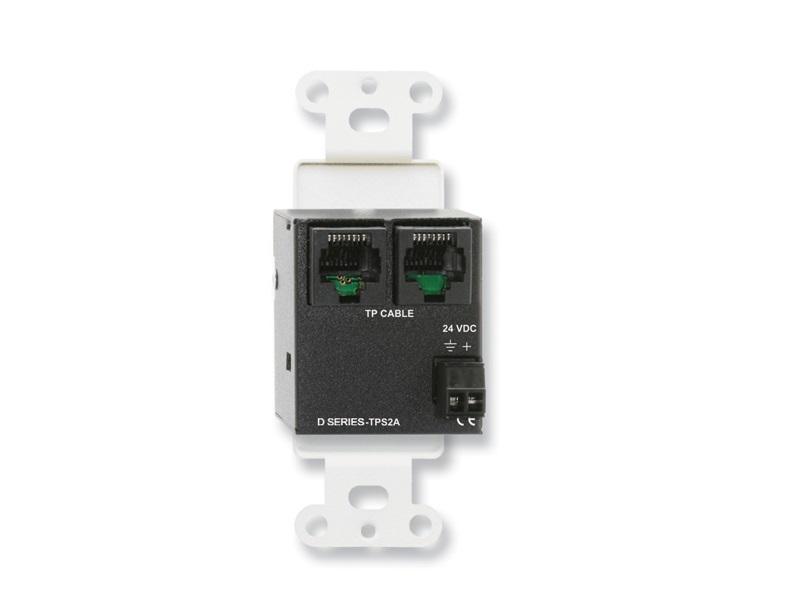

connected together with the -TPS2A. The power pair and all three audio pairs are fed
through both rear-panel RJ45 jacks.
The D SERIES-TPS2A may be powered
directly from a 24 Vdc power supply using the detachable terminal block. Local power
connected to the module is also fed to all connected remote modules. The -TPS2A may
be remotely powered through the twisted pair cable from any other module, signal
distributor or RDL power inserter connected to the same twisted pair cable. Module
power is indicated by a front-panel LED.
RDL FORMAT-A features superior
audio performance that rivals or exceeds shielded wiring. Design simplicity, ease of
installation, unsurpassed flexibility, automatic fused power, exceptional hum
rejection, low noise, and low distortion provide designers and installers the
optimum choice in economical twisted pair products.
Features
- Two Unbalanced -10 dBV Phono Jack Audio Inputs
- Left
(L) Input Feeds Pair B; Right (R) Feeds Pair C
- Signal and Power Pair Pass-
Through on RJ45 Jacks
- Remote Powering through Twisted Pair Cable
- Fused Local Power Feeds all Connected Modules
- Local Power Input on
Terminal Block
- Blue LED Indicates Module is Powered
- Daisy-Chain
with Single-Pair Senders
- Studio-Quality Precision Active Balanced
Circuitry
