Description
This listing is for D-TPS2A only. Use description below as a
general reference.
The D SERIES-TPS2A modules are
two-pair audio sending modules compatible with RDL Format-A twisted pair products.
These modules are designed to be mounted in wall boxes, cabinets or other enclosures
that allow users to connect audio sources. The -TPS2A models mount in RDL WB-1U and

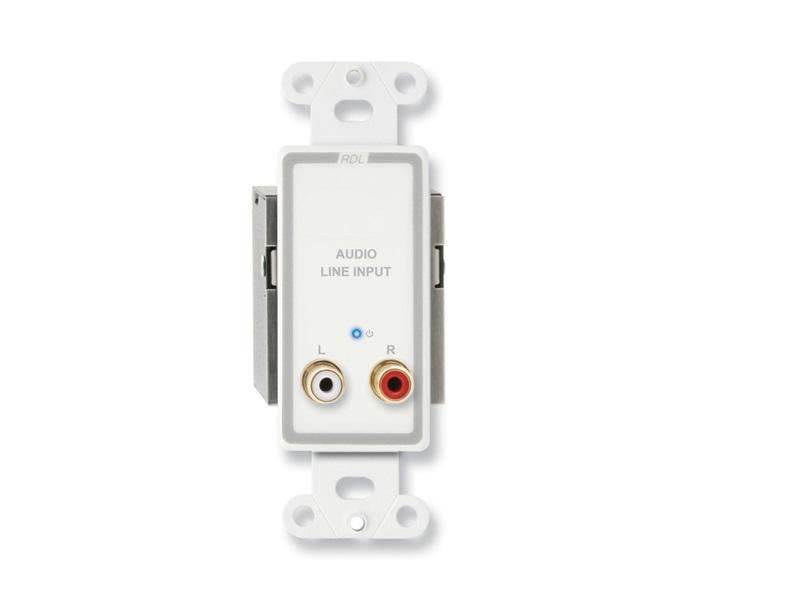

WB-2U wall boxes, or in standard U.S. electrical boxes. The D-TPS2A features a white
front-panel laminate with gray lettering that matches RDL Decora©-style remote
controls. The DB-TPS2A features a black front-panel laminate. The DS-TPS2A is
constructed of stainless steel to coordinate with RDL Decora-style stainless steel
remote controls in commercial/industrial installations.

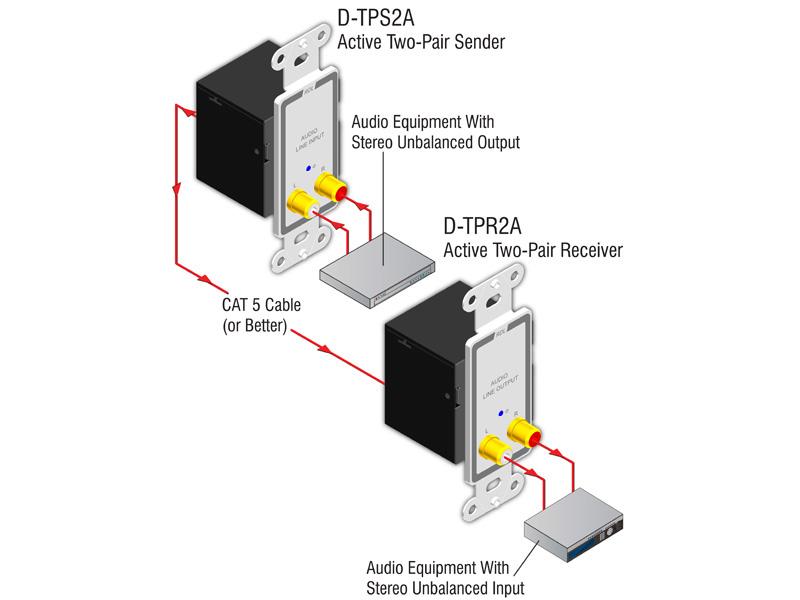

APPLICATION: The D
SERIES-TPS2A modules feature two RCA phono jack inputs, one for the left channel
source and one for the right channel source. These inputs are designed to receive
standard -10 dBV consumer level signals. The input signals are amplified using
studio-quality preamplifiers optimized for normal operating levels. The buffered
left and right inputs are routed to output cable pairs B and C.
These
modules drive only two cable pairs, therefore they accept a signal and power from
one mic-level or line-level Format-A single-pair sender. The D SERIES-TPR1A modules
have a second RJ45 jack for an input cable. One single-pair sender may be chained
with the -TPS2A. A single-pair sender must be set to feed pair A if it is connected

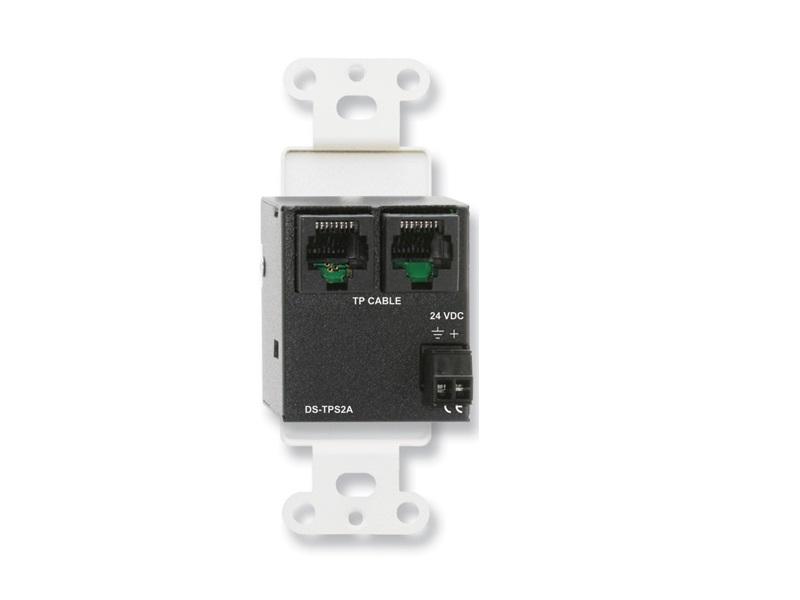

together with the -TPS2A. The power pair and all three audio pairs are fed through
both rear-panel RJ45 jacks.
The D SERIES-TPS2A may be powered directly from
a 24 Vdc power supply using the detachable terminal block. Local power connected to
the module is also fed to all connected remote modules. The -TPS2A may be remotely
powered through the twisted pair cable from any other module, signal distributor or
RDL power inserter connected to the same twisted pair cable. Module power is
indicated by a front-panel LED.
RDL FORMAT-A features superior audio
performance that rivals or exceeds shielded wiring. Design simplicity, ease of
installation, unsurpassed flexibility, automatic fused power, exceptional hum
rejection, low noise, and low distortion provide designers and installers the
optimum choice in economical twisted pair products.
Features
- Two Unbalanced -10 dBV Phono Jack Audio Inputs
- Left
(L) Input Feeds Pair B; Right (R) Feeds Pair C
- Signal and Power Pair Pass-
Through on RJ45 Jacks
- Remote Powering through Twisted Pair Cable
- Fused Local Power Feeds all Connected Modules
- Local Power Input on
Terminal Block
- Blue LED Indicates Module is Powered
- Daisy-Chain
with Single-Pair Senders
- Studio-Quality Precision Active Balanced
Circuitry
