RDL D-CIJ3D Consumer Audio Extender Input Jacks/Stereo

Description

This listing is for D-CIJ3D only. Use description below as a general reference.

The D-CIJ3D is the ideal choice in installations requiring stereo unbalanced line level audio sources to feed stereo balanced (or unbalanced) audio lines.

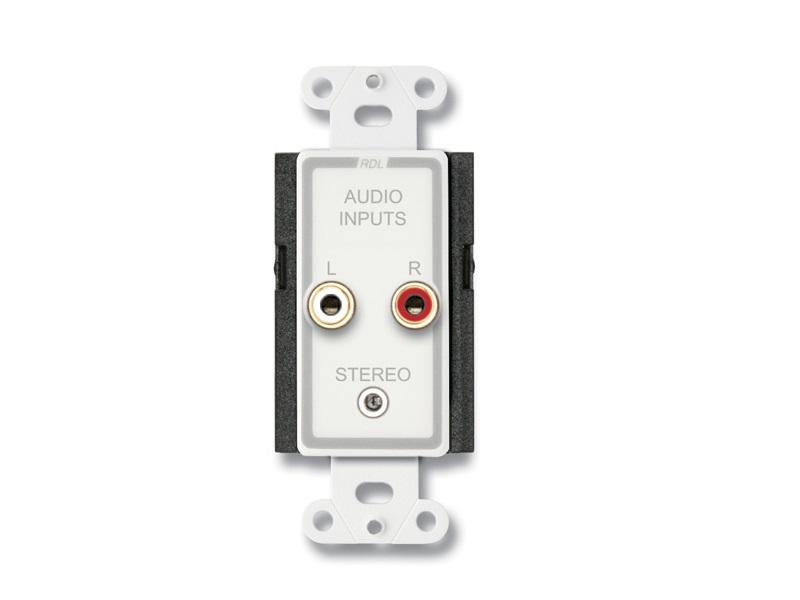

The D-CIJ3D is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear- panel detachable terminal block for connection to 10 kO or higher input impedance line- level module or equipment inputs.

Features

Stereo Inputs to Stereo Outputs
Stereo Inputs on RCA Jacks and Stereo Mini-Jack
Unbalanced to Balanced Conversion Without Gain
Transformer Isolation for Unbalanced Line Inputs
Hum Cancellation on Unbalanced Line Inputs
Line-Level Output to Feed 10 kO Equipment Inputs

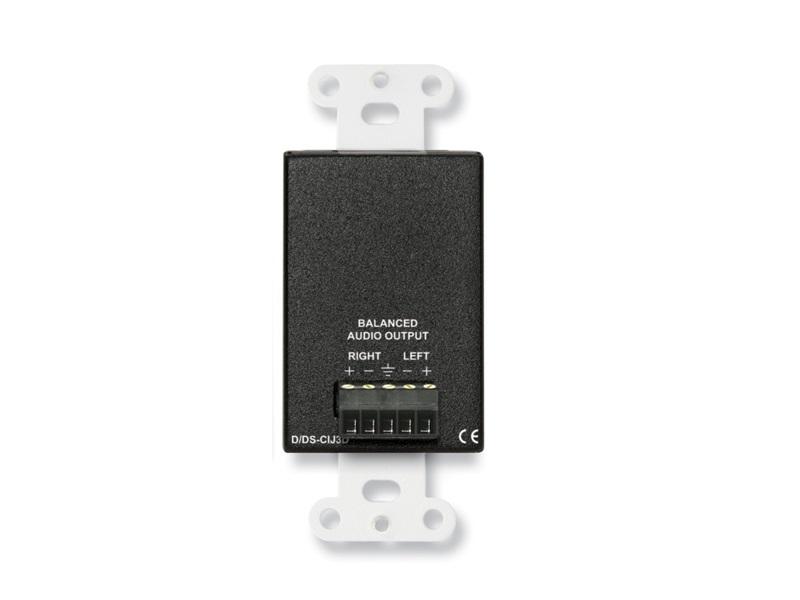

Output Connections on Detachable Terminal Block
Available in RDL Black (DB-CIJ3D)
Available in Stainless Steel (DS-CIJ3D)

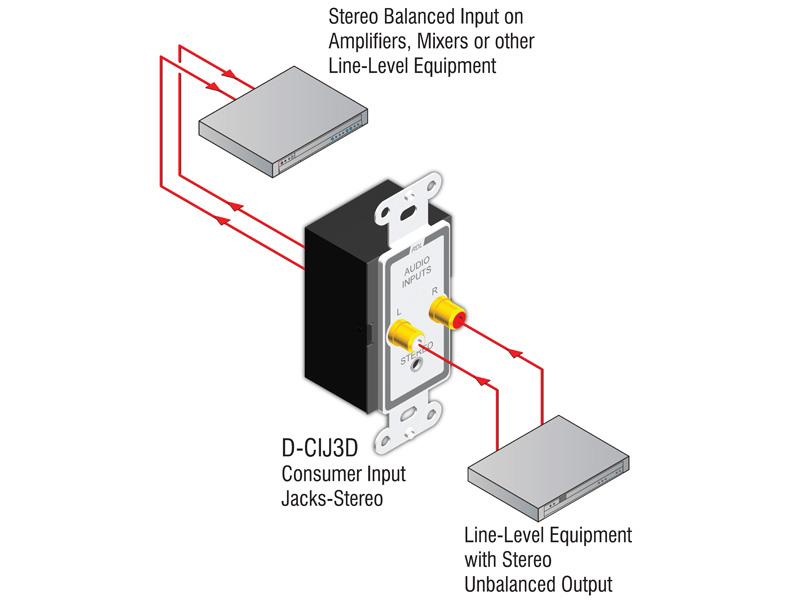

Product Diagrams

View Diagrams

Specifications

Input connectors (3):	Phono jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo)
Frequency response (line level):	50 Hz to 20 kHz (±1 dB); 30 Hz to 20 kHz (±2 dB)
Crosstalk:	<-80 dB (1 kHz); <-60 dB (10 Hz to 20 kHz)
THD:	<0.2% (1 kHz)
Output connector:	Detachable terminal block
Ambient Operating Environment:	0° C to 55° C
Dimensions:	Height: 4.13 in. 10.49 cm Width: 1.7 in. 4.32 cm Depth: 2.15 in. 5.47 cm
Mounting Box Minimum Dimensions:	Width: 1.80 in. 4.57 cm Depth: 1.75 in. 4.45 cm
Package Type:	Cardboard Box
Package Dimensions:	3.625 x 4.625 x 2.125 in.
Shipping Weight:	0.55 lbs.
WEEE weight:	0.4 lbs.
Tariff code:	8536.90.8085
