Description
The CS784H is a 4-port desktop KVM switch designed for those who demand a streamlined workflow and uncompromising visual quality across multiple systems. It enables fast, reliable switching between four HDMI computers with up to 4K DCI resolution, while sharing a single keyboard, monitor, mouse, audio output, and USB peripherals through one KVM console. With multiple switching methods – including pushbuttons, hotkeys, and a remote port selector – the CS784H is the perfect companion for desktop setups in offices, content creation, remote work, design, and more.
Download Manual Space-Efficient Desktop Setup

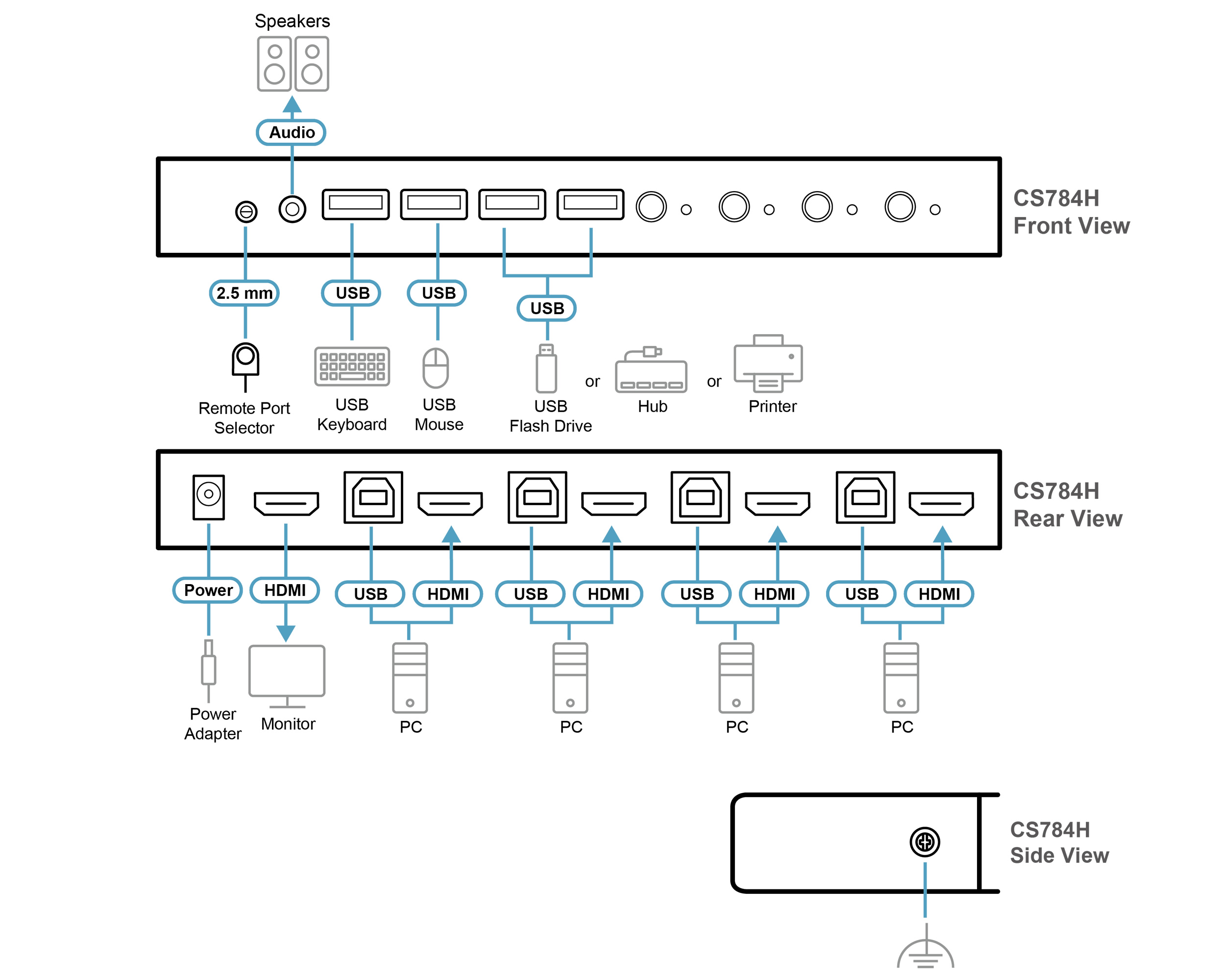

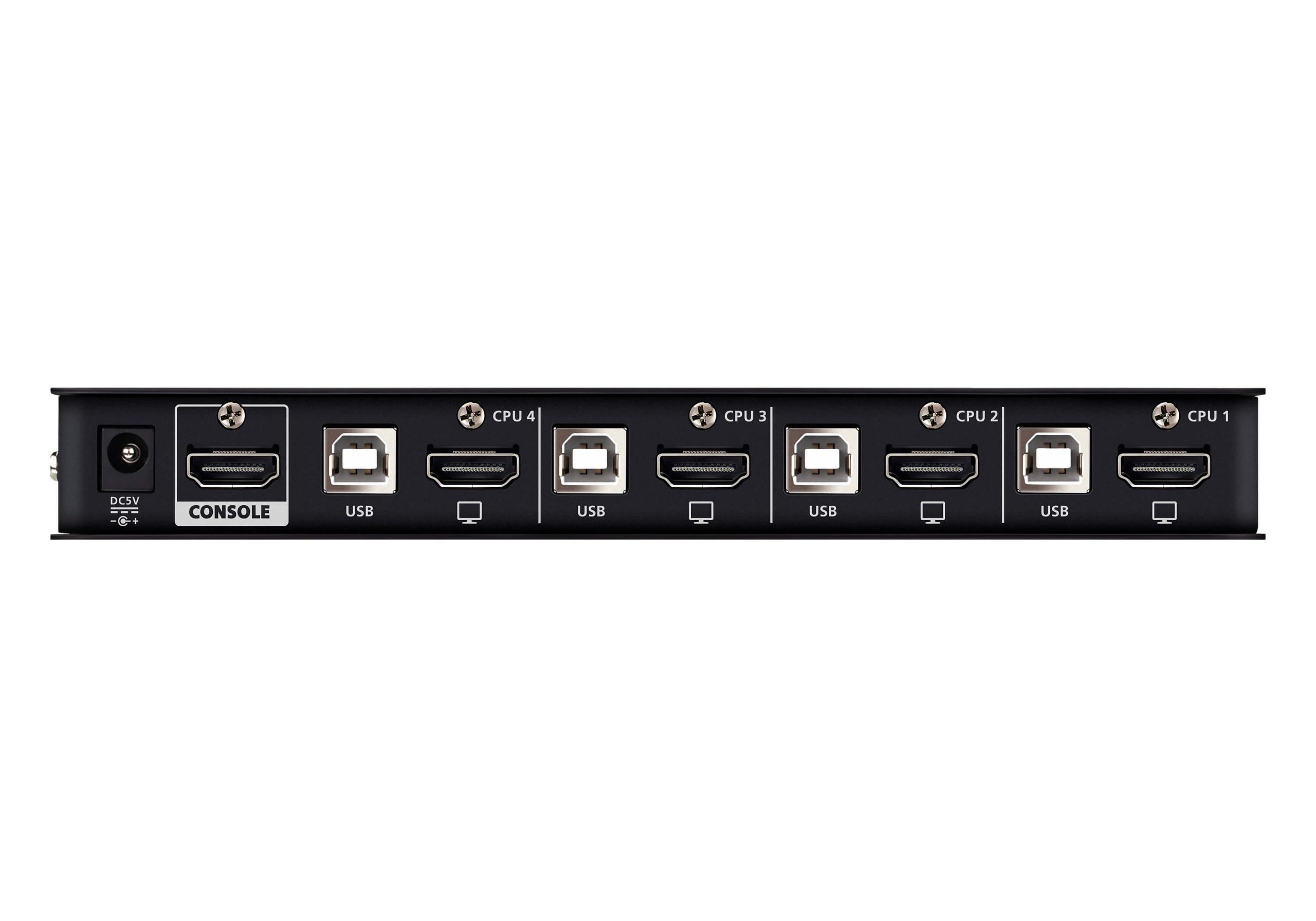

The CS784H simplifies control of up to four HDMI computer systems by sharing a single keyboard, monitor, and mouse from one KVM console, delivering a clutter-free and organized desktop workspace.Superior Visual Clarity
The KVM switch is designed to deliver exceptional visual performance, supporting 1080p @ 60Hz, 4K @ 60Hz, and up to 5120 × 1440 @ 60Hz.USB Peripheral Sharing
Media and data sharing between computers is fast and effortless via plug-and-play connection (e.g. hard drive, flash drive, printer, etc.) to the USB ports on the KVM switch.Flexible Port Selection

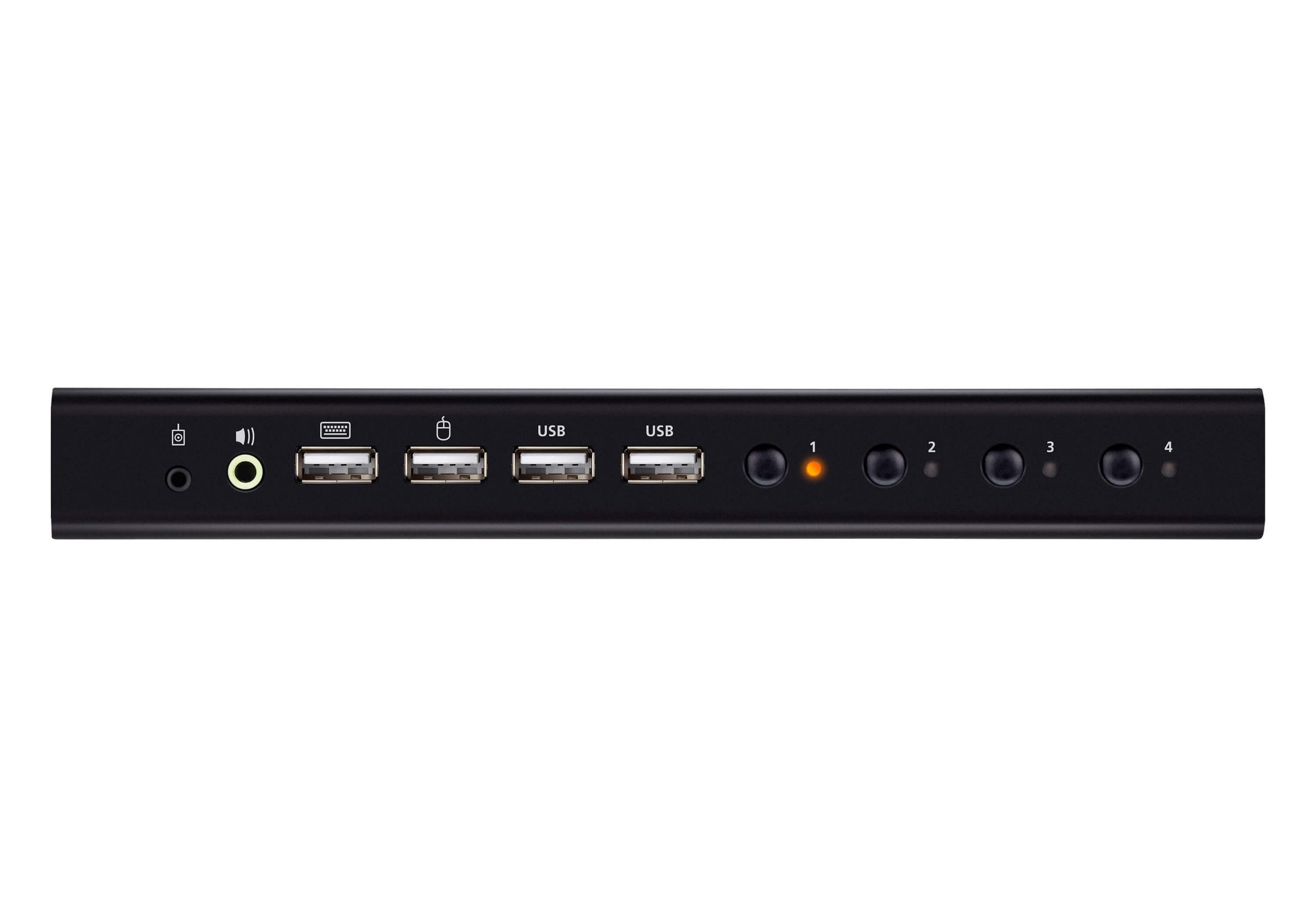

Port switching is quick and flexible via pushbuttons, hotkeys, or the remote port selector – whichever best fits your workflow.All Essentials Packed. No Extras Needed.
Everything you need is included – 4 HDMI cables, 2 USB 2.0 A-to-B cables, 1 power adapter, and 1 remote port selector (wired switch button) – for instant setup.Applications
The CS784H enables centralized control of up to four HDMI computers via one keyboard, mouse, and monitor, delivering a tidy and efficient desktop workspace where multitasking is streamlined and cable clutter is minimized.Features
The ATEN CS784H 4-Port USB 4K HDMI KVMP™ Switch enables users to control up to 4 computers with a single USB keyboard, mouse and HDMI monitor. The CS784H effectively reduces desktop clutter and minimizes the cost and complexity of multi-system setups.The CS784H provides multiple port selection methods, including a remote port selector, hotkeys, and mouse wheel switching to engineer for maximum flexibility. In addition, the CS784H features USB peripheral sharing, allowing users to share USB 2.0 devices such as printers, storage drives, or scanners, among all connected computers.
The CS784H supports resolutions up to 4096 x 2160 @ 60Hz and ultra-wide to 5120 x 1440 @ 60Hz, ensuring optimized display resolution with exceptional detail and clarity in all conditions. With ATEN’s patented Video DynaSync™ technology, the CS784H ensures optimal resolution and consistent window layout during port switching for smooth multi-system workflows.
The CS784H includes all required HDMI and USB cables, along with a power adapter, for instant plug-and-play setup and hassle-free installation with no need for extra purchases. Designed for SOHO environments, remote workstations, or office setups, the CS784H delivers efficient multi-computer control with exceptional video fidelity and operational convenience.
- Single USB keyboard and mouse control up to 4 PCs, simplifying cables and reducing the cost of multi-computer setups
- Superior video quality – up to 4096 x 2160 @ 60 Hz, 5120 x 1440 @ 60 Hz
- Supports Video DynaSync™ – exclusive ATEN technology ensures optimal resolution and consistent window layout during port switching for smooth multi-system workflows
- Computer selection via remote port selector, hotkeys, and USB mouse
- Multiplatform support – Windows, Mac, and Linux
- USB peripheral sharing
- All HDMI / USB cables and power adapter included – for plug-and-play setup and hassle-free installation, no extra purchases needed
- Power-on detection automatically switches to the next active computer
- Supports most gaming / multimedia keyboards and multifunction mice with emulation or bypass
- Auto-scan function allows continuous monitoring of connected systems
- Plug and play – no software installation or configuration required
- Supports hot-plugging
- Firmware upgradeable
