Description
The CS742H is a 2-port USB HDMI KVM switcher that lets one keyboard and mouse control two computers across a dual-display desktop. It simplifies workstation management while maintaining high-resolution video output. The unit is designed to reduce desktop clutter and streamline multi-system workflows.
Key features include support for dual HDMI displays, an integrated USB 2.0 peripheral hub, multiple port switching methods, and ATEN Video DynaSync – a technology that preserves display resolution and window layout during switching. The switcher supports front-panel pushbuttons, hotkeys, mouse-wheel switching, and a wired remote port selector for flexible control options. USB peripheral sharing enables quick access to external drives and other USB devices without additional hubs.
Video performance reaches up to 4096 x 2160 at 60Hz and supports 5120 x 1440 at 60Hz for ultrasharp visuals. The CS742H provides power-on detection and hot-plug capability to detect active systems automatically. Firmware upgradeability and plug-and-play operation ensure the device integrates into existing setups with minimal configuration.

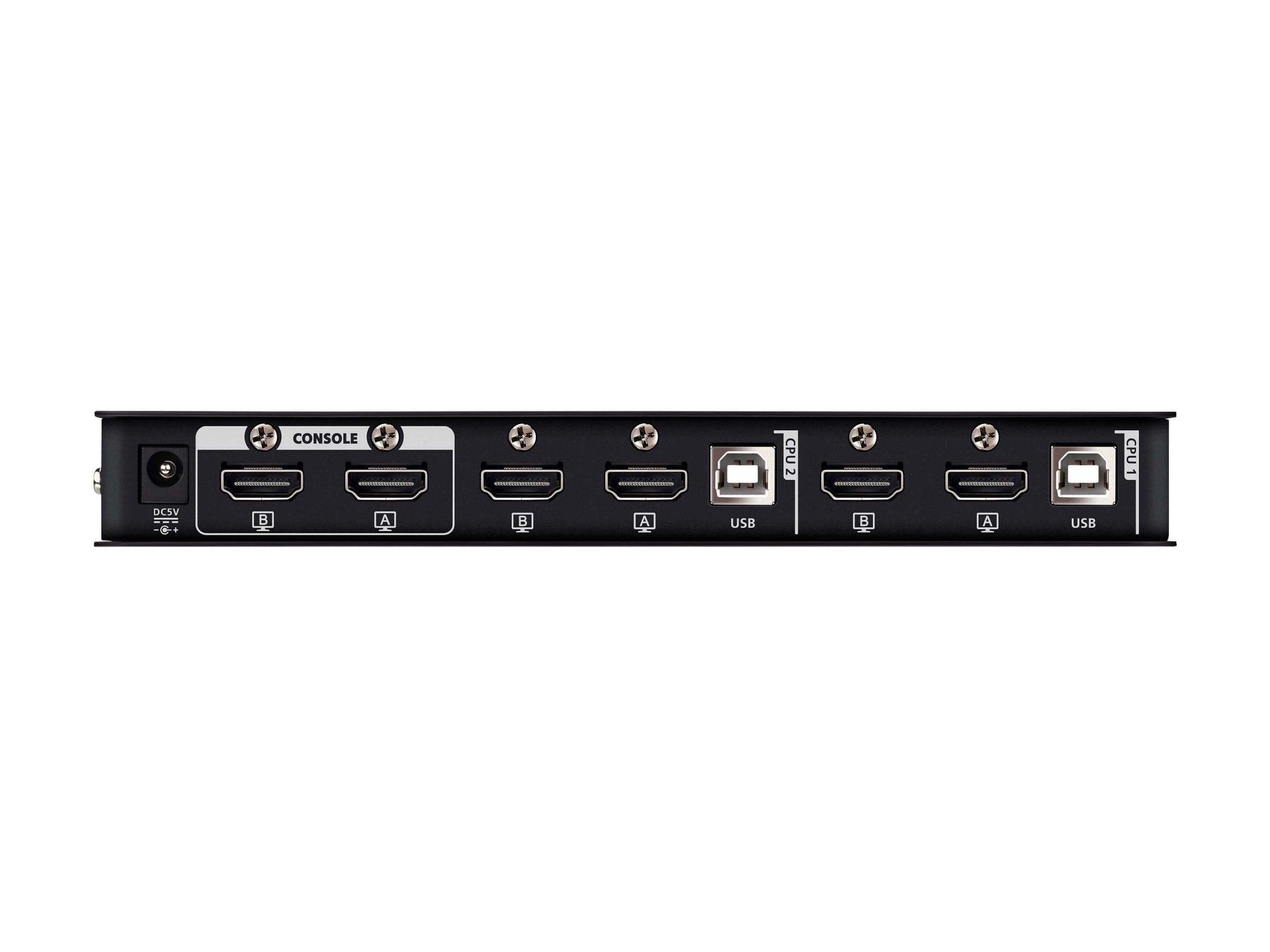

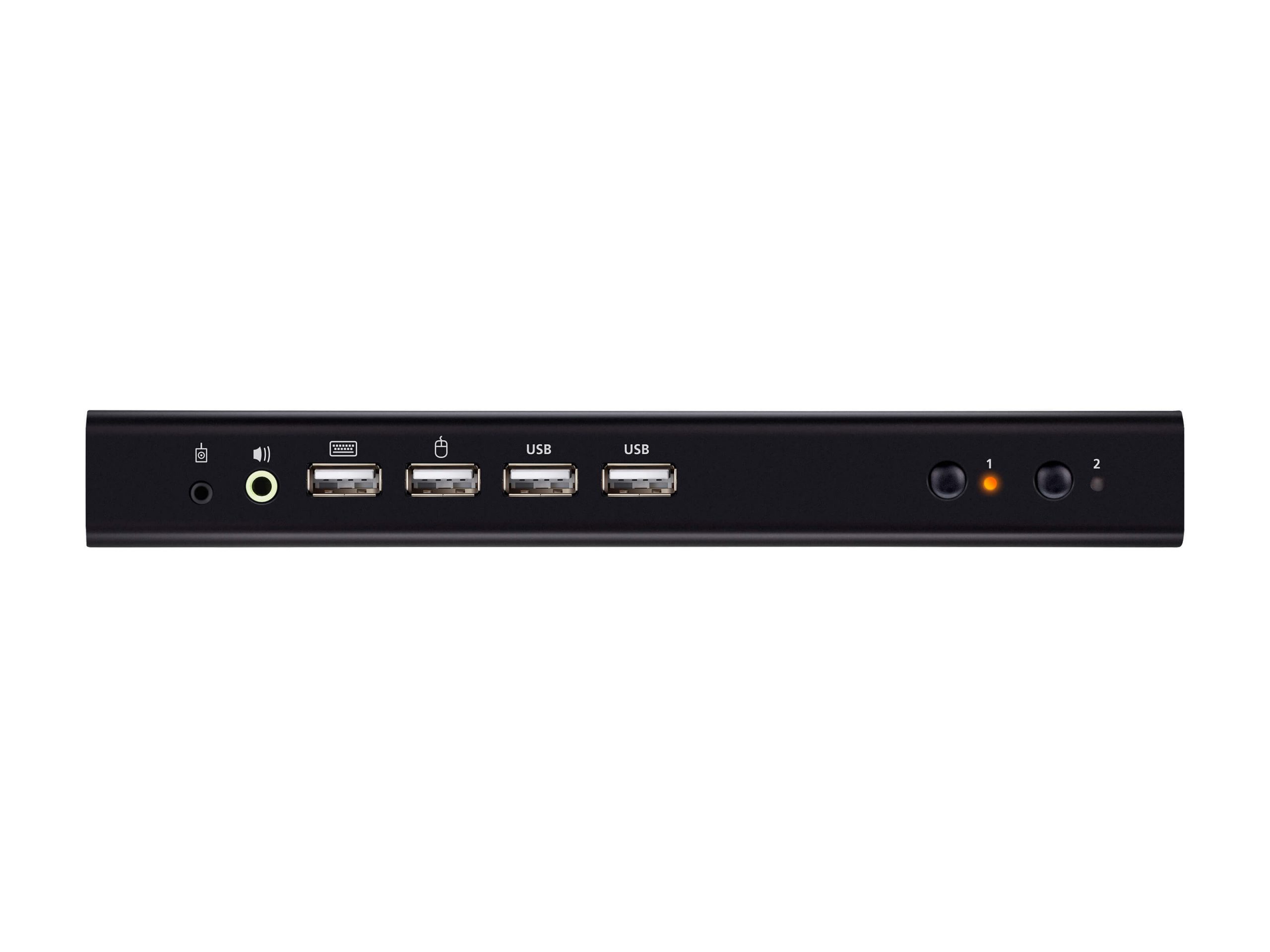

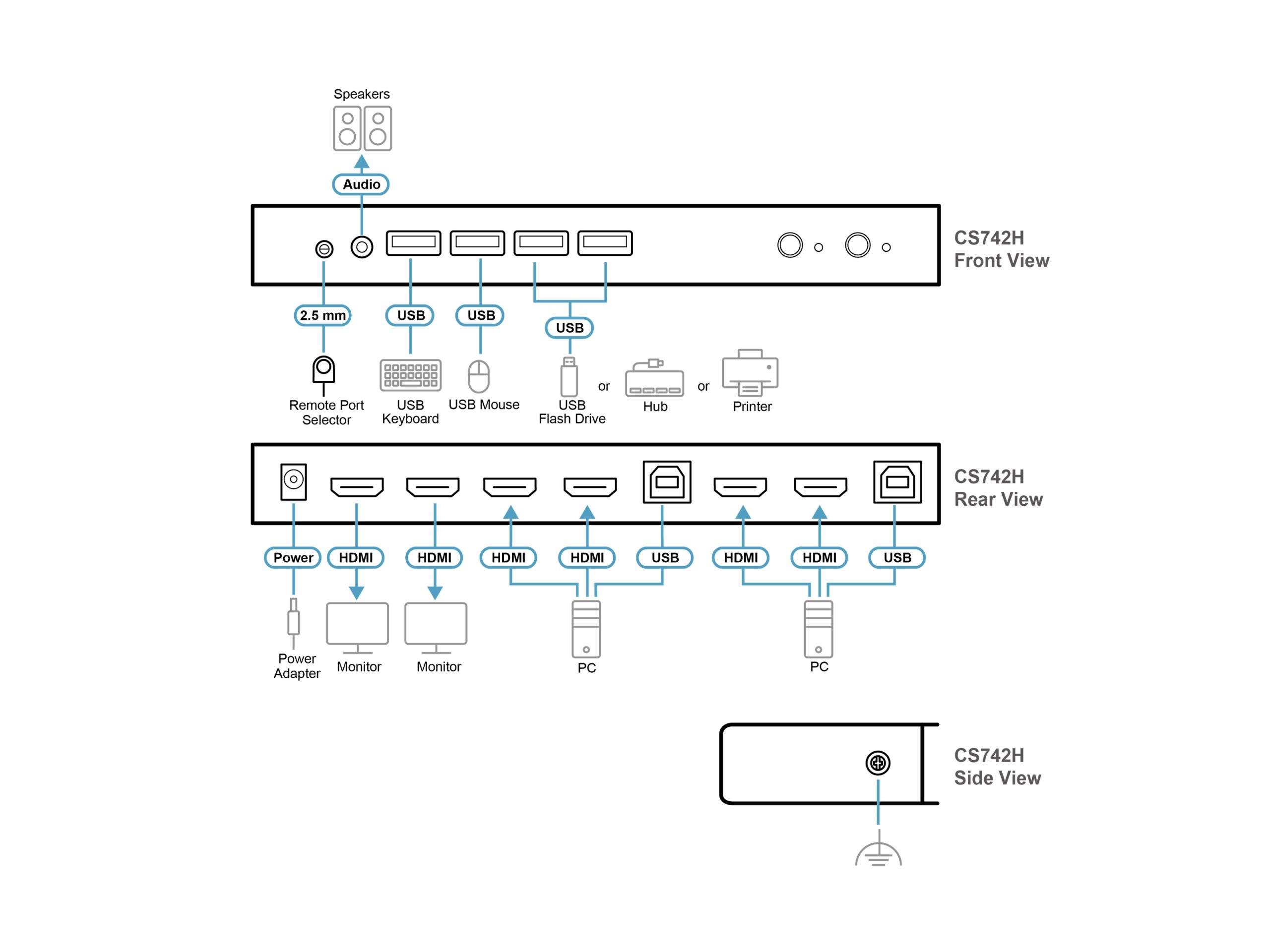

Connectivity includes console USB Type-A ports for keyboard and mouse, dual console HDMI outputs for two monitors, two USB Type-B computer KVM ports, four HDMI computer ports, a front 3.5mm audio jack, a remote port selector jack, and two front USB Type-A ports for peripheral sharing. The switcher is compatible with Windows, Mac, and Linux platforms and supports most multimedia keyboards and multifunction mice either via emulation or bypass modes. These connection options make it suitable for mixed-OS environments.
The CS742H is well suited to office multitasking, content creation, trading desks, and mixed workstation/gaming setups where users need to switch control between two systems quickly. It helps consolidate input devices and shared peripherals while keeping each system’s video output at native resolution. Continuous auto-scan and selectable switching methods help users monitor and access systems as needed.
Installation is fast and straightforward thanks to plug-and-play operation and included connectivity options. The compact housing uses metal and plastic components for a balance of durability and low weight, and the device supports hot-plugging to add or remove systems without downtime. Overall, the CS742H delivers a reliable, high-resolution KVM solution that reduces hardware duplication and simplifies multi-computer workflows.
