Description
ATEN PSD PP v4.0 Universal Secure KVM Switch CS1184DPH4 is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Universal Secure KVM Switch CS1184DPH4 is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

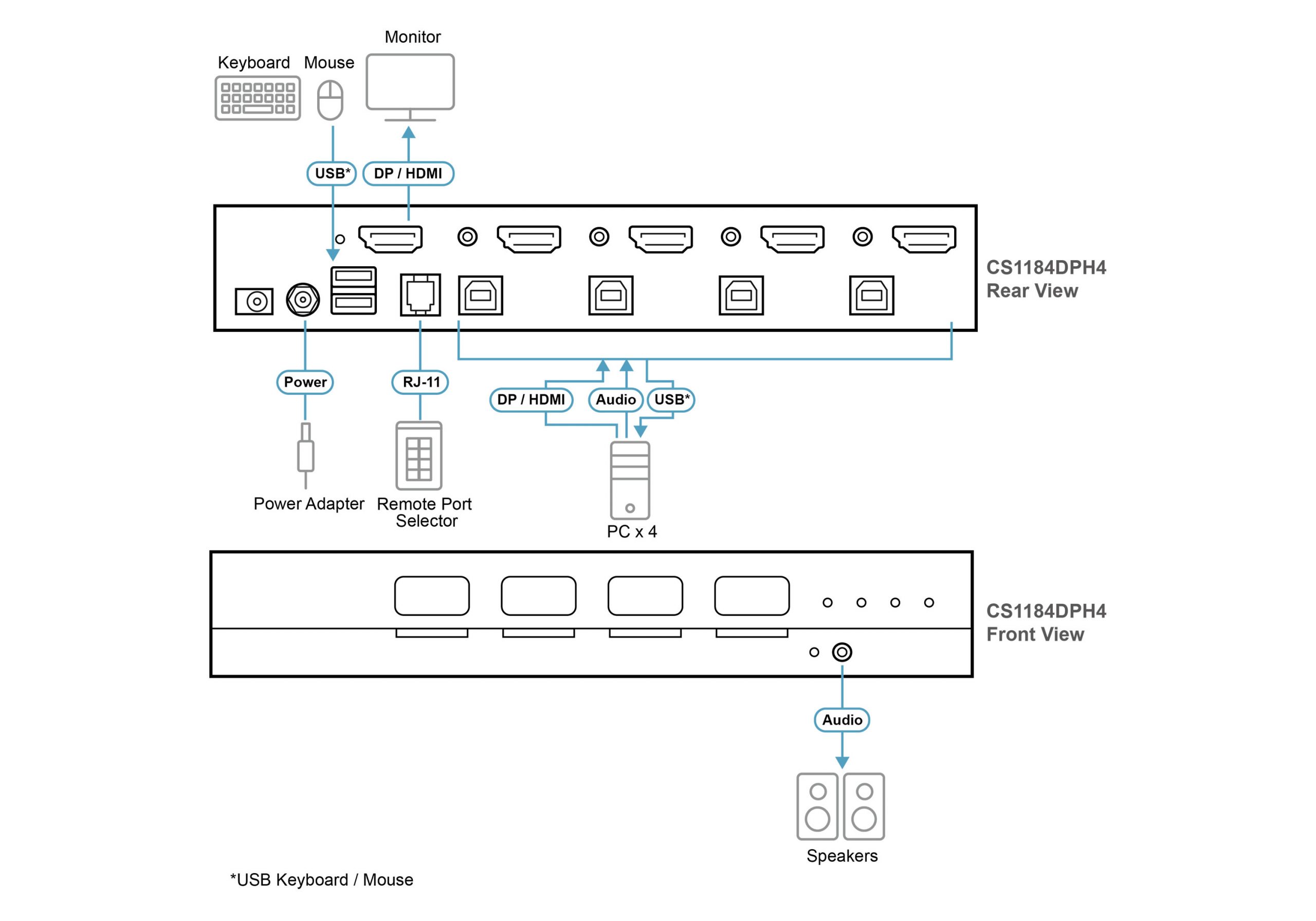

Download Manual ATEN PSD PP v4.0 Universal Secure KVM Switch CS1184DPH4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
To fulfill different customer demands, ATEN PSD PP v4.0 Universal Secure KVM Switches offer a wide range of options, including 2-port and 4-port, CAC and Non-CAC models, and support for DisplayPort or HDMI interfaces through a single combo connector. ATEN PSD PP v4.0 Universal Secure KVM Switches also provide customers with the flexibility to connect single or dual displays, providing superior video quality up to 5K (5120 x 2880 @ 60Hz) 1. 5K resolution provides greater screen real estate and sharper detail, allowing users to view multiple classified sessions, monitoring dashboards, or data-intensive applications side by side with uncompromised clarity. This enhanced visual precision helps minimize task-switching and potential errors, improving both operational accuracy and overall productivity in mission-critical or security-conscious workplaces.
To enhance security, ATEN PSD PP v4.0 Universal Secure KVM Switch CS1184DPH4 only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 2. With multi–layered security, ATEN PSD PP v4.0 Universal Secure KVM Switch CS1184DPH4 ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking & finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.
Note:
1. Supports video output resolutions up to 5120 × 2880 @ 60Hz, 5120 × 2160 @ 60Hz, 5120 × 1440 @ 60Hz/120Hz/144Hz, 3840 × 2160 @ 60Hz/120Hz/144Hz.
2. The Remote Port Selector is not supplied in the package and requires a separate purchase.
Features
- NIAP Common Criteria Compliant
- Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
- Multi-Layered Security
- Always-on chassis intrusion detection – renders the KVM switch inoperable when physical tampering is detected
- Tamper-evident labels – provides visual indication of any attempt to access internal components
- Non-reprogrammable firmware – prevents reprogramming of the KVM switch’s firmware
- Restricted peripheral connectivity – non-authorized HIDs and video are rejected

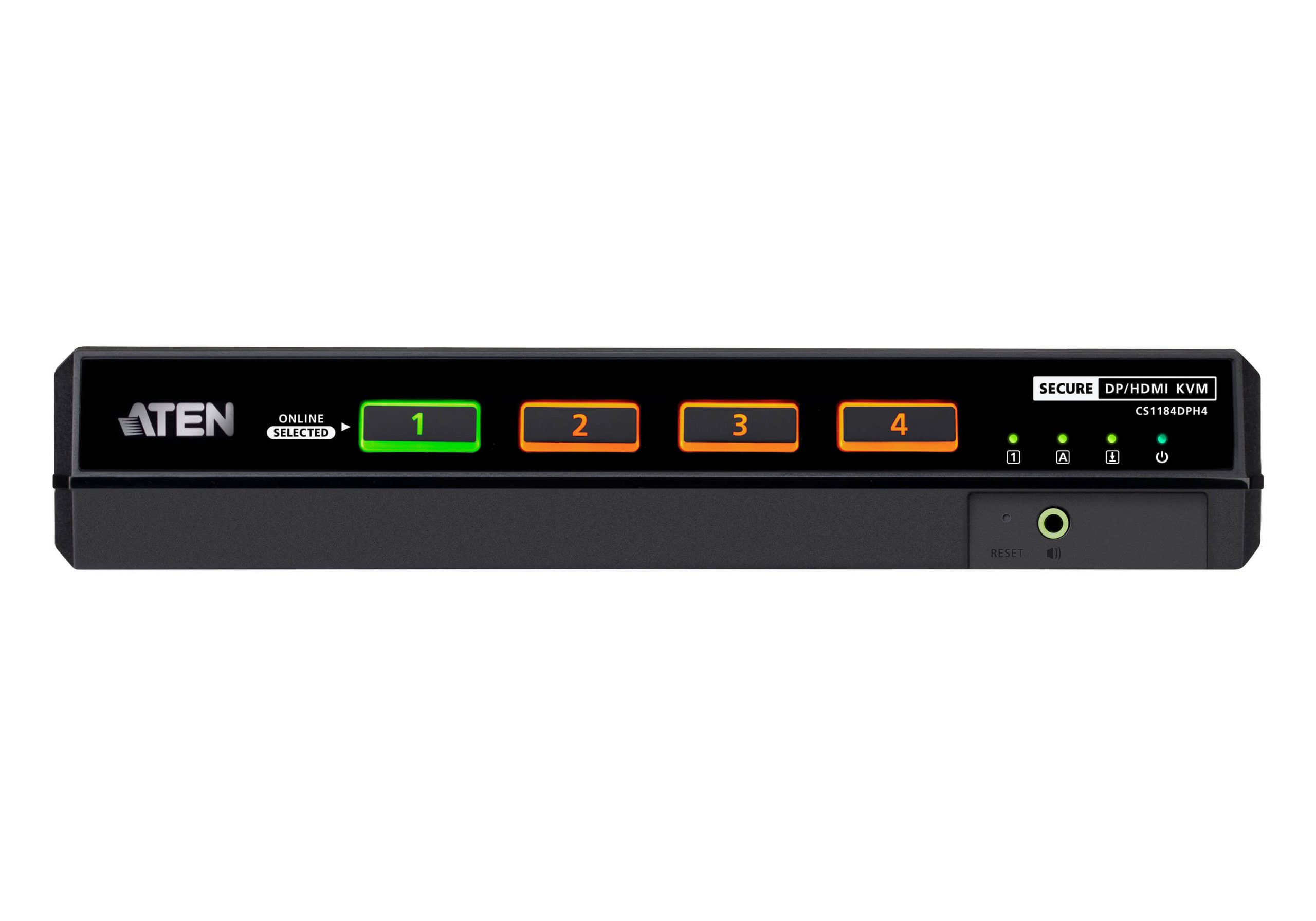

- Port selection via pushbuttons / Remote Port Selector (RPS) only to enhance security
- Configurable Port LED color and Port Name Labels – easier identification between ports connected to different security classification levels
- LED indicators for peripheral filtering and KVM security status
- Strict audio filtration protects against audio leakage
- Compact size, rugged metal enclosure
- Data Channel Isolation and Unidirectional Data Flow
- True data path isolation – data cannot be transferred between computers
- Controls and isolates data flow between console devices and connected computers
- Unidirectional data flow between console devices and the selected computer is ensured
- Supports analog audio (speaker only)
- User Data Protection
- Keyboard/mouse data is automatically deleted after transmission
- Data is automatically purged when the KVM port focus is switched
- Security Management
- Supports administrative configuration of keyboard/mouse ports to reject specific USB HID devices
- Provides administrative functions for authorized administrators to audit KVM log data
- Superior Video Quality and Flexible Connectivity
- Superior video quality – up to 5K (5120 × 2880 @ 60Hz)

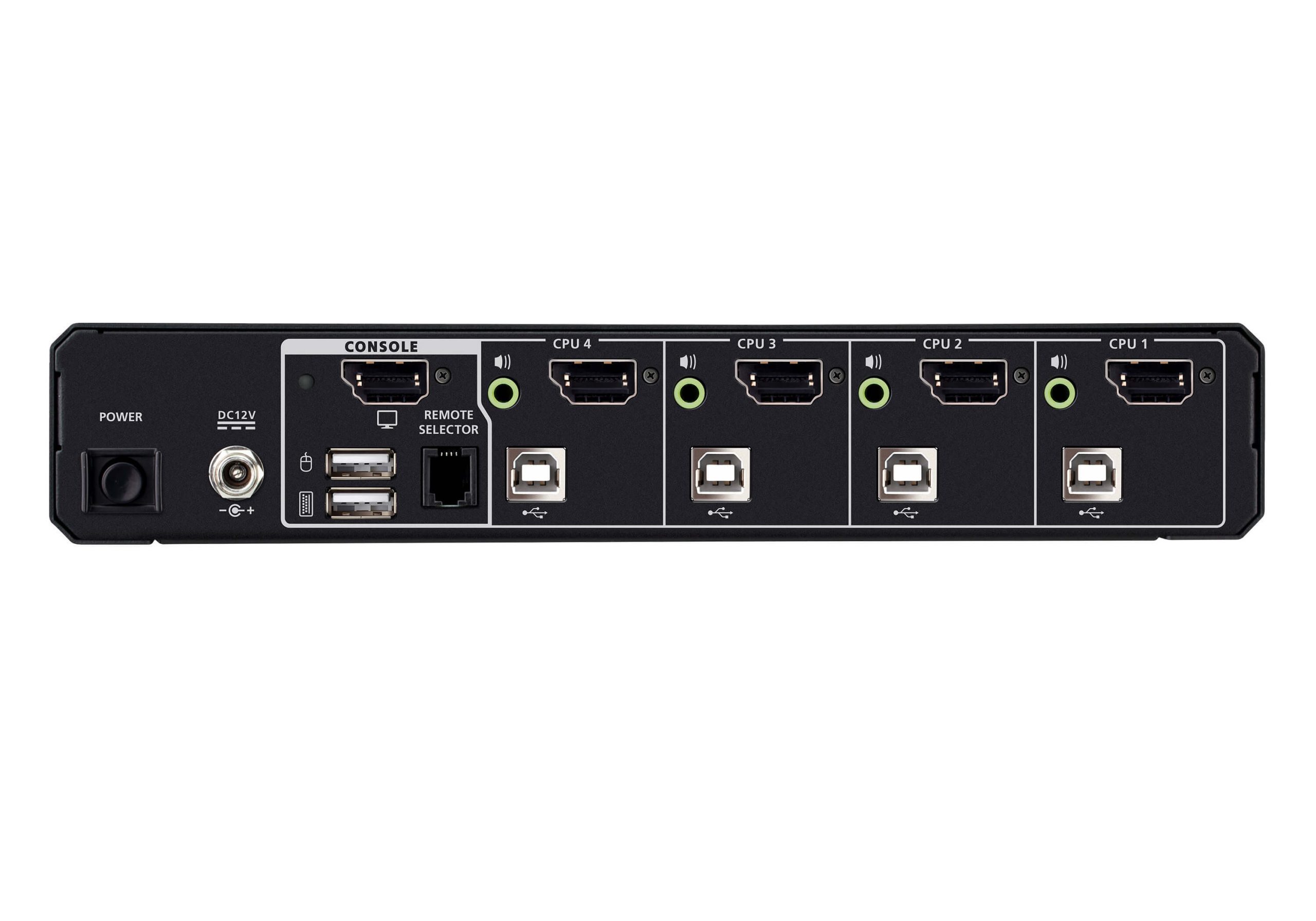

- DisplayPort / HDMI combo connectors support both DisplayPort and HDMI video interfaces (PC and Console sides)
- Video DynaSync™ – eliminates boot-up display problems and optimizes resolutions when switching among different sources
- Notes:
- 1. The Remote Port Selector is not supplied in the package and requires a separate purchase
- 2. Only analog speaker data input is supported
- 3. Supports video output resolutions up to:
- 5120 × 2880 @ 60Hz
- 5120 × 2160 @ 60Hz
- 5120 × 1440 @ 60Hz / 120Hz / 144Hz
- 3840 × 2160 @ 60Hz / 120Hz / 144Hz
