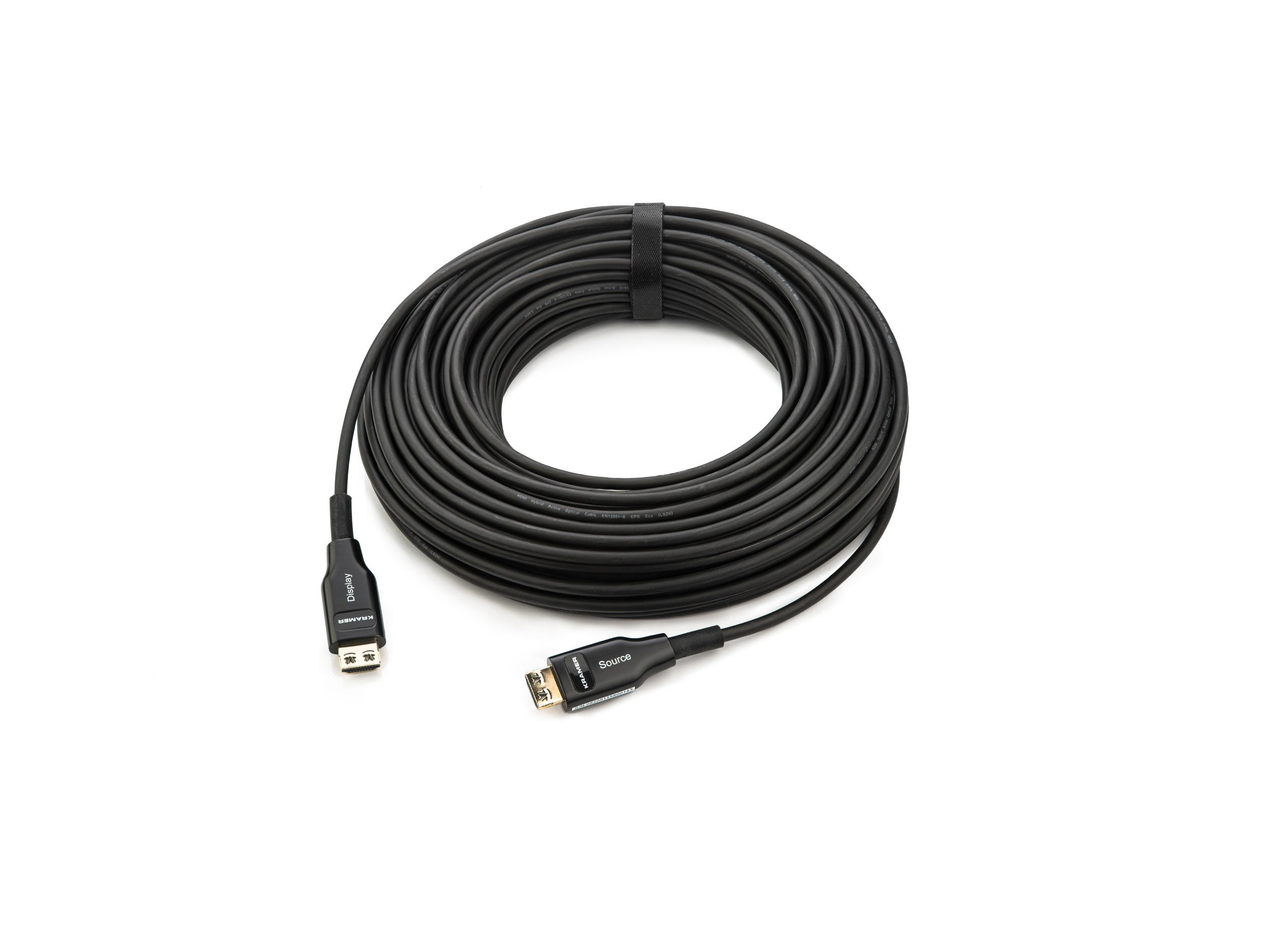

Kramer CP-AOCH/UF-230 70m/230ft 8K/60Hz Ultra High-Speed HDMI Optic Hybrid Cable-Plenum Rated

Description

CP-AOCH/UF is an innovative active hybrid optical HDMI cable for sending 8K signals up to 100 meters (328 ft).

CP-AOCH/UF is thinner, lighter and more flexible than most of the copper or even standard optical cables. It offers transparent EDID and HDCP support with no signal attenuation and reduced risk of EMI and RFI interference.

Features:

Video Resolution Up to 4K@120, 8K@60Hz (4:2:0)
High Data Transfer Rate Up to 48Gbps
Embedded Audio PCM 8channel, Dolby Digital True HD and DTSHD Master Audio
HDMI Support HDCP 2.2, HDR, EDID, eARC, and DSC as specified in HDMI 2.1
HighQuality Connectors 24K goldplated, corrosionresistant and best possible connectivity
Reduced EMI & RFI.
Ultra Certified (up to 66ft)
Thin Construction 4.5mm diameter
Jacket Construction Plenum rated
REACH RoHS 2011/65/EU, CE, FCC, compliant.
Varied Selection of Lengths Available in versions from 10 to 30m (33 to 98ft)
Length: 230ft

Specifications

VIDEO

Max Resolution: 8K@60Hz
Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
HDMI Support: Dynamic HDR, HDCP 2.2, EDID and CEC, eARC and ETH

AUDIO

Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS-HD Master Audio™, DVD Audio, SA-CD

PHYSICAL

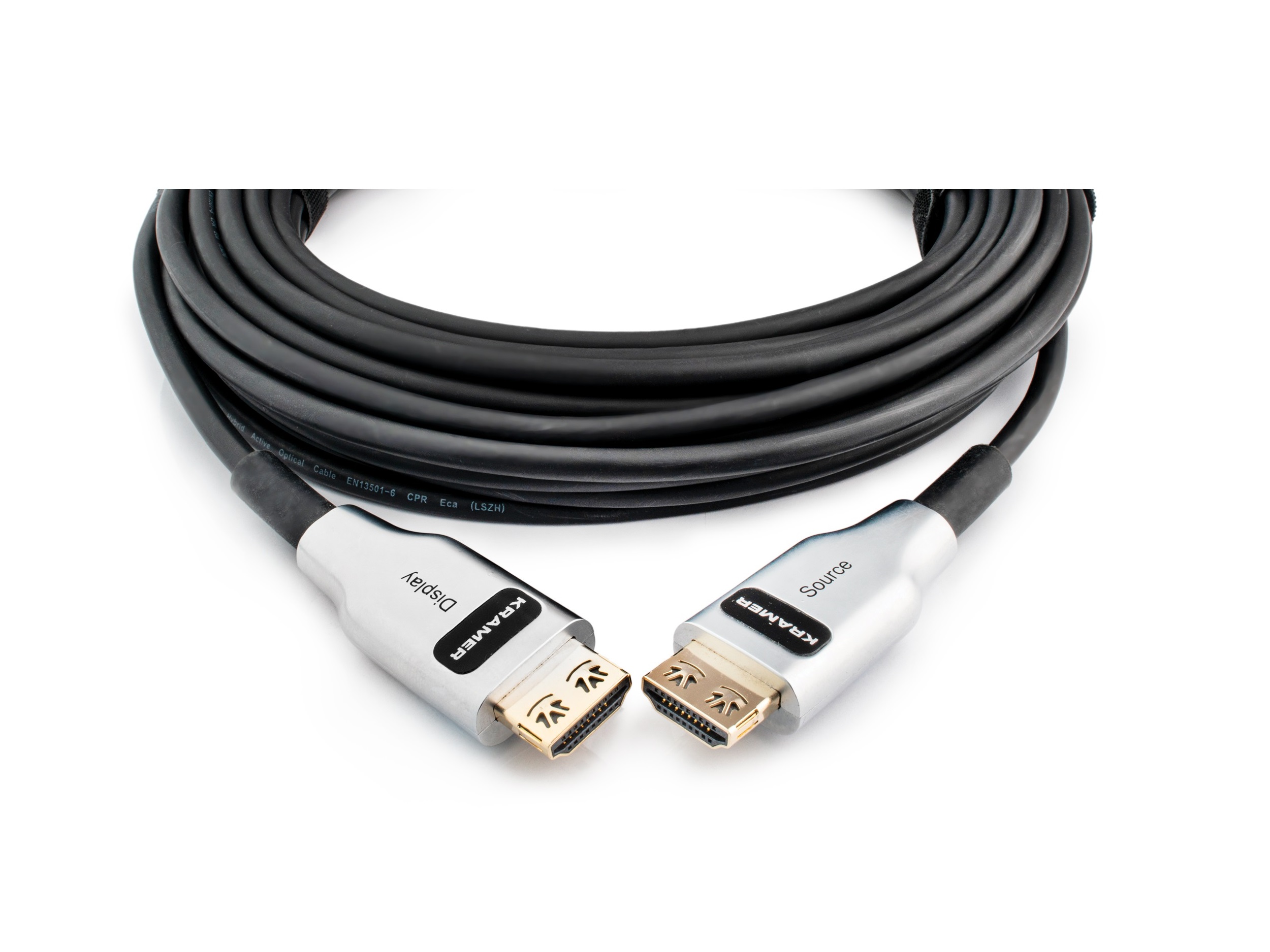

HDMI Source: On a male HDMI type A, 24K gold-plated K-Lock connector
HDMI Display: On a male HDMI type A, 24K gold-plated K-Lock connector

GENERAL

Cable Type: Hybrid with OM3 fiber and copper wire
O/E Converter: 4 channel 850 nm VCSEL array
Material: Bare Copper

MECHANICAL

Cable Bending Radius: 45mm

JACKET

Color: Black
Diameter: 4.5mm

POWER

Consumption: 250mW (max)

ENVIRONMENTAL CONDITIONS

Operating Temperature: 50°C
Storage Temperature: -40-70°C

STANDARDS COMPLIANCE - EC VERIFIED

Safety: CE/FCC

REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)

Environmental: REACH,RoHS 2011/65/ EU
