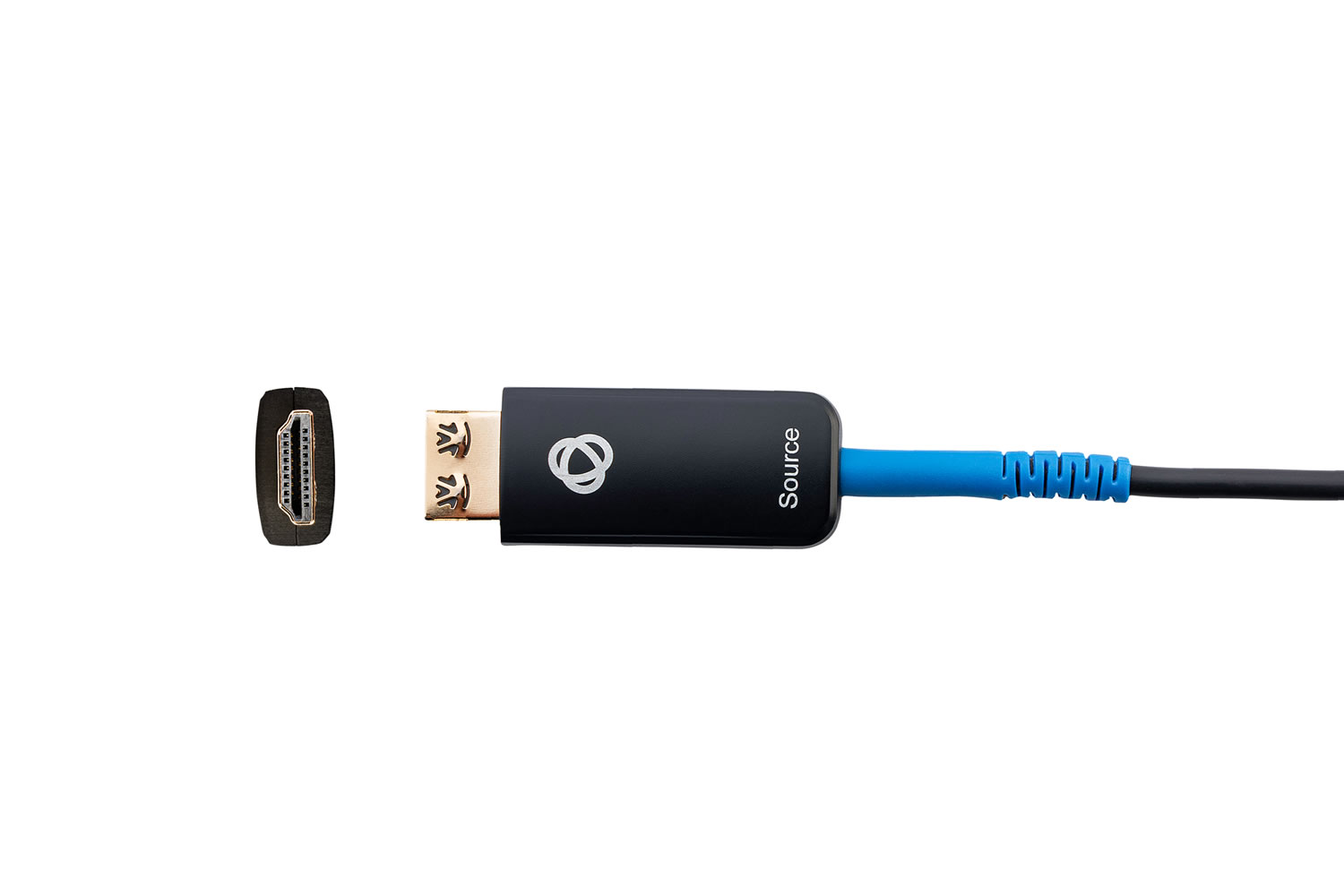

Kramer CP-AOCH/PF-33 4K60 4:4:4 HDMI Active Optical Cable 33ft 18Gbps Plenum

SKU: CP-AOCH/PF-33
Brand: Kramer
$440.00
Brand Kramer
SKU CP-AOCH/PF-33
Weight 3.00 lbs
Warranty 3 Years
Condition New
Status Available
Expert

Product Questions? Ask Our Experts!

Description

The CP-AOCH/PF-33 is an active HDMI optical cable engineered for long-range, high-bandwidth video distribution. It delivers native HDMI signaling over fiber to preserve signal integrity across extended runs. The cable is optimized for 4K60 4:4:4 video and professional AV environments where distance and electromagnetic immunity matter.

Key features include support for 4K at 60Hz 4:4:4, an 18 Gbps data rate, and compliance with EDID and HDCP standards. The cable carries deep color and x.v.Color signals and supports lossless audio formats including Dolby TrueHD and DTS-HD Master Audio. High-quality 24K gold-plated connectors and K-Lock pull-resistant locking provide reliable mating and retention.

Performance and construction are centered on a multimode OM3 fiber core arranged as 8xMM within a 4.0mm plenum-rated jacket. The assembly includes a stainless steel corrugated tube and Kevlar reinforcement to protect internal fibers and deliver high tensile and crush resistance. This construction enables long cable runs up to 100 meters while maintaining up to 18 Gbps throughput.

Connectivity is straightforward with HDMI Type A male connectors at both ends and an external USB Type A pigtail for display-side power when required. The cable supports plug-and-play operation and communicates EDID and HDCP information to maintain compatibility with a wide range of sources and displays. It draws power from the source when available and can accept external USB power on the display end if needed.

The CP-AOCH/PF-33 is suitable for environments that demand EMI immunity and robust physical durability, including medical facilities, broadcast rigs, digital signage runs, and staging applications. Its plenum-rated jacket meets air-handling space requirements and the fiber-based link eliminates ground loop and interference issues common to copper runs. The K-Lock connector and ruggedized covers simplify deployment in semi-permanent and mobile installations.

Installation is simplified by the cable’s lightweight 4.0mm diameter and spool dispensing for controlled deployment. The assembly includes strain relief and tested tensile and crush resistance ratings to support professional installations. Overall, the CP-AOCH/PF-33 provides a practical, high-bandwidth fiber HDMI solution where distance, reliability, and signal fidelity are required.

Specifications

High Resolution over Long RangeUp to 4K@60 4:4:4 up to 100 meters
High Data Transfer RateUp to 18 Gbps
EDID and HDCP supportEDID, HDCP
Deep Color and x.v.Color, audioDeep Color, x.v.Color, 5.1/7.1 Dolby TrueHD, DTS-HD Master Audio, DVD Audio, SA-CD
High-quality connectors24K gold-plated, corrosion-resistant
Pull-resistant connectorsK-Lock 15 lbs restraining force
Plug & Play operationYes
Cable construction8xMM fiber OM3 4.0mm plenum jacket
Durability featuresStainless steel corrugated tube, Kevlar reinforcement, TPU jacket, waterproof connector covers, spool
Video ResolutionUp to 4K 60Hz 4:4:4 (3840x2160 & 4096x2160)
Data RateUp to 18 Gbps
HDMI ComplianceHDCP, EDID
Supported audio formatsDolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio, SA-CD
Connector-1 (source end)Male HDMI Type A 24K gold-plated
Connector-2 (display end)Male HDMI Type A 24K gold-plated K-Lock
Connector-2 (display end)USB Type A pigtail external power input
Cable materialPlastic shell with aluminum shield over PCBA
Long term crush resistance500N (50kg)
Short term crush resistance2000N (200kg)
Bending radius20mm Min
Long term tensile strength test80N (8kg)
Short term tensile strength test150N (15kg)
Strain Relief (SR) pulling force12kg max
JACKET MaterialPVC Plenum rated
ColorBlack
Diameter4.0 ±0.3mm
Power SourceDraws current from video source
DisplayUSB Type A connector for external power
Operating Temperature+32~+122°F (0~+50°C)
Storage Temperature-40~+158°F (-40~+70°C)
Operating Humidity10 ~ 80%
EnvironmentalCE, FCC, TUV for UL 62368-1:2019, CSA C22.2 NO. 62368-1:19
SafetyRoHS 2011/65/EU
