Description
The CP-AOCH/PF-328 is an active optical HDMI cable engineered to deliver uncompressed 4K video over long distances. It supports 4K@60Hz 4:4:4 color sampling and carries audio and metadata while maintaining HDCP and EDID compatibility. The cable is designed for environments that require EMI immunity and durable, plenum-rated construction.
Key capabilities include an 18 Gbps data rate, support for deep color and x.v.Color, and lossless audio formats such as Dolby TrueHD and DTS-HD Master Audio. The cable uses an 8xMM OM3 fiber core in a 4.0mm plenum jacket to extend HDMI signals up to 100 meters (328ft). K-Lock connectors and 24K gold plating ensure a stable electrical and mechanical connection.
Performance and technical specifications are focused on signal integrity and mechanical endurance. The CP-AOCH/PF-328 supports resolutions 3840×2160 and 4096×2160 at 60Hz 4:4:4, with a maximum bandwidth of 18 Gbps. It complies with HDCP and EDID standards and carries multi-channel audio formats when audio is enabled.

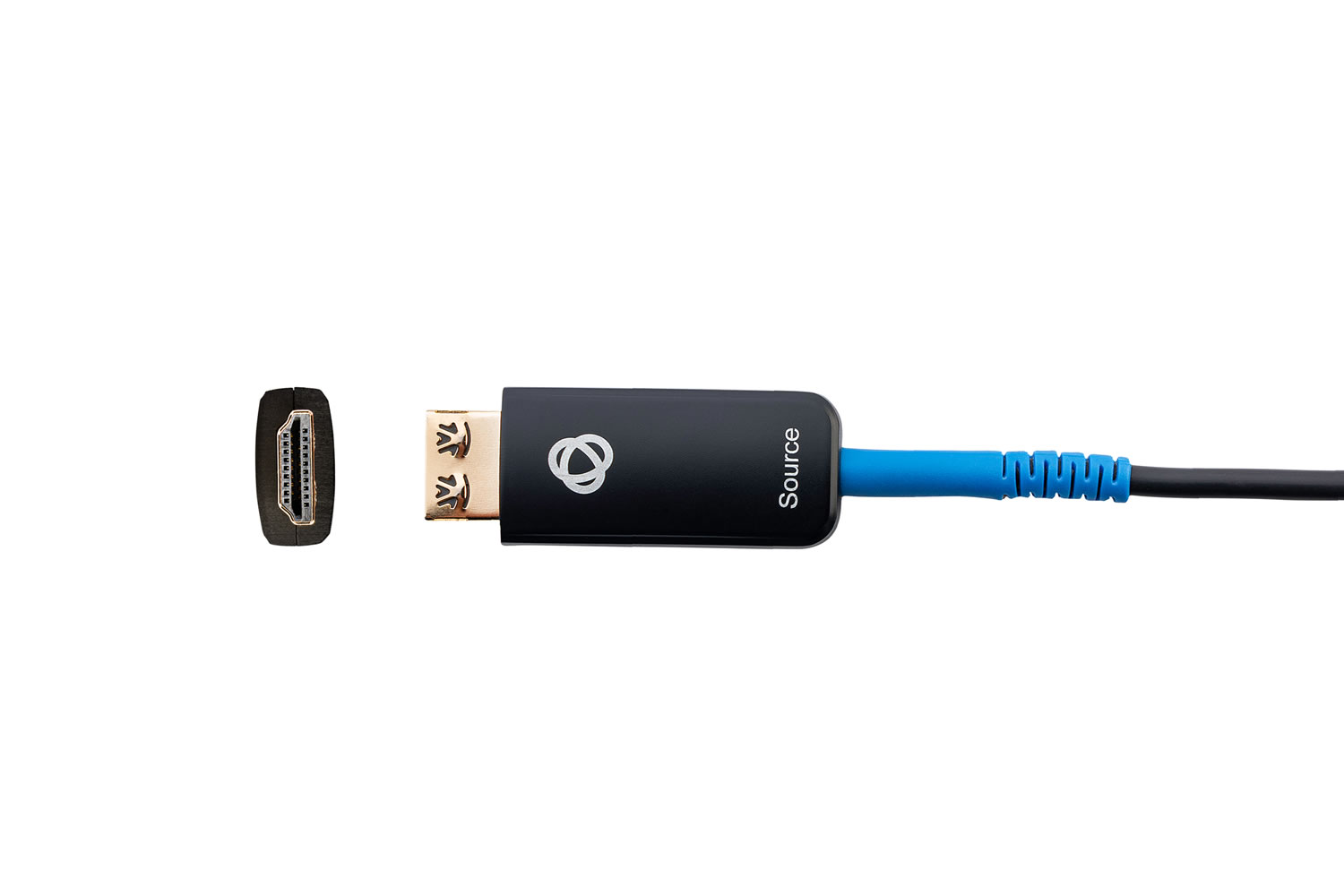

Connectivity is straightforward: HDMI Type A male connectors at both ends provide source and display interfaces, and a USB Type A pigtail is provided for external display power when required. The cable draws power from the video source by default, and the USB power option ensures compatibility with displays that need additional supply. The compact 4.0mm diameter and plenum jacket allow flexible routing in conduit and plenum spaces.
This cable is suitable for medical imaging systems, broadcast racks, digital signage, lecture halls, and other installations that require long HDMI runs with strong EMI immunity. Its design minimizes signal loss across long distances while preserving full color depth and lossless audio. It is also appropriate for applications that require plenum-rated cables for air-handling spaces.
Installation is plug-and-play with no external power required in most use cases, and the cable includes mechanical reinforcements for demanding installations. The stainless steel corrugated internal tube, Kevlar reinforcement, and TPU outer jacket increase crush resistance and tensile strength. K-Lock connectors provide pull resistance and secure mating for critical installations.
