Description
The CP-AOCH/PF-197 is an active optical HDMI cable engineered to deliver reliable high-resolution video and digital audio over long distances. It supports 4K@60 4:4:4 signals and maintains signal integrity using fiber optics and active electronics. The cable is designed for demanding environments where EMI immunity and durable cabling are required.
Key features include an 18 Gbps data rate, support for EDID and HDCP, and compatibility with deep color and x.v.Color. The cable supports lossless audio formats including Dolby TrueHD and DTS-HD Master Audio and can carry multichannel audio up to 7.1 channels. K-Lock connectors provide secure, pull-resistant connections for fixed installations.
Performance specifications include support for 4K@60 4:4:4 resolution at distances up to 100 meters using active optical transmission. The cable uses an 8xMM OM3 fiber core in a 4.0mm plenum rated jacket to balance flexibility and durability. It provides high crush and tensile resistance and a minimum bending radius of 20mm to protect the internal fibers.

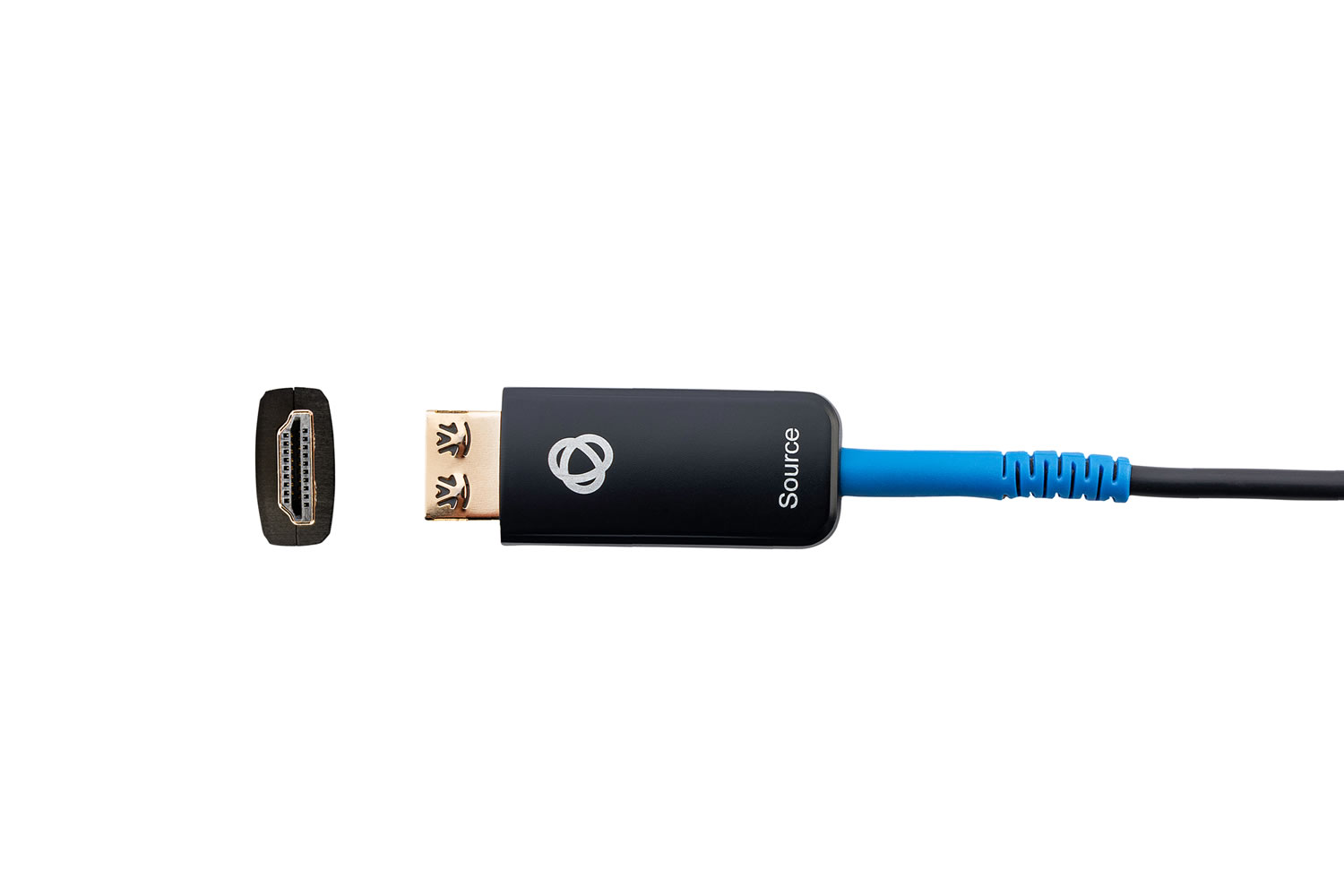

Connectivity includes male HDMI Type A connectors on both ends, 24K gold plated for reliable contact, and a USB Type A pigtail for external power when required. The display end features a K-Lock connector for 15 lb restraining force to prevent accidental disconnects. The cable draws power from the video source when available or can accept external USB power to ensure stable operation.
Typical applications include medical imaging suites, broadcast racks, digital signage, and other EMI-sensitive installations that require long-distance 4K video runs. The fiber construction ensures immunity to electromagnetic interference and ground loop issues that can affect copper cabling. It is suitable for installations where a durable, plenum-rated cable is required for safety and performance.
Installation is straightforward with plug and play operation and robust mechanical protection. The integrated stainless steel corrugated tube, Kevlar reinforcement and TPU jacket protect the optical fibers during routing and deployment. The cable ships dispensed from a mobile plastic spool and is designed for repeated handling and secure mounting using the K-Lock interface.
