Description
The CP-AOCH/PF-164 is an active optical HDMI cable designed to deliver high-resolution HDMI signals over long distances. It supports 4K@60 with 4:4:4 chroma and an 18 Gbps data rate, making it suitable for demanding video applications. This SKU provides a factory-length 164 ft cable construction optimized for clean signal transmission.
Key features include HDCP and EDID support, deep color and x.v.Color, and lossless audio formats such as Dolby TrueHD and DTS-HD Master Audio. The cable employs OM3 multimode fiber and a plenum rated jacket for compliance with installed environments. High-quality 24K gold-plated HDMI connectors and K-Lock retention provide secure connections and pull resistance.
Performance specifications include support for resolutions up to 3840×2160 and 4096×2160 at 60 Hz with 4:4:4 color sampling and an aggregate bandwidth up to 18 Gbps. The cable design enables long-range operation – the product family supports long cable runs up to 100 meters when system conditions allow. Physical tests include specified crush and tensile resistance values and a minimum bending radius of 20 mm.

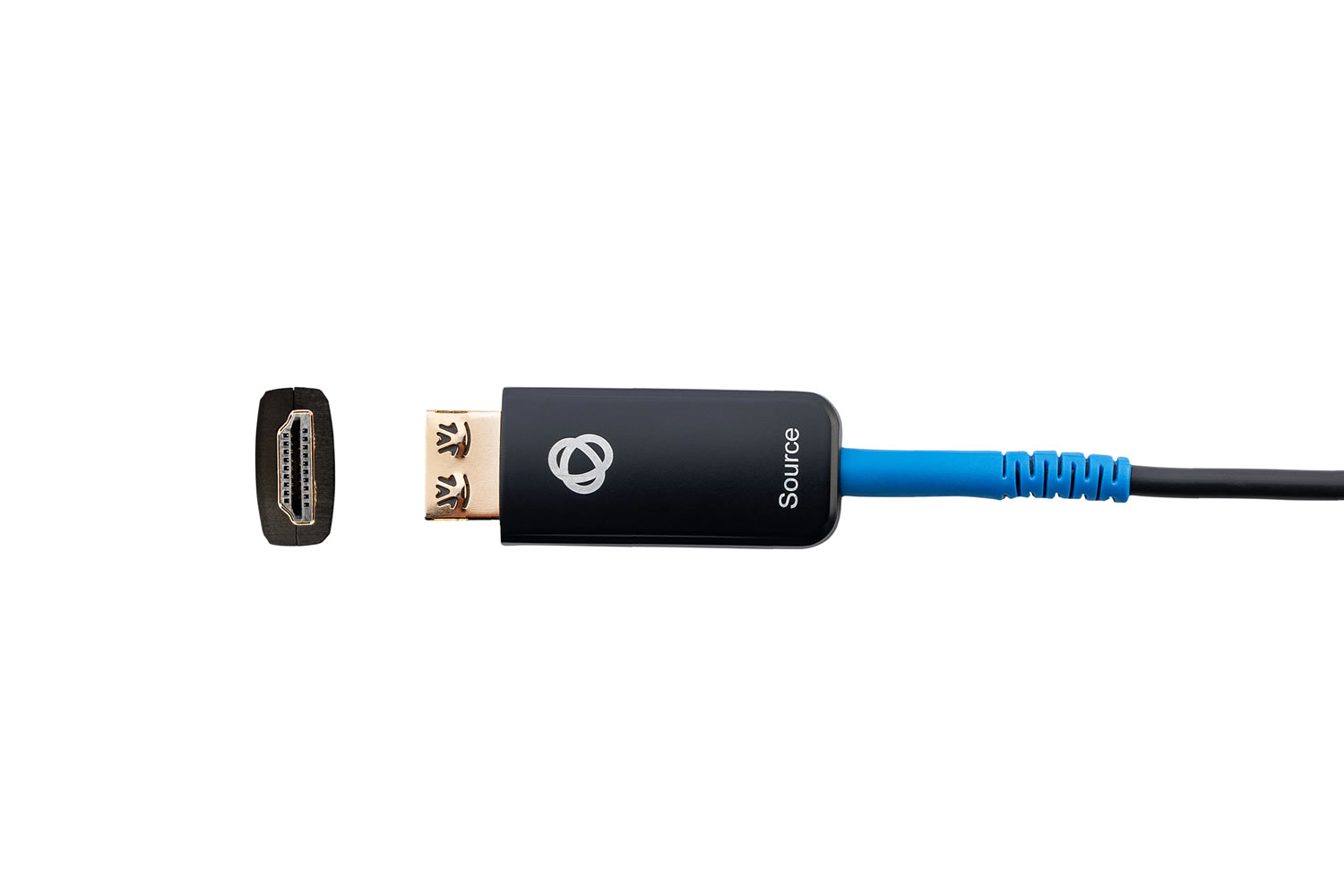

Connectivity is straightforward: male HDMI Type A connectors on both ends and an external USB Type A pigtail for display-side power when required. The cable draws power from compatible video sources when available, and remains plug-and-play with standard HDMI systems. EDID and HDCP compatibility help maintain interoperability across displays and sources.
Typical applications include medical and EMI-sensitive environments, digital signage, broadcast and control rooms, and live event installations where long HDMI runs are required without signal degradation. The active optical design avoids electrical interference while maintaining audio formats and metadata integrity. The plenum jacket and ruggedized construction make it suitable for permanent installations and mobile deployments.
Installation is simplified by the cable’s lightweight 4.0 mm diameter, integrated Kevlar reinforcement, stainless steel corrugated protection, and waterproof connector covers. K-Lock connectors provide up to 15 lbs of restraining force for secure terminations. The cable operates within standard environmental ranges and is CE, FCC and TUV certified for safety compliance, providing a dependable, long-run HDMI solution.
