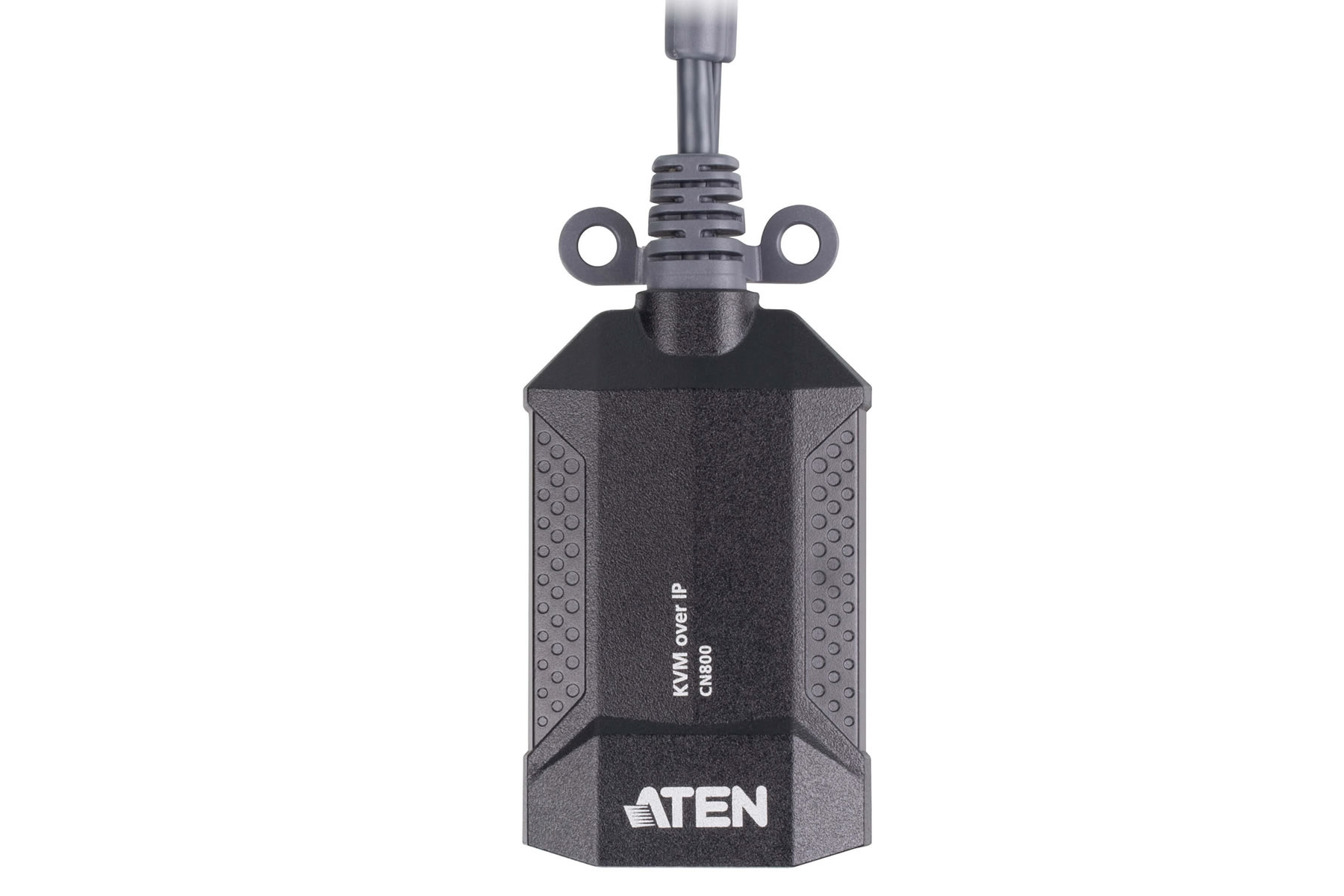

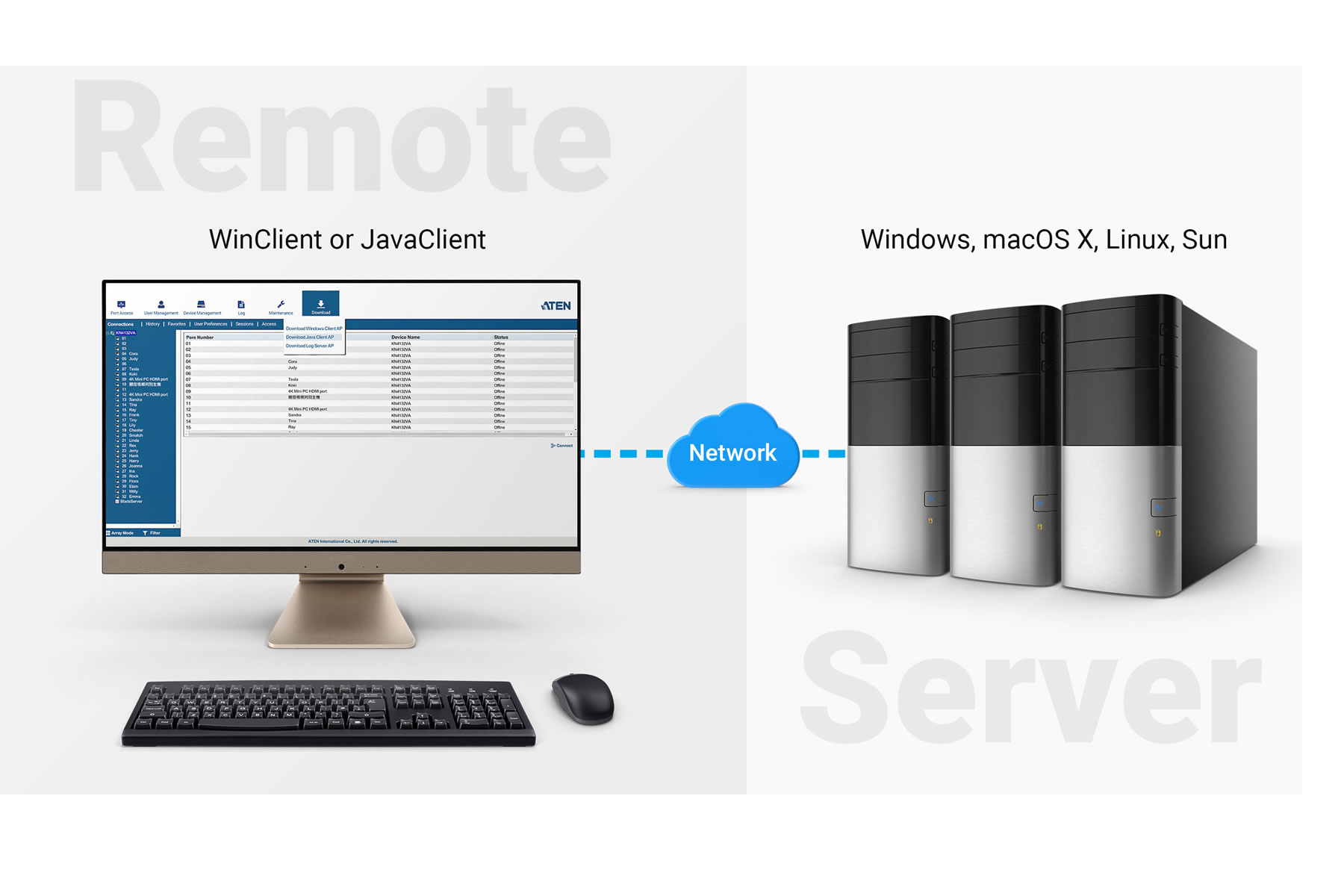

As digital infrastructure expands across cloud, edge, and on-premise environments, resilience and agility have become operational priorities. Secure, out-of-band remote access is no longer just an IT convenience – it’s a strategic capability that reduces downtime, safeguards continuity, and enables teams to manage critical systems from anywhere.To address this need, the CN800, a compact 0U, hardware-based KVM over IP solution, delivers secure, always-available, BIOS-level remote access to a single server or computer – without the need for software installation. Using standard TCP/IP communication over a Cat 5e/6 connection, it provides full, secure control of the connected system via WinClient and JavaClient across an intranet or remotely from anywhere.
With native VGA support – still the most common display interface in server hardware – the CN800 ensures broad compatibility and reliable remote management, all without adding rack overhead or operational complexity.
Hardware
- Provides over-IP capability to KVM switches that do not have built-in over-IP functionality
- Supports multi-platform server environments: Windows, Mac, Sun, Linux, and VT100-based serial devices
- Virtual media support
- High video resolution up to 1920 x 1200 @ 60 Hz with 24-bit color depth for remote sessions
- Enhanced FPS (frames per second) throughput for crisp and responsive video display
- Bus-powered design – no external power adapter required
Management
- Supports up to 64 user accounts
- Supports up to 32 concurrent user logins
- End session feature allows administrators to terminate running sessions
- Event logging and Windows-based Log Server support
- Instant notification of critical system events via email, SNMP trap, and Syslog
- Remote firmware upgrade support
- Multi-user mode allows multiple users to access a server simultaneously
- Integration with ATEN CC2000 Centralized Management Software
- Integration with ATEN CCVSR Video Session Recording Software
- DDNS (Dynamic Domain Name System) support
- Enable or disable browser operation
- IPv6 capable
Easy-to-Use Interface
- Browser-based and AP GUIs provide a unified multi-language interface
- Multi-platform client support: Windows, Mac OS X, Linux, and Sun
- Supports multiple browsers: Chrome, Firefox, Safari, and Opera
- Pure web-based UI allows administration without requiring a pre-installed Java package
- Full-screen, sizable, and scalable virtual remote desktop
Advanced Security
- External authentication support: RADIUS, LDAP, LDAPS, and Microsoft Active Directory
- TLS 1.2 encryption protects passwords during user login
- Flexible encryption design allows selection of encryption algorithms (e.g., 256-bit AES) or system-generated random selection
- Independent encryption for keyboard, mouse, video, and virtual media data
- IP and MAC filtering support
- Password protection
- Private CA support
Virtual Media
- Virtual media enables file application, OS patching, software installation, and diagnostic testing
- Works with USB-enabled servers at both operating system and BIOS levels
- Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives, and ISO images
- Convenient operation without requiring a virtual media cable
Virtual Remote Desktop
- Adjustable video quality and tolerance to optimize data transfer speed in low-bandwidth environments
- Monochrome color depth, threshold, and noise settings for bandwidth compression
- Full-screen or scalable video display
- Message board for communication among remote users
- On-screen keyboard with multi-language support
- Mouse Dynasync™ support
- Exit macros support
- BIOS-level access
