Description

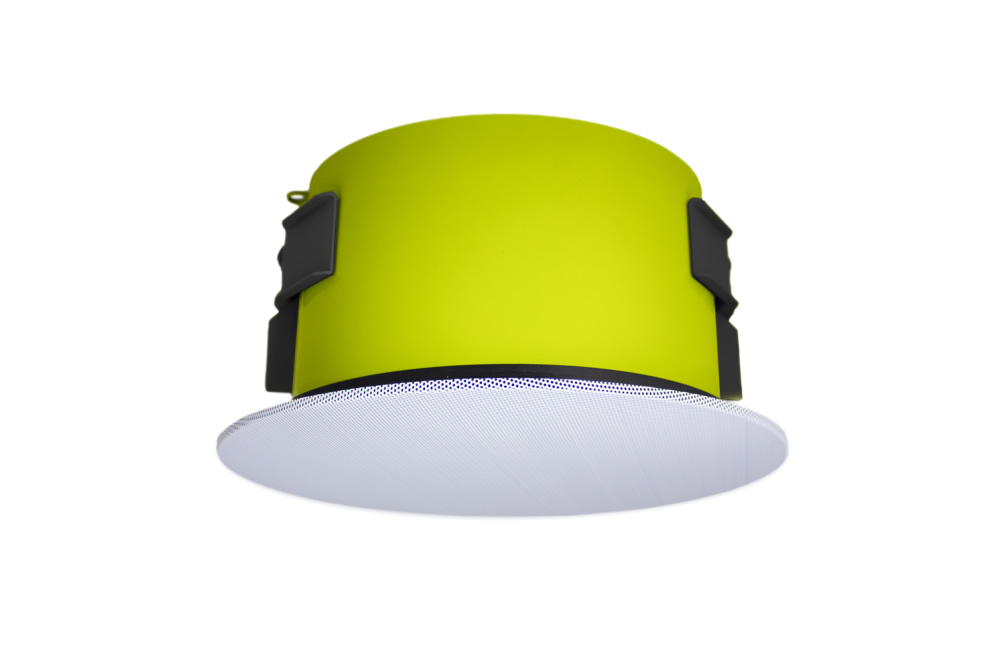

The CM62-BGM-II-US-BK is an in-ceiling background music speaker engineered to deliver clear midrange and extended bass for commercial environments. It employs a dedicated low-frequency driver and a silk dome high-frequency element to reproduce music and paging with clarity. The model meets Buy American Act requirements, making it suitable for projects requiring domestic manufacture.
Key features include BroadBeam Ring technology for wide, even dispersion and a tuned baffle port that extends bass response down to 64 Hz at -10 dB. The speaker provides a six-position tap selector for 25 / 70.7 / 100-volt transformer settings plus a transformer bypass option for direct low-impedance operation. A painted steel magnetic seamless grille provides a clean finish while permitting quick service access.
Performance metrics include 50 W continuous RMS power handling and 100 W program power, with a maximum sound pressure level of 101.5 dB at 1 m. Nominal impedance is 16 ohm and measured sensitivities are 84.5 dB @ 1 W/1 m and 81.4 dB @ 2.83 V/1 m. The on-baffle tuned port and polypropylene woofer design deliver musical bass extension and controlled low-frequency behavior.
Connectivity is simple via wire leads and the rotary tap selector that allows installers to choose between common constant-voltage taps or bypass the transformer for direct drive. The speaker is IPX3 rated for splash resistance and includes a conduit clamp and tile bridge for secure installation in plenum ceilings. Optional accessories include a black grille and a pre-construction bracket for rough-in mounting.
This model is ideal for retail, hospitality, corporate and institutional projects where unobtrusive background music and paging are required. The wide 180 degree coverage at 2 kHz supports even coverage across open ceilings and tiled spaces. The BAA compliance and US manufacture make the product appropriate for government and federally funded installations.
Installation is straightforward with adaptable flange thickness accommodation from 0.035 in to 1.6 in and easy-access tap switching. The magnetic steel grille snaps on for a seamless visual appearance and removes for servicing. The durable construction and proven driver components provide reliable long-term performance in commercial deployments.
