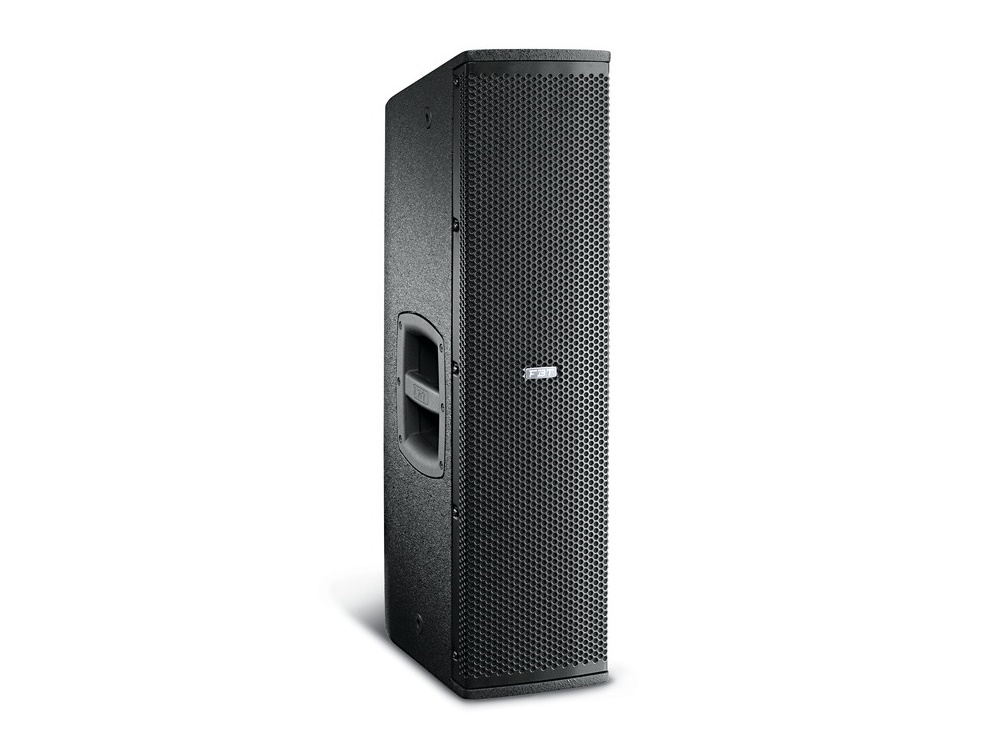

Download Manual The FBT VERTUS CLA206A two-way bi-amplified speaker system incorporates 2 x 6,5” custom woofer with 1,5” voice coil and 1 x 1,4″ B&C HF neodymium driver with 2,5 voice coil. The internal Class D amplifier module constructed in die-cast aluminum delivers 600W for LF, 300W for HF and DSP processor with 8 equalization presets provide unexpected dynamics in a system of these dimensions. The FBT VERTUS CLA 206A shall meet the following performance criteria: frequency response from 65Hz to 20kHz, maximum SPL of 133dB, horizontal coverage angle of 100°, vertical coverage angle 25°.
The FBT VERTUS CLA 206A feature a 0,47″ birch plywood with internal metal bracing and the front shall be protected by a heavy duty metal grille. The control panel provides Level control, HF level, Preset, HP filter, Gnd lift, 3 status led ( on, peak, prt/limit ), XLR input & link and Neutrik Powercon Cable Duplex for power supply. New hardware for flying installations, for ground setups and the possibility of coupling two or more FBT CLA406.2A/ CLA206Awith an angle of 0° – 20°; top side inclined 20°; It can be integrated elegantly and with minimal intrusion into any environment. The system can be used both in small point source systems with the VERTUS CLA118SAsub and in clusters of two to have a dispersion of 40° vertical.
Features:
- 2 way bi-amplified line array column
- 0,47″ birch plywood with scratch resistant varnish
- 2 x 6,5″ custom woofer with 1,5″ voice coil
- Neodymium B&C compression HF driver with 1,4″ throat and 2,5″ voice coil
- Class D 600W RMS amplifier for LF and 300W RMS for HF
- DSPprocessor with 8 equalization presets
- 100°H x 25°V dispersion
- Completely Manufactured in Italy
