Description

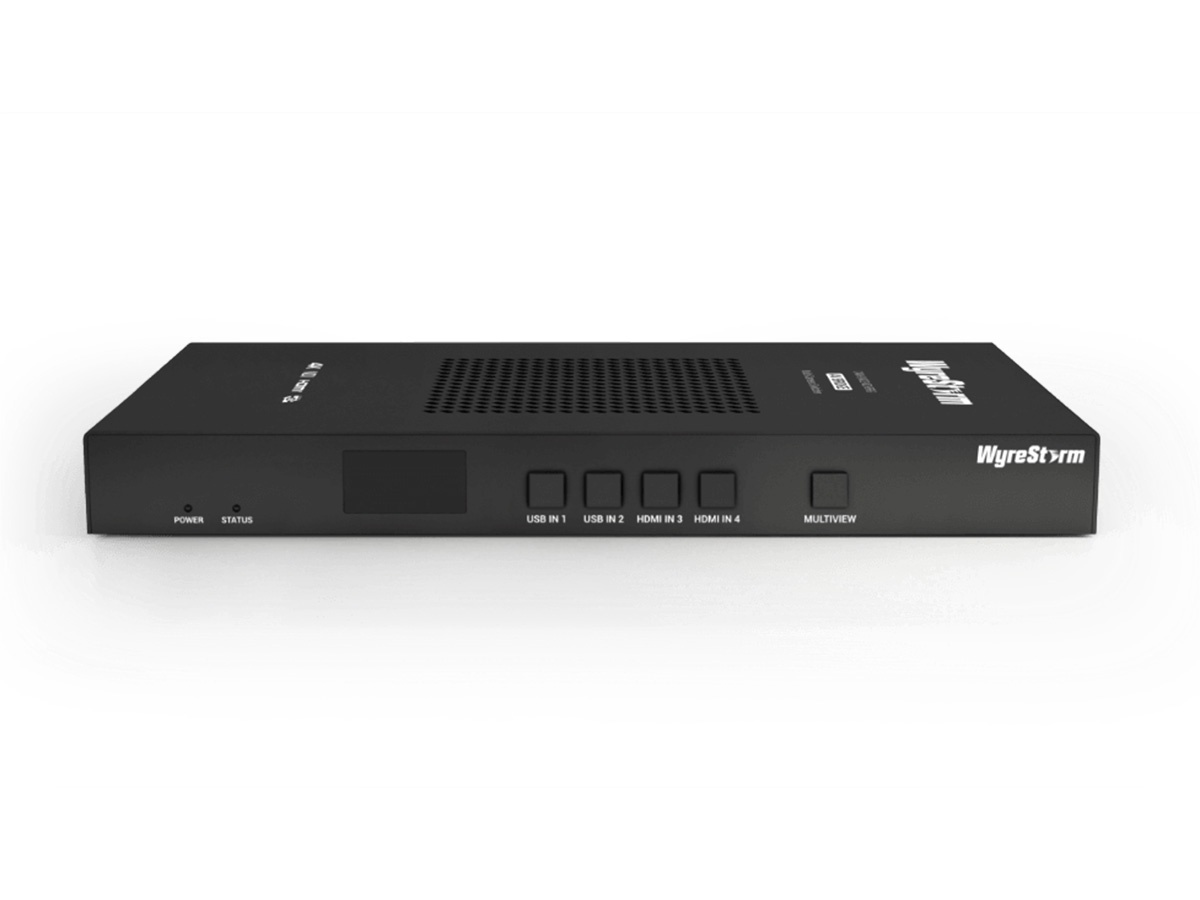

The CAM-0402-BRG is a compact 4K camera bridge designed to simplify multi-camera switching and integration. It consolidates up to four wired video sources into a single HDMI or USB output – appearing as a standard UVC/UAC webcam. The unit supports up to 3840×2160@30Hz to preserve image fidelity across conferencing and streaming platforms.
The device accepts 2 HDMI inputs and 2 USB 3.0 UVC camera inputs and provides simultaneous HDMI and USB Type-C outputs. Multiview layouts allow up to four sources on-screen at once or a clean single-source output. Control is available via front-panel buttons, web GUI, API, or RS-232 for flexible operation in live environments.
Video performance supports HDMI up to 4K@30Hz and USB MJPEG up to 4K@30Hz, with HDCP 2.2 compliance and a 300MHz maximum pixel clock. Audio is passed as RAW PCM, 16-bit, 2-channel with supported sample rates shown per input and output. EDID configuration and CEC behavior are adjustable through the web UI or API to ensure optimal handshake with connected devices.
Connectivity includes 2x USB 3.0 Type-A inputs, 2x HDMI inputs, 1x USB Type-C host output, 1x HDMI output, RS-232 control, and LAN for web-based management. The USB HOST endpoint presents as UVC/UAC and is compatible with major platforms including Teams, Zoom, Google Meet, OBS, and other capture applications. Native Microsoft Teams app integration enables in-meeting source switching without extra hardware.
This camera bridge fits use cases such as boardroom conferencing, lecture capture, small studio streaming, and courtroom evidence presentation where multiple cameras need a single unified output. It supports multiview monitoring and can mirror the same output to a local HDMI display and a USB host for remote participants. Firmware updates are managed via a web interface to keep the unit current.
The CAM-0402-BRG is powered by a 20V/3A adapter and consumes up to 36W, with an OLED status display and power indicator for quick system checks. Rack or shelf mounting is supported via included brackets and the unit offers a compact, durable enclosure suitable for AV racks and control closets. Installation is straightforward with plug-and-play USB webcam compatibility and web-based setup tools.
