Download Manual 24Gbps 4-core Active Optical HDMI Cable, 4K HDR 4:4:4/60, Kevlar strengthened, Detachable Head, ISF Certified, Plenum and FT6 Rated (15m/50ft)

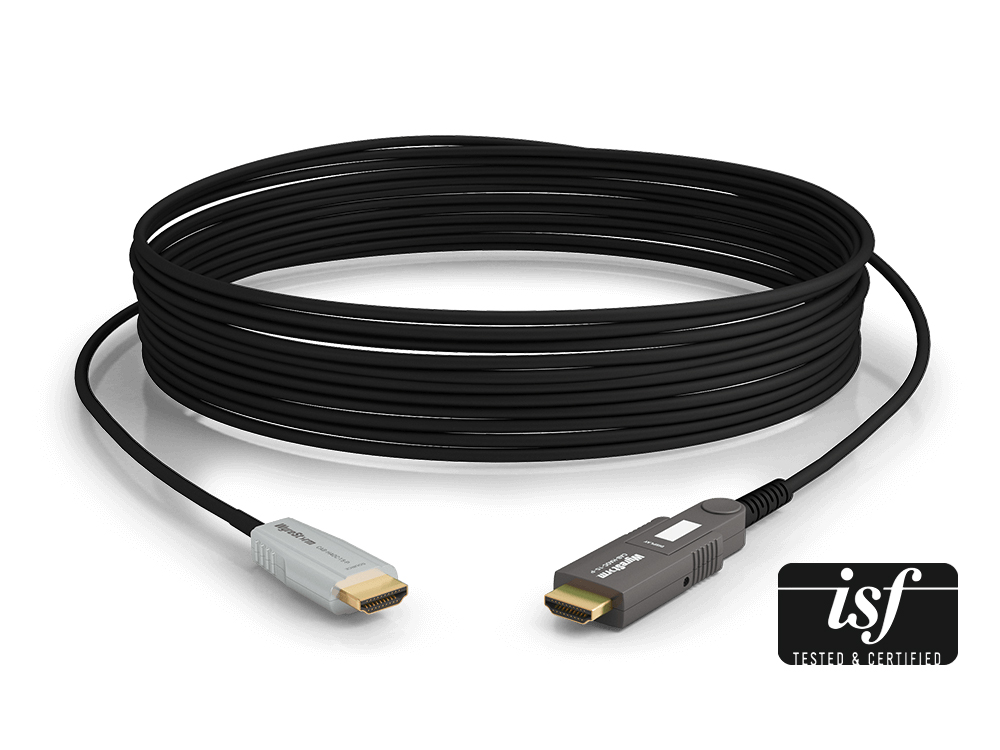

The WyreStorm HAOC is a next generation HDMI cable designed for the next generation of 4K and 5K HDR content. It offers a unique feature set in both delivering uncompressed HDMI content at up to 24Gbps and compatibility with emerging HDMI technologies such as ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate) using the latest in optical transmission technology. Now established as the most powerful form of HDMI extension, WyreStorm active optical cables offer the best of both worlds: pixel-perfect long distance transmission of content and native HDMI communication. This model features a detachable RX head and is certified for fire safety.
HDMI 2.0 AND BEYOND
Using a 4-core transmission system and passive optical transmission, the CAB-HAOC cables are compatible with content exceeding the current HDMI 2.0 standard. With each core rated at 6Gbps, the combined bandwidth means that the CAB-HAOC will support future content up to 24Gbps, equating to 4K/60 4:4:4 10-bit. Emerging resolutions in gaming are also supported, such as 2560x1440p @144Hz.
PASSIVE HDMI COMMUNICATION
It’s not all about raw bandwidth and transmission power, HDMI technology works by sending huge amounts of invisible “metadata” in both directions and it’s this information that makes or breaks a viewing experience. WyreStorm Active Optical Cables have been verified to not only ensure that the A/V signal gets to its destination but also the invisible metadata too. CEC, ARC, ALLM and VRR are all supported by WyreStorm HAOC’s.
GLOBAL HDR STANDARD SUPPORT
The emergence of HDR has inevitably meant there are several methods of displaying deeper colour palettes. Open standards such as HDR-10 & HLG and licensed versions like Dolby Vision & SL-HDR1 are all currently competing formats that all vary in their method of effectively achieving the same end result. WyreStorm HAOC’s, being a transparent transmission medium, support all known HDR standards and send them uncompressed.
ISF CERTIFIED
Considered to be the world’s leading authority on display calibration and image integrity, ISF (The Imaging Science Foundation) have rated the technology behind the WyreStorm HAOC cables as amongst the best in the world, surpassing their benchmark certification process. This confirms that HDMI optical transmission can not only match copper in terms of signal integrity but far exceed it in transmission distance, confirming its status as a compelling transmission method.
Features:
- Uncompressed optical transmission of HDMI content up to 24Gbps:
- 2K (2560 x 1440p) 4:4:4 8-bit at 144Hz
- 4K (4096 x 2160p) 4:4:4 10-bit HDR at 60Hz
- 5K (5120 x 2880p) 4:4:4 10-bit HDR at 30Hz
- Compatible with all current and emerging HDR standards at up to 60Hz:
- HLG (Hybrid Log Gamma)
- HDR-10 and HDR-10+
- Dolby Vision
- PQ (Perceptual Quantizer)
- SL-HDR-1
- Ready for future HDCP 2.3 content encryption
- True native HDMI communication ensures CEC and ARC communication between compatible devices
- Supports emerging HDMI technologies such as ALLM (Auto Low Latency Mode) and VRR (Variable Refresh Rate)
- Perfect for use in environments with excessive EM or RF interference
- Kevlar protected communication cores
- High quality aluminum construction with low-profile 20mm/0.79” TX head

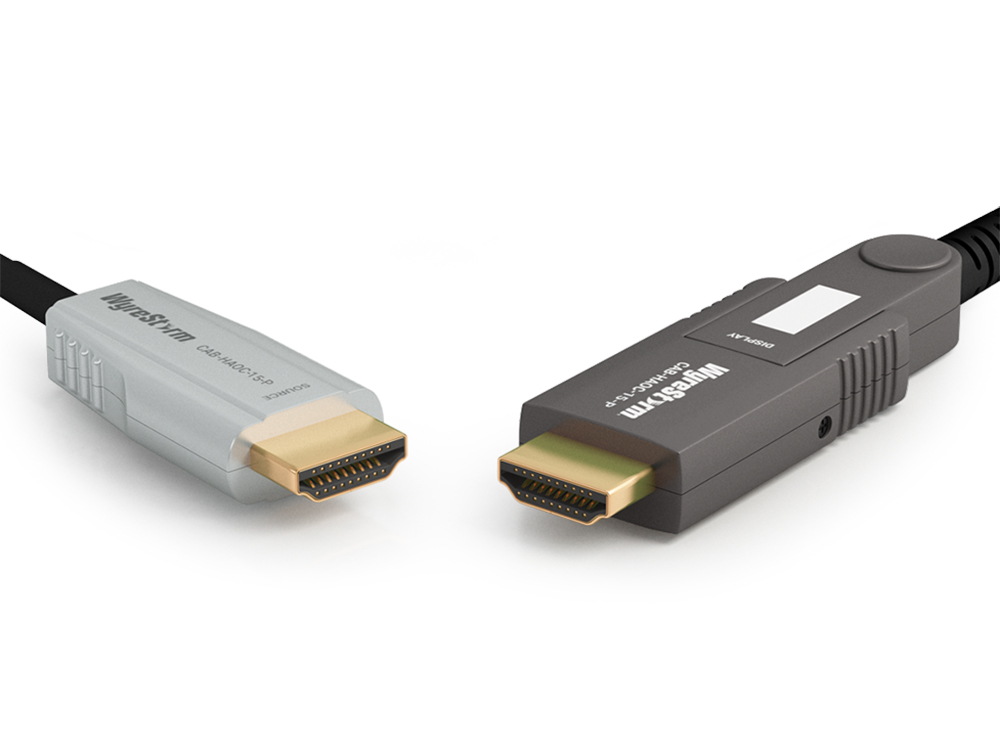

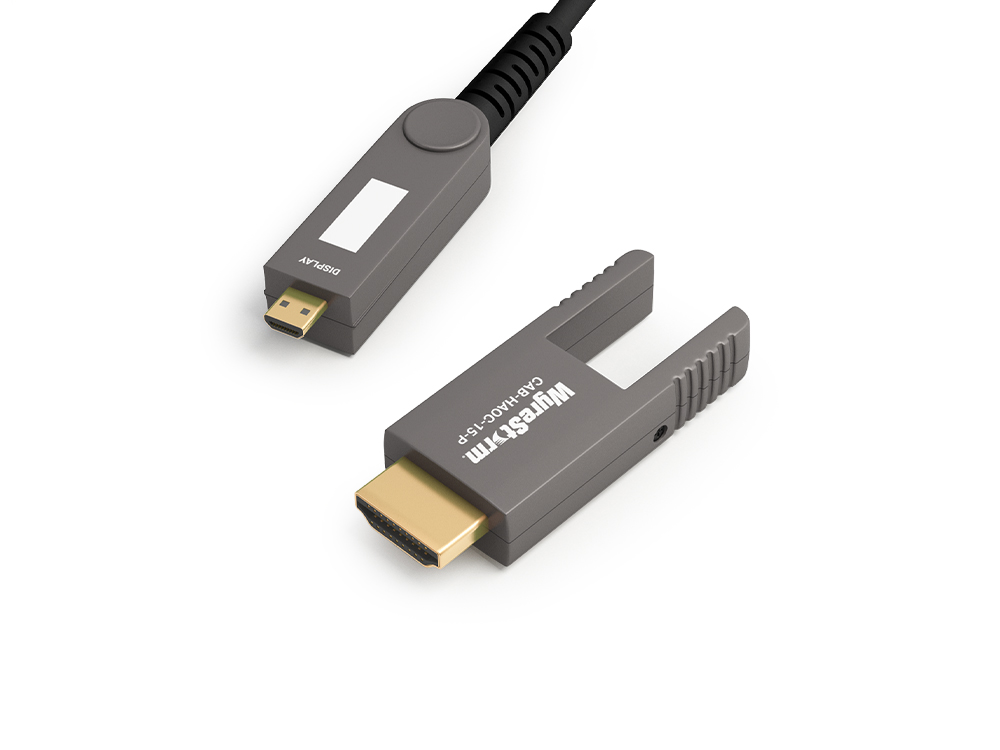

- Fixed Type-D head with detachable Type-A head on RX side for ease of installation
- Backup power injection via micro-USB cable (supplied) for source devices not capable of supplying adequate power
