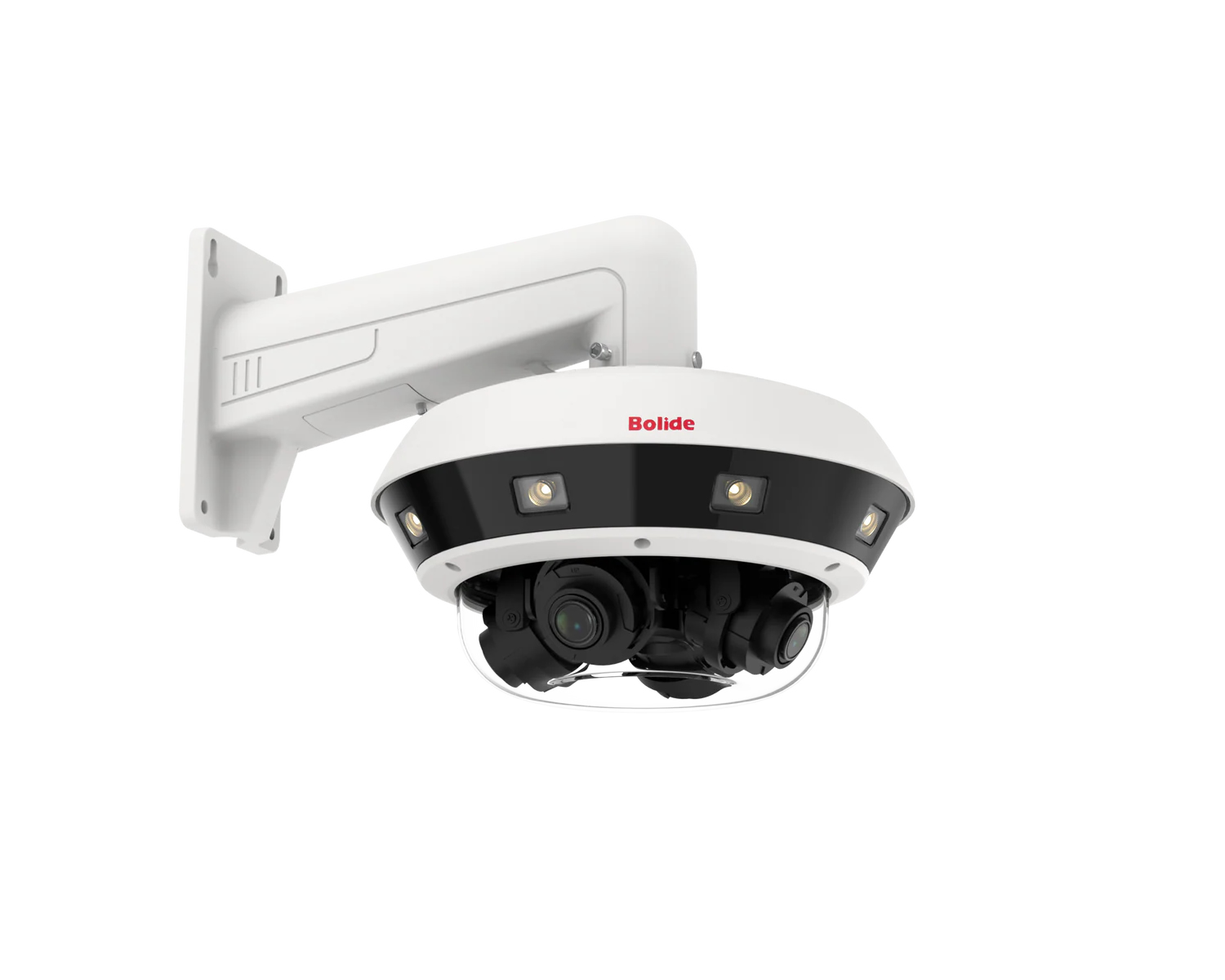

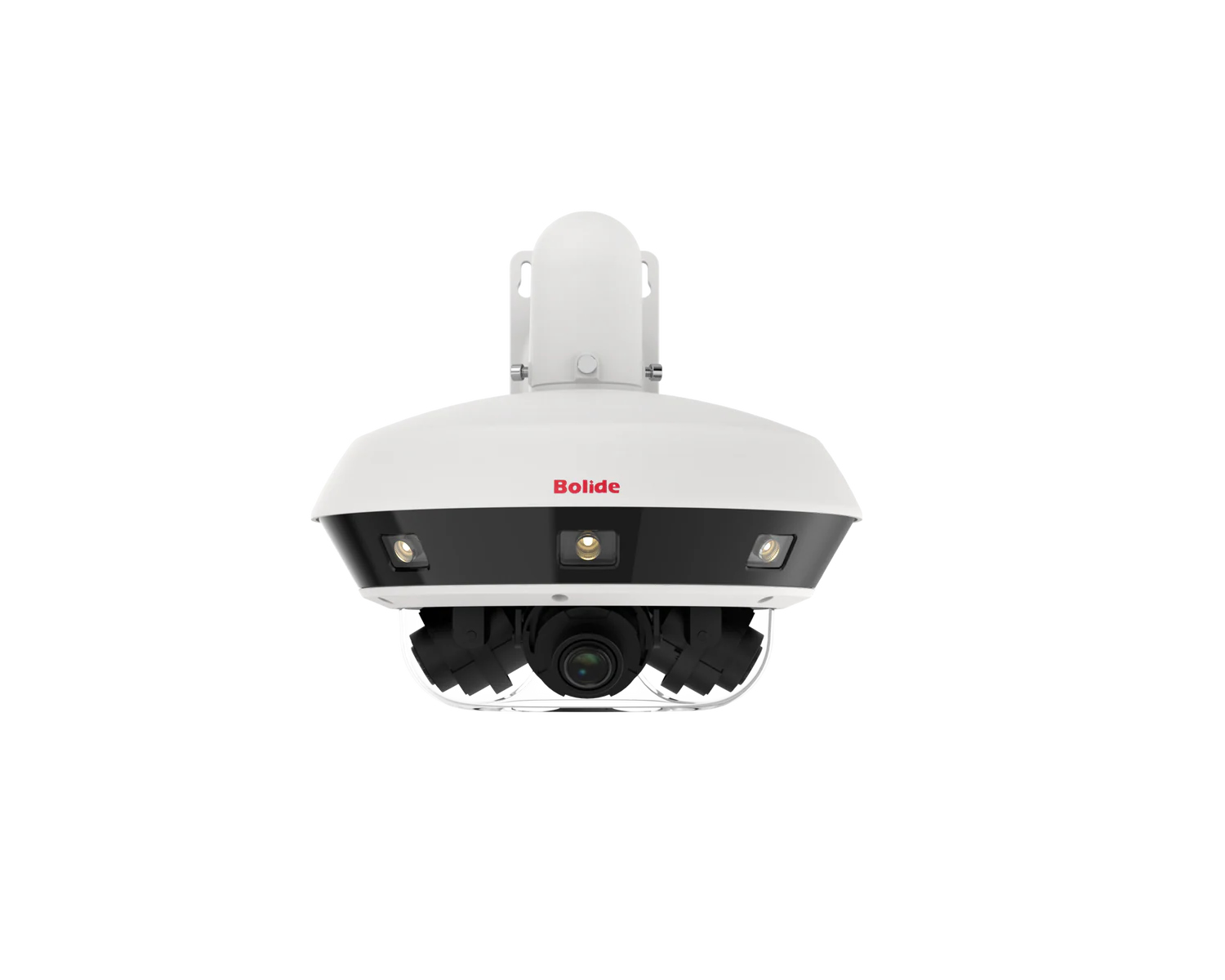

Bolide BN8108R/NDAA NDAA Compliant 5MP Multi-Sensor Camera

Description

The BN8108R/NDAA is a 5MP multi-sensor IP camera featuring four independently adjustable 5MP motorized varifocal lenses— each with its own field of view and video analytics. It delivers 360-degree surveillance for large areas with built-in warmlights for full-color night vision and red/blue active deterrent lights. Advanced AI includes face recognition, license plate recognition, human and vehicle detection, perimeter intrusion, and more. Rugged and easy to install with a single Ethernet connection, the BN8108R/NDAA is built for demanding environments.

Key Features

Quad-Lens 360° Coverage: Four precision-engineered varifocal lenses provide complete panoramic monitoring, adjustable on-the-fly for scene-specific framing.
True 20 MP Imaging: Each channel outputs up to 5 MP (2880 × 1620) resolution with advanced starlight sensors, delivering vivid low-light detail and 120 dB wide dynamic range for balanced highlights and shadows.
Integrated Edge Analytics & Recording: Embedded smart functions—face recognition, license-plate reading, people and vehicle detection, crowd density, heat maps, and more—run simultaneously on all four channels, with up to 256 GB onboard storage for continuous recording.
Single-Cable Simplicity: One IP address, one RJ45 PoE / Hi-PoE connection, and a single cable deliver power, data, video streams, and control—reducing installation time and infrastructure costs.
Dual-Source Illumination: Built-in IR and warm-white LEDs automatically adapt to changing light conditions, ensuring clear imagery up to 30 m in darkness or challenging backlit scenes.
Extreme Durability: Engineered to IP67 and IK10 standards, the die-cast alloy housing resists water, dust, and vandalism for reliable 24/7 outdoor operation from –30 °C to +55 °C.
Flexible Viewing & Compression: Supports H.265+ / H.265 / H.264+ / H.264 / MJPEG across main, sub, and mobile streams— up to 92 simultaneous feeds—with region-of-interest encoding to optimize bandwidth usage.
Universal Integration: Fully ONVIF-compliant (Profiles S / G / T) with APIs for seamless integration into any VMS or NVR ecosystem, plus web access via all major browsers.

Specifications

Mechanical Specifications
Image Sensor	1/2.7" Progressive CMOS (EA)
Max Resolution	5MP 3840 (H) × 2160 (EA)
Min. Illumination	Color: 0.006 Lux @ F1.2 (AGC ON) B/W: 0.002 Lux @ F1.2 (AGC ON) 0 Lux with IR On / White Light On
Shutter Time	1/5 s – 1/20,000 s
Day & Night	IR Cut Filter
Angle Adjustment	Four flexible lenses in one track Slide: -60° to 60° Tilt: 0° to 90° Rotate: 0° to 355°
Lens	2.8 – 12 mm Varifocal Motorized Lens
Field of View	Horizontal: 35.3° – 112.2° Vertical: 19.9° – 58.2° Diagonal: 40.5° – 137.2°
Lens Mount	16.7
Aperture	Max. F1.30
Illuminator
Supplement Light Type	IR and Warm Light
Supplement Light Range	Up to 98 ft (IR) / 49 ft (Warm Light)
IR Wavelength	850 nm
Smart Supplement Light	Yes
Video
Resolution	Main Stream (50/60 Hz): 25/30 FPS 5MP (2880 × 1620) 4MP (2592 × 1520) 3MP (2304 × 1296) 1080P (1920 × 1080) 960P (1280 × 960) 720P (1280 × 720) Sub Stream (50/60 Hz): 25 FPS 720P (1280 × 720) VGA (640 × 480) QVGA (320 × 240)
Video Compression	H.265+ / H.265 / H.264+ / H.264
Video Bit Rate	8 Kbps – 8 Mbps
H.264 Type	Baseline Profile / Main Profile / High Profile
H.265 Type	Main Profile
Region of Interest (ROI)	Yes
