| Specifications | |
|---|---|
| Thermal Camera | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Effective Pixels | 256 × 192 |
| Pixel Size | 12µm |
| Thermal Sensitivity (NETD) | ≤40 mK @ 25°C, F1.0, 25Hz |
| Response Waveband | 8–14 µm |
| Heat Detection Distance | 66 Feet (20 Meters) |
| Thermal Lens | |
| Lens Type | Fixed |
| Focus Control | Manual |
| Focal Length | 3.2 mm |
| F No. | F1.0 |
| Viewing Angle | H: 56° | V: 42° |
| Visible Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Effective Resolution | 2592 × 1944 |
| Shutter Speed | 1/5 ~ 1/100,000 s |
| WDR | Digital WDR |
| Min. Illumination |
Color: 0.003 Lux @ (F1.2, AGC ON) B/W: 0 Lux @ (F1.2, AGC ON) |
| S/N Ratio | > 55 dB |
| Focal Length | 3.6 mm |
| Angle of View | H: 81° | V: 57° | D: 108° |
| Lens Type | Fixed |
| Video and Audio | |
| Compression | H.265, H.264, MJPEG |
| Frame Rate |
Main Stream Thermal: 1280×720, 640×480 @ 25FPS (50/60Hz) Visible: 2592×1944, 2592×1520, 2304×1296, 1920×1080, 1280×720 @ 25FPS Sub Stream Thermal: CIF @ 25/30FPS Visible: D1 / VGA / 640×360 / CIF / QVGA @ 25/30FPS |
| Bit Rate Control | CBR / VBR |
| Bit Rate |
Thermal: 10 Kbps ~ 6 Mbps Visible Main: 100 Kbps ~ 16 Mbps Sub Stream: 100 Kbps ~ 6 Mbps |
| ROI | Off / On (8 Zones, Rectangles) |
| Digital Zoom | 16× |
| Mirror | Support |
| Defog | Support |
| Motion Detection | Support |
| Privacy Masking | Off / On (4 Areas, Rectangles) |
| DVE Image Enhance | Support |
| Audio Compression | G.711, AMR, RAW_PCM (Optional) |
| Intelligence | |
| Thermal |
Intrusion, Region Entrance/Exiting, Line Crossing, Pedestrian & Vehicle, Temperature Exception Alarm |
| Optical |
Intrusion, Region Entrance/Exiting, Line Crossing, Pedestrian & Vehicle, Object Detection, Cross Counting, Crowd Density, Queue Length, Heat Map, Rare Sound, Face Detection |
| Temperature Detection | |
| Detection Mode | Fire Detection |
| Temperature Accuracy | ±8°C (±14.4°F) |
| Alarm Detection | Temperature Overshoot, Temperature Difference |
| Accuracy | ±2% |
| Response Time | ≤30 ms |
| Measurement Range | -20°C ~ 150°C (-4°F ~ 302°F) |
| Measurement Mode | Global, 12 Points, 12 Areas, 12 Lines |
| Sound-Light Alarm | White Flashing Light & Horn Warning |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocols |
IPv4 / IPv6, HTTP, RTSP / RTP / RTCP, TCP / UDP, DHCP, DNS, PPPoE, SMTP, SIP, 802.1x |
| Interoperability | ONVIF, CGI, SDK |
| Max Connections | 10 Users |
| Edge Storage | Micro SD Card up to 128GB |
| Web Viewer | |
| Web Languages |
English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian |
| Interface | |

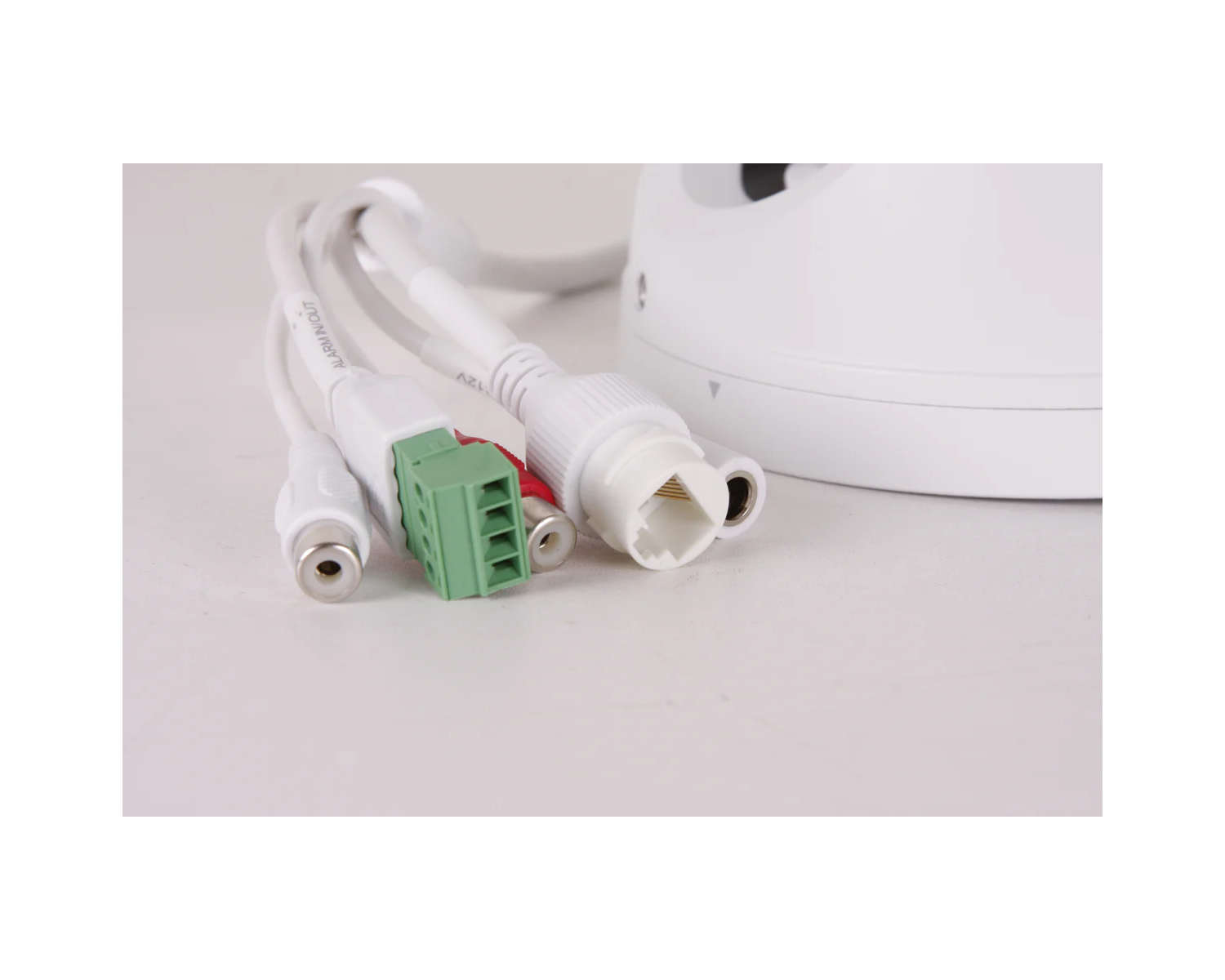

| Ethernet | 1 × RJ-45 (10/100Base-T) |
| Audio Interface | 1ch Audio In / 1ch Audio Out, Built-in Mic & Speaker |
| Alarm Interface | 1ch Alarm In / 1ch Alarm Out |
| RS-485 | Support |
| Reset Button | Support |
| General | |
| Power Supply | 12VDC / 24VDC / PoE (IEEE 802.3af) |
| Power Consumption | Max 10.4 W |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Storage Humidity | 0 ~ 90% RH |
| Certifications | CE / FCC |
| Degree of Protection | IP66 |
| Material | Metal |
| Dimensions | 108 × 314.6 mm (4.25" × 12.39") |
| Net Weight | 1.25 kg (2.76 lb) |
