Blackmagic Design BMD-VHUBSMAS12G020020 Videohub 20x20 12G Zero-Latency Video Router

Description

Support a mix of multiple video formats using the Videohub 20×20 12G Zero-Latency Video Router from Blackmagic Design. This advanced router provides 20 12G-SDI inputs and 20 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 20×20 12G centralizes all your SDI cables in one hub, allowing you to connect any input to any output or route a single input to multiple outputs, eliminating cable clutter and complex routing diagrams.

It can be used with multiple HyperDeck recorders for redundant mastering, to route video to multiple streaming processors for broadcast platforms, or to expand input capacity on an ATEM switcher.

12G-SDI Multi-Rate Connections
Multi-rate 12G-SDI connections allow routing of up to 20 different video standards simultaneously.
Supports resolutions up to DCI 4K60.
Provides 4:2:2 8-bit or 10-bit color routing in any standard.
Supports 4:4:4 12-bit SDI up to DCI 4K30 for high-end film workflows.

SDI Reclocking
Each 12G-SDI input includes reclocking to regenerate signals for maximum quality.
Helps eliminate jitter and signal degradation over long cable runs.

Front Panel Controls
Sleek front panel with intuitive operation.
Includes assignable shortcut buttons and dedicated In, Out, Clear, and Take controls.
Features a precision machined metal spin knob with electronic clutch for accurate adjustments.

Optional Hardware Control Panels
Supports optional external control panels for large installations.
Compatible with Videohub Master Control Pro and Videohub Smart Control Pro.

Flexible Control
Videohub Software Control (Mac and Windows compatible) enables touchscreen-based routing control.
Provides fast and intuitive management of all routing operations.

Built-In LCD
Integrated 2.2″ LCD screen allows preview of live inputs before routing.
Bottom labels help scroll through sources alphabetically.
Removes the need for an external SDI monitor.

Setup Utility and SDK
Videohub Setup software simplifies configuration.
SDK enables integration with broadcast automation and custom control systems.

Multiple Language Support
Supported languages include:
English, Chinese, Japanese, Korean
Spanish, German, French, Russian
Italian, Portuguese, Turkish, Polish, Ukrainian

Specifications

Processing
Switching Type: Pushbutton, Software
Processing Resolution: DCI 4K at 60
Color Processing:
8-Bit 4:2:2
10-Bit 4:2:2
12-Bit 4:4:4
Audio Processing: 48 kHz / 24-Bit

Input

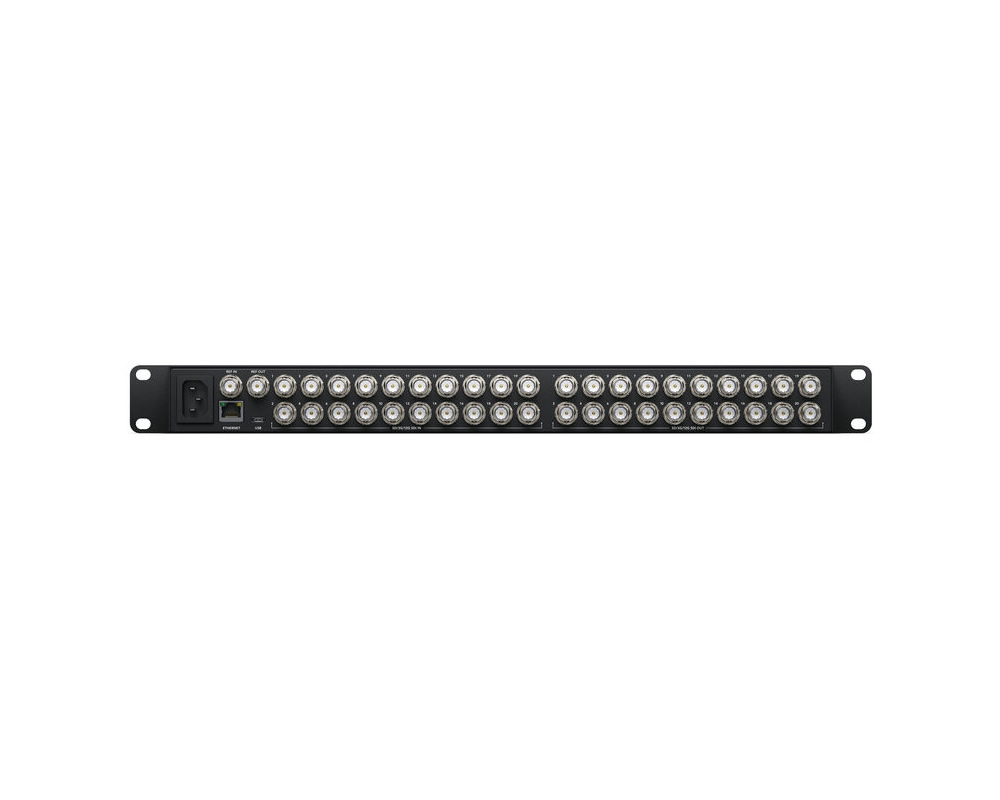

Video Inputs: 20x BNC (12G-SDI)
Input Video Format:
SDI (10/12-Bit 4:4:4 RGB, YUV):
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps

SDI (10-Bit 4:2:2 RGB, YUV):
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio Input: SDI

Output
Video Outputs: 20x BNC (12G-SDI)
Output Video Format:
SDI (10/12-Bit 4:4:4 RGB, YUV):
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps

SDI (10-Bit 4:2:2 RGB, YUV):
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio Output: SDI

Connectivity
Other I/O:
1x RJ45 LAN
1x USB-C
Video Standard Compliance:
SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10
ITU-R BT.601/BT.656

Display
Display Size: 2.2"

Hardware
OS Compatibility: macOS 12 or Later / Windows 10 or Later
Wireless: No

Power
Power I/O: 1x IEC C14 (100 to 240 VAC) Input
Power Consumption: 27.5 W

General
Operating Conditions: 32 to 72°F / 0 to 40°C up to 90% Humidity
Storage Conditions: -4 to 140°F / -20 to 60°C
Rack Form Factor: 1 RU
Dimensions: 19 x 9.3 x 1.74" / 48.3 x 23.6 x 4.42 cm
Weight: 7.87 lb / 3.57 kg

Packaging Info
Package Weight: 9.24 lb
Box Dimensions (LxWxH): 20.9 x 11.1 x 3.5"
