Blackmagic Design BMD-VHUBSMAS12G010010 Videohub 10x10 12G Zero-Latency Video Router

Description

Support a mix of multiple video formats using the Videohub 10×10 12G Zero-Latency Video Router from Blackmagic Design. This advanced router provides 10 12G-SDI inputs and ten 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 10×10 12G centralizes all your SDI cables in one hub, allowing you to connect any video input to any output or route a single input to multiple outputs. This simplifies cabling and eliminates the need for complex routing diagrams.

It can be used with multiple HyperDeck recorders for redundant mastering, route video to multiple streaming processors for broadcast platforms, or expand input capabilities of an ATEM switcher.

12G-SDI Multi-Rate Connections
Multi-rate 12G-SDI connections allow routing of up to 10 different video standards simultaneously.
Supports resolutions up to DCI 4K60.
Provides 4:2:2 8-bit or 10-bit color routing in any standard.
Supports 4:4:4 12-bit SDI up to DCI 4K30 for feature film workflows.

SDI Reclocking
Reclocking on every 12G-SDI input regenerates the signal for maximum video quality.
Reduces or eliminates signal loss and jitter, especially over long cable runs.

Front Panel Controls
Sleek front panel with intuitive controls.
Includes assignable shortcut buttons plus In, Out, Clear, and Take controls.
Features a precision machined metal spin knob with electronic clutch for accurate adjustments.

Optional Hardware Control Panels
Compatible with optional control panels for larger installations.
Works with Videohub Master Control Pro and Videohub Smart Control Pro for expanded control flexibility.

Flexible Control
Videohub Software Control (macOS and Windows compatible) provides touchscreen-based router management.
Enables quick and intuitive routing adjustments from a computer interface.

Built-In LCD
Integrated 2.2″ LCD screen lets you preview live inputs before routing.
Bottom labels allow scrolling through sources alphabetically.
Eliminates the need for an external SDI monitor.

Setup Utility and SDK
Use Videohub Setup software for initial configuration.
SDK allows integration with broadcast automation systems and custom workflows.

Multiple Language Support
Available in:
English, Chinese, Japanese, Korean
Spanish, German, French, Russian
Italian, Portuguese, Turkish, Polish, Ukrainian

Specifications

Processing
Switching Type: Pushbutton, Software
Processing Resolution: DCI 4K at 60
Color Processing:
8-Bit 4:2:2
10-Bit 4:2:2
12-Bit 4:4:4
Audio Processing: 48 kHz / 24-Bit

Input
Video Inputs: 10x BNC (12G-SDI)
Input Video Format:
SDI (10/12-Bit 4:4:4 RGB, YUV):
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps

SDI (10-Bit 4:2:2 RGB, YUV):
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio Input: SDI

Output
Video Outputs: 10x BNC (12G-SDI)
Output Video Format:
SDI (10/12-Bit 4:4:4 RGB, YUV):
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps

SDI (10-Bit 4:2:2 RGB, YUV):
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio Output: SDI

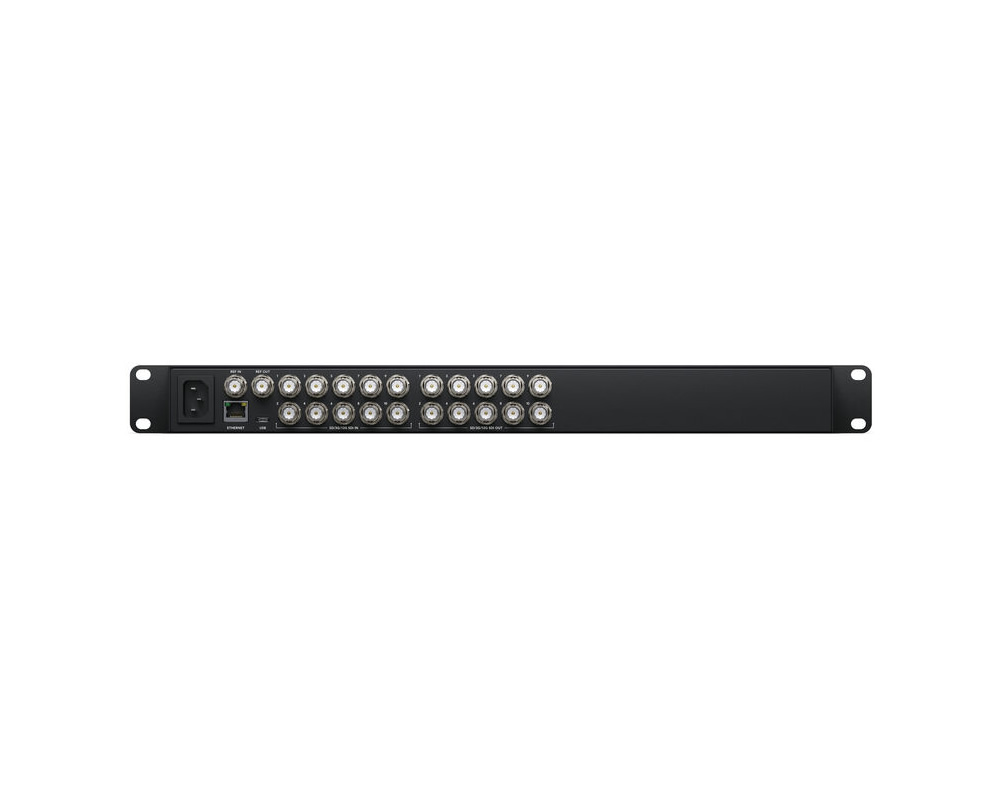

Connectivity
Other I/O:
1x RJ45 LAN
1x USB-C
Video Standard Compliance:
SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10
ITU-R BT.601/BT.656

Display
Display Size: 2.2"

Hardware
OS Compatibility: macOS 12 or Later / Windows 10 or Later
Wireless: No

Power
Power I/O: 1x IEC C14 (100 to 240 VAC) Input
Power Consumption: 20.8 W

General
Operating Conditions: 32 to 72°F / 0 to 40°C up to 90% Humidity
Storage Conditions: -4 to 140°F / -20 to 60°C
Rack Form Factor: 1 RU
Dimensions: 19 x 9.3 x 1.74" / 48.3 x 23.6 x 4.42 cm
Weight: 6.64 lb / 3.01 kg

Packaging Info
Package Weight: 7.96 lb
Box Dimensions (LxWxH): 20.6 x 11.9 x 3.5"
