Blackmagic Design BMD-HYPERD/PTSKD HyperDeck Shuttle 4K Pro

Description

Add a desktop shuttle with a comprehensive video playback interface to your live production with this HyperDeck Shuttle 4K Pro from Blackmagic Design. The HyperDeck Shuttle 4K Pro features a compact design that allows you to run multiple I/O and connect to a computer or ATEM switch to control media playback using its 7″ touchscreen display, large search dial, and buttons. It also features a built-in teleprompter for using text files without requiring third-party software.

The Shuttle 4K Pro runs Blackmagic OS, supports ProRes and DNx file formats, and is compatible with a wide range of editing software such as Premiere Pro, Avid, and DaVinci Resolve. It can also be used to stream H.264/265 video to streaming services such as YouTube or Vimeo. Record video using its SD card slot, M.2 PCIe card slot, or USB-C output to an optional drive or connect to the Blackmagic MultiDock to record to multiple SSDs. The Ethernet port provides external control and file transfers over a network.

Mastering Recorder
Supports H.264/265, ProRes, and DNx files; PCM or AAC audio; ideal for broadcast masters and uploading to streaming services like YouTube.

Media Player
Large search dial for browsing clips, previous clip button for cueing, clip button to stop playback, and Ethernet remote control via ATEM switchers.

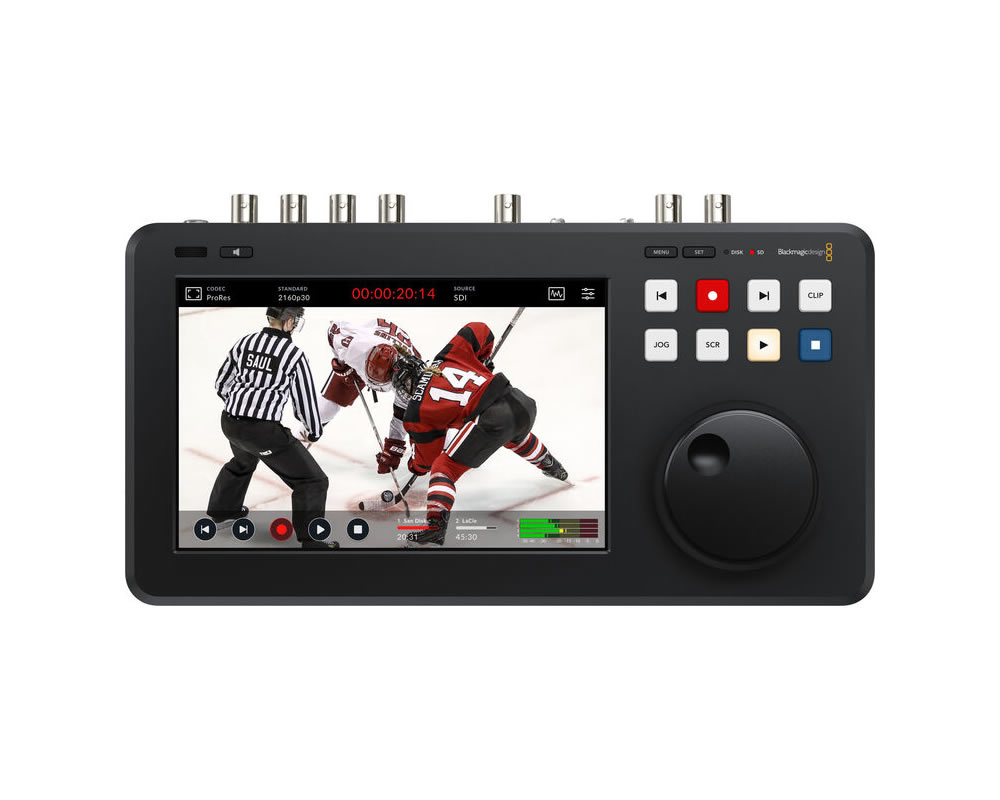

Built-In 7″ Touchscreen
Interactive control, monitoring, and menu adjustment; playback/pause/record buttons; HUD with timecode, media status, and audio meters; supports 3D LUTs.

Traditional Broadcast Deck Controls
Fast-access control panel with record button, machined metal search dial for shuttle/jog/scroll, and Ethernet remote control; intuitive touchscreen interface for overlays and media scrubbing.

Record to Internal or External Network Storage
Records directly to network storage or M.2 flash cards; compatible with editing systems like DaVinci Resolve; allows editing while recording.

Supports SD Cards and USB-C Disks
Standard SD and UHS-II cards; external USB disks; supports long recordings on small cards; USB-C expansion port and MultiDock 10G for SSDs; external disk management via settings.

Popular ProRes, DNx, and H.264/265 Files
Supports broadcast-quality DNx and ProRes, plus H.264/265 compression; uncompressed PCM or AAC audio; compatible with ExFAT (Windows) and HFS+ (Mac); supports long event recording.

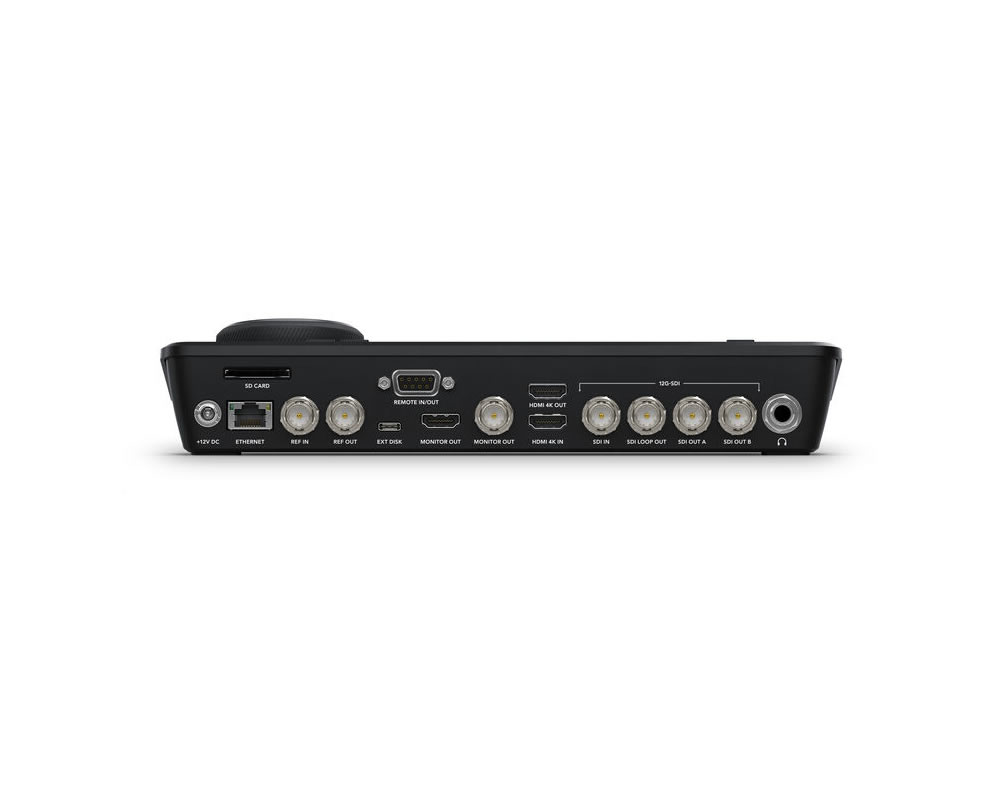

Video and Control Connections
HDMI input/output, SDI input/output/loop, 4K HDMI I/O, reference I/O, remote interface, headphone jack, 12 VDC power input, 10 Gigabit Ethernet for control and remote uploads.

Multi-Rate SDI Connections
12G-SDI supports SD, HD, UHD, DCI 4K; level A and B support for 3G-SDI rates.

HDMI Compatibility with ATEM Mini Switchers
Automatic standard switching for SD and UHD 4K; connects consumer cameras, monitors, projectors, and ATEM Mini switchers.

10G Ethernet Network
Access built-in HyperDeck M.2 storage over network; file transfer via HTTP/S or FTP; broadcast automation control via REST protocol.

USB Webcam Output
Live video output via USB to computer; compatible with Zoom, Teams, OBS, XSplit, and other video software in full 1080 HD quality.

Advanced HDR Support
HDR screen and wide color gamut; automatic HDR scopes; supports static metadata PQ and HLG; handles Rec. 2020, Rec. 709, and 100% DCI‑P3.

Built-In Teleprompter
Teleprompter mode reads RTF scripts; scroll scripts live with jog/scroll buttons; adjustable font size and multiple script navigation.

Supports Blackmagic Cloud
Networked M.2 storage, multiple users access, sync with Blackmagic Cloud; H.265 HD proxy files upload during recording; enables remote collaboration with DaVinci Resolve editors.

Direct Metadata Entry
Digital slate and metadata entry; automatic increment for takes and reels; metadata saved with files and usable in post-production.

Powered by Blackmagic OS
Manages all functions on HyperDeck Shuttle; instant power-on; video recording, timecode, audio, overlays, networking, and media management; customizable menus in light/dark mode.

Compatible with Software and Streaming Sites
Files compatible with post-production software and streaming services (YouTube, Facebook, Vimeo, Twitter); ready-to-edit disks; supports VFX and editing software.

Specifications

Category	Item	Details
General	Video Resolution	DCI 4K: 23.98, 24, 25, 30 UHD 4K: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 DCI 2K: 23.98, 24, 25, 29.97, 30 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i: 50, 59.94, 60 1080PsF: 23.98, 24, 25, 29.97, 30 720p: 50, 59.94, 60 625i: 50 525i: 59.94
General	Sampling Rate	Audio: 24-bit, 48 kHz Video: 4:2:2 YUV
Video Codecs	-	ProRes, DNx, H.265, H.264
Audio Format	-	AAC 2-Channel PCM 2/4/8/16/32/64-Channel
Display	Panel Type	LCD
	Size	7"
	Touchscreen	Yes
Inputs/Outputs	USB I/O	1 x USB-C 3.0 / 3.1 / 3.2 Gen 1 Female Output
	Video I/O	1x HDMI Input 1x HDMI Output 1x HDMI Output (Monitor) 1x BNC Input 1x BNC Output (Loop Output) 2x BNC Output 1x BNC Output (Monitor)
	Audio I/O	1x 1/4" Headphone Input
	Media/Memory Card Slot	Single Slot: SD (Unspecified Type) Single Slot: M.2 SSD
	Other I/O	1 x DB-9 RS-422 Input 1 x RJ45 10G Ethernet 1 x BNC Reference/Tri-Sync/Blackburst Input 1 x BNC Reference/Tri-Sync/Blackburst Output
	Wireless	Yes
	Power	Power Source	DC Input
DC Input Power		12 VDC
Power Consumption		60 W (Maximum)
Physical	Color	Black
	Operating Conditions	32 to 72°F / 0 to 40°C up to 90% Humidity
	Storage Conditions	-4 to 140°F / -20 to 60°C up to 90% Humidity
	Dimensions	10.55 x 5.98 x 2.83" / 26.8 x 15.19 x 7.19 cm
Weight	-	2.39 lb / 1.08 kg
Packaging Info	Package Weight	4.49 lb
Packaging Info	Box Dimensions (LxWxH)	21 x 6.9 x 3.5"
