Blackmagic Design BMD-HYPERD/PTSKD/2TB HyperDeck Shuttle 4K Pro (2TB)

Description

Add a desktop shuttle with a comprehensive video playback interface to your live production. The HyperDeck Shuttle 4K Pro features a compact design, 7″ touchscreen display, large search dial, and built-in teleprompter. It includes a 2TB M.2 card for cache recording up to 16 Gb/s.

Mastering Recorder
Supports H.264/265, ProRes, and DNx file formats. Choose between PCM or AAC audio. Ideal for broadcast-quality mastering and uploading to streaming services.

Media Player
Large search dial for visually browsing clips, previous clip and clip buttons for cueing playback. Can be remotely controlled via Ethernet by ATEM switchers.

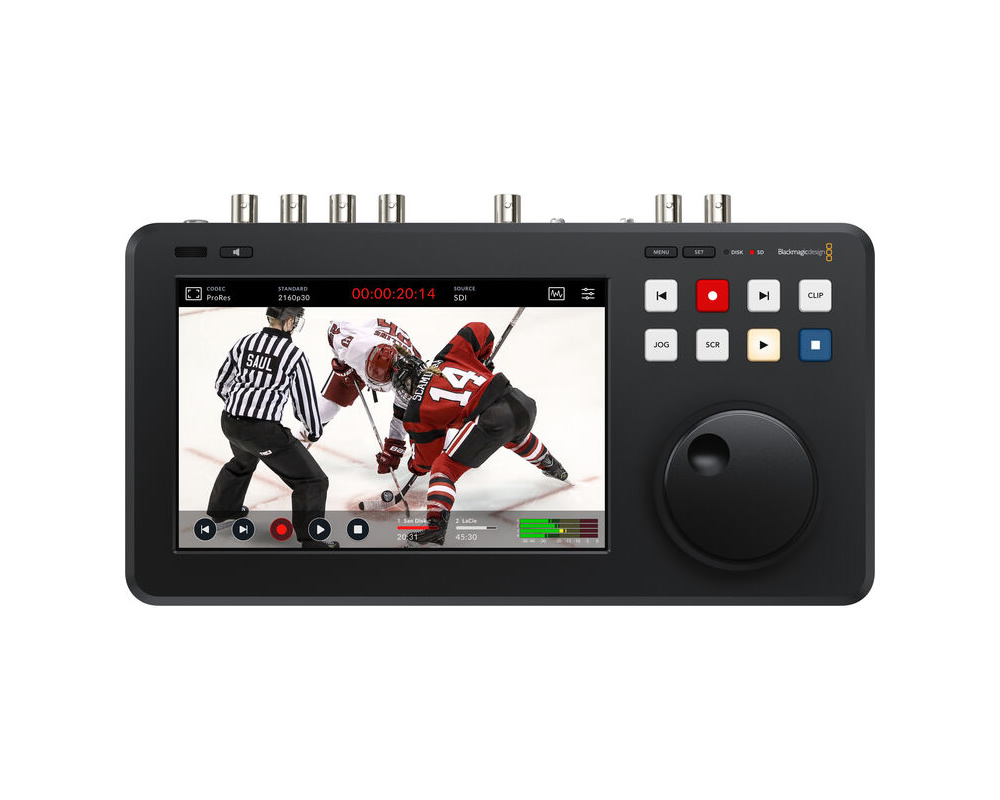

7″ Touchscreen Interface
Interactive control, monitoring, and menu adjustment. Displays HUD with timecode, media status, and audio meters. Supports focus assist, RGB exposure histogram, and 3D LUTs.

Traditional Broadcast Deck Controls
Physical buttons for record, playback, pause, and other functions. Machined metal search dial for shuttle, jog, and scroll. All functions can be triggered remotely via Ethernet.

Recording Options
Records to internal M.2 SSD, SD/UHS-II cards, or external USB-C drives. Compatible with Blackmagic MultiDock 10G for multiple SSDs. Supports long recordings in H.264 with high compression ratios.

Supported File Formats
ProRes, DNx, H.264, H.265 for video. AAC or PCM for audio. Compatible with both ExFAT and HFS+ disks. Supports long events into single video files.

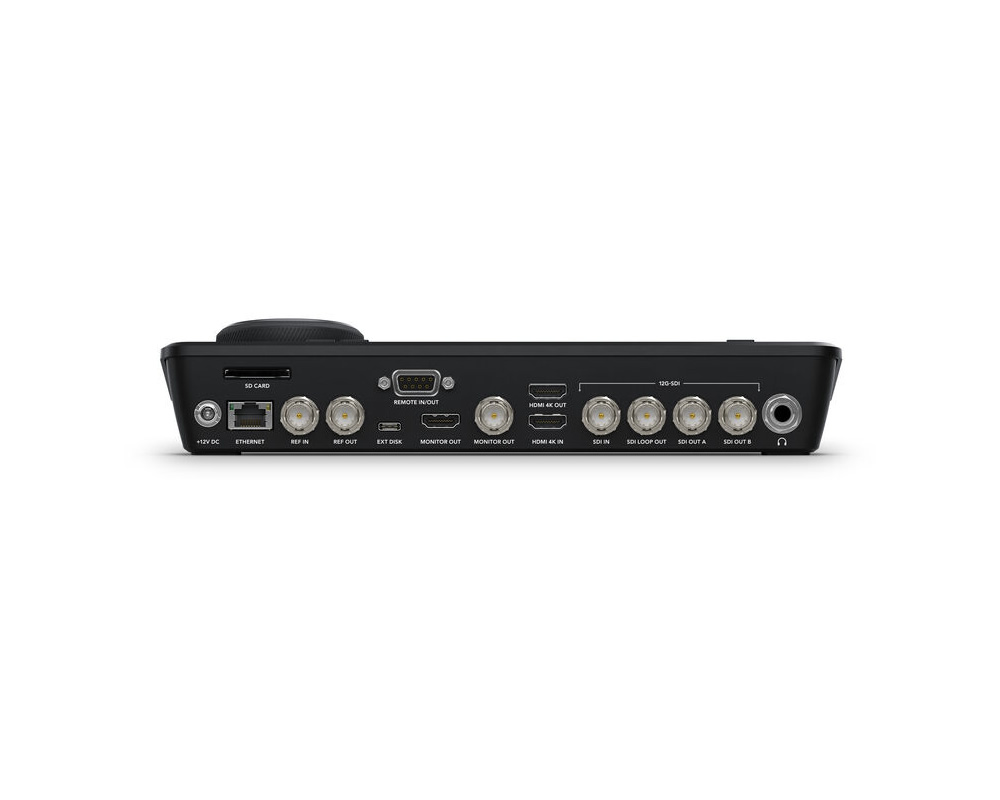

Video and Control Connections
HDMI input/output, SDI monitor output, SDI loop output, reference I/O, RJ45 10G Ethernet, and headphone jack. 12 VDC power input included. USB-C for file access or webcam output.

Multi-Rate SDI and HDMI
12G-SDI multi-rate supports SD, HD, UHD, and DCI 4K. Level A/B support for 3G-SDI. HDMI auto-switches between SD and UHD formats. Compatible with ATEM Mini switchers.

10G Ethernet Network
High-speed network access to internal M.2 storage. File transfer via HTTP/S, FTP, or REST protocol. Fully documented for automation control.

USB Webcam Output
Delivers full 1080p HD video to software such as Zoom, Teams, OBS, and XSplit via USB.

Advanced HDR Support
Built-in HDR screen, wide color gamut, Rec. 2020, Rec. 709, and 100% DCI-P3 coverage. HDR scopes automatically detected for SDI/HDMI inputs.

Built-In Teleprompter
Supports RTF text files, scrolling, multiple scripts, font size adjustment, and previous/next clip navigation.

Blackmagic Cloud Integration
Supports internal M.2 storage for network access and Blackmagic Cloud sync. Proxy recording in H.265 allows remote editing access during recording.

Direct Metadata Entry
Digital slate allows swipe access to metadata entry. Auto-increment take and reel numbers. Metadata saved with files for DaVinci Resolve post-production.

Powered by Blackmagic OS
Instant power-on, advanced video recording, timecode, audio overlays, fast networking, and multi-disk media management. Menus can be displayed in light or dark mode.

Software Compatibility
Files are compatible with DaVinci Resolve, Final Cut Pro, Premiere Pro, Avid Media Composer, Fusion, After Effects, and streaming services like YouTube, Facebook, and Vimeo.

Physical Specifications
7″ touchscreen, black color, DC input 12V, power consumption 60W max. Operating temperature 32–72°F / 0–40°C. Storage temperature -4–140°F / -20–60°C. Dimensions: 10.55 x 5.98 x 2.83″ / 26.8 x 15.19 x 7.19 cm. Weight: 2.39 lb / 1.08 kg.

Packaging Information
Package weight: 4.52 lb. Box dimensions: 21.1 x 7.1 x 3.6″.

Specifications

General
Video Resolution	DCI 4K at 23.98, 24, 25, 30 UHD 4K at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 DCI 2K at 23.98, 24, 25, 29.97, 30 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i at 50, 59.94, 60 1080PsF at 23.98, 24, 25, 29.97, 30 720p at 50, 59.94, 60 625i at 50 525i at 59.94
Sampling Rate	Audio: 24-bit, 48 kHz Video: 4:2:2 YUV
Video Codecs	ProRes, DNx, H.265, H.264
Audio Format	AAC 2-Channel PCM 2/4/8/16/32/64-Channel
Display
Panel Type	LCD
Size	7"
Touchscreen	Yes
Inputs/Outputs
USB I/O	1 x USB-C 3.0 / 3.1/3.2 Gen 1 Female Output
Video I/O	1x HDMI Input 1x HDMI Output 1x HDMI Output (Monitor) 1x BNC Input 2x BNC Output 1x BNC Output (Loop Output) 1x BNC Output (Monitor)
Audio I/O	1x 1/4" Headphone Input
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) Single Slot: M.2 SSD
Other I/O	1 x DB-9 RS-422 Input 1 x RJ45 10G Ethernet 1 x BNC Reference/Tri-Sync/Blackburst Input 1 x BNC Reference/Tri-Sync/Blackburst Output
Wireless	Yes
Power
Power Source	DC Input
DC Input Power	12 VDC
Power Consumption	60 W (Maximum)
Physical
Color	Black
Operating Conditions	32 to 72°F / 0 to 40°C up to 90% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C up to 90% Humidity
Dimensions	10.55 x 5.98 x 2.83" / 26.8 x 15.19 x 7.19 cm
Weight	2.39 lb / 1.08 kg
Packaging Info
Package Weight	4.52 lb
Box Dimensions (L x W x H)	21.1 x 7.1 x 3.6"
