Description

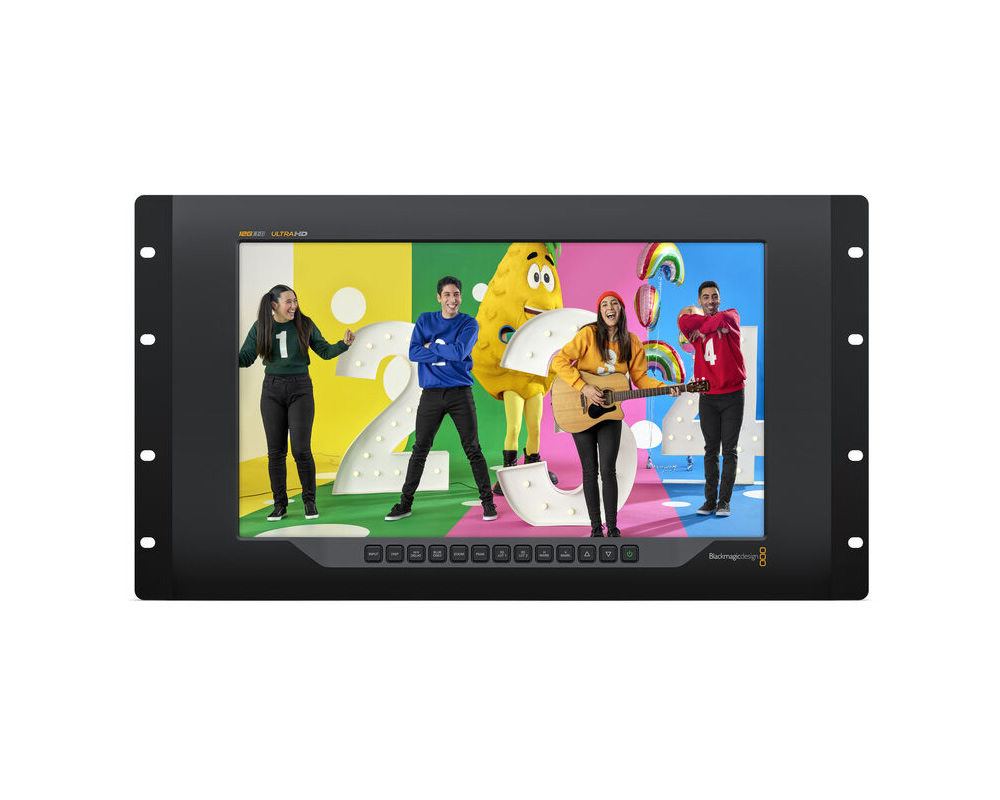

Display
Panel Type: 15.6″ TFT LCD
Native Resolution: 3840 x 2160 (UHD 4K)
Aspect Ratio: 16:9
Color Support: 16.7 Million Colors (8-Bit)
HDR Support: No
Contrast Ratio: 1000:1
Color Gamut: 100% Rec.709
Touchscreen: No
On-Screen Tools: Focus peaking, framing guides, safe area, zoom, aspect ratio markers
3D LUT Support: Built-in, custom LUTs uploadable via SmartView Utility or DaVinci Resolve
Video & Input/Output
Video Inputs:
2x BNC 12G-SDI (multi-rate, auto-switch SD/HD/UHD/DCI 4K)
1x SMPTE‑2110 IP (optical or copper 10G Ethernet)
Video Outputs:
1x BNC 12G-SDI loop out
10G Ethernet SMPTE‑2110 (multicast support)
Embedded Audio: SDI supports 16 channels
Video Format Support:
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K/2K PsF, 1080p/PsF/i, 720p, NTSC, PAL (all common frame rates)
IP & Protocol Support
SMPTE‑2110 compliance (video, audio, ancillary data)
NMOS IS‑04/IS‑05 for IP device discovery and connection management
Acts as NMOS controller for virtual routing
Can multicast IP video to multiple destinations
Tally & Monitoring
SDI Tally Protocol support (red for on-air, green for preview)
Customizable tally borders for ATEM live production integration
Front panel controls: Input selection, brightness, H/V display, blue-only, zoom, focus peaking, 3D LUT selection, up to four on-screen markers

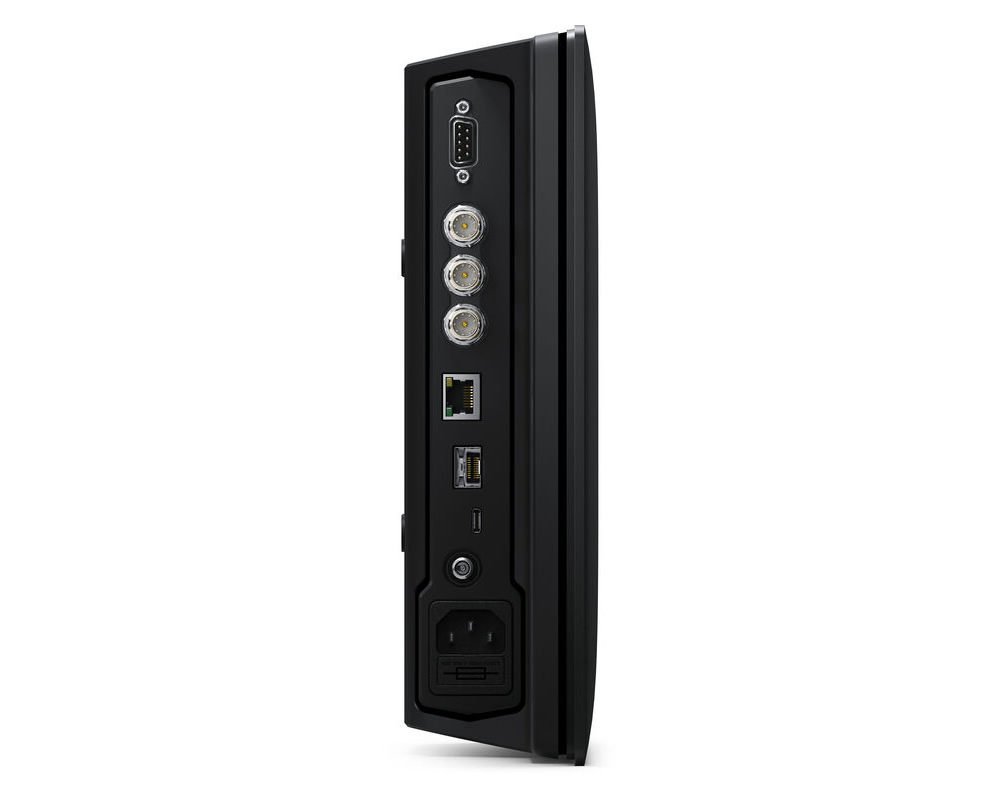

Connectivity & Control
RJ45 LAN: Shared with SMPTE‑2110 IP video input
DE-9/DB-9: Tally interface
Mini-USB 2.0: Configuration and firmware updates
SFP+ slot for fiber expansion
Remote Control: SmartView Utility (macOS/Windows), supports custom Telnet-based remote protocols
Power
Input: 12–15 VDC or 90–240 VAC, 50/60 Hz
Maximum Power Consumption: 24 W
Battery: Not supported

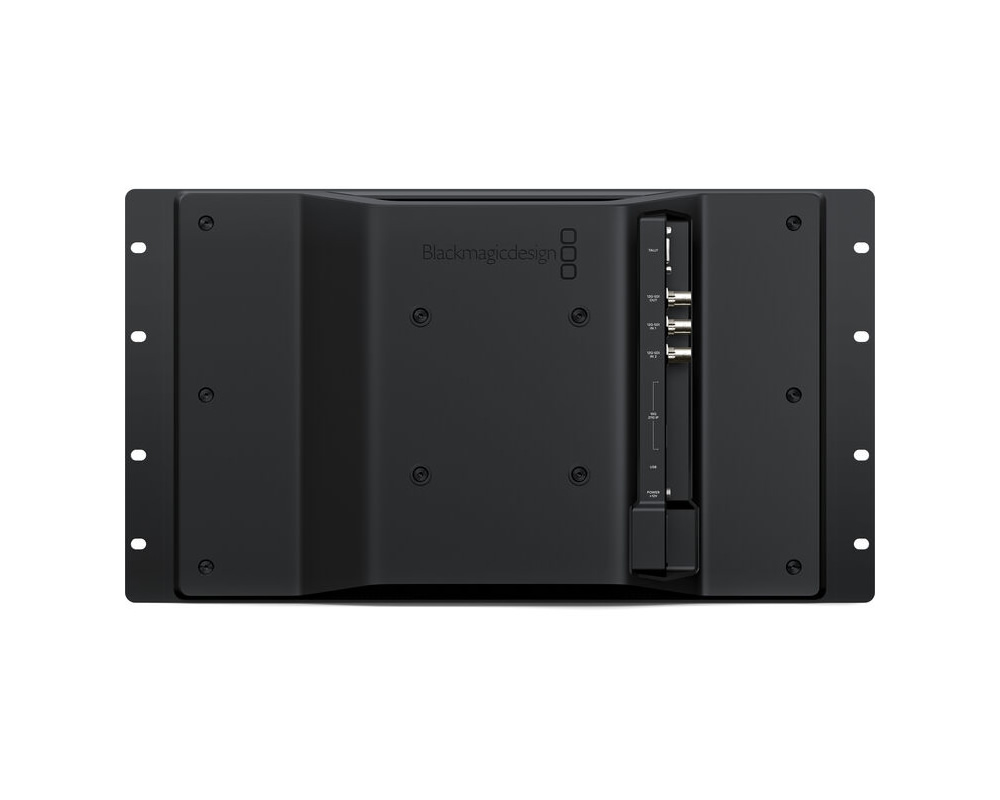

Build & Mounting
Chassis: Machined aluminum, lightweight, 6 RU
Dimensions: 18.98 x 10.47 x 2.75″ / 48.21 x 26.59 x 6.96 cm
Weight: 7.94 lb / 3.60 kg
Environmental Conditions: 32–104°F / 0–40°C, up to 90% humidity
Storage: -4–140°F / -20–60°C
