Blackmagic Design BMD-CONVNVIPH/PRESC 2110 IP Presentation Converter

Description

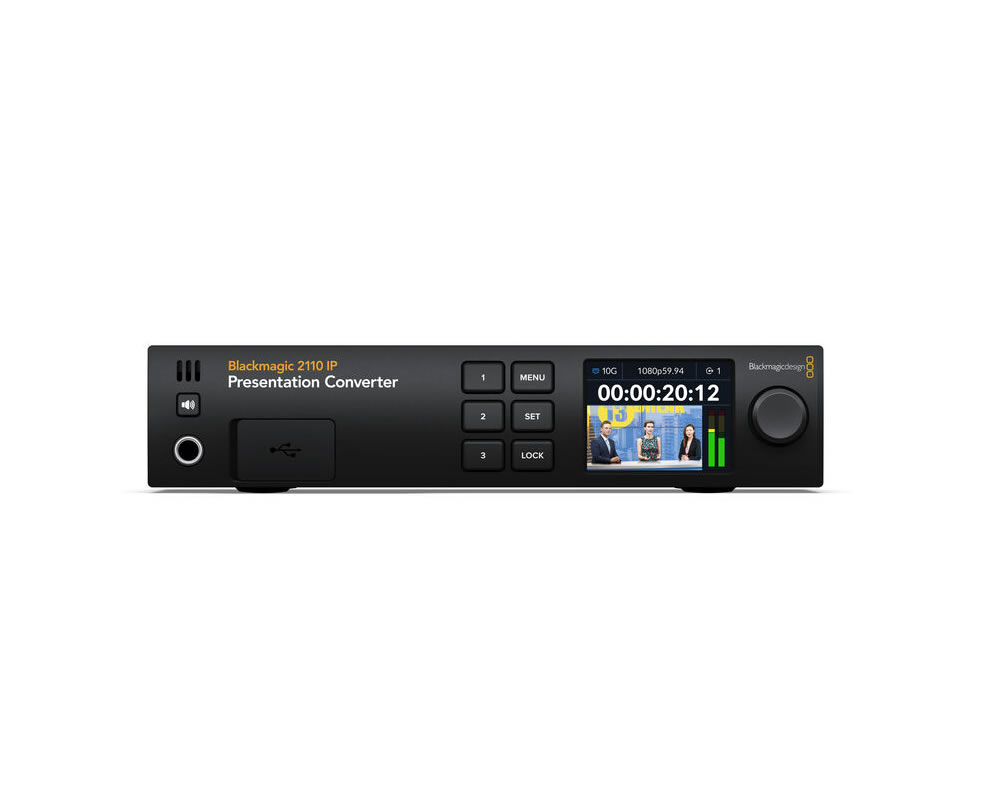

Utilize SMPTE 2110 IP video for media presentations with the 2110 IP Presentation Converter from Blackmagic Design. This converter is designed for speaker podiums to connect mics and output to speakers while utilizing a computer or laptop via USB-C to send video to projectors. The fast 10G video output can be utilized to send video through Blackmagic’s suite of 2110 IP products.

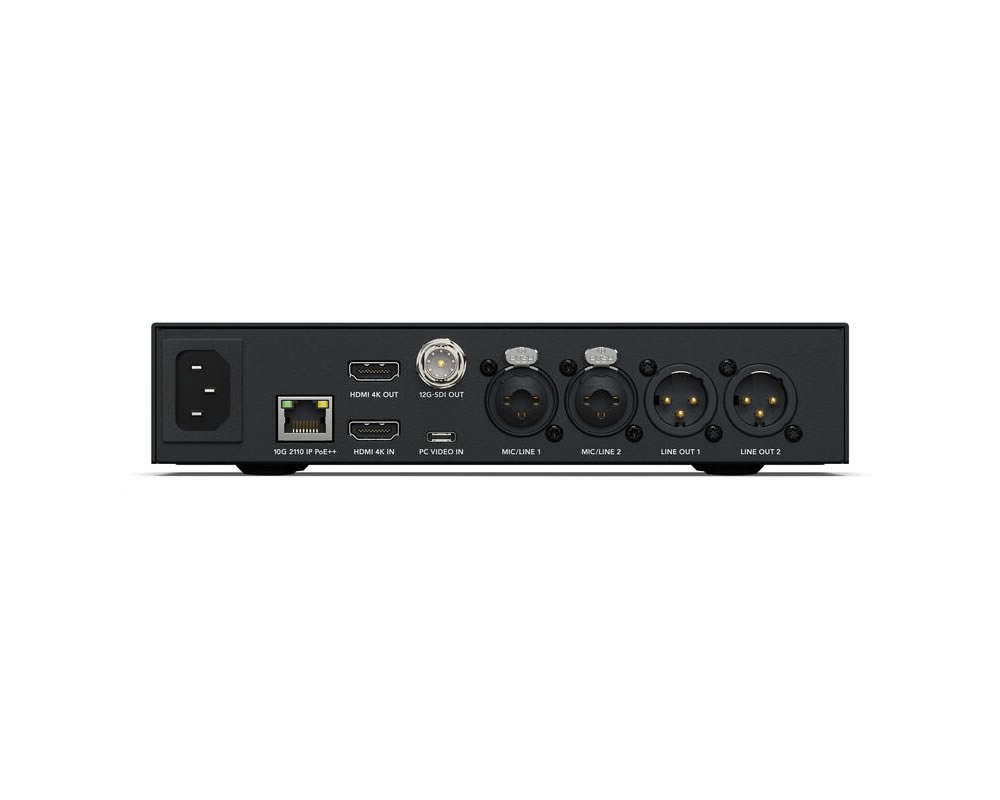

The converter supports up to DCI 4K60 video and features 12G-SDI and HDMI input/output to projectors. Audio features include embedded audio over all the I/O, balanced 3-pin XLR mic/line inputs, balanced 3-pin XLR output for PA speakers, and a 1/4″ headphone output. Phantom power can be utilized for the mic inputs, and the unit can also power a laptop using its 45W interface.

Features

For podiums where speakers do presentations
Connects switchers to computers, projectors, microphones, and PA systems
HDMI and USB-C inputs for video and the 45W USB-C will power a laptop
An HDMI output for a projector can be switched to the video input or the 2110 IP return feed
XLR mic inputs and XLR audio out for PA speakers
RJ-45 10G Ethernet video connection can power the whole converter via PoE, even while charging a USB computer

Specifications

Category	Item	Details
IP Video	Encoding	720 x 480 to 4096 x 2160 at 60p
Video I/O	HDMI Input	1x HDMI
	USB-C Input	2x USB-C
	HDMI Output	1x HDMI
	SDI Output	1x BNC (12G-SDI)
Embedded Audio	-	HDMI / LAN (RJ45) / SDI / USB
Display	-	LCD
Wireless	Wireless	No
	Wi-Fi	No
	Bluetooth	No
	Cellular	No
Interfaces	Video Input	1x HDMI, 2x USB-C
	Video Output	1x HDMI, 1x BNC (12G-SDI)
	Audio Output	2x XLR 3-Pin Analog
	Audio Input	2x XLR 3-Pin Analog
	Network	1x RJ45 (10 GbE)
	Video Standard	SMPTE ST-2110
	HDCP Support	No
Power	Power I/O	1x IEC C14 (100 to 240 VDC) Input
General	Display	LCD
	Rackmount Size	1U (1/2-Rack)
	Dimensions	8.98 x 8.28 x 1.74" / 22.81 x 21.03 x 4.42 cm
	Weight	2.84 lb / 1.29 kg
Packaging Info	Package Weight	4.425 lb
Packaging Info	Box Dimensions	11.1 x 11.1 x 3.6"
