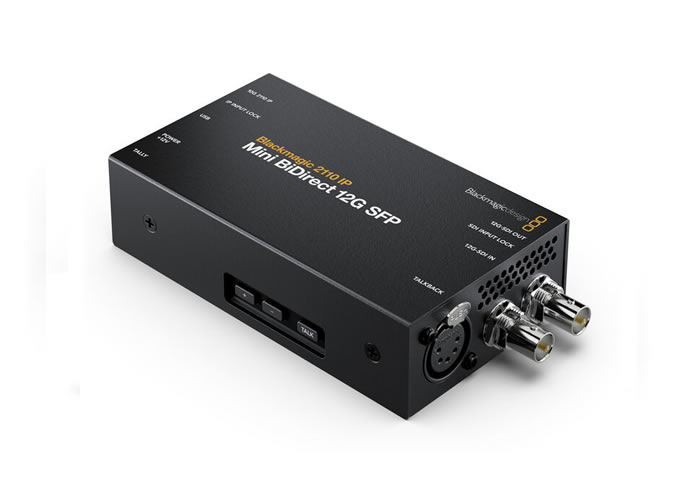

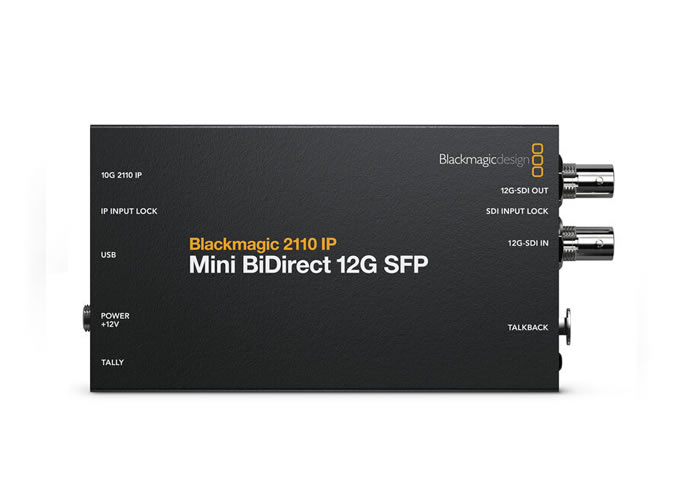

Blackmagic Design BMD-CONVNVIPF/IP/12GSFP 2110 IP Mini BiDirect 12G SFP Converter

Description

Connect your 12G-SDI broadcast studio camera to SMPTE-2110 IP systems over long distances with this 2110 IP Mini BiDirect 12G SFP Converter from Blackmagic Design. The converter allows you to send up to UHD 4K 12G-SDI camera video and program return using the same converter, and it is so compact it can easily be mounted on your camera rig. It features an SFP connection for optical fiber to connect over long distances. The converter also features a 5-pin XLR talkback headset and a press-to-talk button to keep communication between camera operators and the broadcast production booth.

Features

This converter is bidirectional and allows 12G-SDI cameras to connect to SMPTE-2110 systems over long distances using optical fiber
Handles the SDI camera feed and SDI program return in the one converter
5-pin XLR talkback headset connection with volume and press to talk buttons
Supports all SD, HD, and UHD standards up to 2160p60
Includes a 12 VDC power supply
The SFP slot will accept 10G Ethernet, 3G-SDI, 6G-SDI, or 12G-SDI optical modules

Specifications

Category	Item	Details
Video I/O	Input	1x BNC (12G-SDI) Female
Video I/O	Output	1x BNC (12G-SDI) Female
Audio I/O	Input	1x XLR 5-Pin Analog Female
Audio I/O	Output	1x XLR 5-Pin Analog Female
Video Resolution (4:2:2 YUV)	4096 x 2160	23.98–60 fps
	3840 x 2160	23.98–60 fps
	2048 x 1080	23.98–60 fps
	1920 x 1080p	23.98–60 fps
	1920 x 1080PsF	25/29.97/30 fps
	1920 x 1080i	25/29.97/30 fps
	1280 x 720	50/59.94/60 fps
	720 x 480i	59.94 fps
	720 x 576i	50 fps
Wireless	-	No
OS Compatibility	macOS	13 or Later
OS Compatibility	Windows	10 to 11
Inputs/Outputs	Video Input	1x BNC (12G-SDI) Female
	Video Output	1x BNC (12G-SDI) Female
	Audio Input	1x XLR 5-Pin Analog Female
	Audio Output	1x XLR 5-Pin Analog Female
	Network	1x RJ45 (10 GbE)
	USB-C	1x (Firmware)
	Expansion Slots	1x SFP Slot
Format Support	Video Resolution	Same as above (SDI 4:2:2 YUV up to 4K60)
Format Support	Embedded Audio	LAN (RJ45) / SDI
Standards	Video Standard	SMPTE ST-2110
	HDCP Support	No
	HDR Support	Yes
Hardware	Wireless	No
	macOS	13 or Later
	Windows	10 to 11
Power	Power I/O	1x Barrel (12 to 16 VDC) Input
	PoE Support	Yes: PoE++ 802.3bt
	Power Consumption	12 to 16 VDC (18 W)
General	Operating Conditions	41 to 104°F / 5 to 40°C up to 90% Humidity
	Storage Conditions	-4 to 113°F / -20 to 45°C up to 90% Humidity
	Dimensions	5.75 x 2.91 x 1.34" / 14.61 x 7.39 x 3.4 cm
Packaging Info	Package Weight	1.505 lb
Packaging Info	Box Dimensions	10.4 x 5.3 x 1.3"
