Description

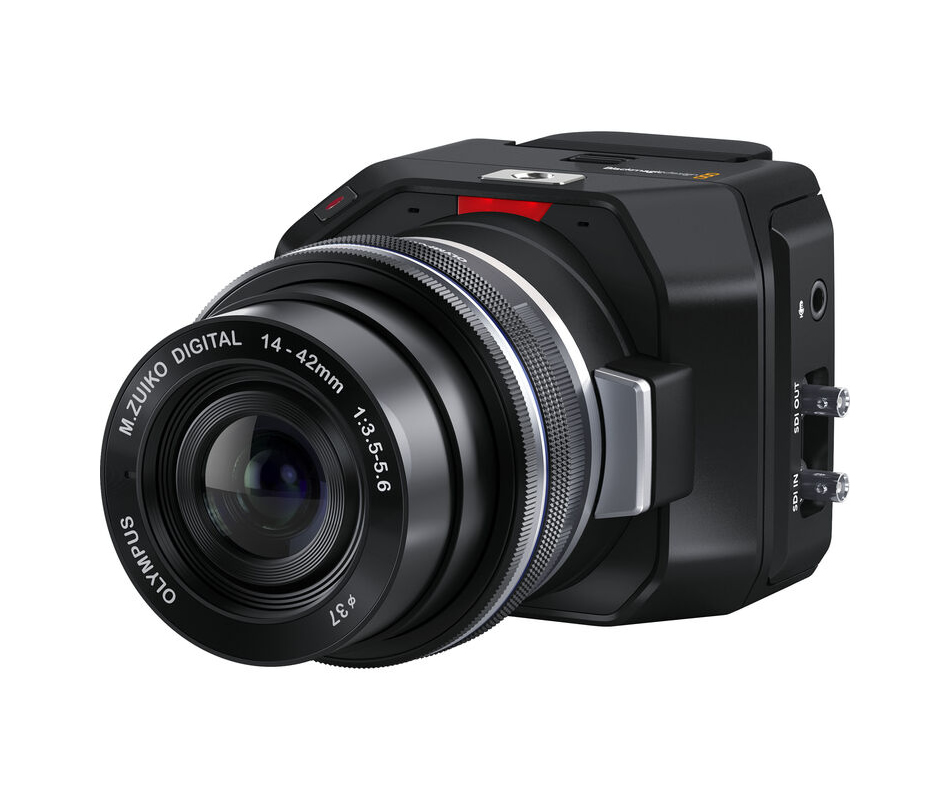

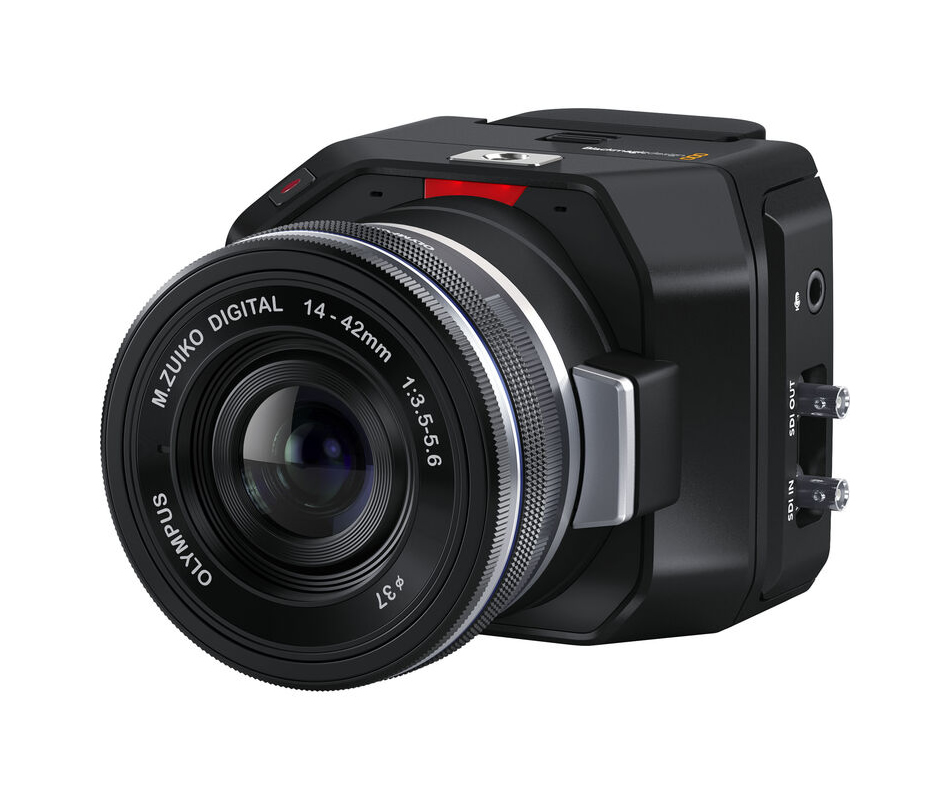

Install a camera anywhere in your studio or on location with the ultracompact Blackmagic Design Micro Studio Camera 4K G2. This tiny UHD 4K studio camera is designed for live productions and features the same image sensor as the Studio Camera 4K Plus G2, supporting up to 3840 x 2160p60. It includes an active MFT mount compatible with a wide range of lenses and outputs 10-bit 4:2:2 video via 12G-SDI. Remote control via ATEM switchers is supported, along with built-in professional features such as a color corrector, program return, talkback, and tally indicator.
Download Manual Compact Size for Live Productions
Perfect for tight spaces, this camera delivers full studio functionality in a miniature design. It includes a low-light 4K sensor, cinematic color science, and 12G-SDI for HD and UHD up to 2160p60. It can record Blackmagic RAW to USB disks and supports log gamma for cinematic looks directly in-camera.
Designed for Live Production
Its small size allows it to be placed virtually anywhere on set, enabling more creative camera angles. Ideal for broadcast, sports, education, conferences, and live events, it also records to USB disks for post-production workflows.
Low-Light Performance
Gain ranges from -12 dB (100 ISO) to +36 dB (25,600 ISO), delivering low noise and full dynamic range. Native ISO 400 suits studio lighting, while ISO 3200 excels in low-light environments. Settings can be adjusted locally or remotely.
Cinematic Images in Live Production
With a 4K sensor and Generation 5 color science, it delivers cinematic image quality. Combined with DaVinci Resolve color correction and 13 stops of dynamic range, it produces rich, detailed visuals at up to 60 fps.
Affordable Photographic Lenses

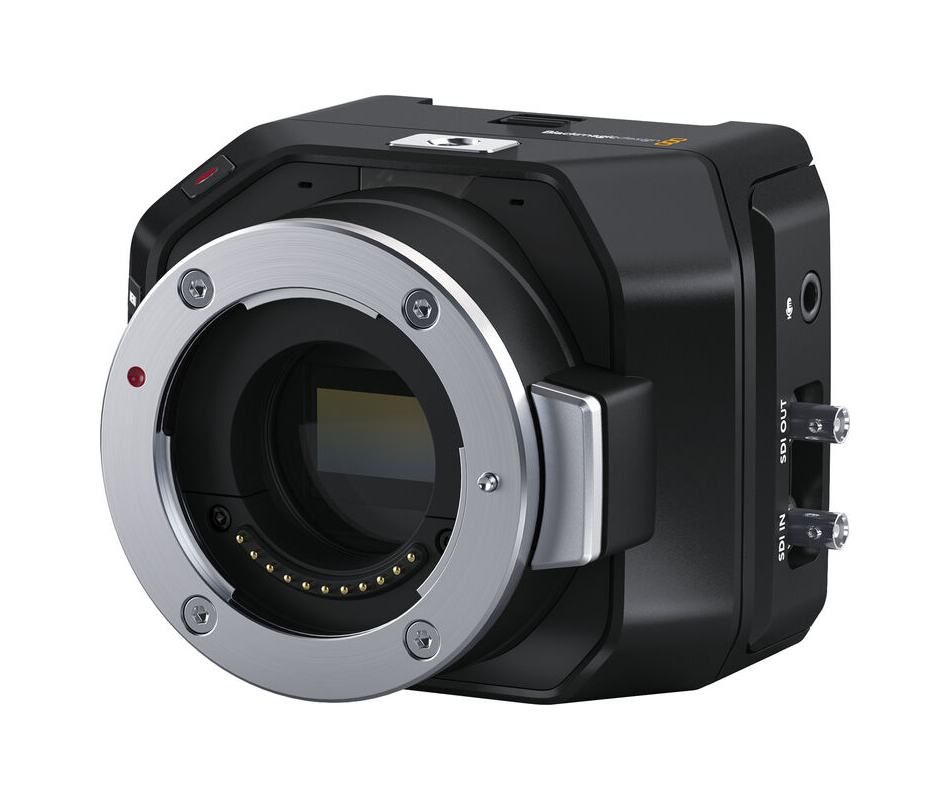

The MFT mount supports a wide range of lenses from brands like Olympus, Panasonic, and Sigma. The active mount allows remote adjustments, and optional controls provide broadcast-style lens operation.
Built-In Tally
A tally light indicates on-air, preview, and ISO recording status. It integrates with ATEM switchers via SDI and HDMI, simplifying live production workflows.
Broadcast Connections

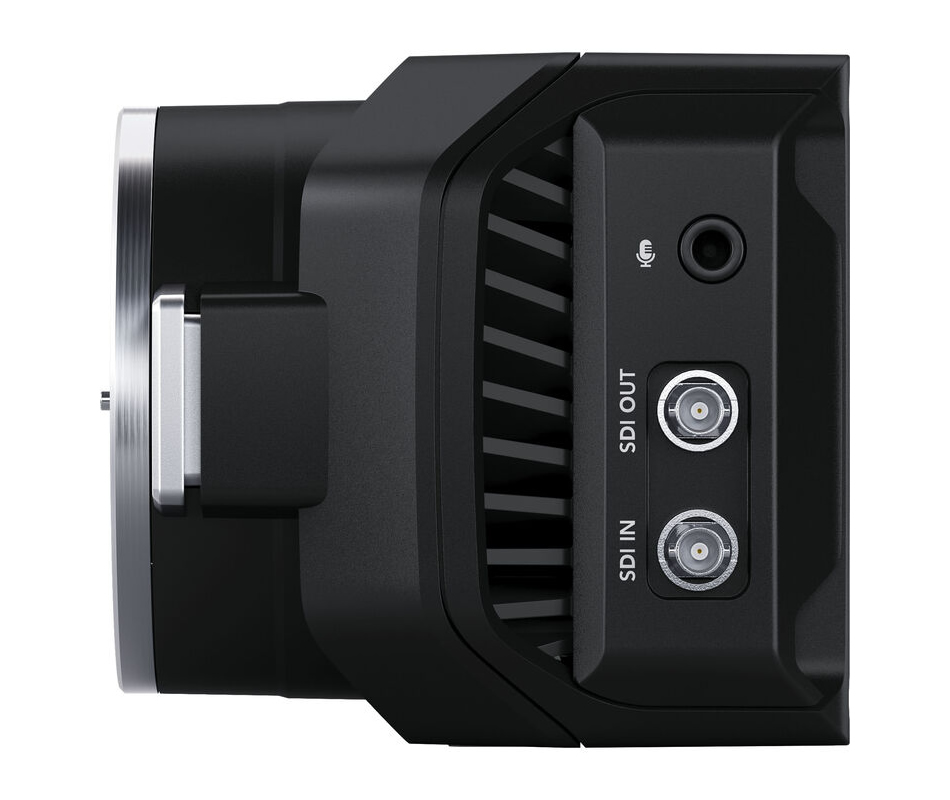

Features 12G-SDI for video, tally, and return feed, plus HDMI for monitoring. Includes USB-C for external recording and control, and a 3.5mm audio input for microphones.
Two Ways to Connect
Supports both HDMI and 12G-SDI workflows. HDMI allows video, control, and tally over a single cable, while SDI enables professional multi-camera setups with talkback and return feeds.
Built-In Microphones
Integrated microphones provide stereo audio with excellent separation. External microphones can be connected via 3.5mm input, with audio embedded in video outputs.
USB-C Expansion
Record directly to external disks, control via network using REST APIs, or connect accessories. Files can be accessed without copying, improving workflow efficiency.
Blackmagic RAW Quality
Preserves full sensor data for superior image quality, with metadata for flexible post-production adjustments. Offers smaller file sizes and fast editing performance.
Blackmagic OS
A modern, responsive operating system with fast startup and intuitive controls. Access advanced tools such as LUTs, HDR, metadata, and focus/exposure aids.
Battery and Power Options

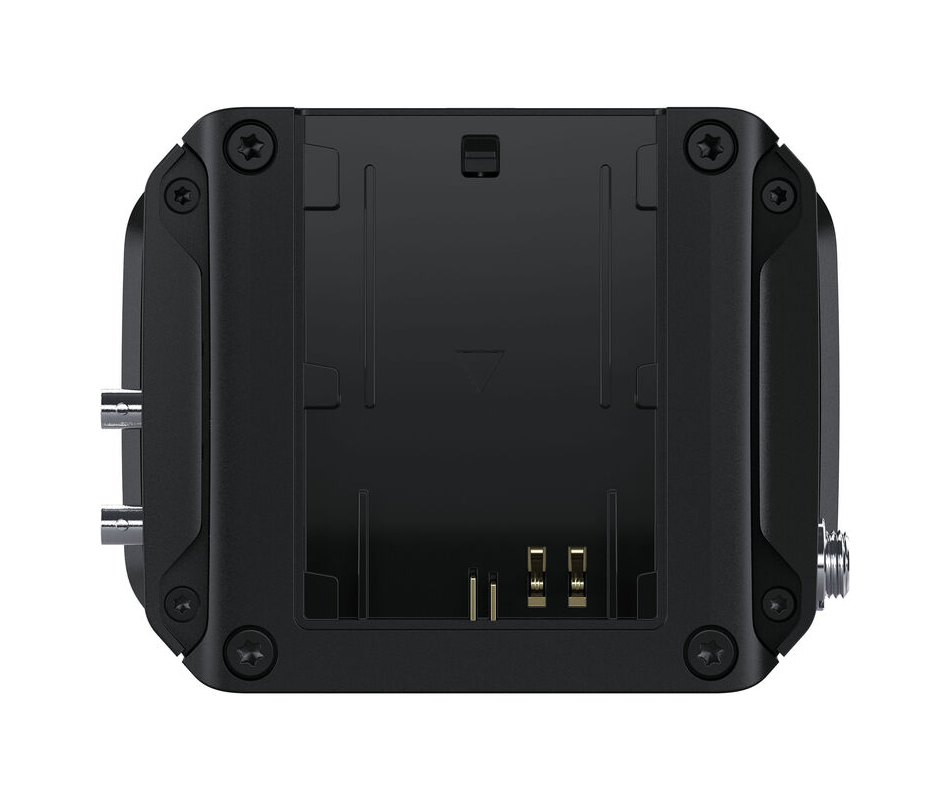

Includes a 12V DC locking connector, international power supply, and support for LP-E6 batteries or V-mount solutions for extended operation.
Multi-Language Support
Supports 13 languages including English, German, French, Spanish, Ukrainian, and more, with easy switching via the menu system.
