Description

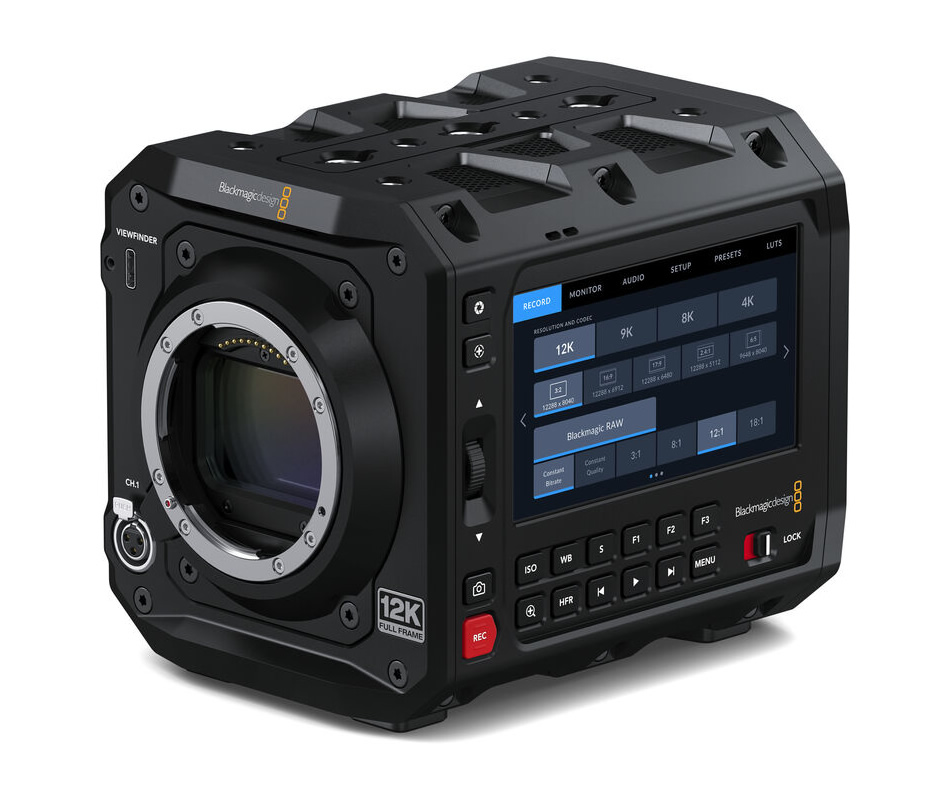

Easy-to-Rig 12K Full-Frame CameraThe Blackmagic Design PYXIS 12K Cinema Box Camera combines a full-frame 12K RGBW sensor that captures rich colors and accurate skin tones with the compact, versatile design of the PYXIS 6K camera. It features a native, active Leica L lens mount, a 36 x 24mm sensor, a wide 16-stop dynamic range, and customizable side plates.
Post-14221337 Serial Number
NOTE: This camera is from the post-14221337 serial number batch. It is not affected by the Blackmagic Design recall regarding image artifacts on select PYXIS 12K cameras with earlier serial numbers.
Firmware Update 10.0
Blackmagic Camera firmware update 10.0 adds multiple functions to help improve your content capture. New features include:
A pre-record function.
A 0% option in frame guide opacity settings.
New Camera Control REST API commands.
Support for inhibiting proxy recording.
Support for 4-channel audio recording.
Support for mono headphone monitoring.
Large-Format Digital Film Sensor
The PYXIS 12K’s massive 24 x 36mm full-frame RGBW sensor boasts a native 12,288 x 8040 resolution, letting you create shallow depth of field or use anamorphic lenses without cropping for a truly cinematic look. A 16-stop dynamic range with dual-native ISO up to 25,600 ensures low-noise imagery in all lighting conditions.
Flexible Film Formats
Work in a variety of film formats and aspect ratios without sacrificing quality, thanks to the large sensor. You can also work in true 6:5 anamorphic without needing to crop for widescreen cinematics. Use a Super 35-sized window to create an instant close-up version of your open-gate shot.
Multiple Resolutions and Frame Rates
Shoot in standard video resolutions and frame rates from HD to 12K using the PYXIS 12K, with the ability to capture in 12K, 8K, or 4K at the full sensor size. Available resolutions include up to 40 fps at 12,288 x 8040 3:2 open gate, 60 fps at 12,288 x 5112 2.4:1, and 112 fps at 8192 x 3408 8K. There’s even an HFR (high framerate) button for quickly switching to your rate without having to access the menu.
HDR Imagery and Dual-Native ISO
The wide 16-stop dynamic range preserves more detail in both the lightest and darkest areas of your image. Optimized for ISO 800, the PYXIS 12K offers ISOs of 200 to 3200 and a maximum ISO 25,600, minimizing grain and noise while maintaining full dynamic range.

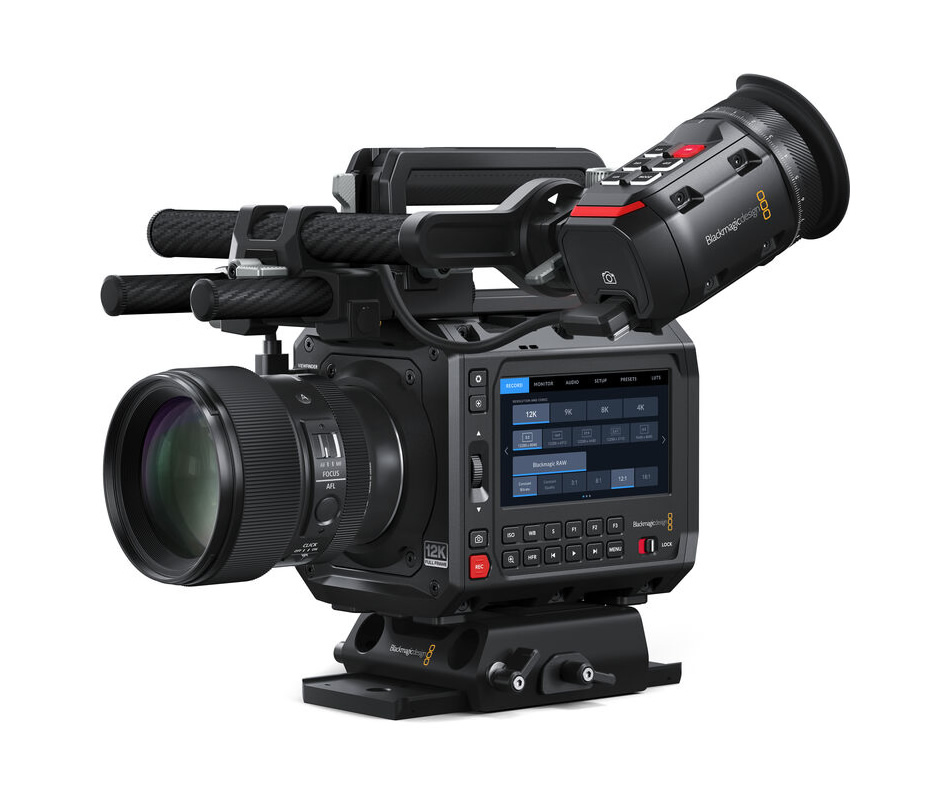

Optional Pro Handle and Pro Grip
Use the new Pro Handle and/or Pro Grip to transform your PYXIS 12K into an ENG-style camera for fast, run-and-gun capture. The Pro Handle features an OLED, daylight-visible HD viewfinder, a zoom rocker with recording run/stop, and a stereo microphone. The Pro Grip provides a zoom rocker plus a handgrip for secure handheld capture.
Customizable Rigging
Crafted from lightweight yet robust aerospace-grade aluminum, the easy-to-rig PYXIS 12K features multiple 1/4″-20 and 3/8″-16 threads for mounting on a gimbal, crane, or drone. Side plates support handgrips, SSD recorders, microphones, and more.
LCD Monitor and Onboard Controls
Built-in 4″ LCD touchscreen, full HD, HDR-compatible, 1500 cd/m² brightness. On-screen overlays include status, recording parameters, histograms, levels, frame guides, and 3D LUTS. Onboard controls include ISO, white balance, shutter, scroll wheel, and three customizable function buttons.
Post-Production-Friendly Formats
Records in Blackmagic RAW for maximum post-production control. Can also record H.264 proxy files in real time. Works with Apple Metal, CUDA, OpenCL, and all OS media file systems.
Multiple Recording Options
Two built-in CFExpress Type-B card slots and a USB-C expansion port. High-speed CFexpress cards allow over an hour of 6K capture on a single 256GB card.
Live Syncing to Blackmagic Cloud
Shoot and edit in near real-time using Blackmagic Cloud and proxy files. Editors can start working on footage immediately from anywhere in the world.
Built-In Streaming
Live stream on set via SRT and RTMP protocols. Supports platforms like YouTube, Facebook, and X. ATEM Streaming Bridge allows internal wireless sharing.
Expansive Connectivity

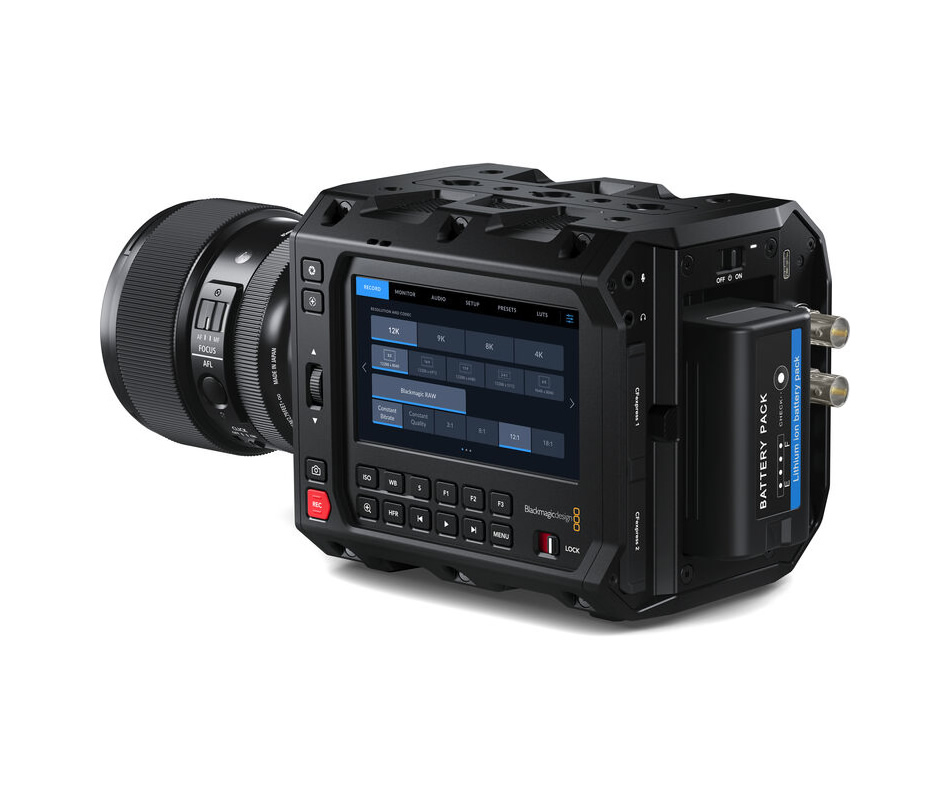

Front USB-C port for Blackmagic URSA Cine EVF. Mini 3-pin XLR analog audio input (+48V Phantom). Back has headphone jack, 3.5mm mic input, USB-C for recording devices, 12G-SDI output, Reference/Timecode input, and RJ45 10 GbE Ethernet. Power via 2-pin DC or Sony BP-U battery plate. Bluetooth camera control up to 30′.
Minimum System Requirements
macOS: 14.0 Sonoma or later, 15.0 Sequoia or later, Apple Silicon or Intel, 8GB RAM
Windows: Windows 10 64-bit or later, Windows 11 64-bit or later
