Blackmagic Design BMD-BDLKWEB/D/SED4K Streaming Encoder 4K

Description

The powerful, self-contained Blackmagic Design Streaming Encoder 4K streams H.264 or H.265 via SRT or RTMP with direct streaming support for a wide range of compatible services and software, including Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, and Wowza Streaming Engine. Users may stream via the built-in RJ45 Ethernet port with support for 10/100/1000BASE-T or connect via USB-C to tether to high-speed 5G and 4G phones.

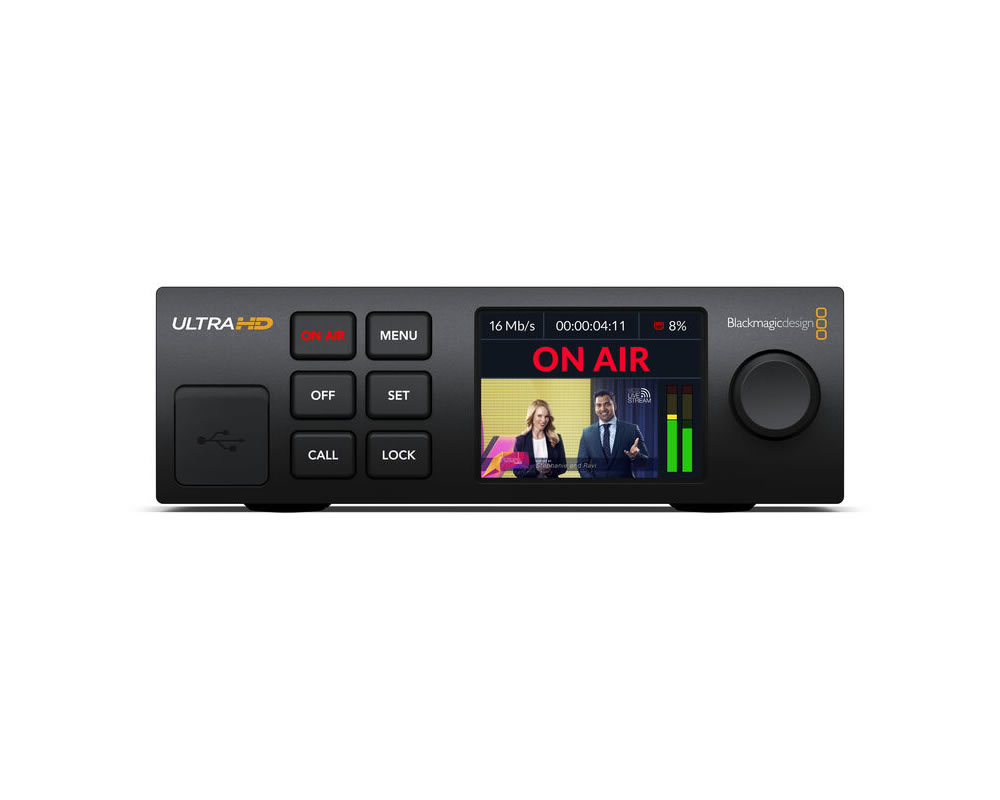

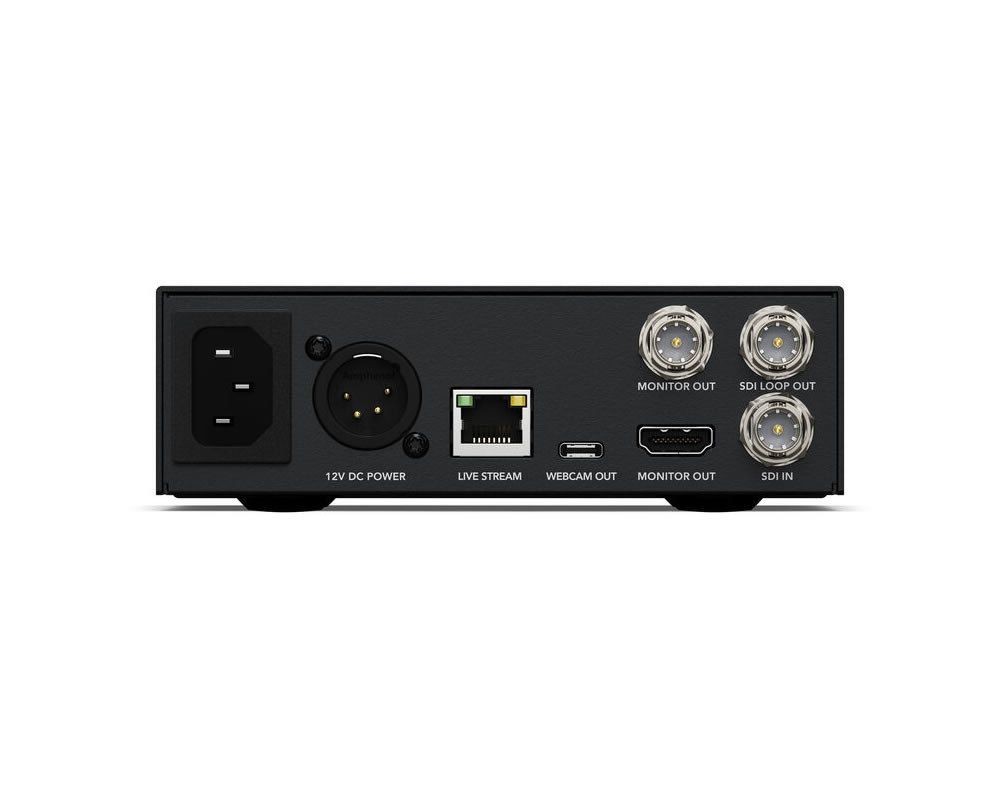

The encoder is equipped with 12G-SDI connectivity, supporting resolutions up to DCI 4K60 via an SDI input and an SDI loop output. The unit also features SDI and HDMI monitor outputs. Video, audio, status, and menu settings may be monitored via the integrated 2.2″ LCD screen. There is also an option to connect the device as a webcam to a computer via its rear-panel USB-C port. The front panel features six buttons and a spin knob for tactile control, and the unit may be powered via its rear 100-240 VAC and 12 VDC 4-pin XLR ports.

Features

H.264 & H.265 Streaming to SRT or RTMP
12G-SDI Input & Loop Output
DCI 4K Streaming up to 60 fps
Ethernet 10/100/1000BASE-T Support
SDI & HDMI Monitor Outputs
Integrated 2.2″ LCD Screen
USB-C for Phone Tethering & Webcam Out
Tethers to 4G & 5G Phones for Streaming
Front Panel Buttons & Spin Knob
100-240 VAC & 12 VDC Power Inputs

Specifications

Category	Details
IP Video	H.264/H.265: 4096 x 2160 Encoding
Video I/O	1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input 1x BNC Loop Output 1x BNC Monitor Output 1x HDMI Monitor Output
Embedded Audio	SDI Input: 16-Channel SDI Output: 16-Channel HDMI Output: 2-Channel LAN (RJ45)/USB Output
Power Consumption	25 W
Display	LCD
Transport Protocols	RTMP, SRT
Compatible Services	Facebook Live, Twitch, YouTube Live
Wireless	No
Wi-Fi	No
Bluetooth	No
Cellular Support	5G NR / 4G LTE via Unspecified SIM Type
Interfaces	1x RJ45 Fast Ethernet Input/Output 1x USB-C Output 1x USB-C Input/Output
Power I/O	1x IEC C14 Input 1x XLR 4-Pin Input
Operating Conditions	32 to 104°F / 0 to 40°C at 0 to 90% Humidity
Storage Conditions	-4 to 113°F / -20 to 45°C at 0 to 90% Humidity
Rackmount Size	1 U
Dimensions	6.9 x 5.5 x 1.75" / 17.5 x 14 x 4.45 cm
Weight	1.66 lb / 753 g
Package Weight	2.15 lb
Box Dimensions	10.5 x 7 x 2.6"
