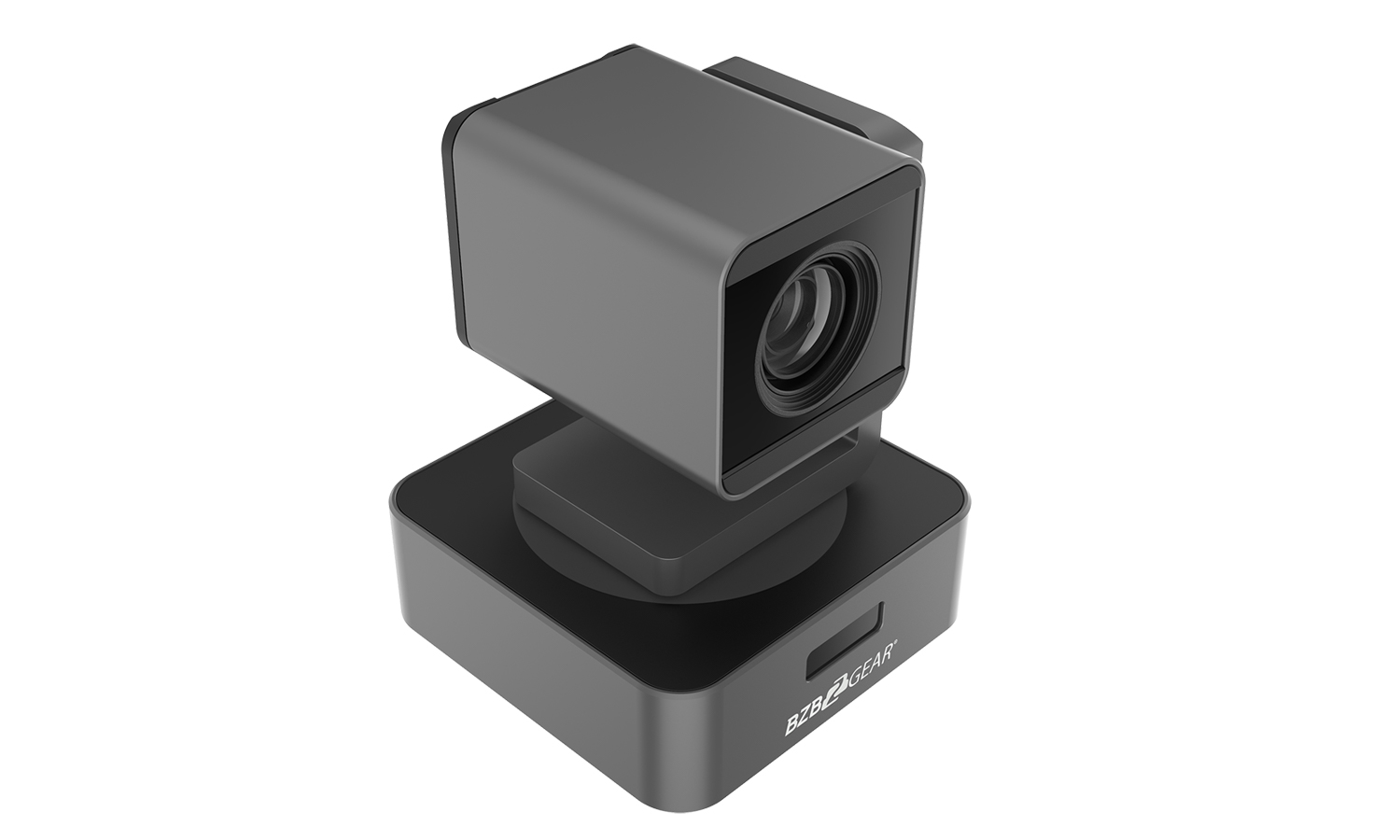

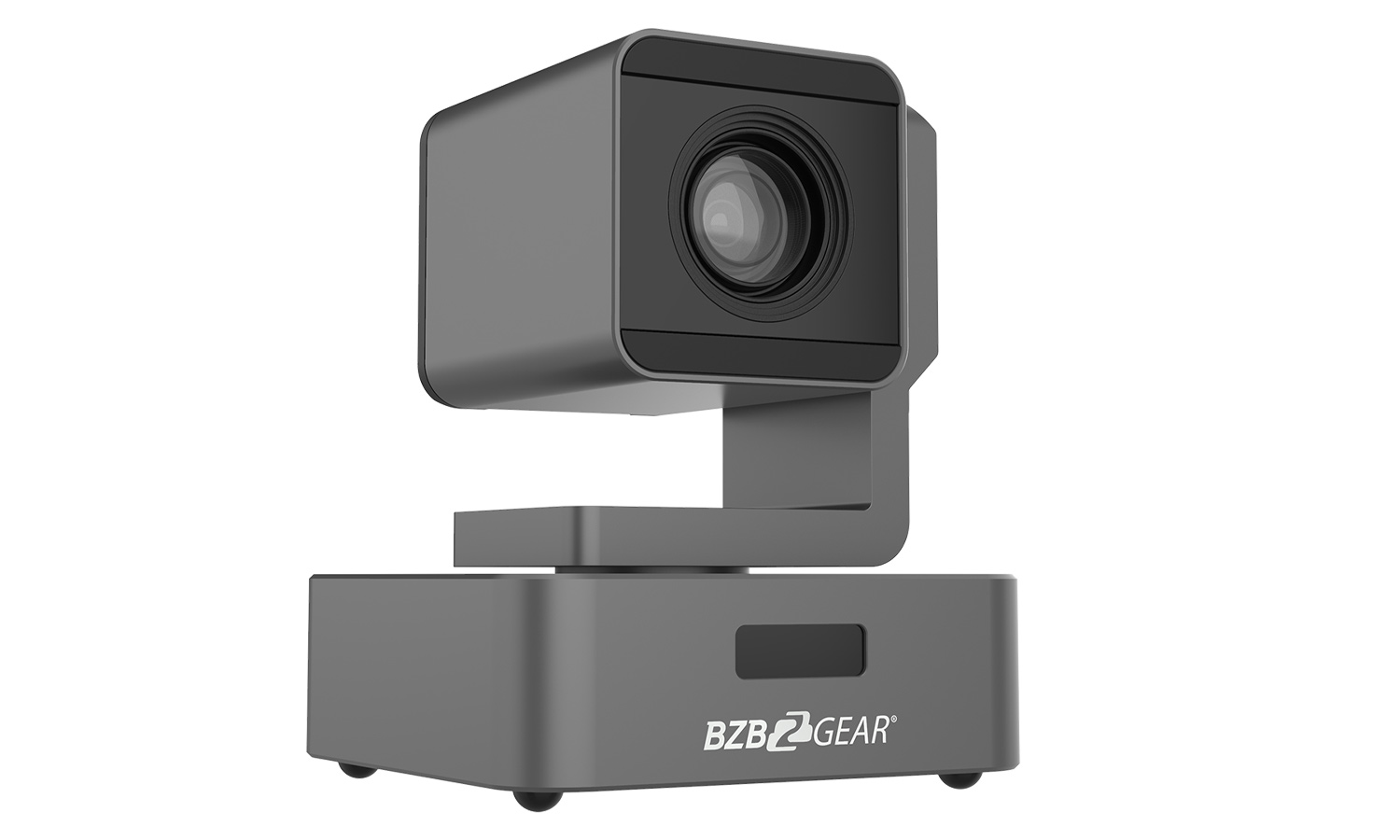

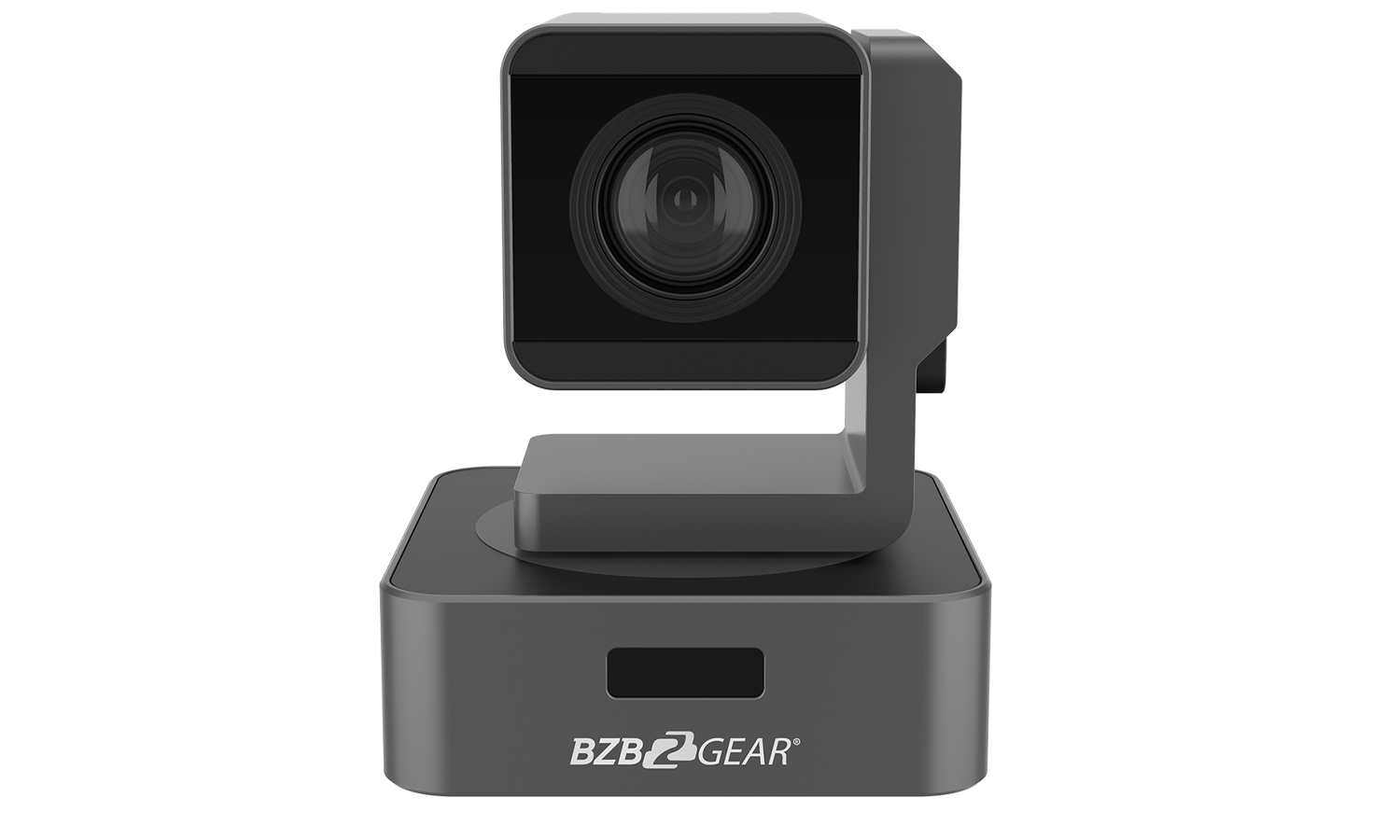

The BG-VPTZ-HSU is a broadcast-quality PTZ camera with advanced image processing technology and a price that won’t stretch your budget. It features a full HD CMOS Sensor, supports multiple video output formats, a max resolution of 1080P60, 2.38 megapixels, accurate color reproduction, clear imaging and simultaneous USB 2.03G-SDIHDMIIP Streaming video outputs.
H.264/H.265 decoding provides excellent image quality without excessive bandwidth demands. An integrated 3.5MM Audio input makes this camera ideal for live streaming and recording.
Designed for flexibility, reliability, and performance, this PTZ camera is capable of 10X or 20X optical zoom and has multiple video output connections including Type-A USB 2.0, LAN, HDMI, and 3G-SDI. Native support makes it easy to broadcast live or recorded streaming via popular platforms like Skype, Zoom, Google Classroom, YouTube and Facebook.
The unit can be controlled via the included IR remote with programmable presets, via the WebGUI using your internet browser, or with a joystick controller using IP or serial control.
Our advanced ISP processing algorithms ensure fast, accurate, and stable auto-focusing.
When you combine the long list of features, outstanding image quality and competitive price, it’s no surprise that this is one of our most popular cameras. This is the perfect camera for any indoor environment from Houses of Worship, Schools, and Venues to Offices and Conference Rooms.
*This camera USB 2.0 port is only compatable with Windows 7/8/10. It is not compatible with MacOS.
Flexible installation options:
Supports Ceiling / Wall / Tripod / Desk Mount Installations
Supports Ceiling / Wall / Tripod / Desk Mount Installations
Compact Design:
Small footprint for more flexible placement
Small footprint for more flexible placement
High-Stability Chassis design:
All aluminum chassis eliminates vibrations for a clear and stable image
All aluminum chassis eliminates vibrations for a clear and stable image
3.5mm Audio Input:
Supports G.711, G.722, G.722.1, G.728, G.722.1C AAC Audio Encoding
Supports G.711, G.722, G.722.1, G.728, G.722.1C AAC Audio Encoding
Simultaneous video output:
3G-SDI / HDMI / USB2.0 / IP Streaming
3G-SDI / HDMI / USB2.0 / IP Streaming
Broadcast Quality Video:
Fluid motion, clear image, and accurate color
Fluid motion, clear image, and accurate color
- Flexible installation options: The image can support Mirror & Flip, supports Ceiling / Wall / Tripod / Desk Mount Installations.
- Broadcast-Grade video output format: Output formats include 1080P60/59.94/50/30/29.97/25,1080I60/59.94/50fps/30/25; 720P/60/50
- 2D/3D Noise Reduction function
- 10X/20X Optical Zoom with wide horizontal of view 65°: Advanced video image processing & full HD 1/2.8&34; CMOS Sensor, Max resolution up to 1080P@60fps
- Smart Menu & WebGUI Interface: Easy to enter Menu for preview and setting changes
- IP Streaming: TCP/IP, HTTP, DDNS, UDP, RTSP, RTMP, SMTP, UPnP, SNMP, FTP(Optional)
- Supports Audio Input: Built-in 3.5mm Jack audio input interface & G.711, G.722, G.722.1, G.728, G.722.1C AAC Audio Encoding
- All-Aluminum High-Stability Chassis design: Ultra-quiet pan/tilt design, horizontal ±178 degrees, vertical -30°~+90° rotation. Imported high-precision Stepper motor drive, accuracy 0.01°
- Remote Control: Support RS485 / RS232 / LAN (VISCA Over IP) & IR Remote Control.
- Simultaneous multi-interface video output: 3G-SDI / HDMI / USB2.0 / IP Streaming
- Control Protocols: Built-in VISCA, PELCO P/D, ONVIF
Compatible with:
Ideal fit to:
– Studios
– Remote Education
– Mid-sized Conference Rooms
– Remote Education
– Mid-sized Conference Rooms
Who buys it:
– Schools
– Live Streamers
– Small Businesses
– Live Streamers
– Small Businesses

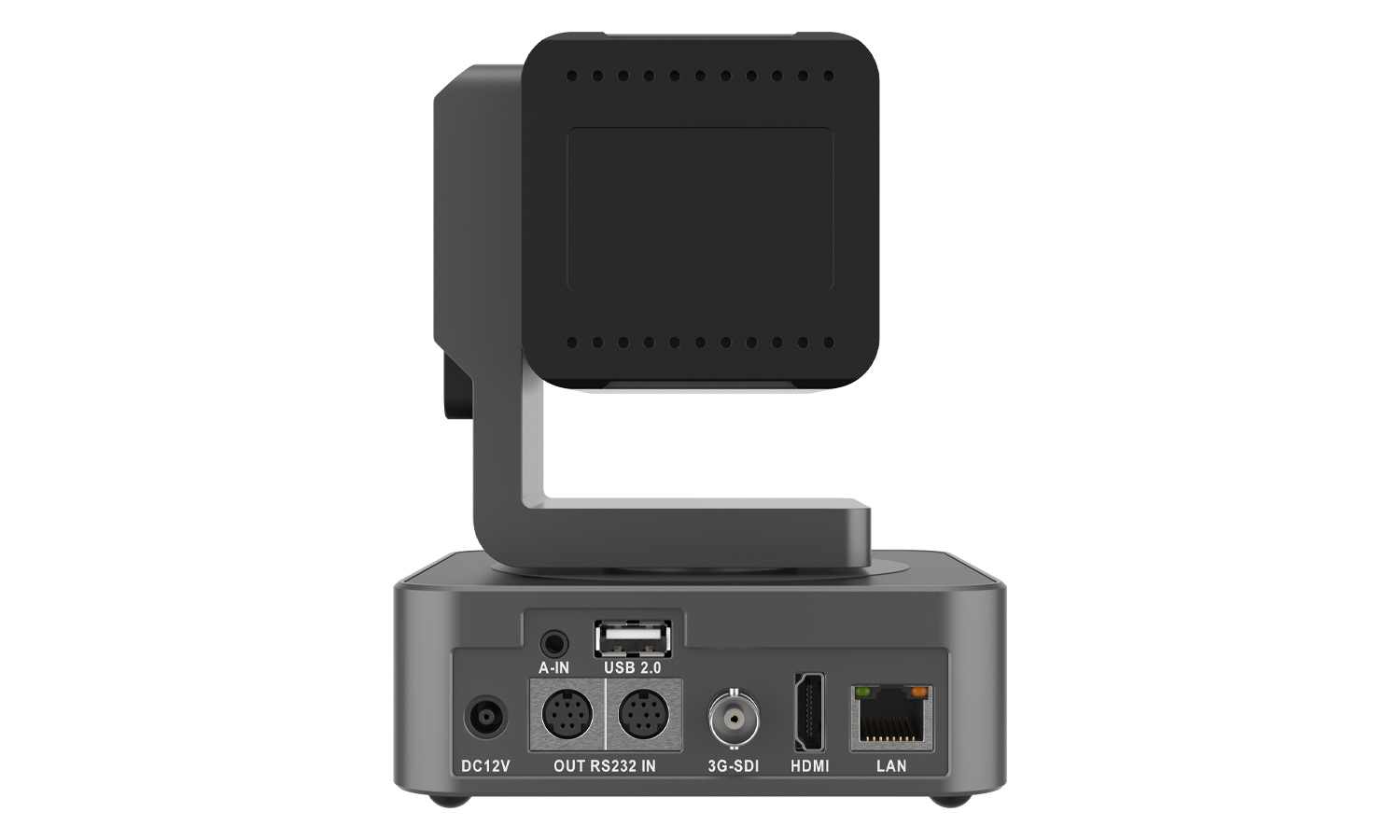

Interface
Control I/O
8 pin Mini-DIN input for RS-232 control and output for cascadable connections. RS-422/485 interface.
LAN
IP Control and streaming interface.
SDI
1080p @ 60 fps for distances up to 300 ft.
Audio In
Stereo audio input for connecting mics and embedding local audio into all four video output interfaces.
USB
USB 2.0 plug & play connectivity for any conferencing service like Skype or Zoom.
HDMI
Crystal clear image with resolutions up to 1080p @ 60 fps.Video
