Description
The BG-USB3-LR100 USB 3.0 Extender is an essential tool for extending USB connections over long distances, capable of transmitting signals up to 100 meters (328 feet) using a single CAT6a cable. Designed for reliability and performance, this extender ensures high-speed data transfer with rates up to 5Gbps, making it ideal for various applications, including industrial settings and large-scale installations.

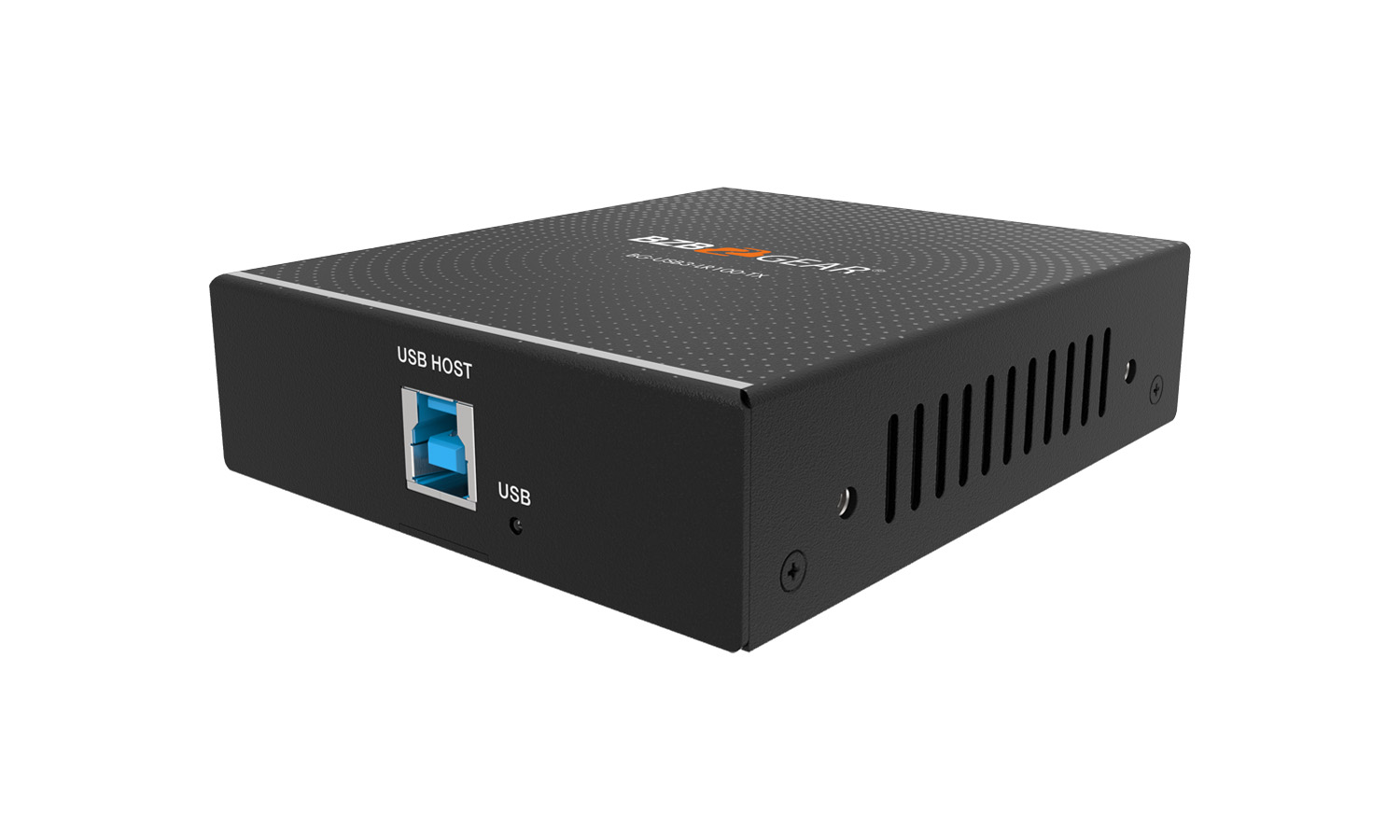

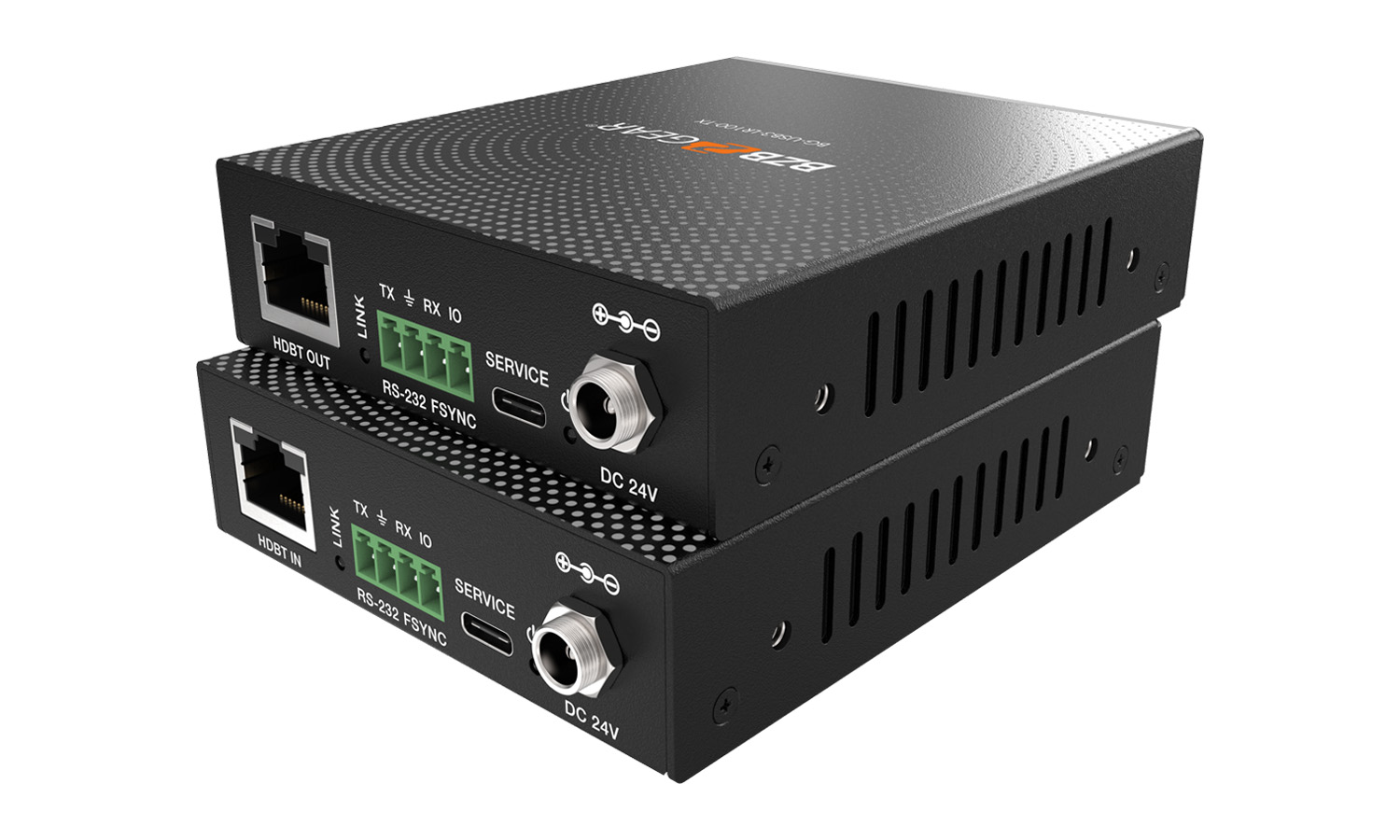

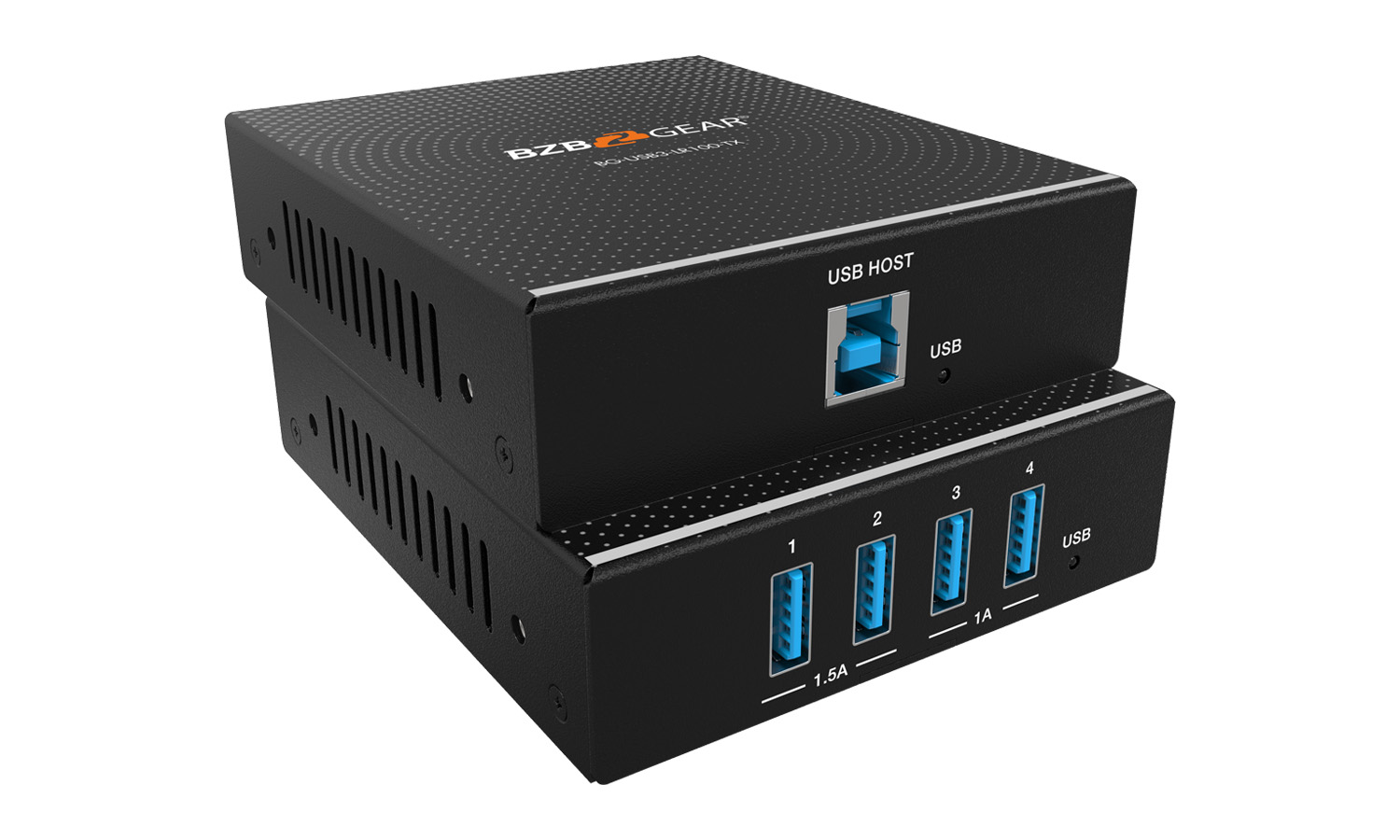

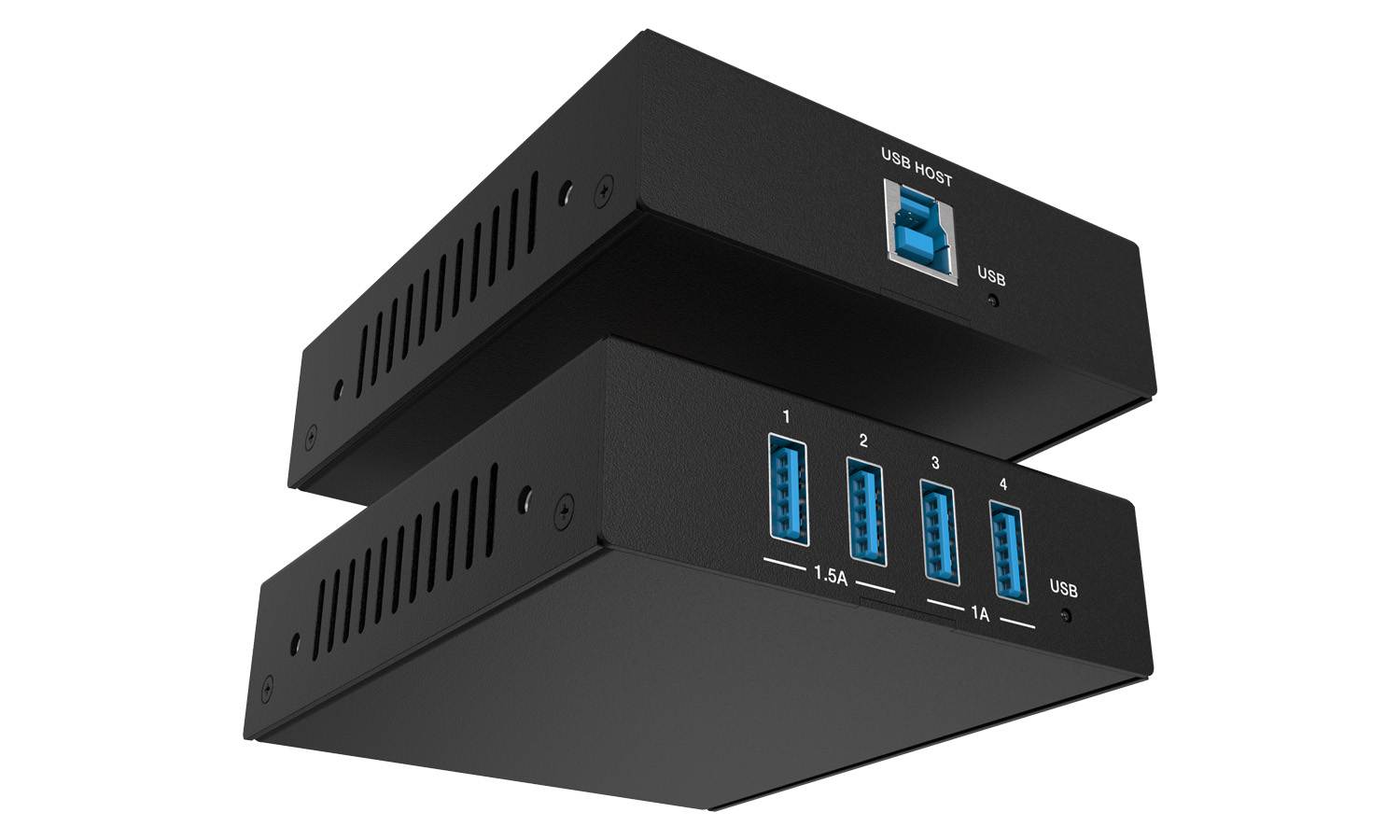

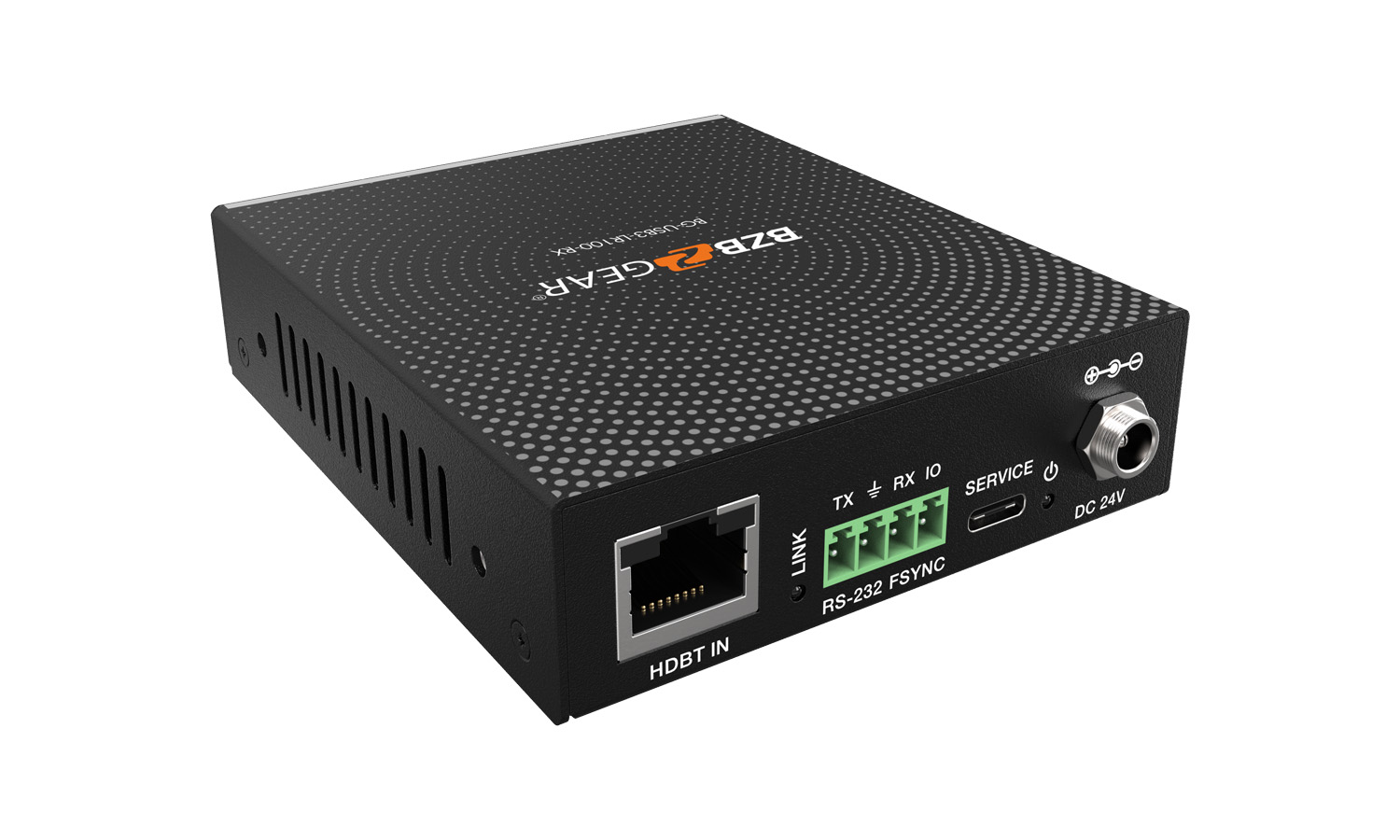

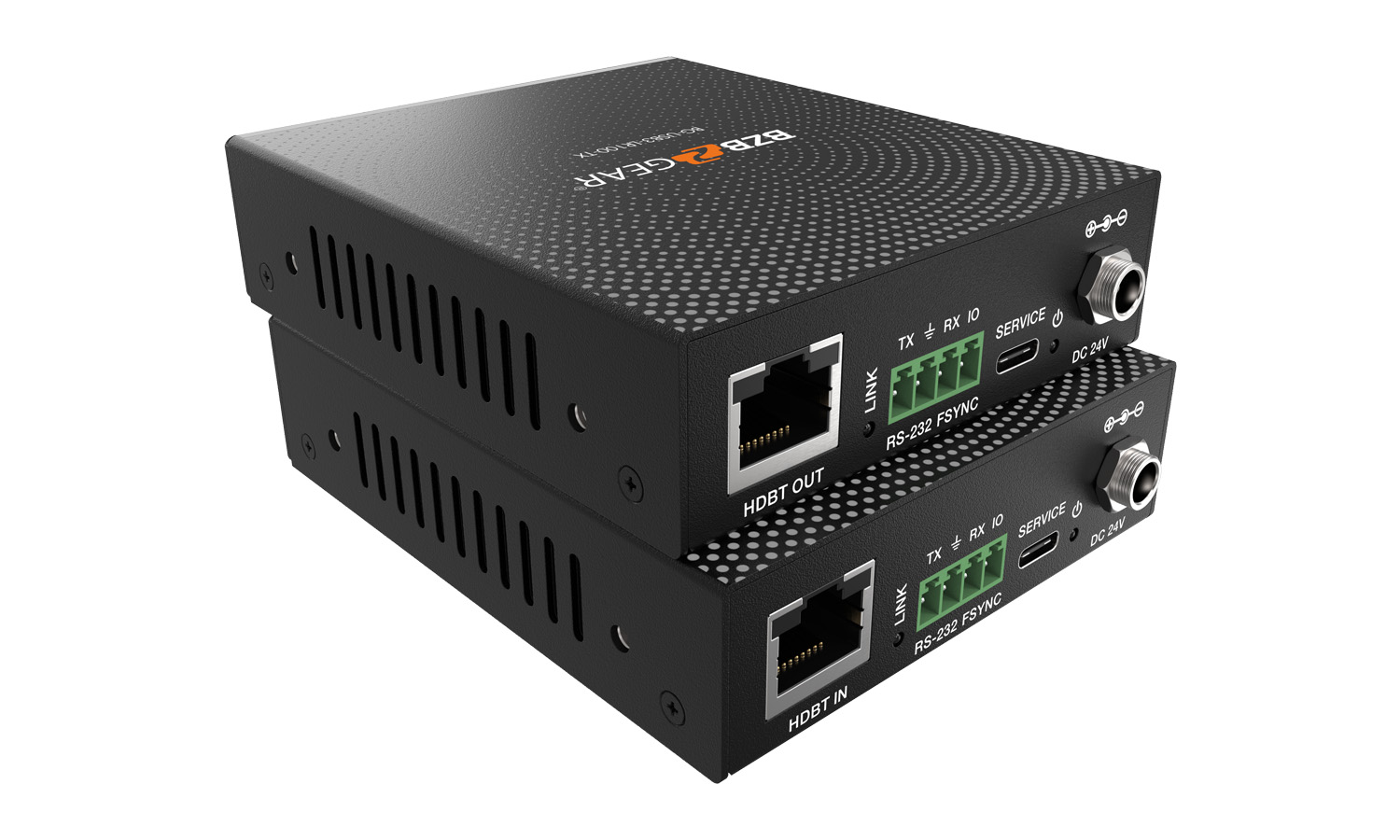

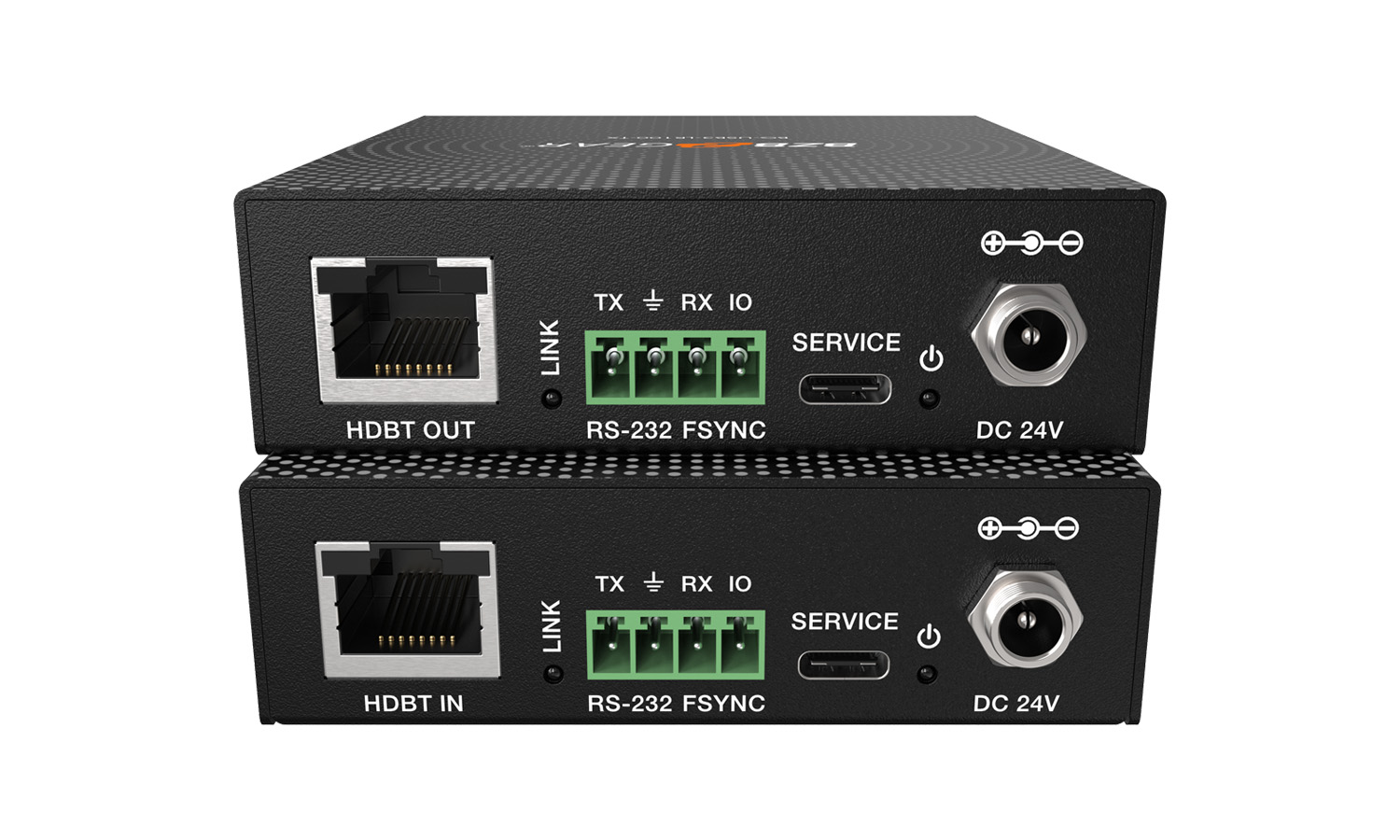

The transmitter features a USB 3.0 Type B input, FSYNC GPIO input, and RS-232 pass-through, while the receiver offers four USB 3.0 Type A outputs, FSYNC GPIO output, and RS-232 pass-through. This setup supports bi-directional 24V Power over Cable (PoC), simplifying power management and installation.
Features in Depth
One of the standout features of the BG-USB3-LR100 is its backward compatibility with USB 2.0 and 1.1, ensuring seamless integration with older devices. It also includes hardware acceleration for isochronous and bulk transfers, enhancing performance for demanding applications. The receiver’s USB-A ports provide ample power, with ports 1 and 2 delivering 5V/1.5A and ports 3 and 4 offering 5V/1A, catering to a variety of USB device power requirements.
Designed for ease of use, the BG-USB3-LR100 requires no driver installation, offering a true plug-and-play experience. Its robust metal housing and compact dimensions (85mm × 100mm × 25.5mm) make it durable and easy to install in various environments. The device also includes extensive ESD protection and supports RS-232 and FSYNC GPIO pass-through, which is particularly useful for synchronizing industrial cameras and other specialized equipment.
Overall, the BG-USB3-LR100 USB 3.0 Extender is a versatile and powerful solution for extending USB connectivity over long distances, combining high-speed data transfer, broad compatibility, and easy installation to meet the needs of both industrial and commercial applications.
Features
- Long Distance: Extends USB 3.0 connections up to 100 meters (328 feet) over CAT6a cable
- Fast Transfer Rates: Provides USB 3.0 connectivity with data transfer rates up to 5Gbps
- Backward compatible: Compatible with USB 2.0 and USB 1.1 devices
- Bi-directional PoC: Supports bi-directional 24V Power over Cable (PoC)
- Plug-and-play: Easy plug-and-play setup with no driver or settings installation required
- Camera Applications: Includes RS-232 and FSYNC GPIO pass-through for camera applications
- Hardware acceleration for isochronous and bulk transfer

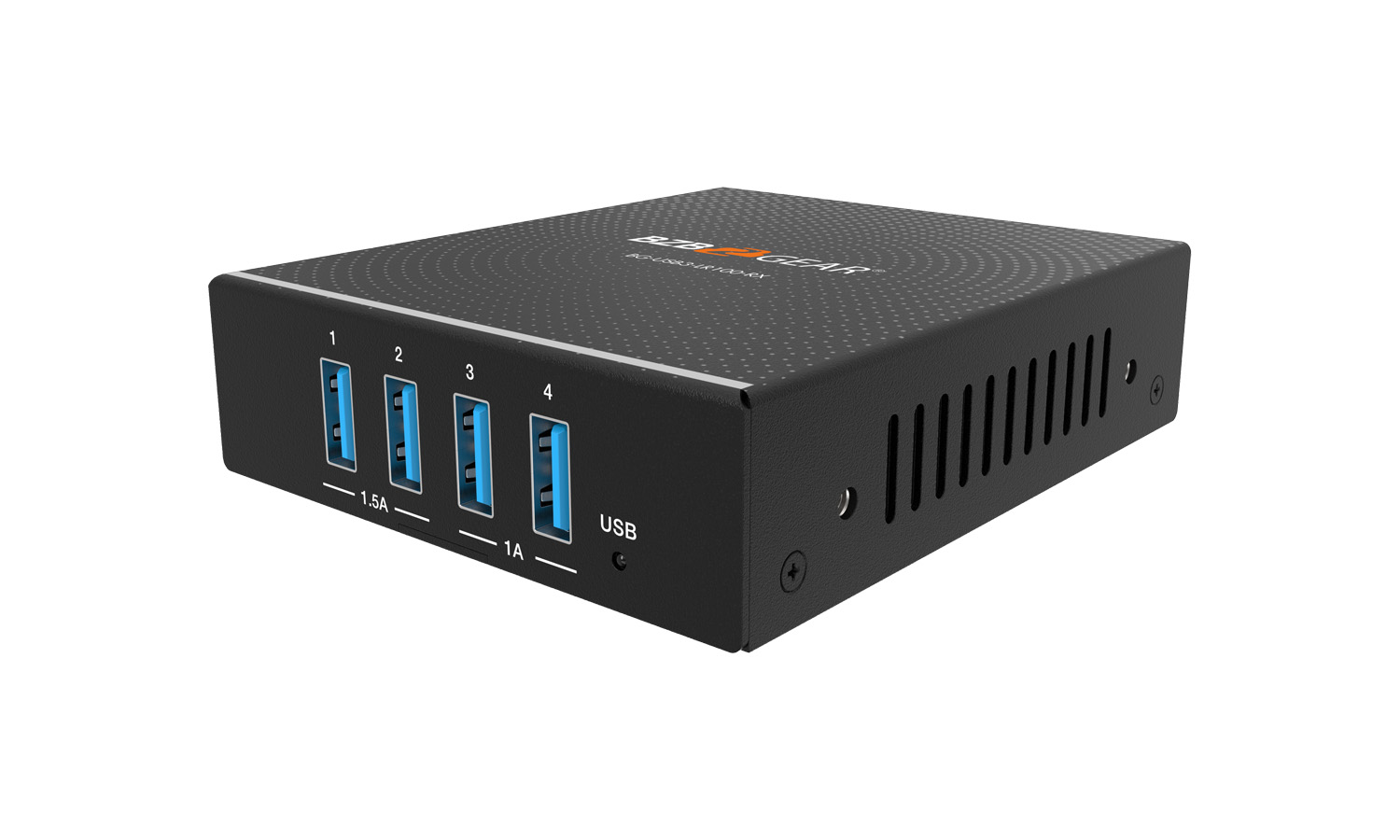

- USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver
