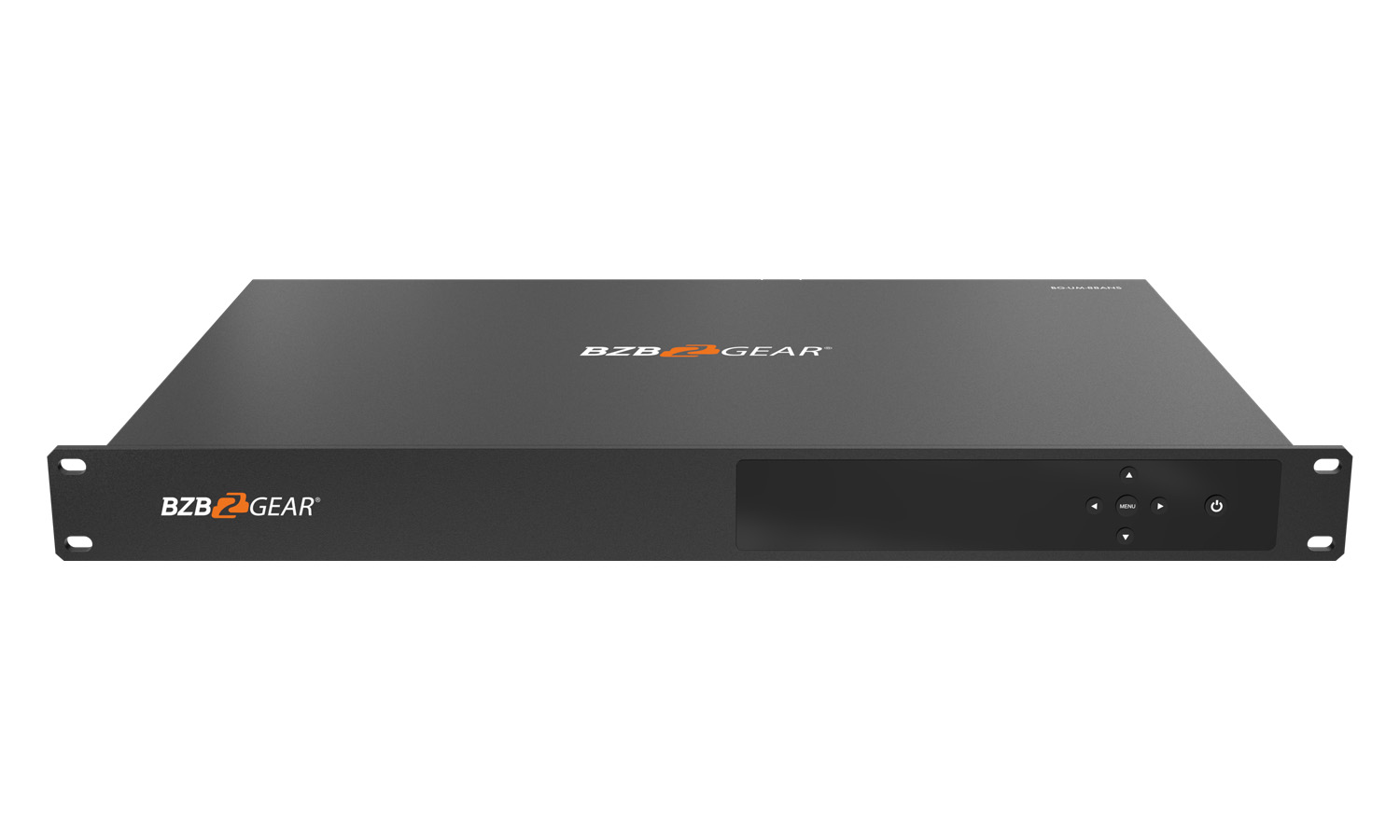

BZBGEAR BG-UM-88ANS-b 8X8 4K 18Gbps UHD Matrix with IP/RS-2323 Control and Audio De-Embedding

Description

Please NOTE: This listing is for B-Stock item. It means that this unit was refurbished by manufacturer and holds full manufacturer warranty, however it may have scratches, signs of wear and tear or come not in original box.

The BG-UM-88ANS is an 8×8 4K HDMI matrix switch, supporting resolutions up to 4K@60Hz 4:4:4 is HDCP 1.4 & 2.2 compliant. Featuring 8 HDMI 2.0b inputs and 8 HDMI 2.0b outputs, this device offers 18Gbps uncompressed bandwidth on all HDMI ports.

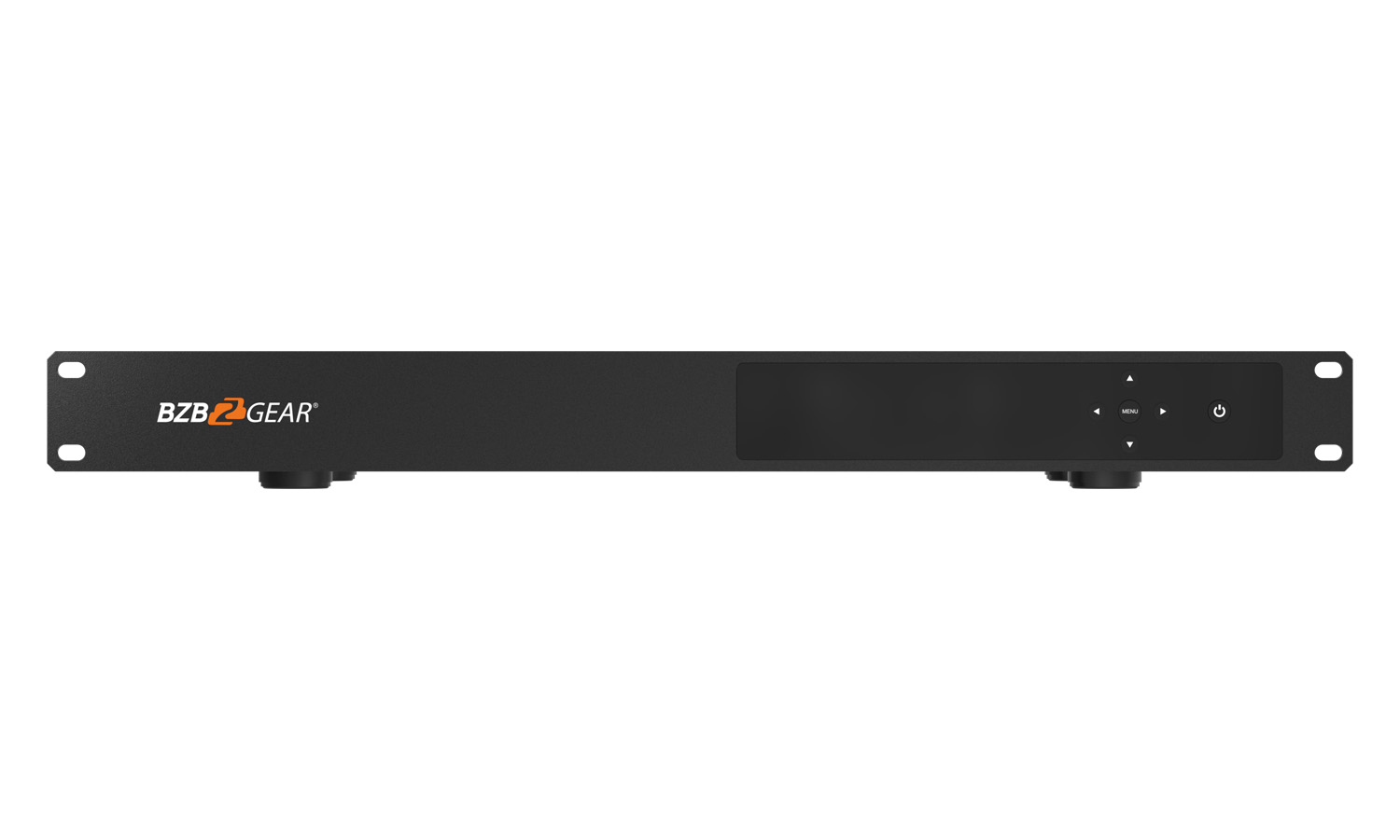

This matrix can quickly route any of the eight inputs to any of the eight outputs utilizing either the front panel menu, IR remote control, RS-232, or web interface. The control software, connected via RS-232 or the web interface, allows full control with the ability to adjust advanced features including mapping, network settings, and EDID management for easy integration.

Audio de-embed from any of the 8 coax audio outputs, which all provide multi-channel digital audio (up to 7.1-channel). The supported various audio formats include LPCM, Dolby TrueHD, and DTS-HD® Master Audio.

Features:

HDMI – Compliant with HDMI 2.0b and HDCP 2.2
Crystal Clear Images – Supports resolutions up to 4K@60Hz 4:4:4 HDR
Multi-Channel Audio – Supports LPCM, Dolby TrueHD, and DTS-HD Master Audio
Audio De-Embedding – Each HDMI output features a digital coax audio output
EDID – Features smart EDID management for easy integration
Multiple Control Options – Take control using the front panel, IR, RS-232, CEC, Web UI
Durable metal design built to last
Route any of the 8 inputs to any of the 8 outputs
Provide multi channel audio up to 7.1-channel

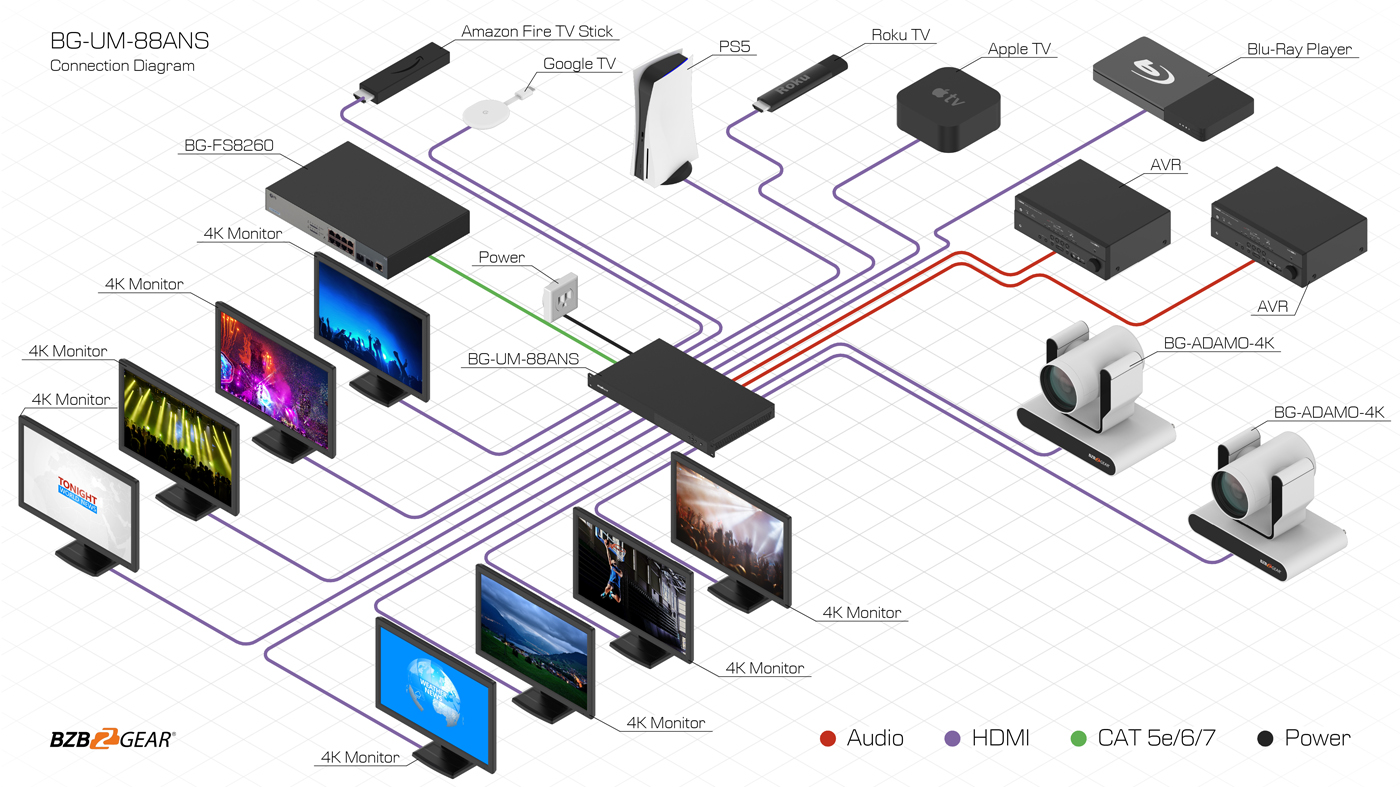

Product Diagrams

View Diagrams

Specifications

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18Gbps
Video Resolutions	Up to 4K2K @ 50/60Hz (YUV 4:4:4), 4K2K @ 30Hz, 1080p @ 120Hz, and 1080p 3D @ 60Hz
Color Depth	8-bit, 10-bit, 12-bit
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2
HDMI Audio Formats	LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Audio Formats	PCM2.0, 32K/44.1K/48K/88.2K/96K/192K, 16/20/24bit
ESD Protection	Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Connections

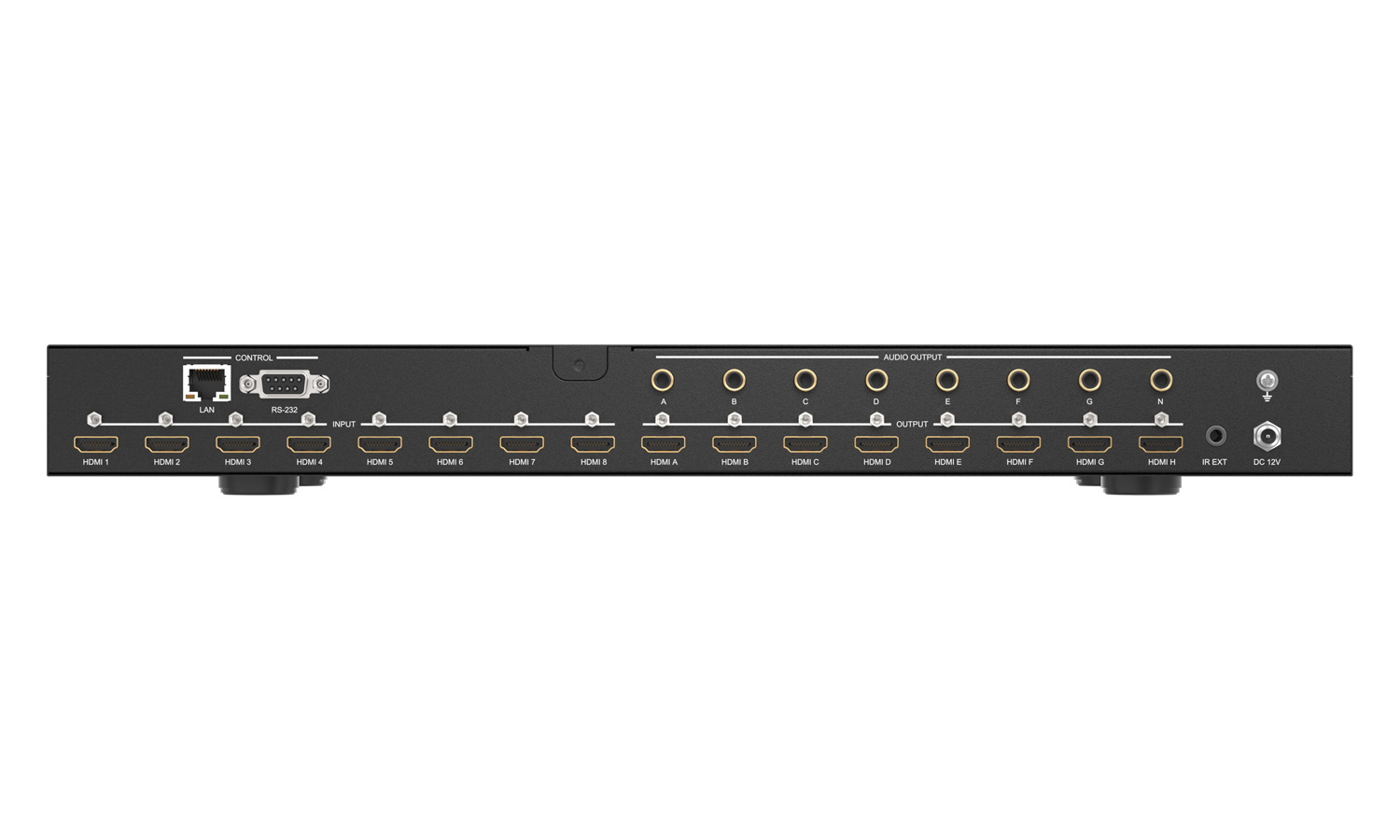

Inputs	8x HDMI Type A [19-pin female] 1x LAN [RJ45, Control] 1x RS-232 [9-pin D-sub, Control] 1x IR EXT [3.5mm Stereo Mini-jack]
Outputs	8x HDMI Type A [19-pin female] 8x Coaxial Audio [RCA]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	19.0" (W) x 10.0" (D) x 1.8" (H) [483mm (W) x 253mm (D) x 44.5mm (H)]
Weight	7.39lbs [3.35kg]
Power Supply	Input: AC100~240V 50/60Hz, Output: DC12V/3A (US/EU standards, CE/FCC/UL certified)
Power Consumption	26.5W (max)
Operating Temperature	32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature	-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity	20~90% RH (non-condensing)
