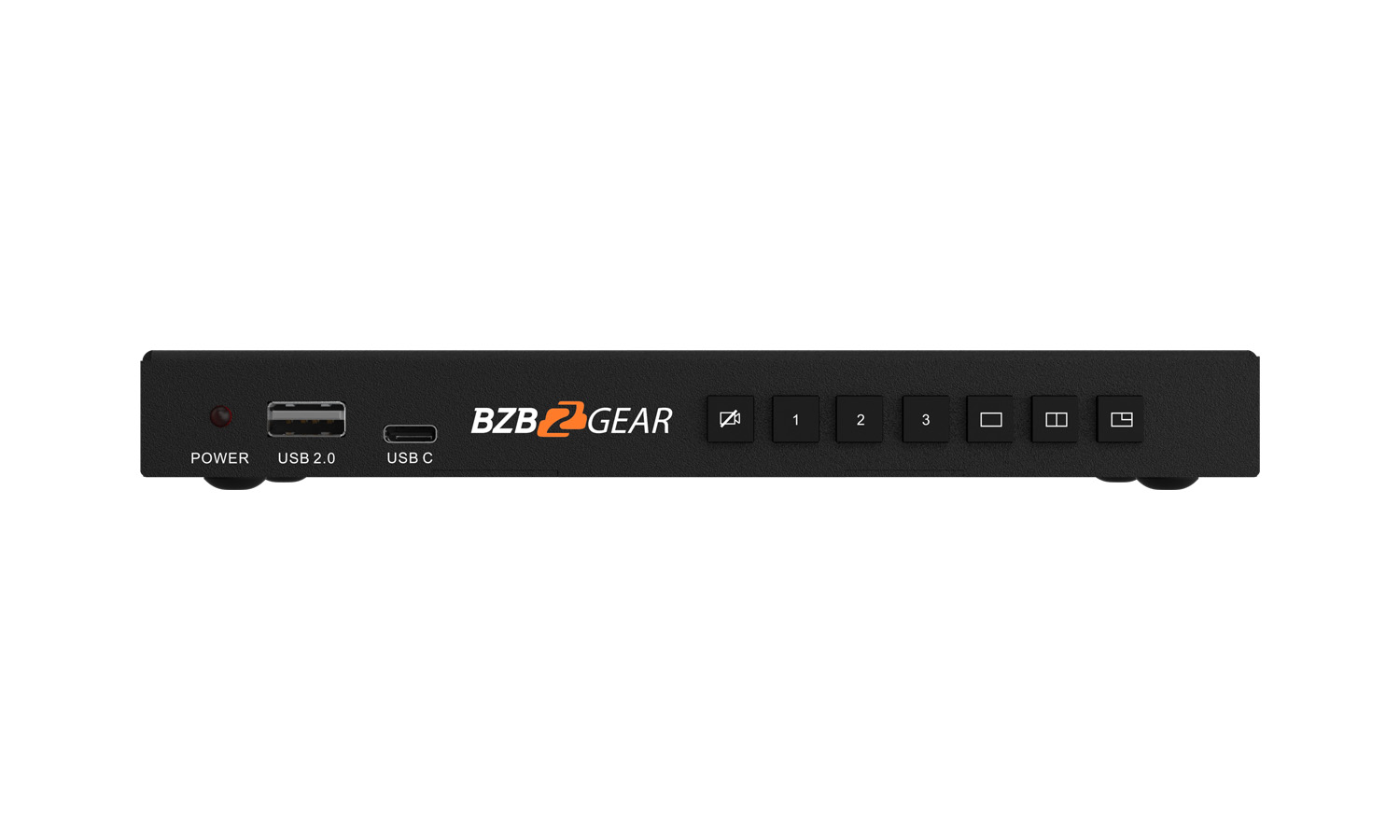

BZBGEAR BG-UHM 3-Port 4K UHD USB/HDMI Camera Video Selector and Mixer

Description

The BG-UHM USB/HDMI Video Selector and Mixer is a versatile and feature-rich solution designed to meet the demands of modern video production environments. Engineered for seamless integration, this compact device allows users to connect, switch, and mix multiple video sources effortlessly, offering unparalleled flexibility and functionality in a single unit.

The BG-UHM supports up to three video sources, including USB 3.0, USB 2.0, and HDMI inputs, enabling users to integrate diverse devices like webcams, laptops, and document cameras. With its customizable video mixing options, the BG-UHM delivers professional-quality results, allowing users to create unique layouts such as Picture-in-Picture (PiP), side-by-side, and big and small overlays. These layouts can be easily configured through a user-friendly web interface, making the device suitable for both novice and experienced users.

Features

Multi-Source Connectivity – 1x USB 3.0, 1x USB 2.0, 1x HDMI 1.4
Customizable Video Mixing – Blend up to two input sources into a single output with layouts such as Picture-in-Picture (PiP), side-by-side, and overlay options. Layouts are fully configurable via the intuitive web interface
Output Flexibility – 1x HDMI 2.0 output, 1x USB-C (UVC/UAC) output
Audio Management – Integrated audio mixing with inputs via HDMI, USB, and analog jacks. Mute video/audio streams as needed for precise control over live broadcasts
Advanced Control Options – Manage the device via LAN, RS-232, or the web-based GUI for ultimate flexibility
PoE Support – Power the device via PoE (802.3af), reducing cable clutter and simplifying installation

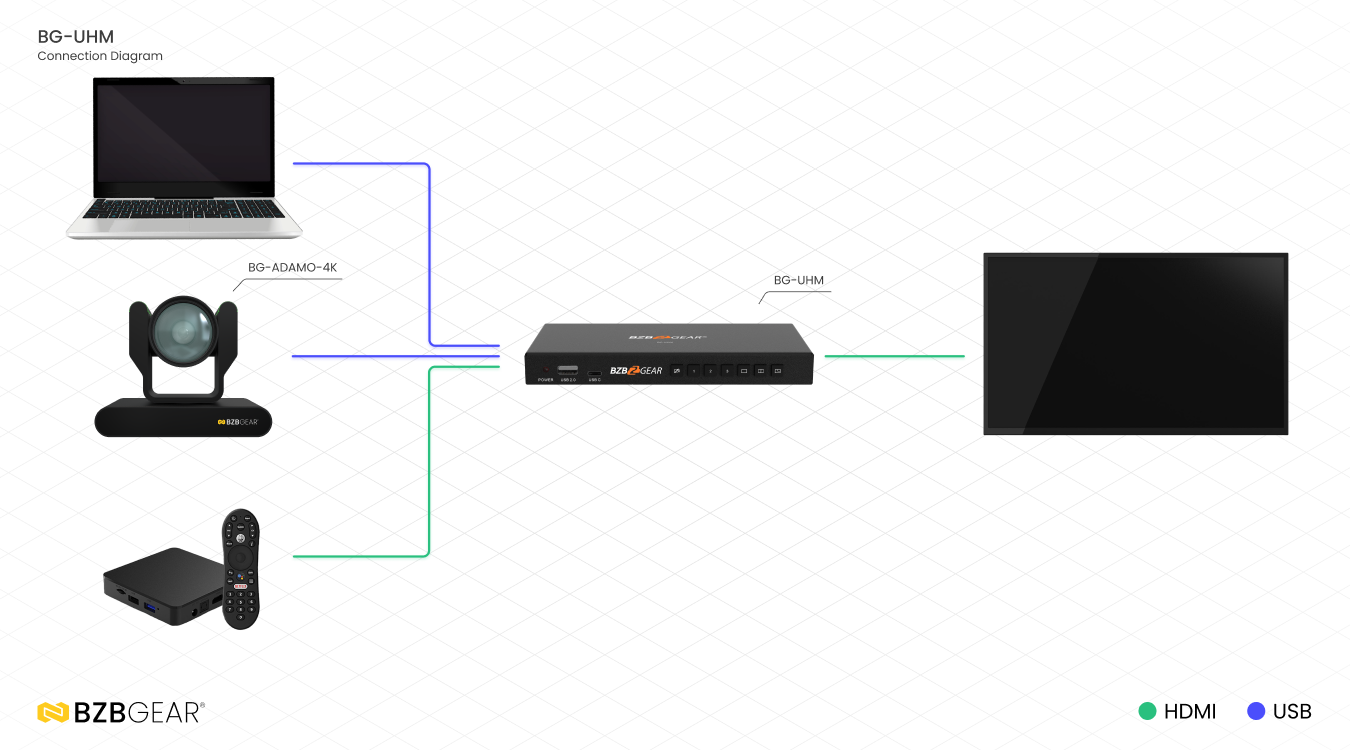

Product Diagrams

View Diagrams

Specifications

Technical Specifications
Output
HDMI Output	1x HDMI 19-pin female connector
Format Compliance	HDMI 1.4 / HDMI 2.0
HDCP	HDCP 1.4 / HDCP 2.2
USB Interface	Type C x1, UVC, and UAC
Video Output Resolution	HDMI: 3840x2160@60Hz, 3840x2160@30Hz, 1920x1080@60Hz, 1280x720@60Hz Type C: 1920x1080@30Hz, 1280x720@30Hz, etc.
Analog Audio Output	HDMI, USB, Jack (analog input)
Input
HDMI Input	1x HDMI 19-pin female connector
Format Compliance	HDMI 1.4
HDCP	HDCP 1.4
USB Interface	Rear: USB 3.0, Type A x1; USB 2.0, Type A x1 Front: USB 2.0, Type A x1, Type C x1
Video Intput Resolution	HDMI: 1920x1080@60Hz, 1280x720@60Hz USB 3.0: 1920x1080@30Hz, 1280x720@30Hz etc. USB 2.0: 1920x1080@30Hz, 1280x720@30Hz etc.
Audio Input	HDMI, USB, Jack (analog input)
Control
Control Connectors	3.5mm Phoenix terminal / RS232 interface
LAN Port	RJ45 x1: 1000Mbps, POE option (802.3af)
Hardware Specifications
Control Method	Web GUI, Telnet, RS232, Key
Dimension (W x D x H)	7in x 3.7in x 0.7in [180mm x 95mm x 18mm]
Weight	2.2 lbs [1kg]
Operating Temperature	32°F to 113°F / 0°C to +45°C
Storage Temperature	32°F to 140°F / 0°C to +60°C
Relative Humidity	20% ~ 85% RH（no condensation)
DC Power	12V
Power Consumption	15W(MAX)
Power Adapter	AC100~240V 50/60Hz, 12V/1.5A
