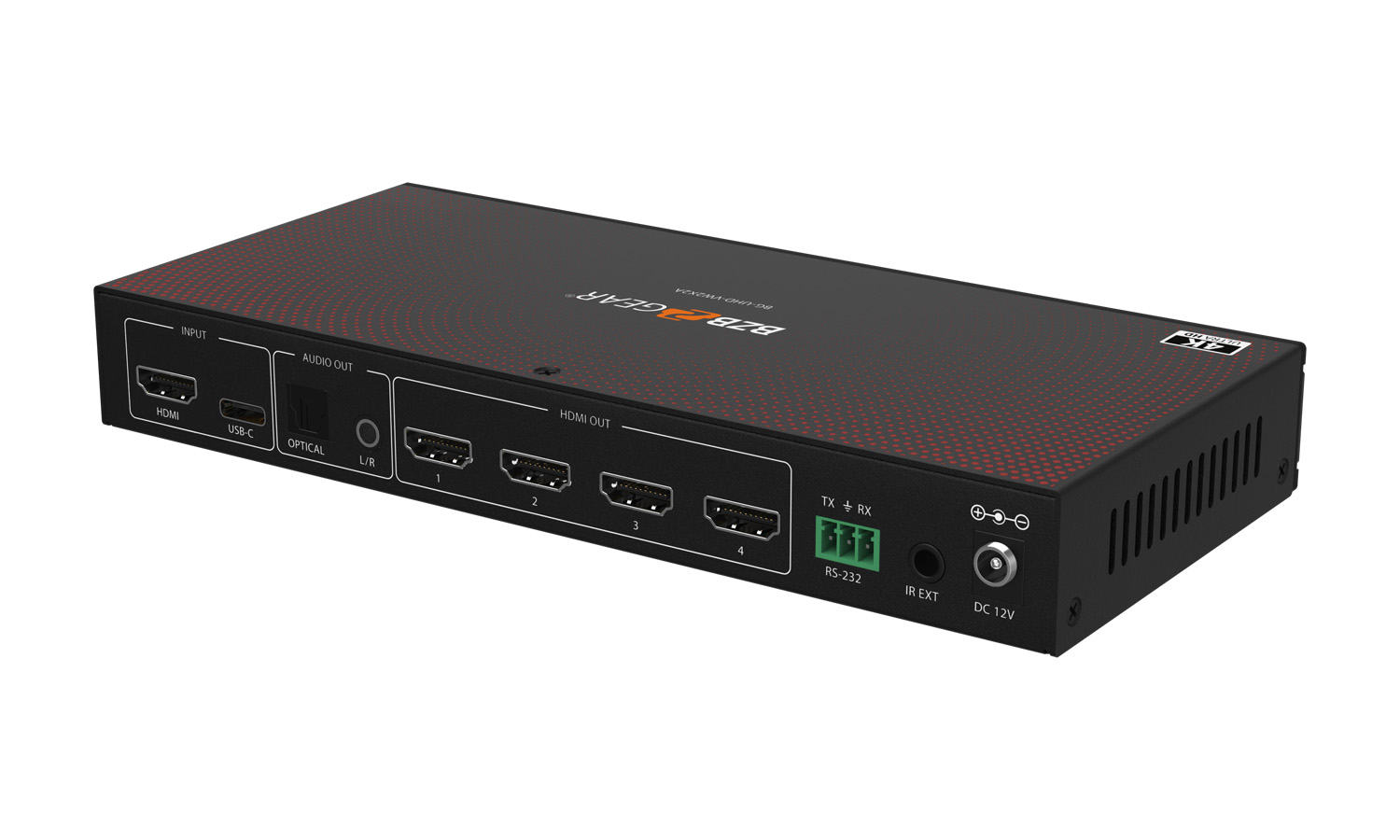

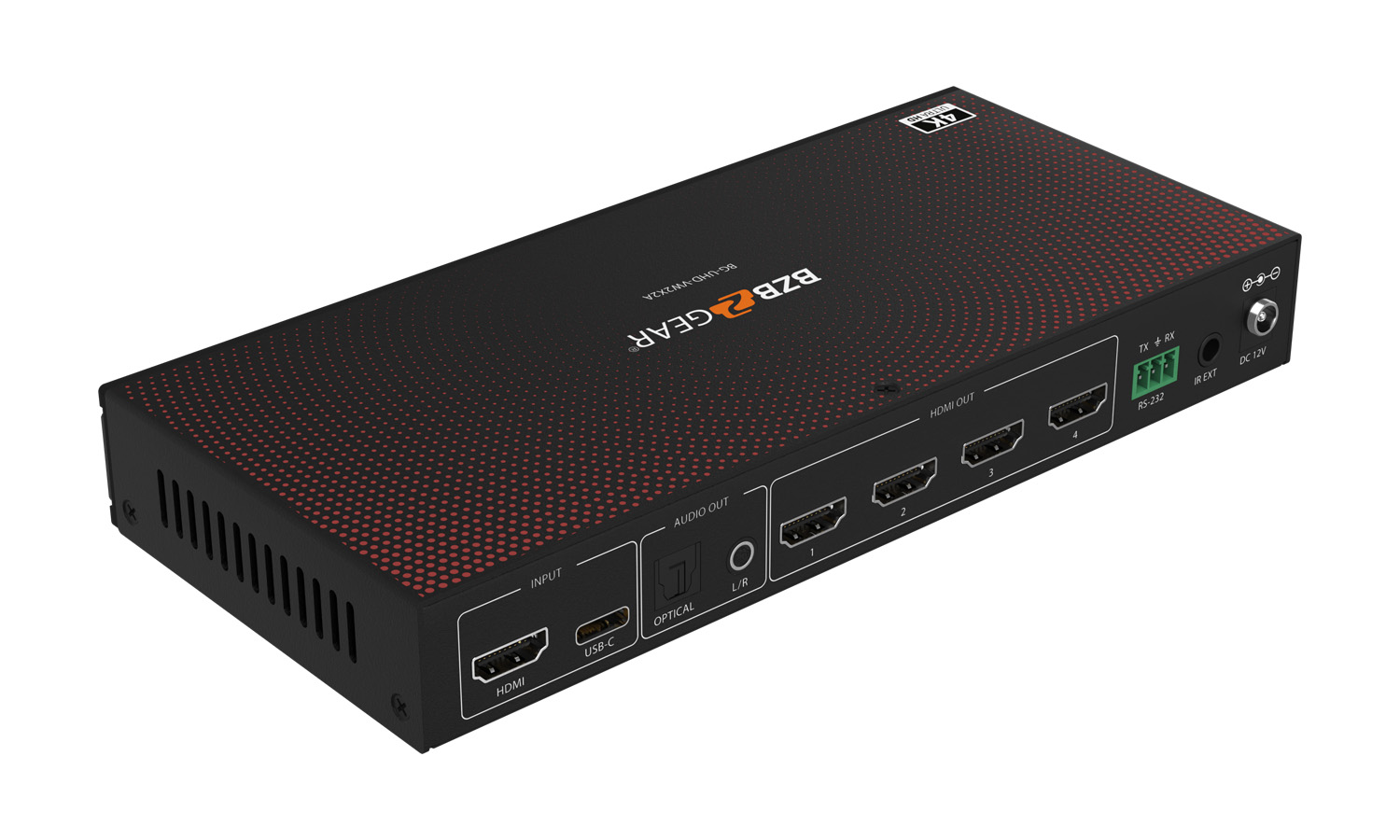

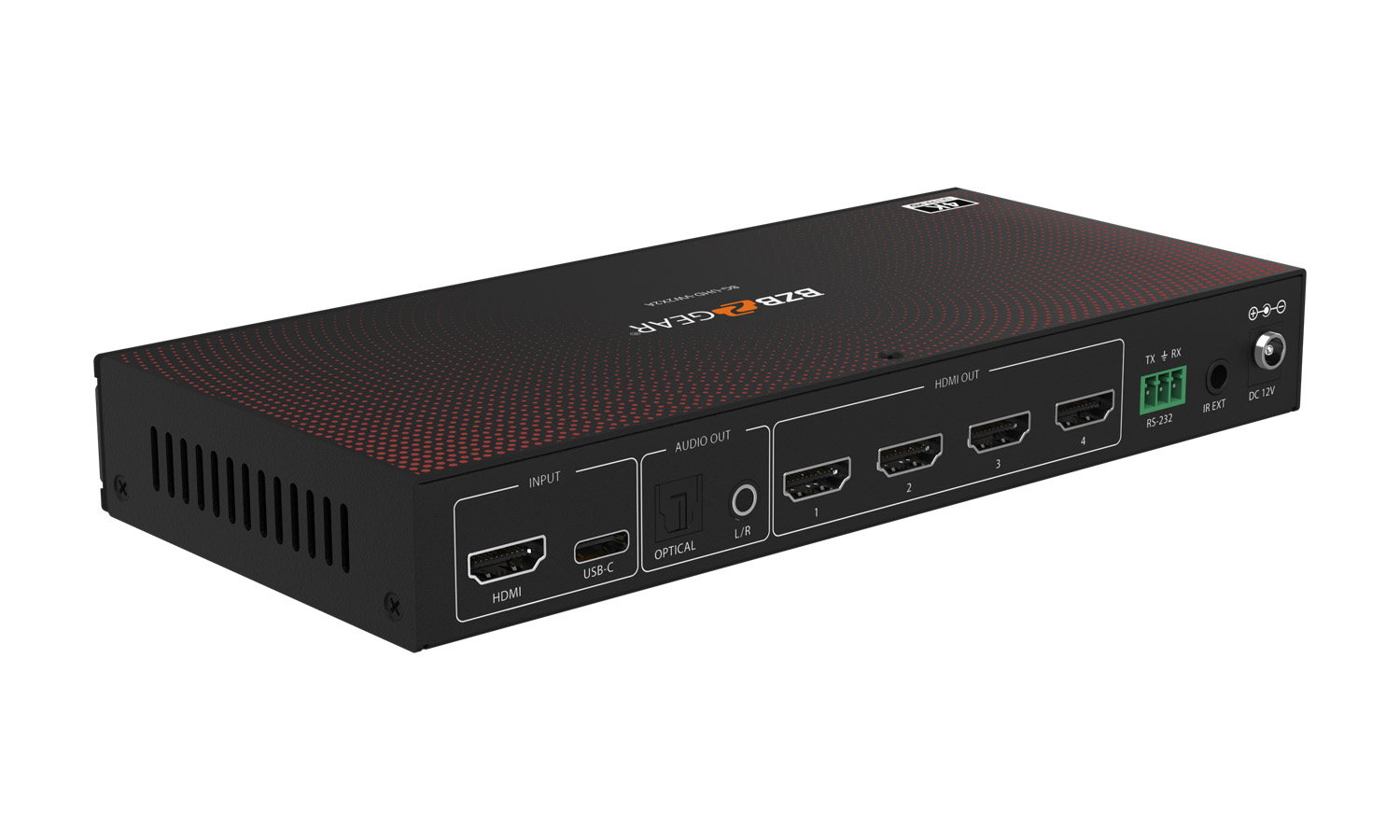

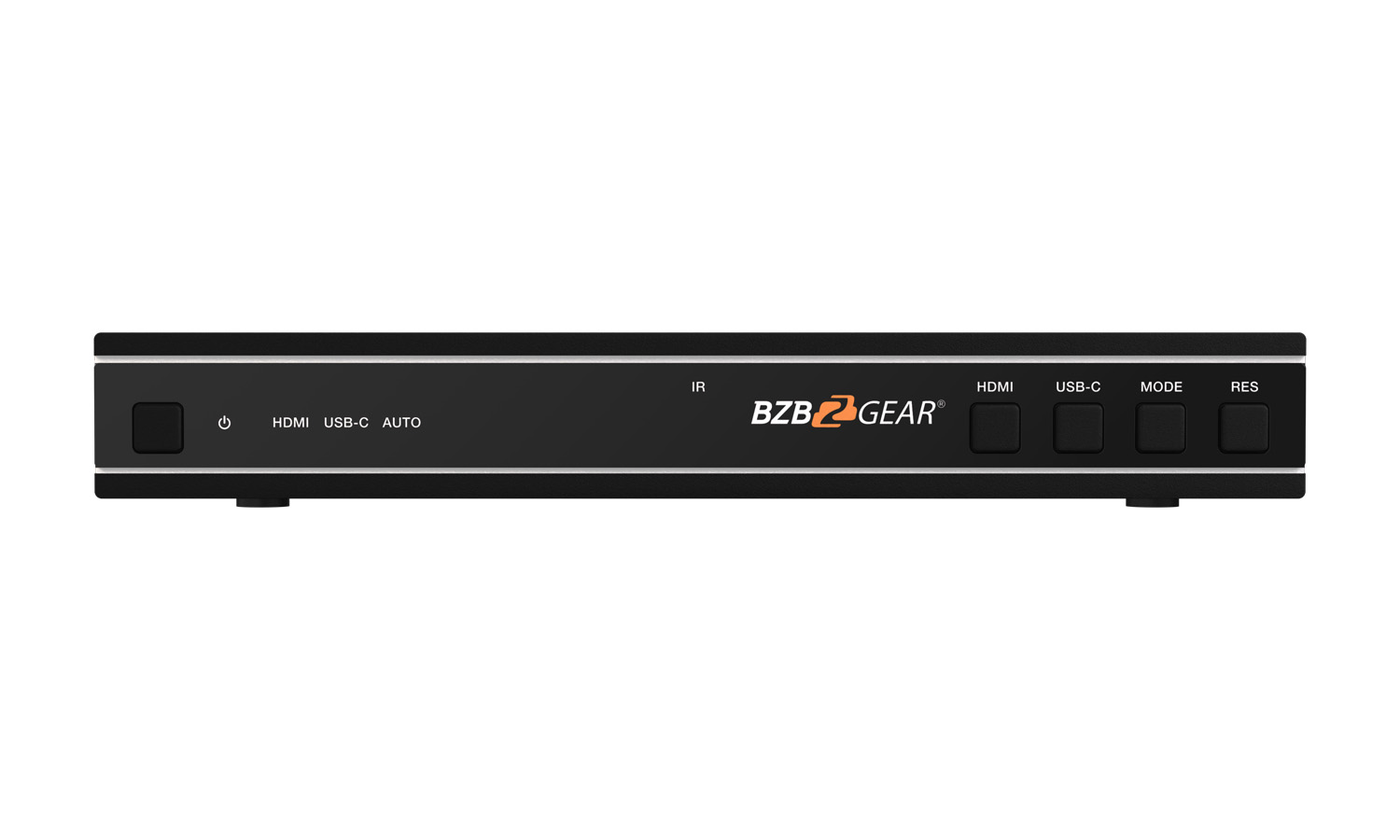

BZBGEAR BG-UHD-VW2X2A 2x2 4K UHD HDMI/USB-C Switcher and Video Wall Controller with Audio De-embedding

Description

The BG-UHD-VW2x2A 18Gbps 1×4 Video Wall Controller is a versatile and powerful solution for creating stunning video wall displays. Designed to capture, convert, route, and distribute all-format signals to video walls with true digital signal transmission, this controller supports HDMI and USB-C inputs with resolutions up to 4K@60Hz 4:4:4, and provides four HDMI outputs. It supports multiple video wall modes and includes optical audio and L/R analog audio de-embedding outputs. Operation is simple and convenient via front panel buttons, an IR remote, and RS-232 commands.

Features

Video Standard Compliant: Ensures compatibility with the latest high-definition video standards, including HDMI 2.0, HDCP 2.2, and DP 1.2a
High-Resolution Support: Accepts HDMI and USB-C inputs with resolutions up to 4K@60Hz 4:4:4 for crystal-clear image quality
Audio De-Embedding: Supports optical audio and L/R analog audio de-embedding outputs for enhanced audio flexibility
Plug and Play: Easy setup with no drivers or installation settings required, making it a hassle-free solution for any video wall application
Multiple Video Wall Modes: Supports 8 video wall splicing modes including 1×1, 2×1, 3×1, 4×1, 1×2, 1×3, 1×4, and 2×2 configurations

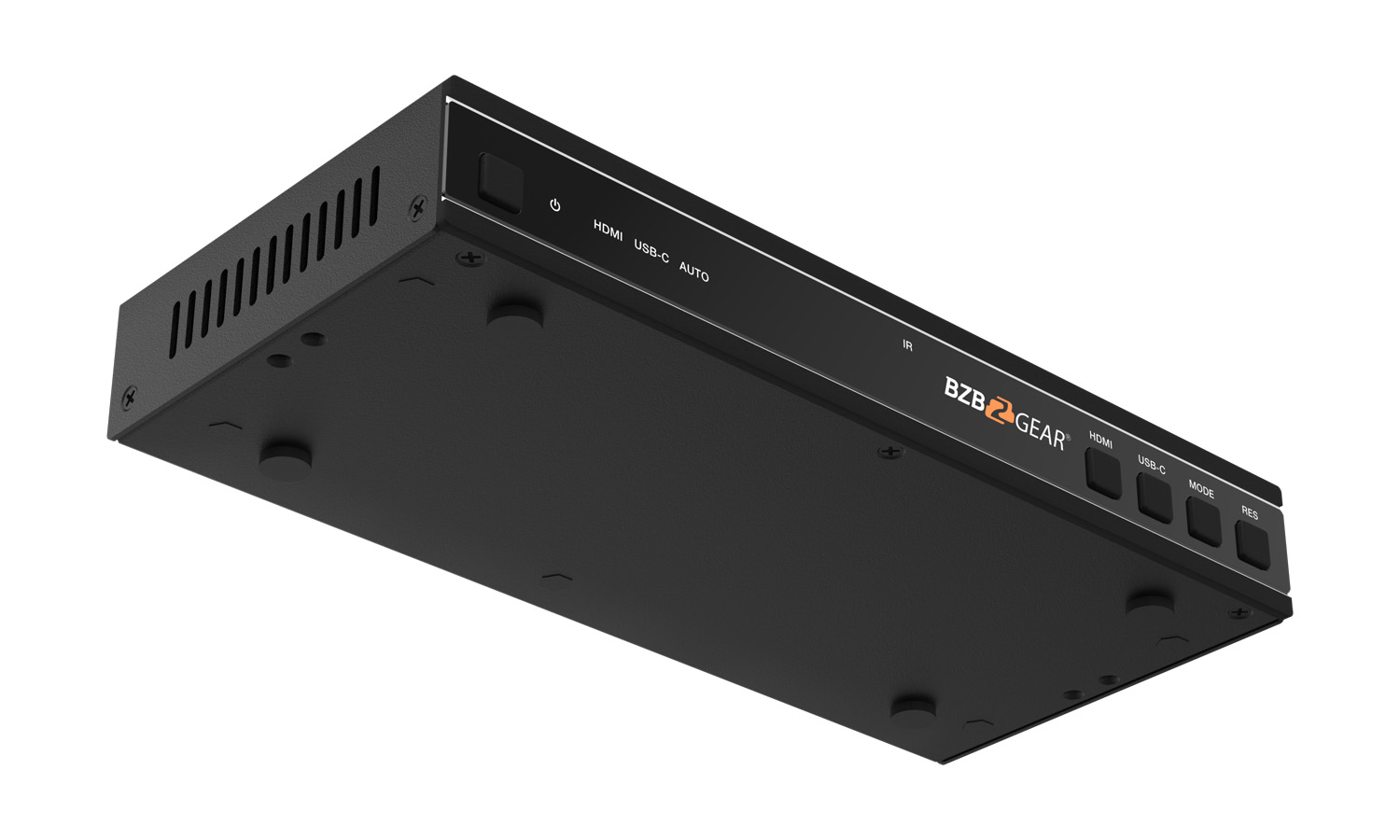

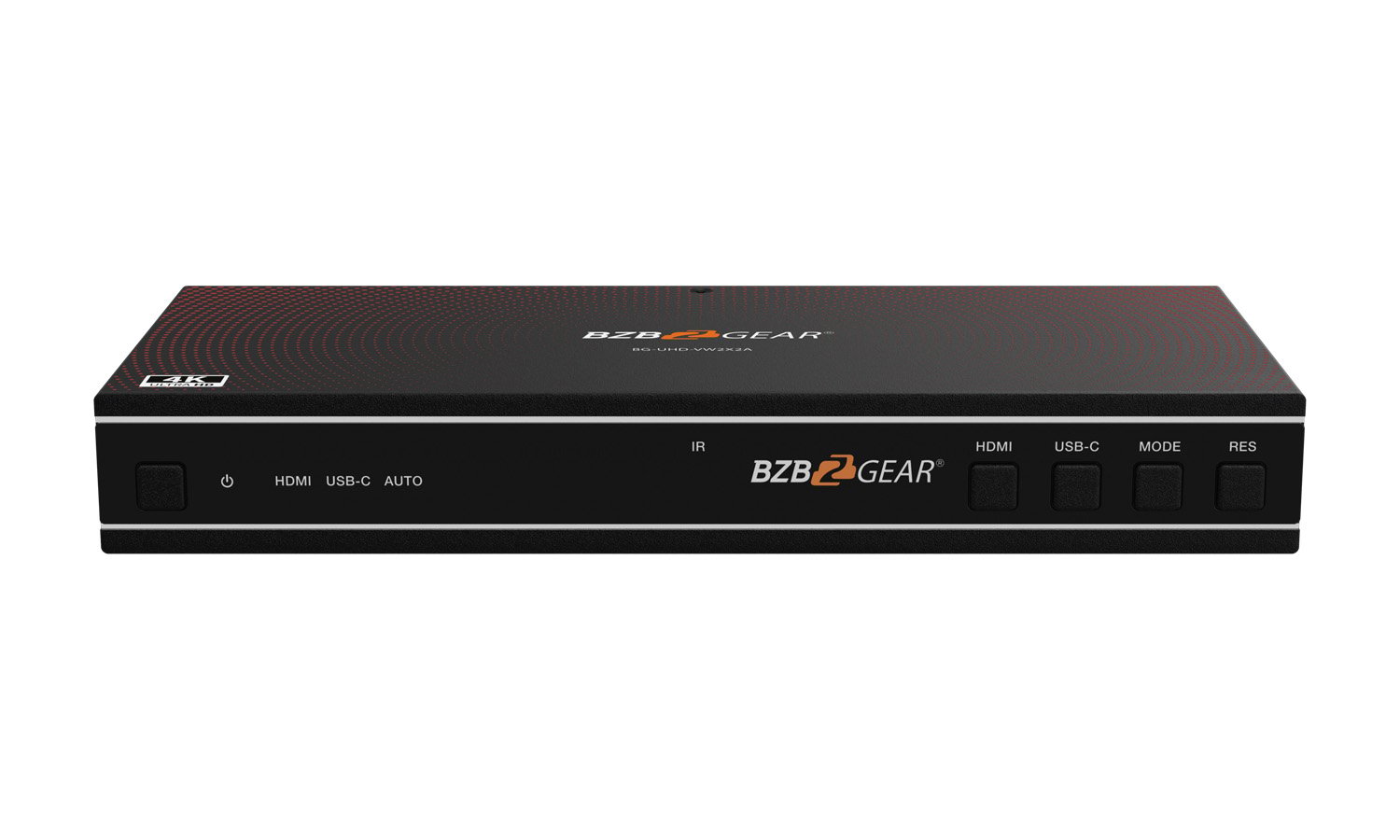

Flexible Control Options: Operate the controller via front panel buttons, an IR remote, and RS-232 commands for ultimate convenience
RS-232 commands for ultimate convenience
Image Rotation: Offers 180° image rotation for easy ceiling installations
Bezel Adjustment: Includes bezel adjustment features for seamless splicing edge alignment
Advanced EDID Management: Ensures optimal display settings and compatibility with various sources

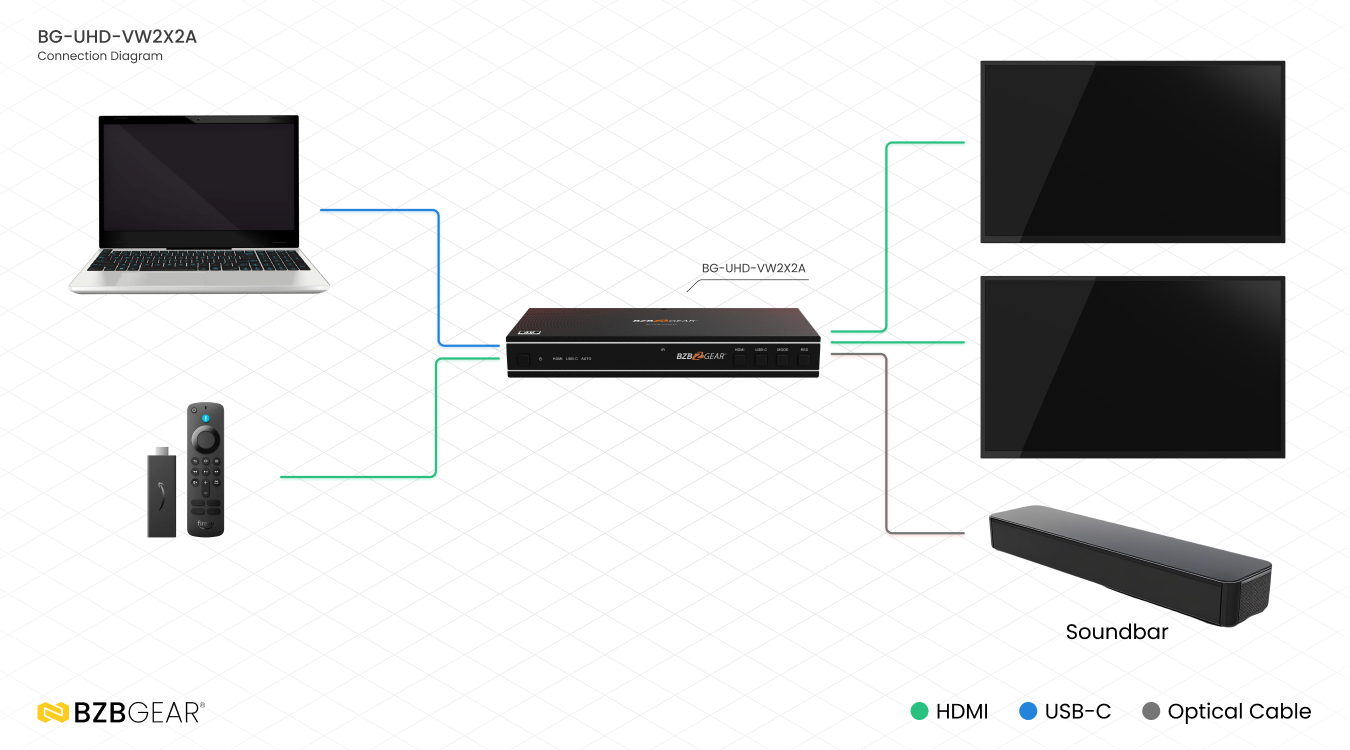

Product Diagrams

View Diagrams

Specifications

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	Input: up to 4K@60Hz 4:4:4 Output: 720P60Hz, 1080P60Hz, 4K30Hz, 1024x768P60Hz
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12 bit
IR Level	5Vp-p
IR Frequency	38KHz
Audio Formats	HDMI IN/OUT: LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24 L/R OUT: PCM 2.0 SPDIF(OPTICAL): Dolby Digital/plus, DTS 5.1, PCM 2.0
Audio Latency	No Latency
Video Latency	No Latency
ESD Protection	Human body model – ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

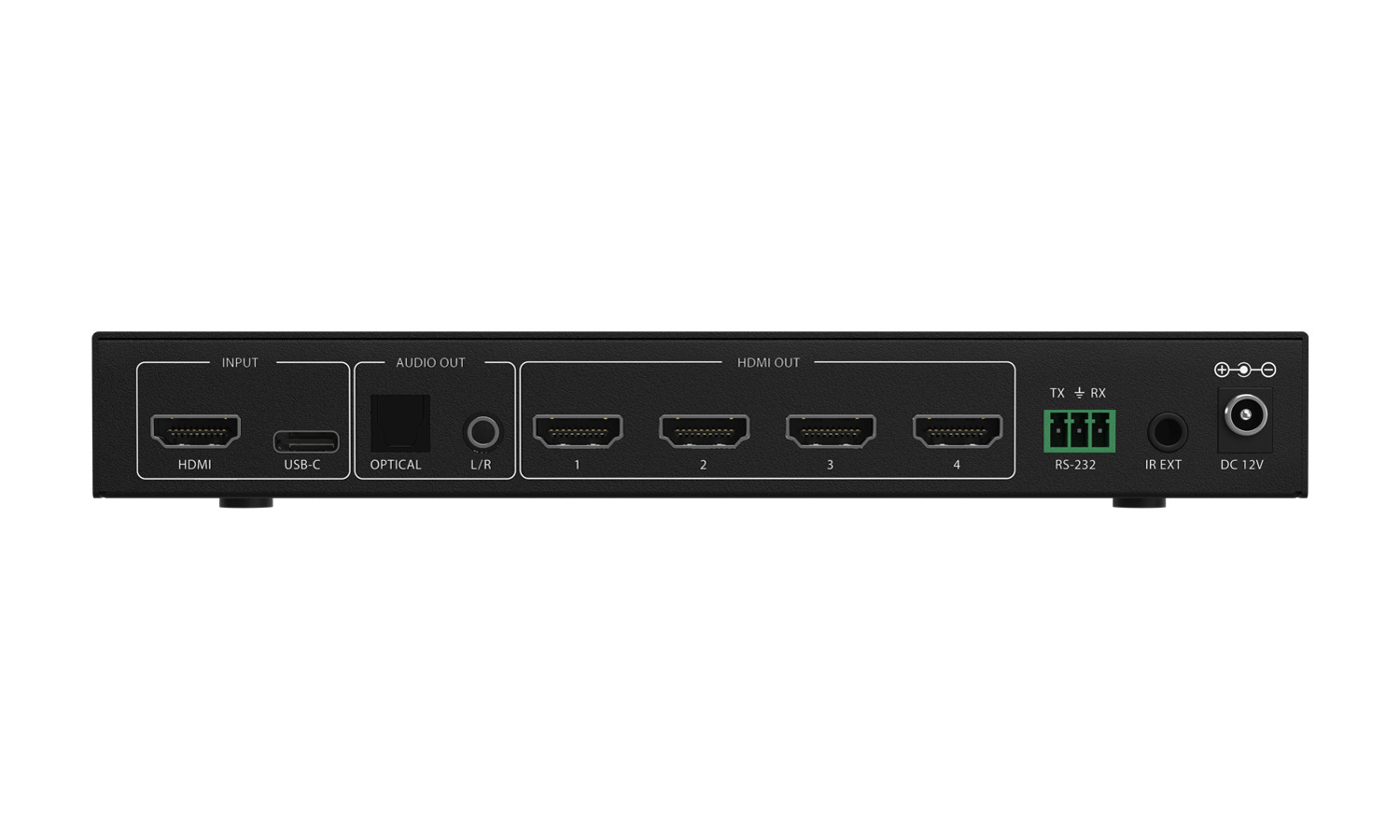

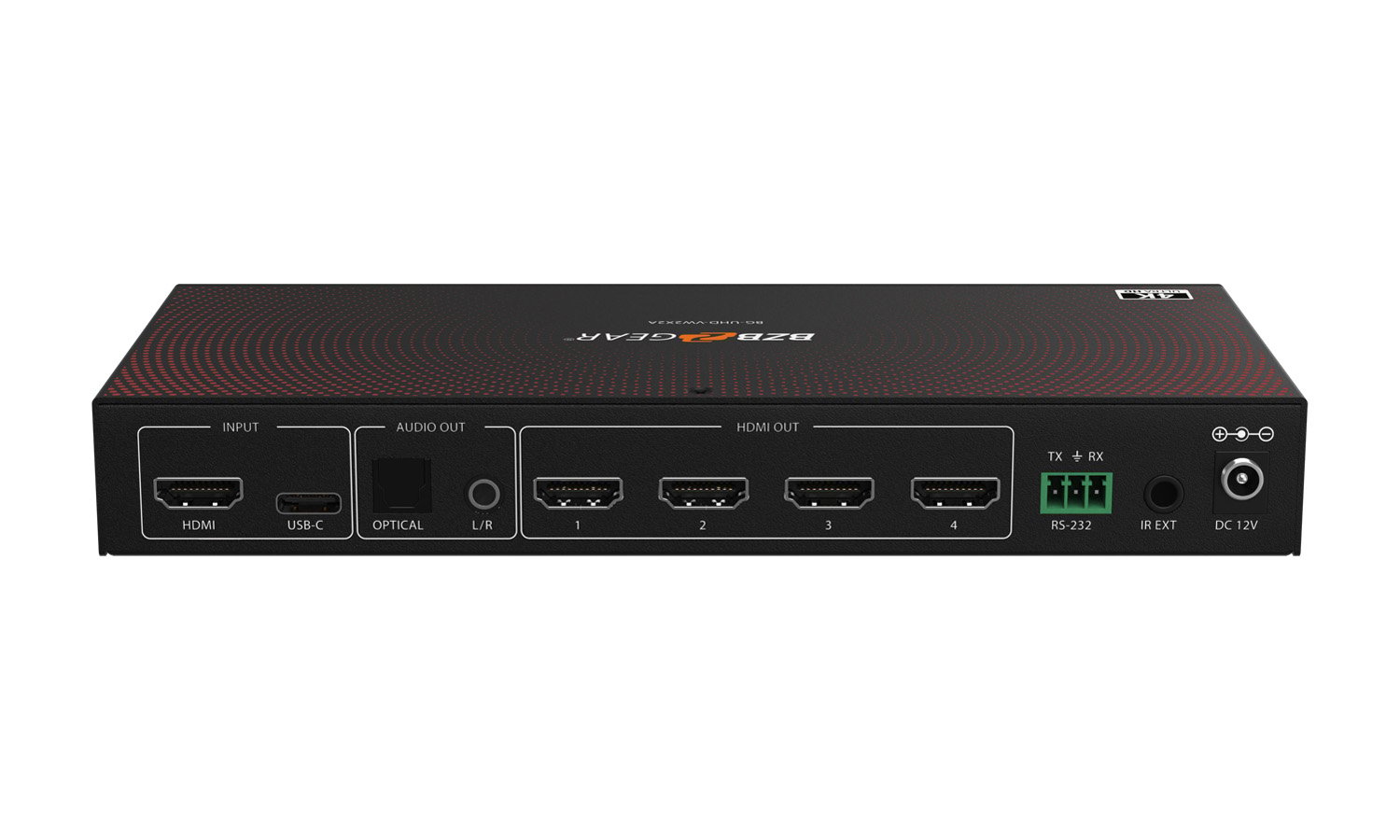

Connection
Input ports	1 x HDMI INPUT [Type A, 19-pin female] 1 x USB-C INPUT [Type C, 24-pin female]
Output ports	4 x HDMI OUTPUT [Type A, 19-pin female] 1 x OPTICAL AUDIO OUT [S/PDIF] 1 x L/R AUDIO OUT [RCA]
Control ports	1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm, Stereo Mini-jack]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions (W x D x H)	8.7in x 3.9in x 1.2in [220mm x 100mm x 30mm]
Weight	1.3 lbs [590g]
Power Supply	Input: AC 100-240V 50/60Hz, Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption	5.5W (Max)
Operating Temperature	32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature	-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity	20 - 90% RH (no-condensing)
Video Resolution	4K60	4K24	1080P60
HDMI Cable Length (HDMI IN / OUT)	8m/26ft	10m/32ft	15m/49ft
The use of “Premium High Speed HDMI” cable is highly recommended.
