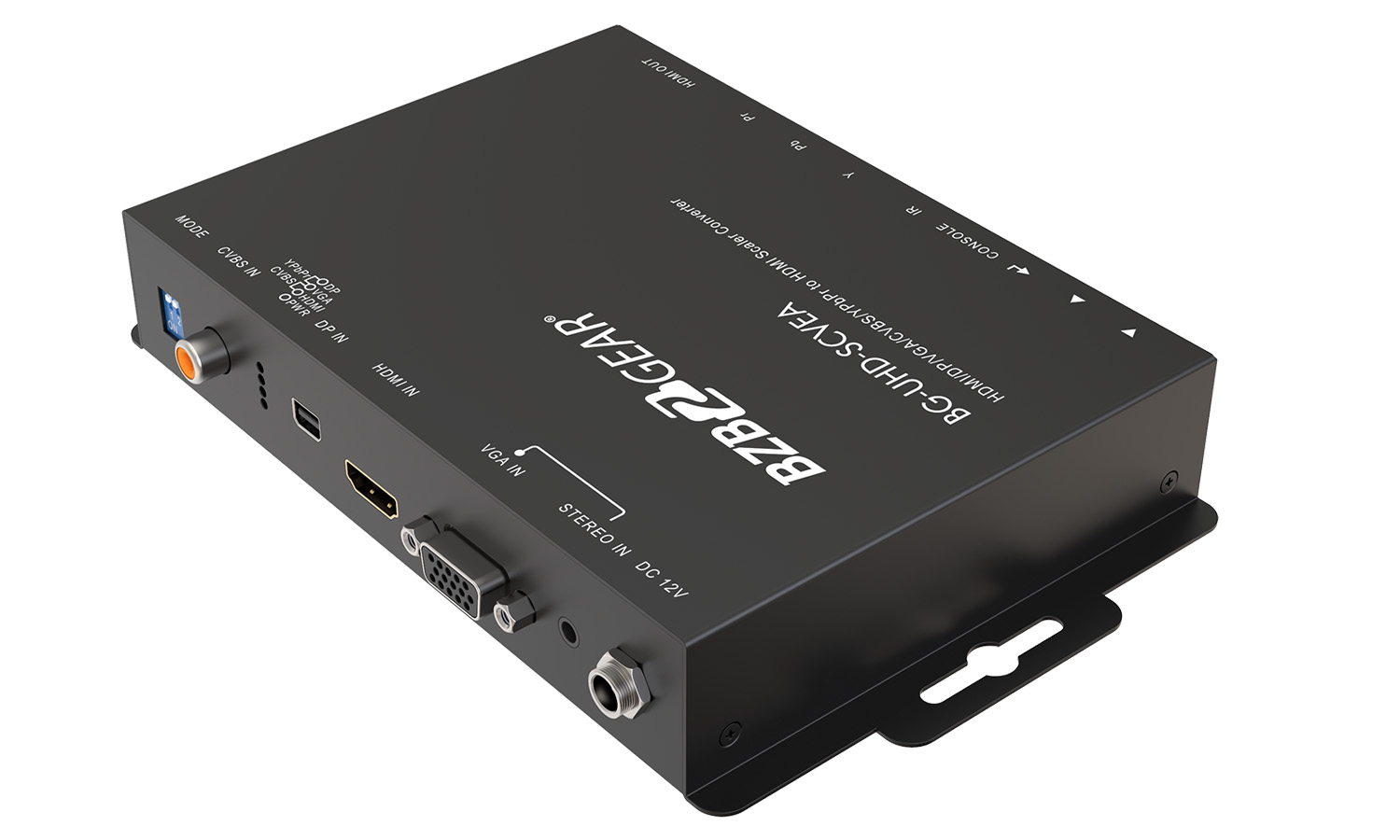

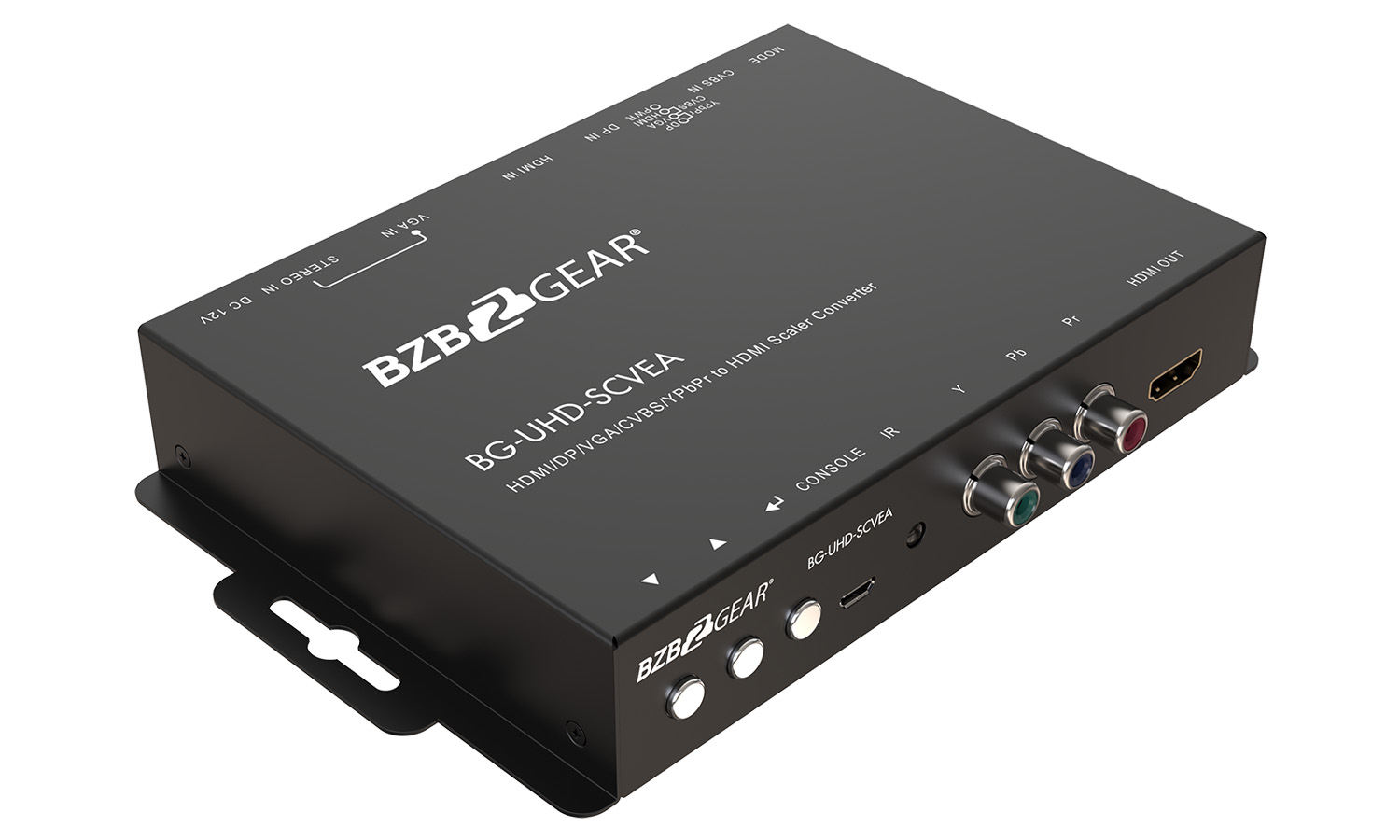

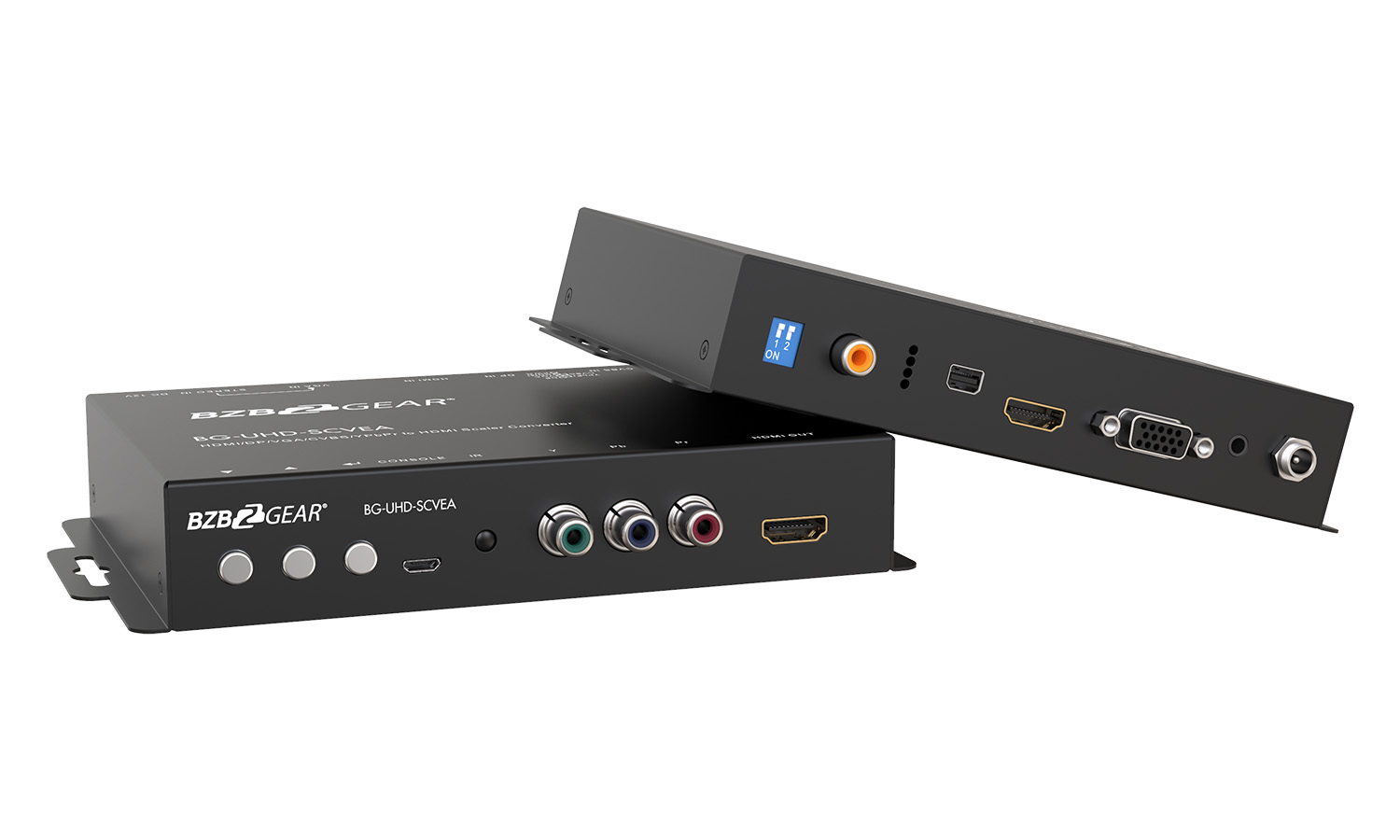

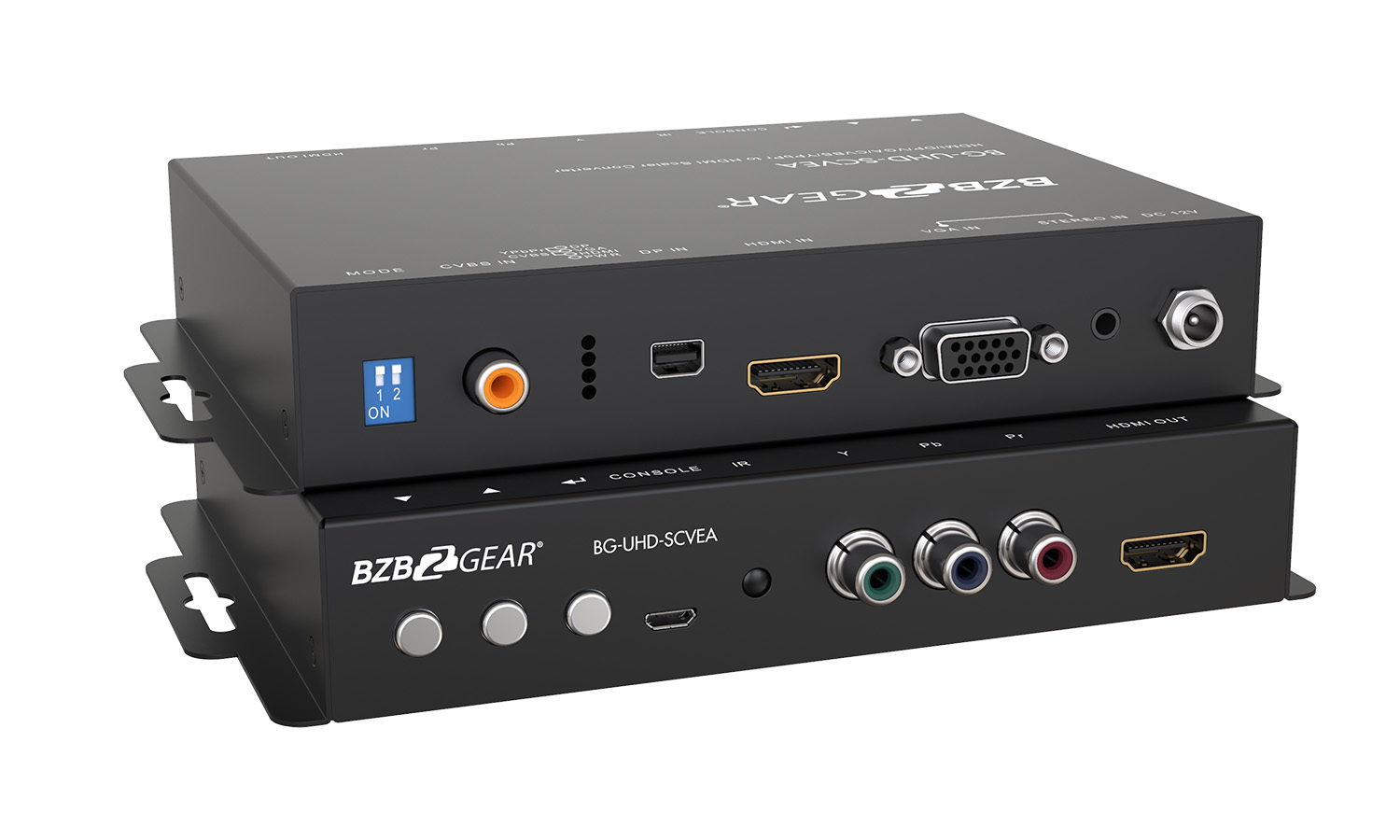

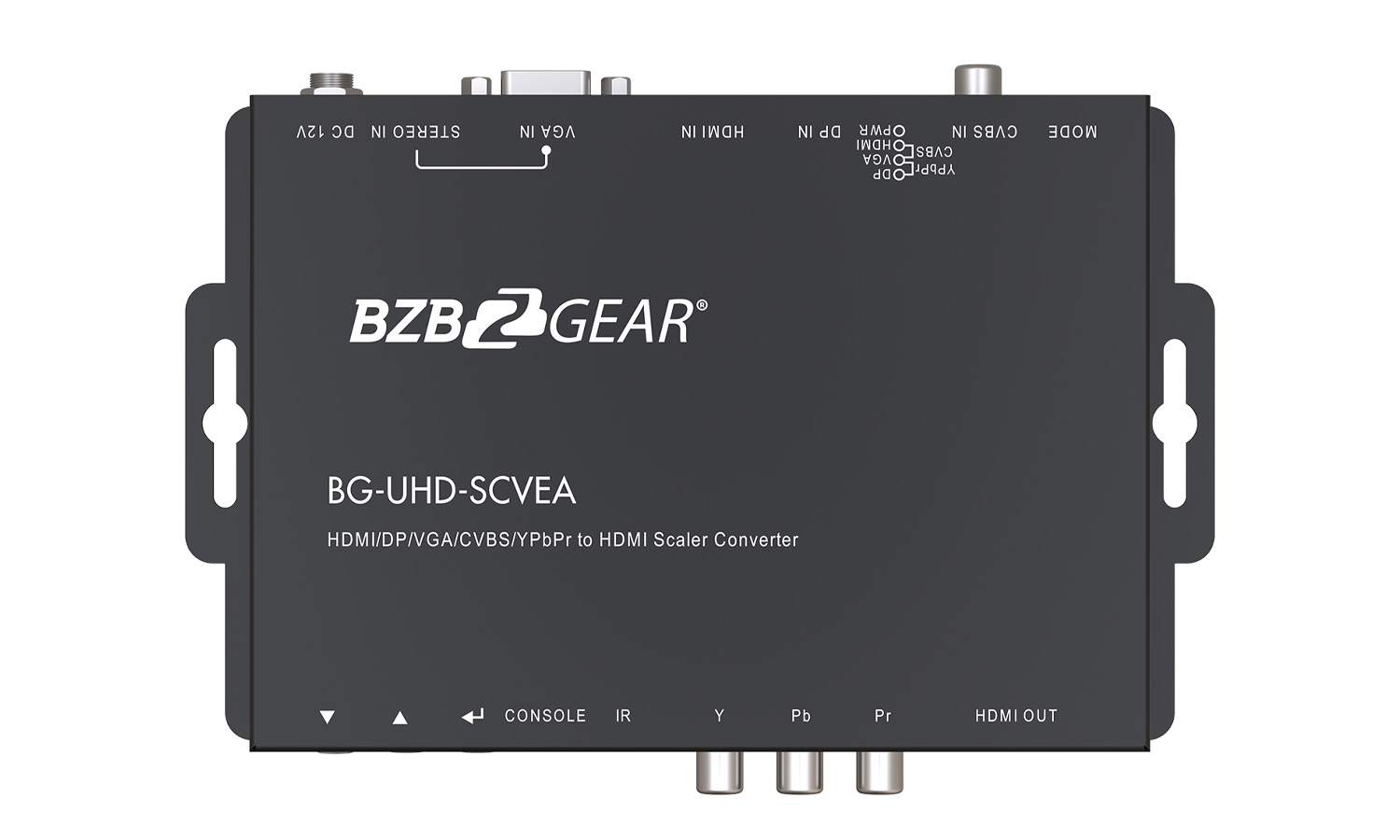

BG-UHD-SCVEA HDMI/DP/VGA/CVBS/YPbPr to HDMI Scaler Converter Video enhancement W/Audio Embedding by BZBGEAR

Description

}

The BG-UHD-SCVEA is a multi-format 4K UHD scaler converter. This unit is designed to scale and convert multiple analog and digital formats (HDMI/DP/VGA/CVBS/YPbPr) to support HDMI devices. This HDMI 1.4 / DP 1.1 compliant device supports output resolutions up 4K2K @ 30 4:4:4 with video bandwidth speeds up 10.2Gbps.

Embed analog audio to the HDMI output via the 3.5mm stereo input. Operate and adjust advanced settings including resolution outputs via the front panel push buttons, IR remote, or the provided control software.

With its versatile array of inputs, the BG-UHD-SCVEA is the perfect solution for users looking to convert legacy media formats for use in a modern A/V system.

TAA COMPLIANT PRODUCT. This product meets the standards of the Trade Agreement Act (TAA).

4K Support:
Crystal clear images with resolutions up to 4K2K @ 30Hz 4:4:4

Multiple Control Options:

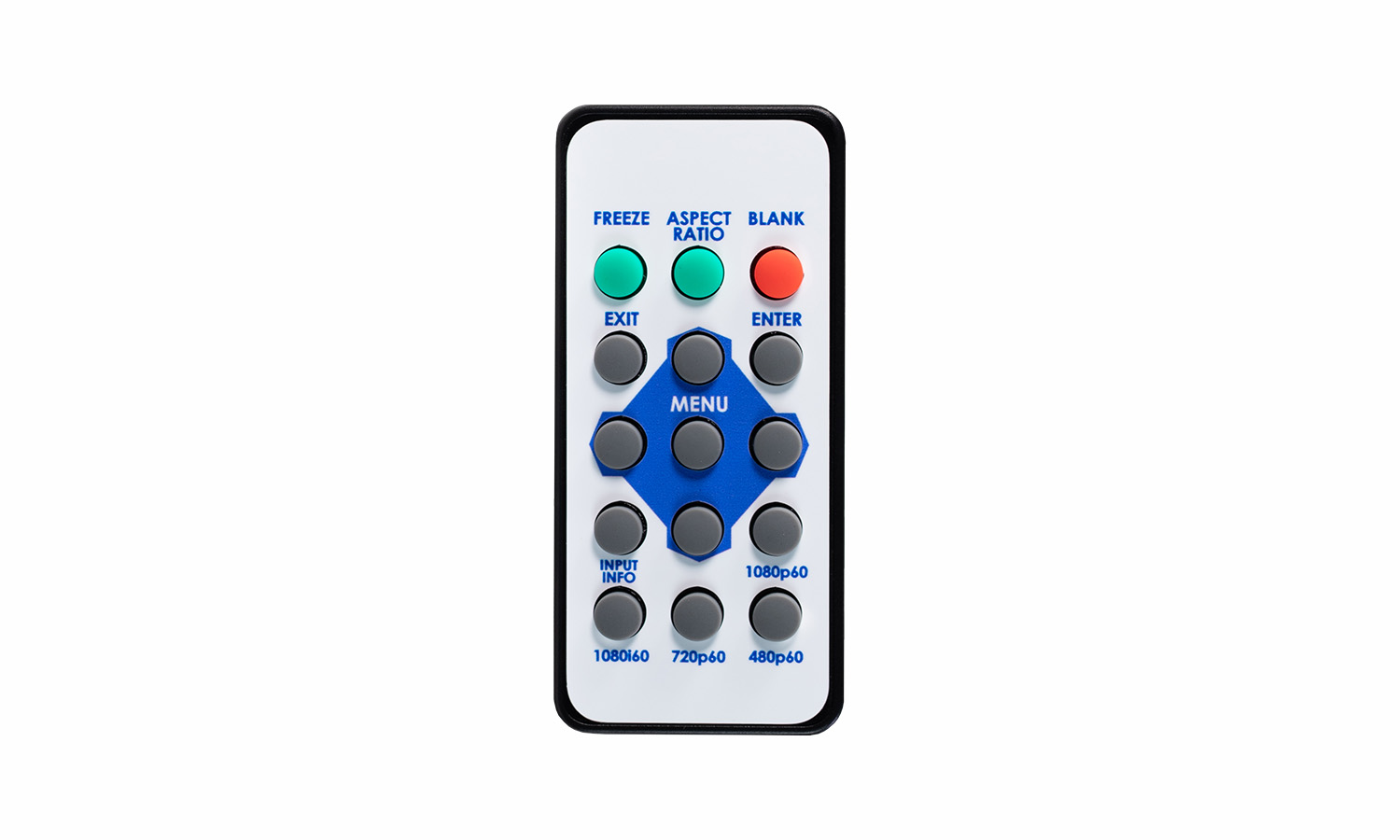

Use the front panel push buttons, IR remote, or control software

Easy to Use:
Simple for anyone to learn

Portable:
Ideal for any on-the-go kit

Rigid Design:
Durable metal structure built to withstand years of operation

Audio Embedding:
Embed audio using the 3.5mm stereo input

Supports Input HDMI 1.4/ DP 1.1/ VGA/ CVBS/ YPbPr
Input maximum pixel rate: 165MHz
Supports multiple VESA resolutions
De-interlacing supported
Supports video enhancement features
Over / under scanning adjustable
Video H/V mirror supported
USB firmware upgradable for expanding compatibility
Wall-mount housing design for easy installation

Interface

Video

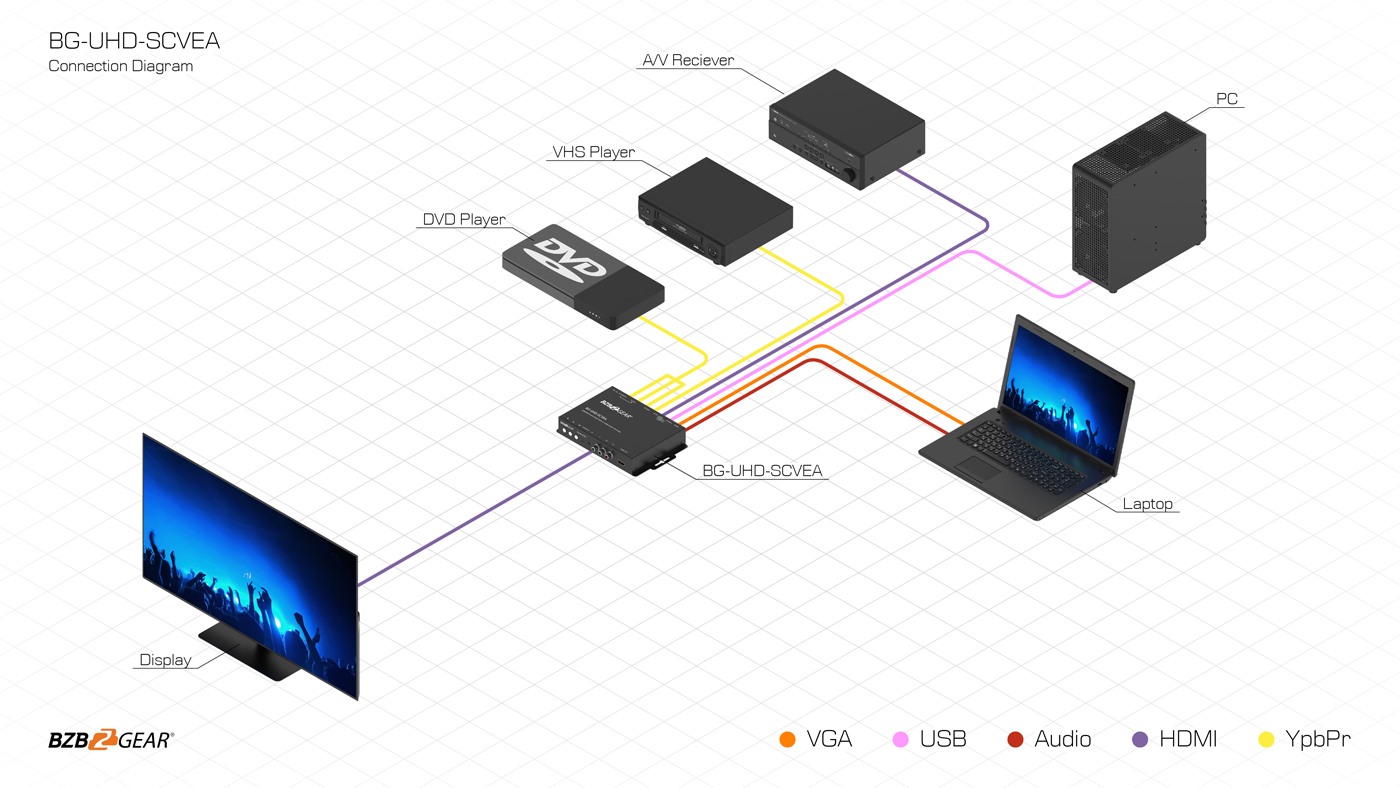

Product Diagrams

View Diagrams

Product Video

Specifications

Technical
Role of usage		HDMI/DP/VGA/CVBS/YPbPr to HDMI Converter
HDMI standards		HDMI 1.4
Input Video Maximum Pixel Rate		165MHz
Output Video bandwidth		10.2Gbps
Output Video support		up to 4K2K @ 30 4:4:4
Audio support		PCM 2 (32KHz - 192KHz Fs sample rate)
ESD protection		[1] Human body model ±19kV [air-gap discharge] & ±12kV [contact discharge) [2] Core chipset ±2kV
PCB stack-up		4-layer board [impedance control -differential 100Ω; single 50Ω)
Firmware update		Feasible via USB Port
CEC Channel		N/A

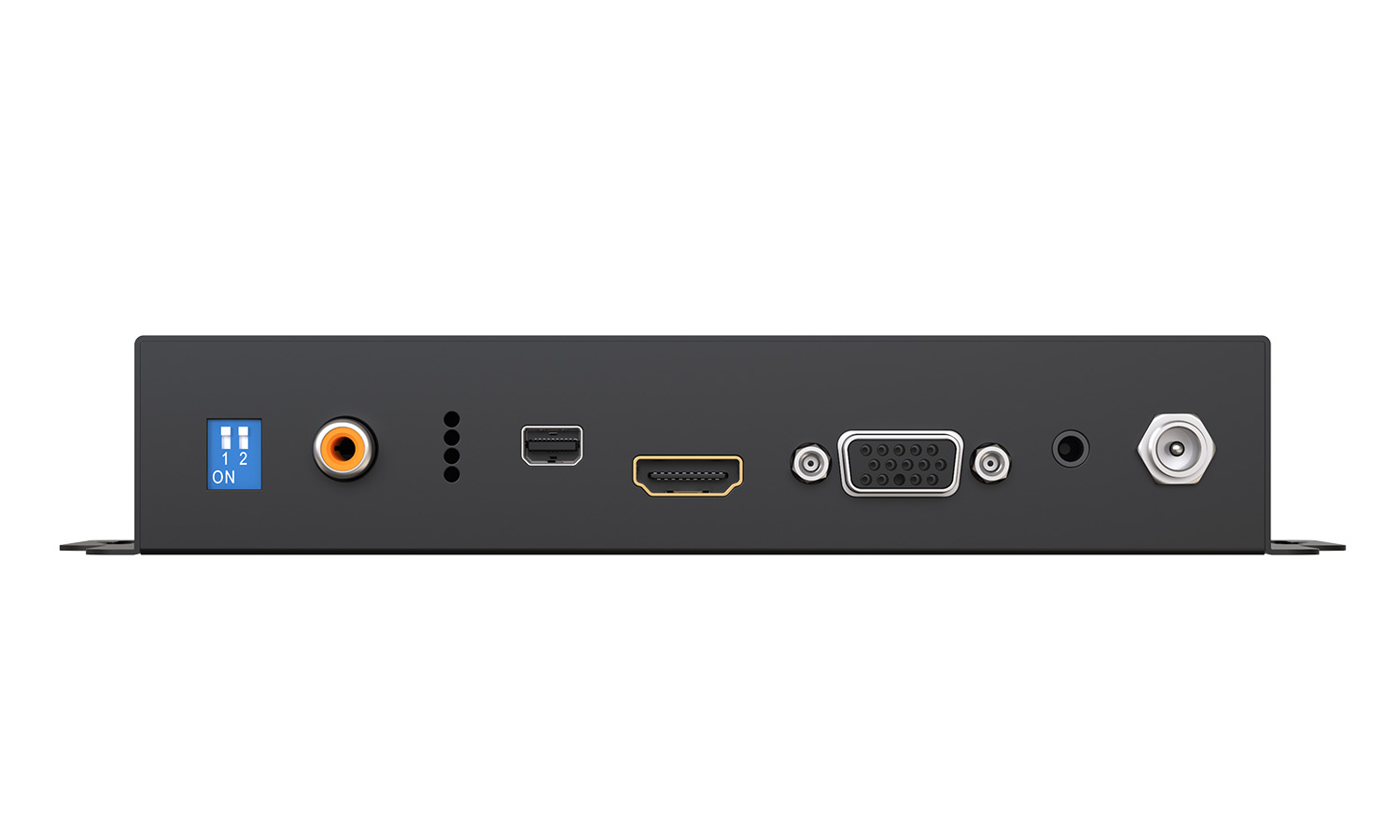

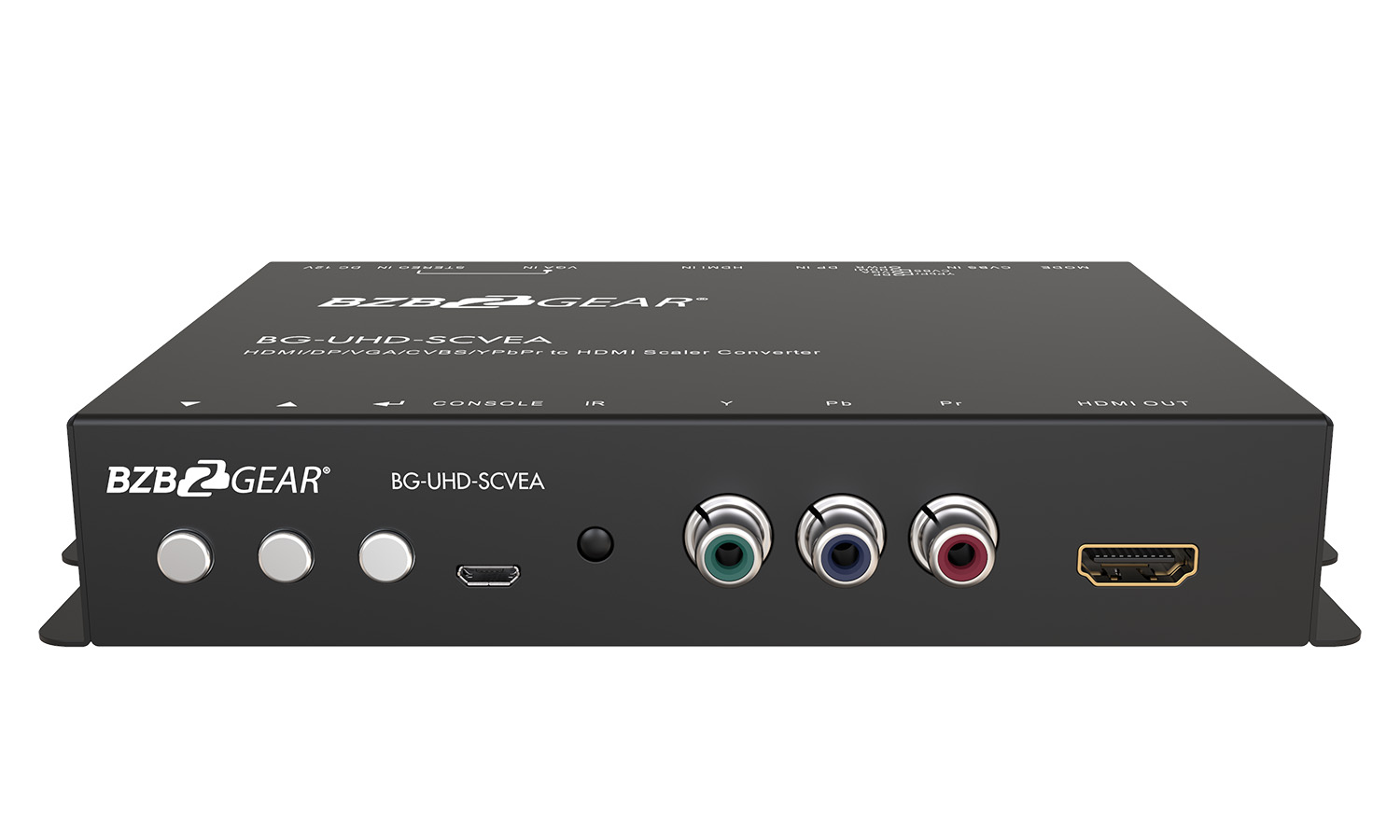

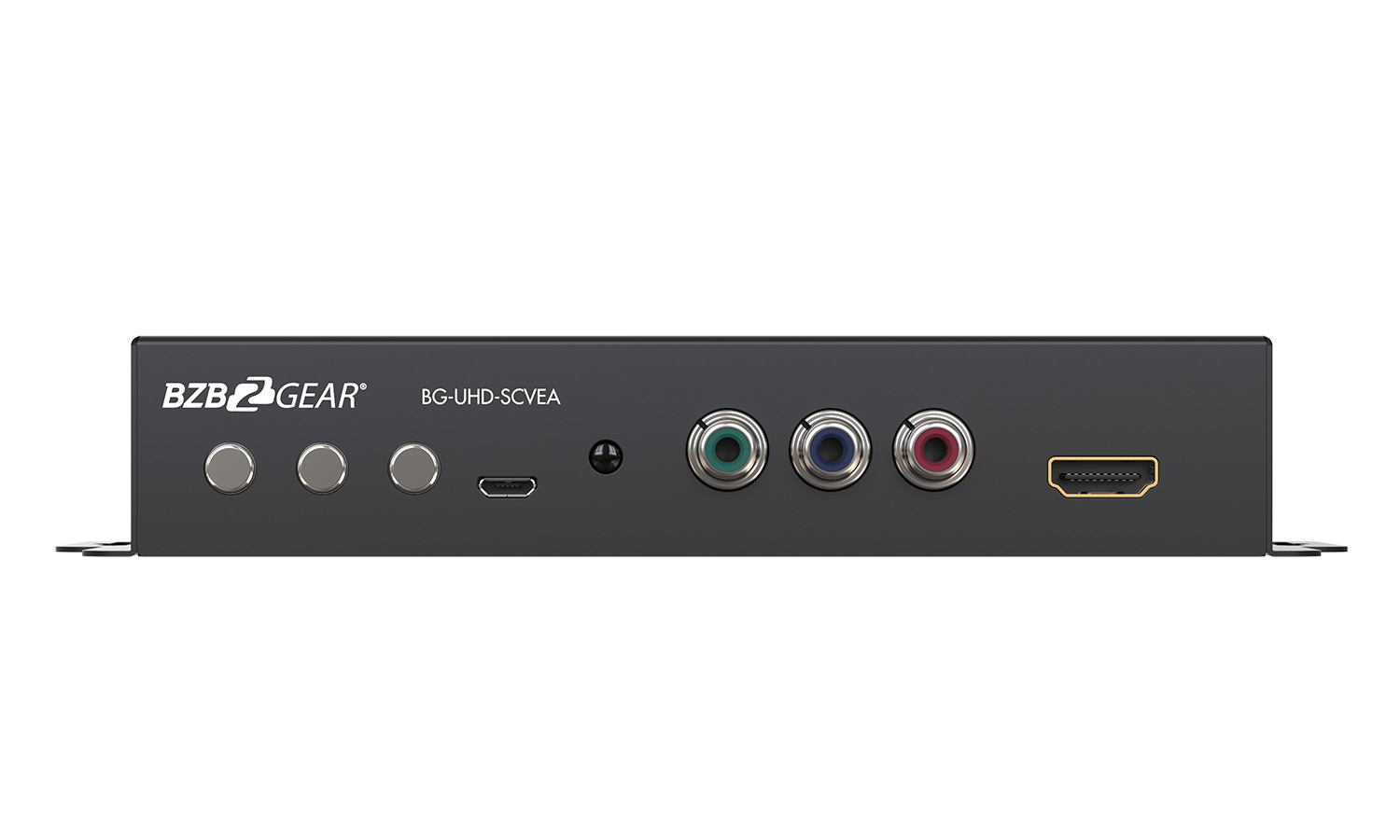

Input		1x HDMI + 1x VGA + 1x DP+1x RCA + 1x YPbPr + 1x stereo (for VGA)
Output		1x HDMI
HDMI connector		Type A [19-pin female)
USB connector		Micro USB
Housing		Metal enclosure
Dimensions (L x D x H)	Model	5.6" x 4.4" x 1" [144 x 113 x 30mm]
	Package	10.3" x 6.7" x 3" [264 x 170 x 77mm]
	Carton	1'4" x 1'2" x 11.5" [430 x 358 x 291mm]
Weight	Model	9.3 oz [264g]
	Package	1.6 lbs [724g]
Fixedness		Wall-mounting case with screws
Power supply		12V 2A DC
Power consumption		6 Watts (max)
Operation temperature		32~104°F / 0~40°C
Storage temperature		-4~140°F / -20~60°C
Relative humidity		20-90% RH (no condensation)

BG-UHD-SCVEA Supported Resolutions
Supported Input Resolution	Supported Output Resolutions
480p60Hz	640x480p60/72/75
480i60Hz	800x600/60/72/75
640x480p60/75Hz	1024x768p60/70/75
720x576p50Hz	1152p864p75
720x576i50Hz	1280x768p60/75
800x600p60/75Hz	1280x1024p60/75
1024x768p60/75Hz	1360x768p60
1280x720p29.97/30/50/59.94/60Hz	1366x768p60
1280x1024p60/75Hz	1440x900p60
1360x768p60	1600x1200p60
1366x768p60	1680x1050 RB
1440x900p60/75Hz	SD (480p) 60
1600x1200p60Hz	SD (576p) 50
1680x1050p60Hz	SD (480i) 60
1920x1080p23.97/24/25/29.97/30/50/59.94/60Hz	SD (576i) 50
1920X1080i50/59.94/60Hz	HD (720p) 60/59/50
1920x1200p60Hz	HD (1080i) 60/59/50
3840x2160p23/30/50/59/60	HD (1080p) 60/59/50/30/29/25/24/23
	3840x2160p30/29/25/24/23
	4096x2160p30/29/25
